SW05000207

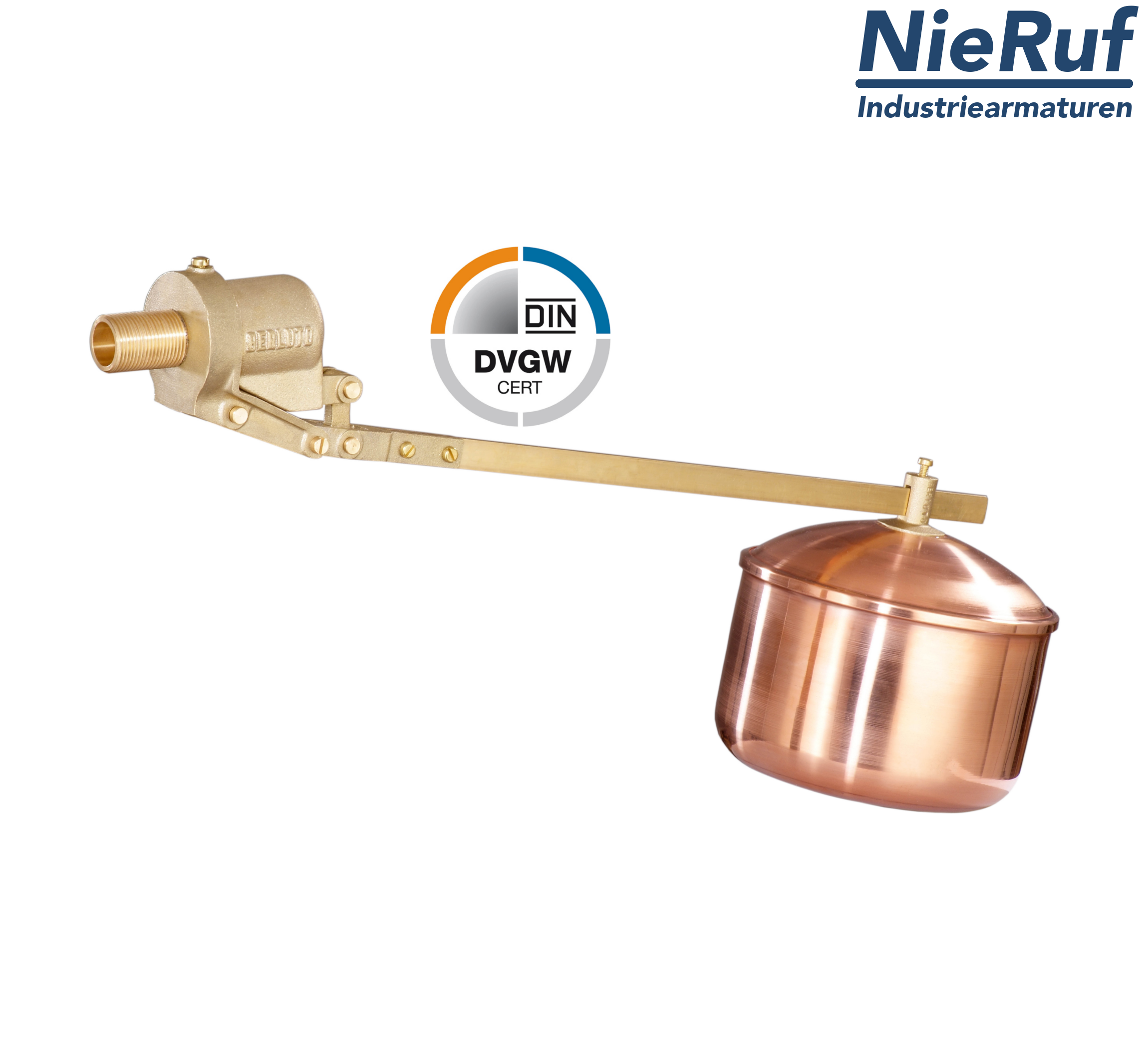

Float valve 1 1/2" inch brass EPDM SW05 floats: in copper
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
brass Float valve 1 1/2" inch seal made of EPDM in open design and control flap floats: in copper DVGW-water approval
| product: | Float valve |
|---|---|
| type: | SW05 |
| manufacturer: | NieRuf |
| diameter: | 1 1/2" inch |
| body: | brass |
| cap: | brass |
| seat seal: | EPDM |
| max. temperature: | 80°C |
| floats: | in copper |
| max. working pressure: | 12 bar |
| kvs-valu: | 23 m3/h |
| media: | for drinking water and other neutral liquids |
| design: | open |
| control: | control flap |
| authorized for: | DVGW-water |
| Connection: | thread |
| installation position: | horizontal |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Float valve 1 1/2" inch brass EPDM SW05 floats: in copper
Article no.
: SW05000207
product:
Float valve
type:
SW05
manufacturer:
NieRuf
diameter:
1 1/2" inch
body:
brass
cap:
brass
seat seal:
EPDM
max. temperature:
80°C
floats:
in copper
max. working pressure:
12 bar
kvs-valu:
23 m3/h
media:
for drinking water and other neutral liquids
design:
open
control:
control flap
authorized for:
DVGW-water
Connection:
thread
installation position:
horizontal
