AV01010005
Flange-Globe valve DN 25 AV01 grey cast iron DN-JL1040 Isolation plug
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 25. November
Guaranteed delivery until Tuesday, 26. November, 12 o'clock
Order in within by express delivery
Equipment
Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€16.66 VAT included.

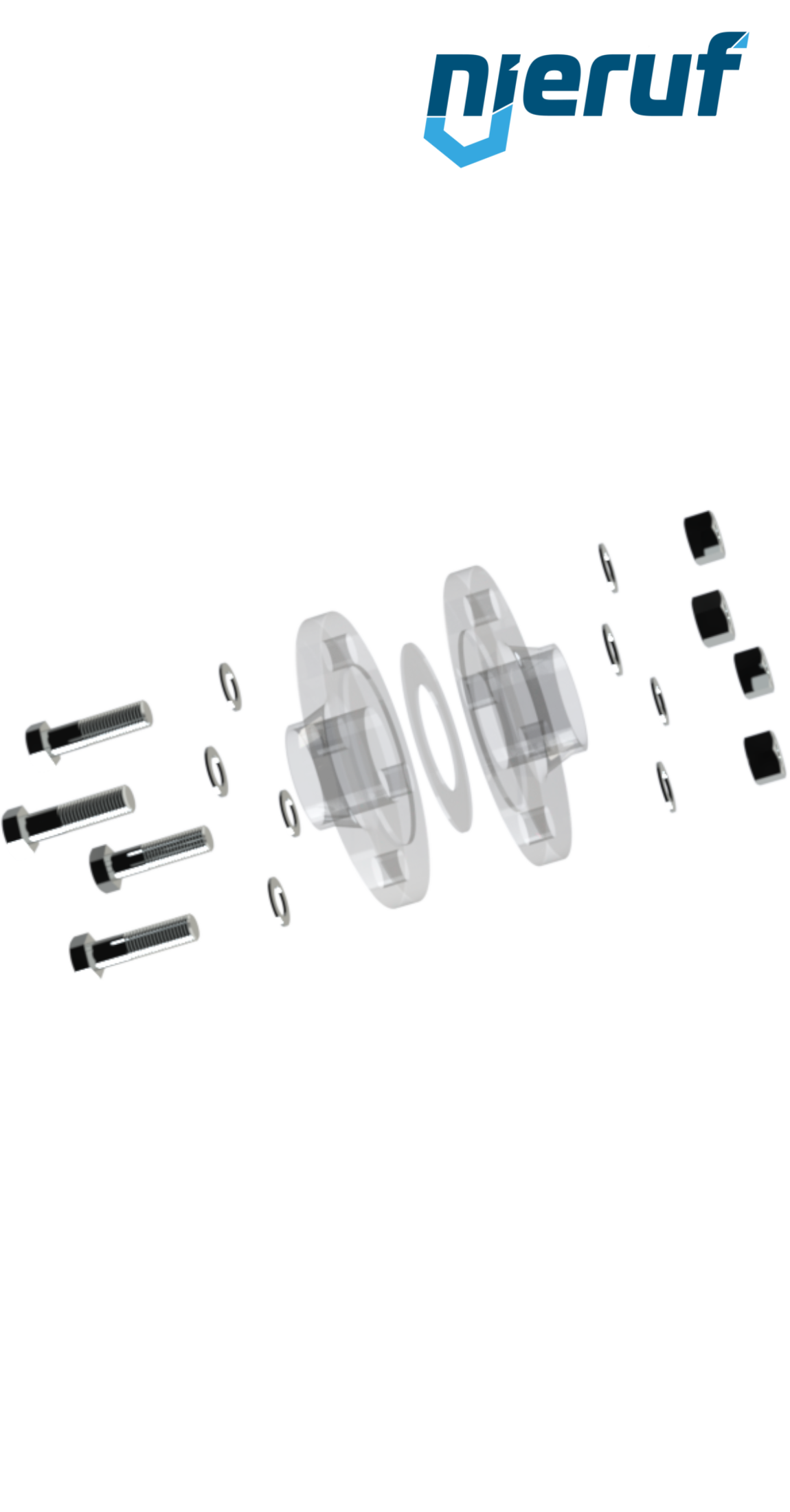

joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Flange-Globe valve DN 25 in straight through with bellow flange acc. DIN EN 1092 material grey cast iron DN-JL1040 with Isolation plug
| product: | Flange-Globe valve |
|---|---|
| type: | AV01 |
| manufacturer: | NieRuf |
| diameter: | DN 25 |
| flange: | flange acc. DIN EN 1092 |
| pressure: | PN16 |
| seal: | metal |
| media: | liquid and gaseous media |
| temperature: | to max +300°C - depending on working pressure |
| pressure range: | max. 16 bar depending on operating temperature |
| design: | straight through with bellow |
| body material: | grey cast iron DN-JL1040 |
| material spindel unit: | SG iron EN-JS1049 |
| handwheel: | steel with cataphoretic-coating (non-rising) |
| plug: | Isolation plug |
| bellow: | stainless steel 1.4571 |
| length: | acc DIN EN 558 series 1 |
| approval: | EN ISO 15848-1 / TA Luft TÜV-Prüf-Nr: TA 07 2016 C04 |
| installation position: | any position, spindle preferably vertical |
| product feature: | Stop valve - straight through with flanges and bellows seal additionally with non-rotation lock, flat lubricating nipple and position indicator as standard - CLOSED / OPEN. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-Globe valve DN 25 AV01 grey cast iron DN-JL1040 Isolation plug
Article no.
: AV01010005
product:
Flange-Globe valve
type:
AV01
manufacturer:
NieRuf
diameter:
DN 25
flange:
flange acc. DIN EN 1092
pressure:
PN16
seal:
metal
media:
liquid and gaseous media
temperature:
to max +300°C - depending on working pressure
pressure range:
max. 16 bar depending on operating temperature
design:
straight through with bellow
body material:
grey cast iron DN-JL1040
material spindel unit:
SG iron EN-JS1049
handwheel:
steel with cataphoretic-coating (non-rising)
plug:
Isolation plug
bellow:
stainless steel 1.4571
length:
acc DIN EN 558 series 1
approval:
EN ISO 15848-1 / TA Luft TÜV-Prüf-Nr: TA 07 2016 C04
installation position:
any position, spindle preferably vertical
product feature:
Stop valve - straight through with flanges and bellows seal additionally with non-rotation lock, flat lubricating nipple and position indicator as standard - CLOSED / OPEN.
€16.66 VAT included.
€2.26 VAT included.
€4.28 VAT included.
€6.66 VAT included.
€28.92 VAT included.
€11.78 VAT included.
