BE02010105
High pressure vessel horizontal BE02 350 liter, 0-23 bar, steel primed
Delivery time: max. 11 weeks
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 40,0 bar without filling, dry
€173.38 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€50.22 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

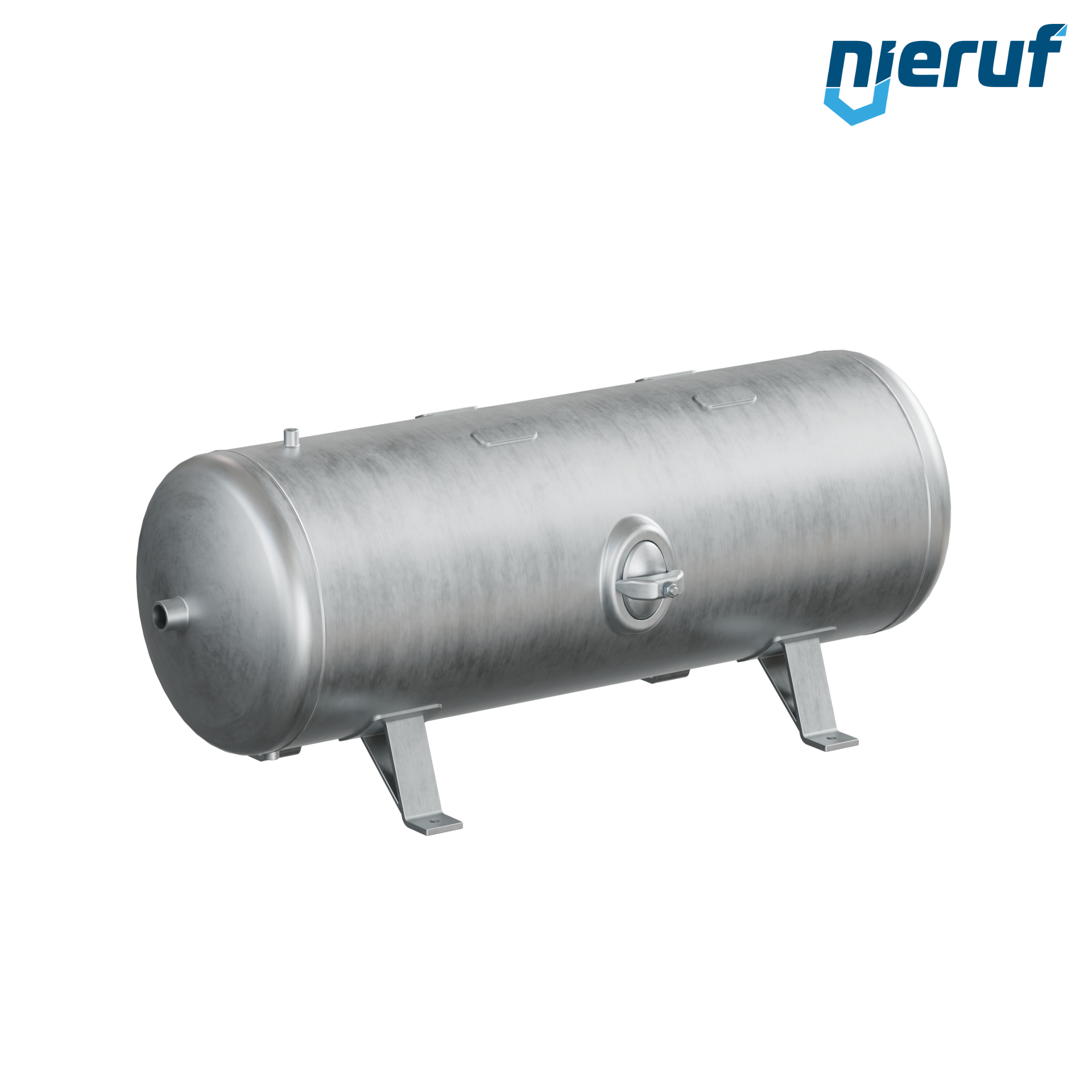

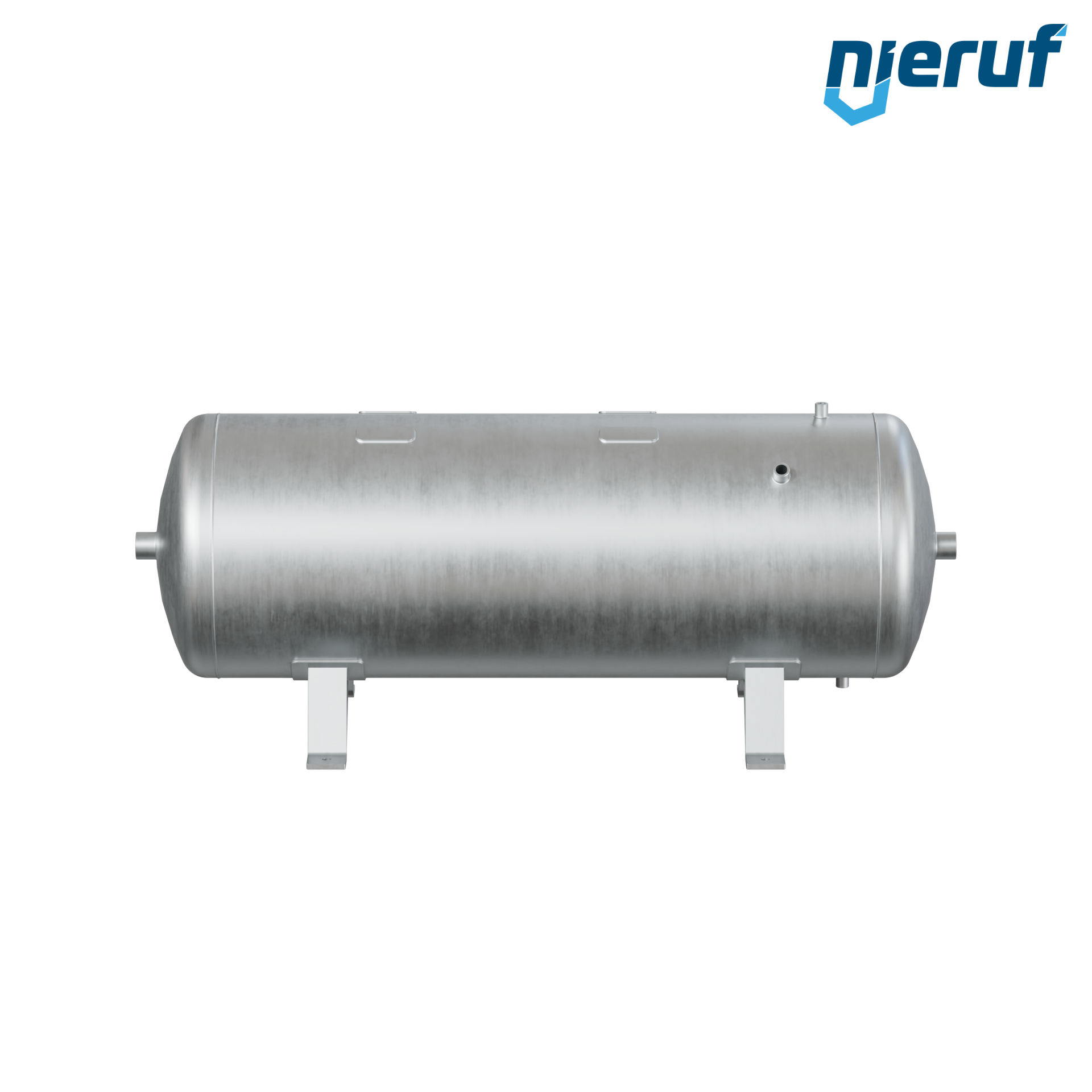

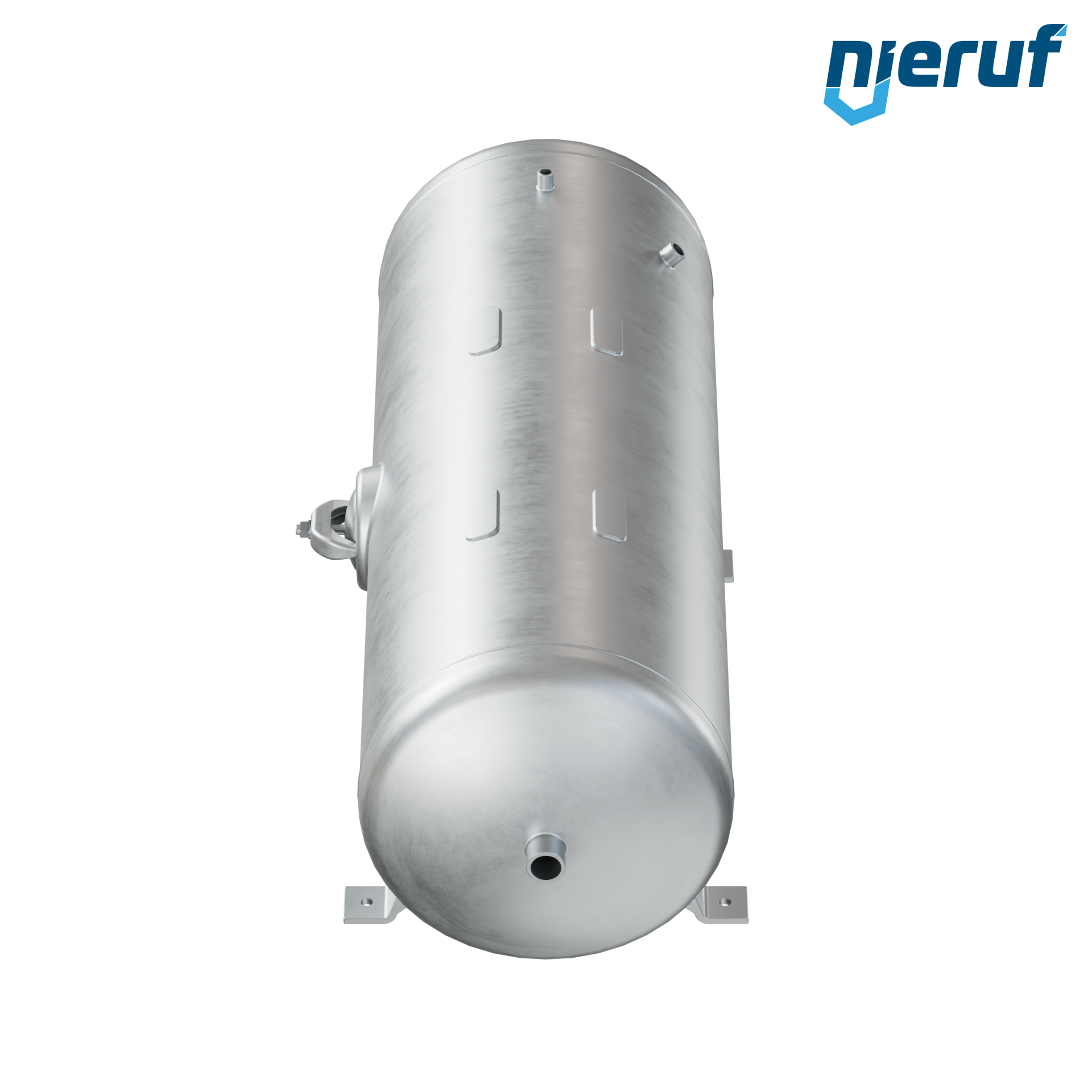

High pressure vessel BE02 with 350 liter volume horizontal with operating pressure 0-23 bar made of steel primed (inside raw) and nominal size 550 mm
| product: | High pressure vessel |
|---|---|
| type: | BE02 |
| manufacturer: | NieRuf |
| volume: | 350 liter |
| nominal size: | 550 mm |
| height: | 670 mm |
| length: | 1630 mm |
| operating pressure: | 0-23 bar |
| version: | horizontal |
| temperature: | -10°C up to +50°C |
| material: | steel primed (inside raw) |
| media: | compressed air and nitrogen |
| product feature: | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel horizontal BE02 350 liter, 0-23 bar, steel primed
Article no.
: BE02010105
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
350 liter
nominal size:
550 mm
height:
670 mm
length:
1630 mm
operating pressure:
0-23 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
€173.38 VAT included.
€0.83 VAT included.
€50.22 VAT included.
€10.59 VAT included.
