BE02012011
High pressure vessel vertical BE02 3000 liter, 0-31 bar, steel primed
Delivery time: max. 11 weeks
Equipment
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€50.22 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

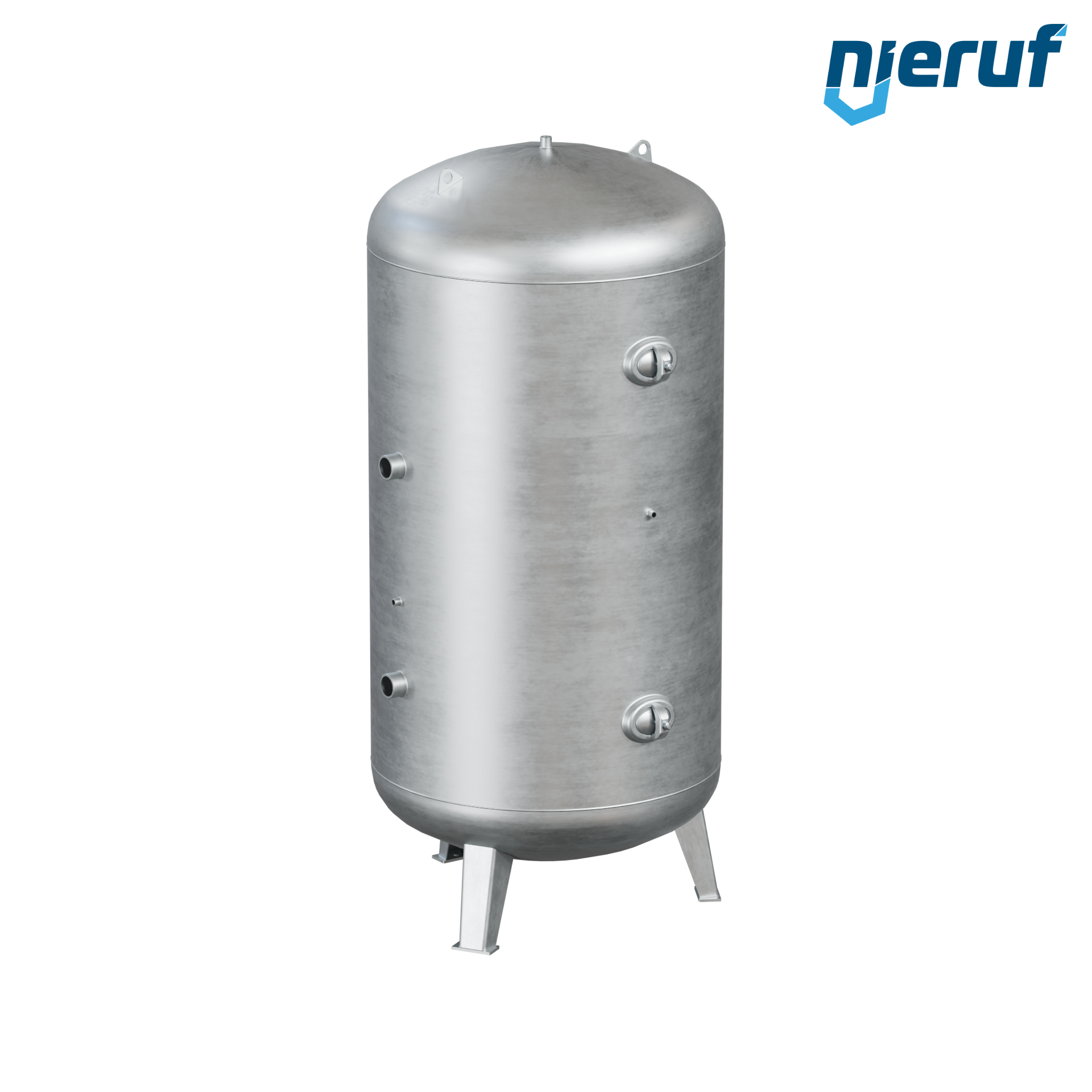

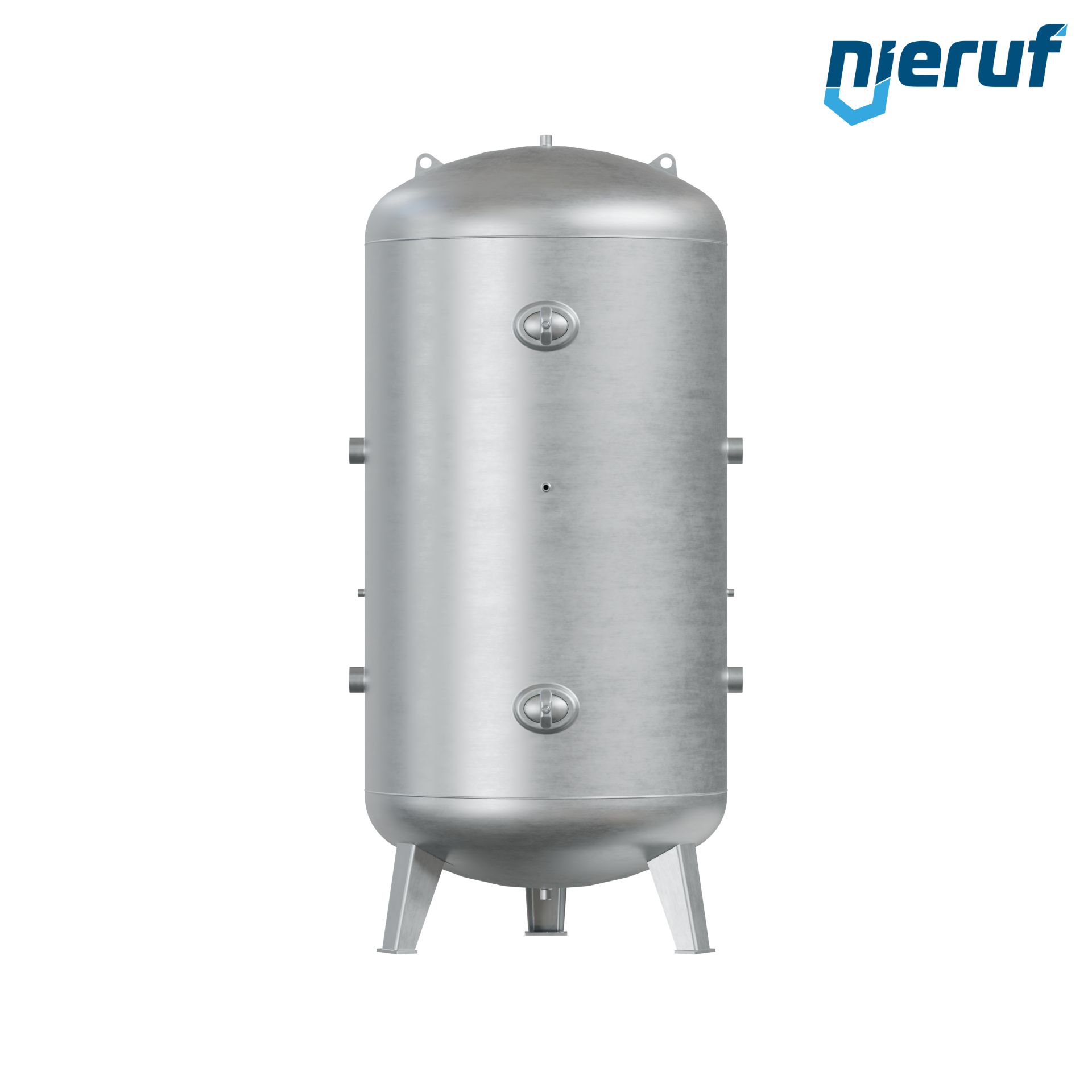

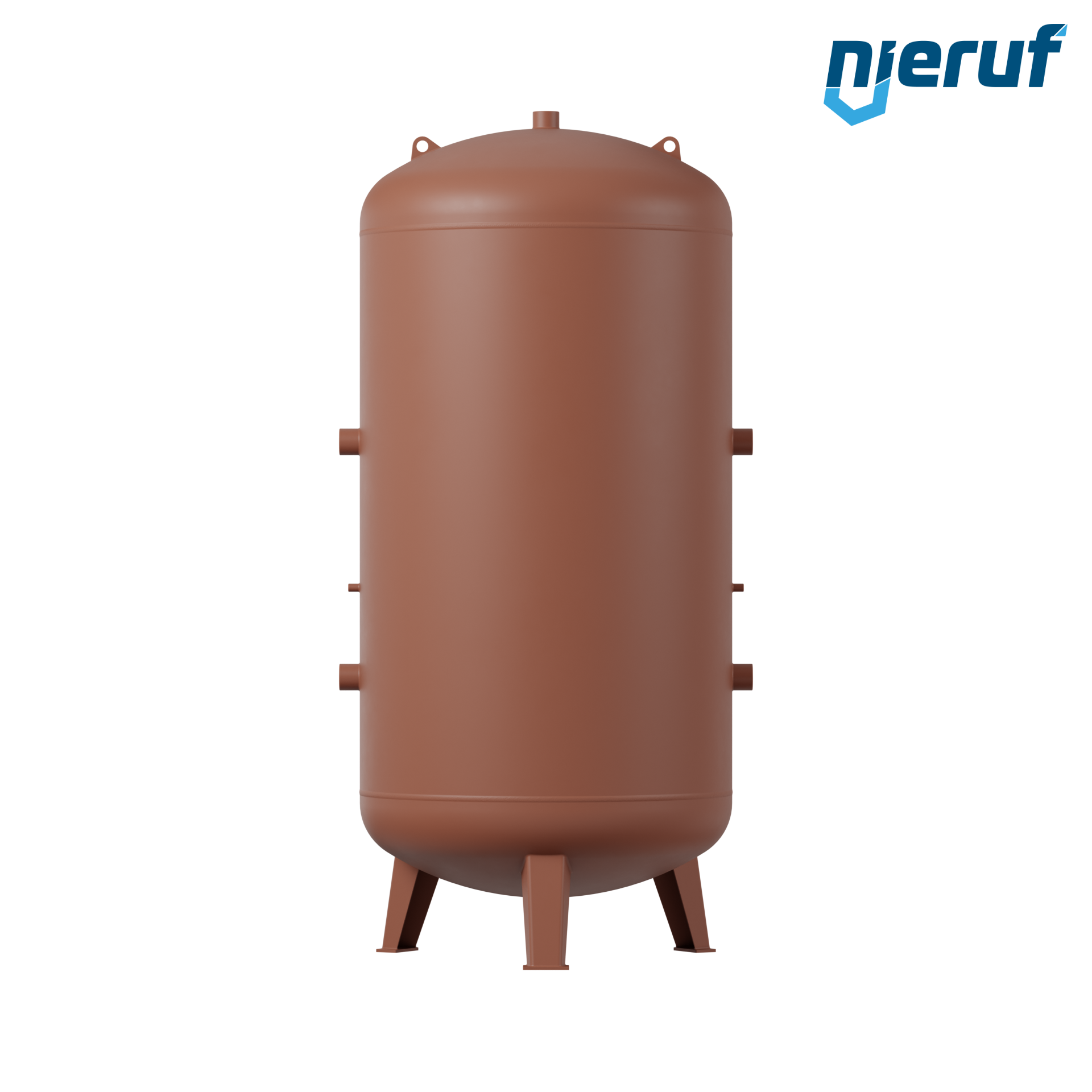

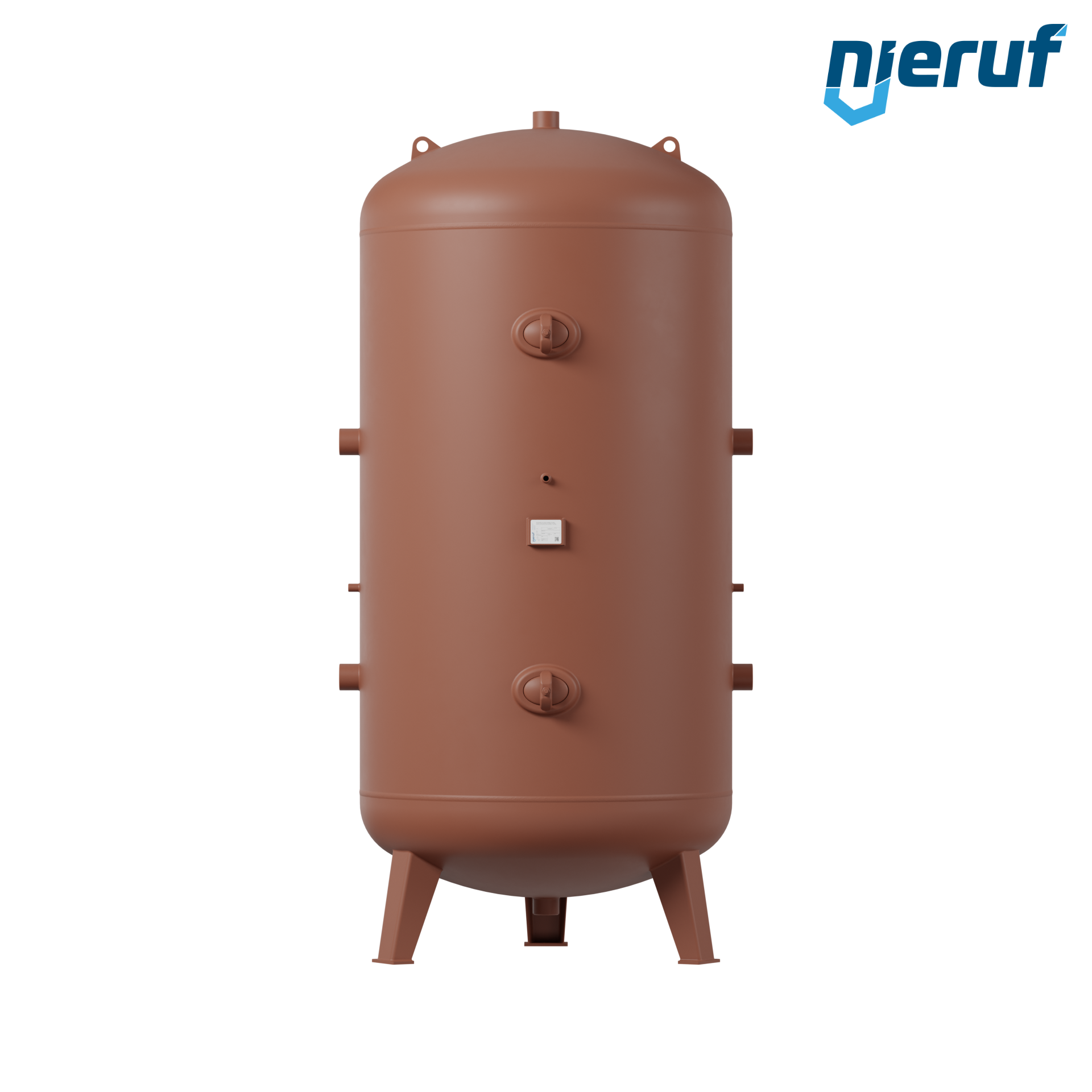

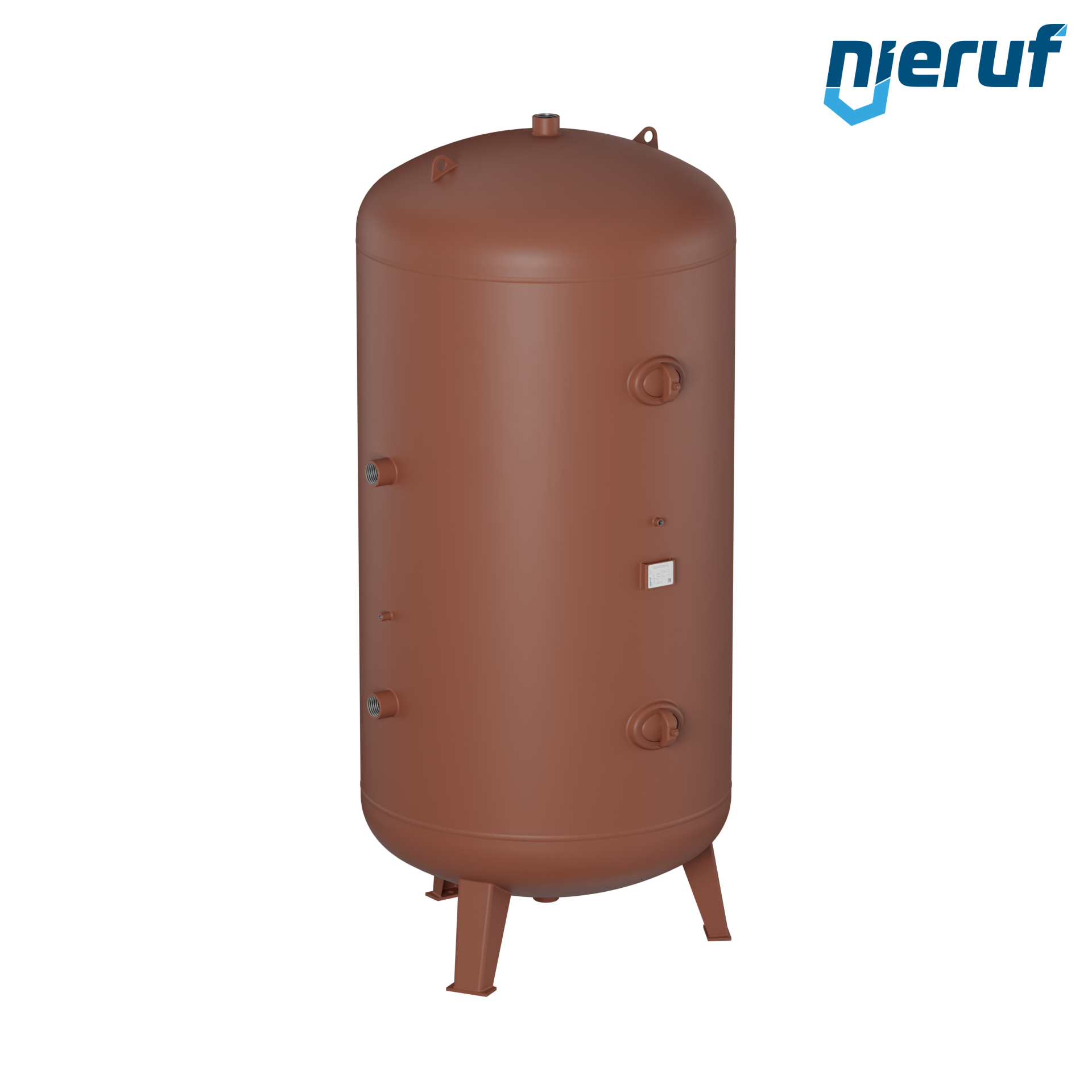

High pressure vessel BE02 with 3000 liter volume vertical with operating pressure 0-31 bar made of steel primed (inside raw) and nominal size 1250 mm
| product: | High pressure vessel |
|---|---|
| type: | BE02 |
| manufacturer: | NieRuf |
| volume: | 3000 liter |
| nominal size: | 1250 mm |
| height: | 2780 mm |
| operating pressure: | 0-31 bar |
| version: | vertical |
| temperature: | -10°C up to +50°C |
| material: | steel primed (inside raw) |
| media: | compressed air and nitrogen |
| product feature: | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel vertical BE02 3000 liter, 0-31 bar, steel primed
Article no.
: BE02012011
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
3000 liter
nominal size:
1250 mm
height:
2780 mm
operating pressure:
0-31 bar
version:
vertical
temperature:
-10°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
