SR01000012

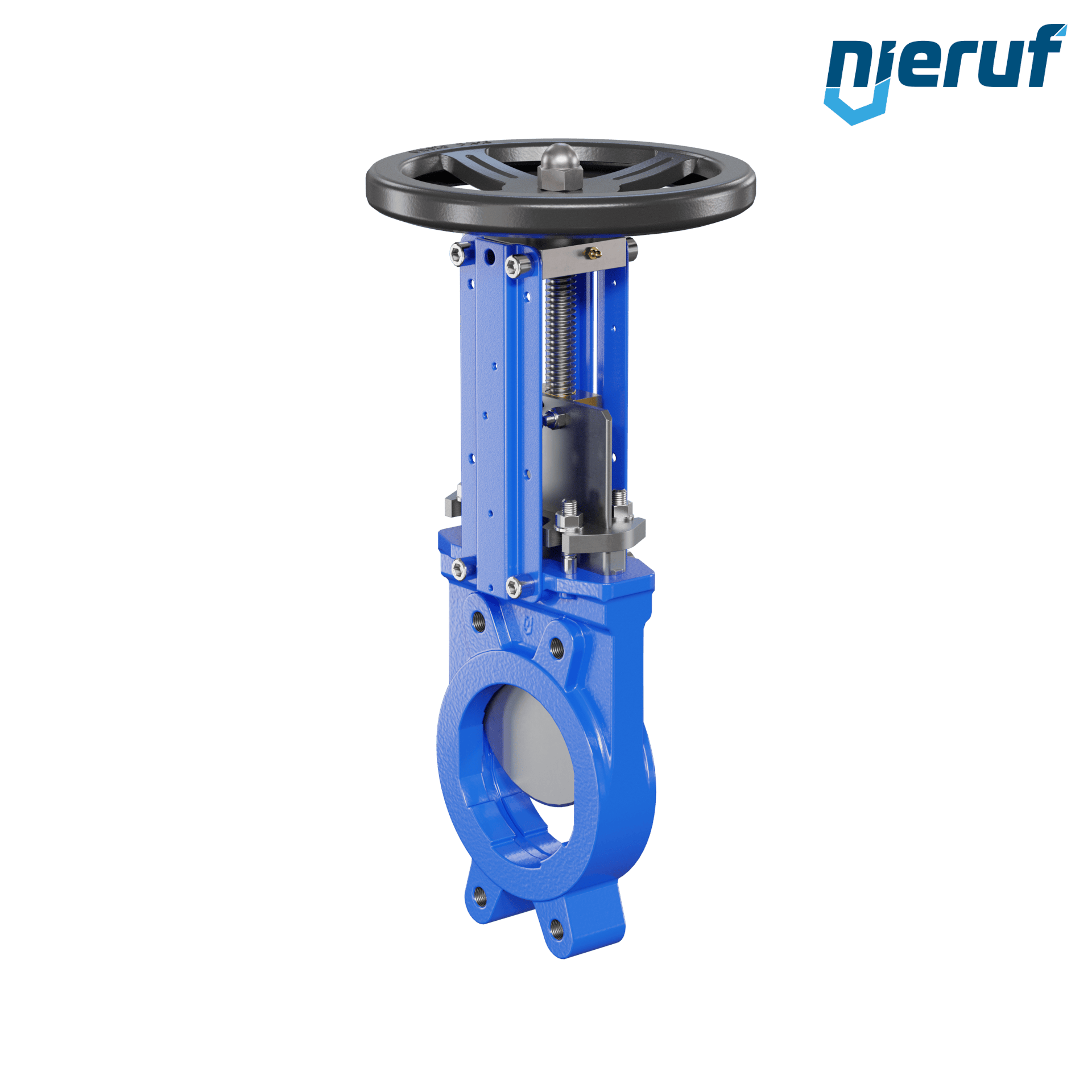

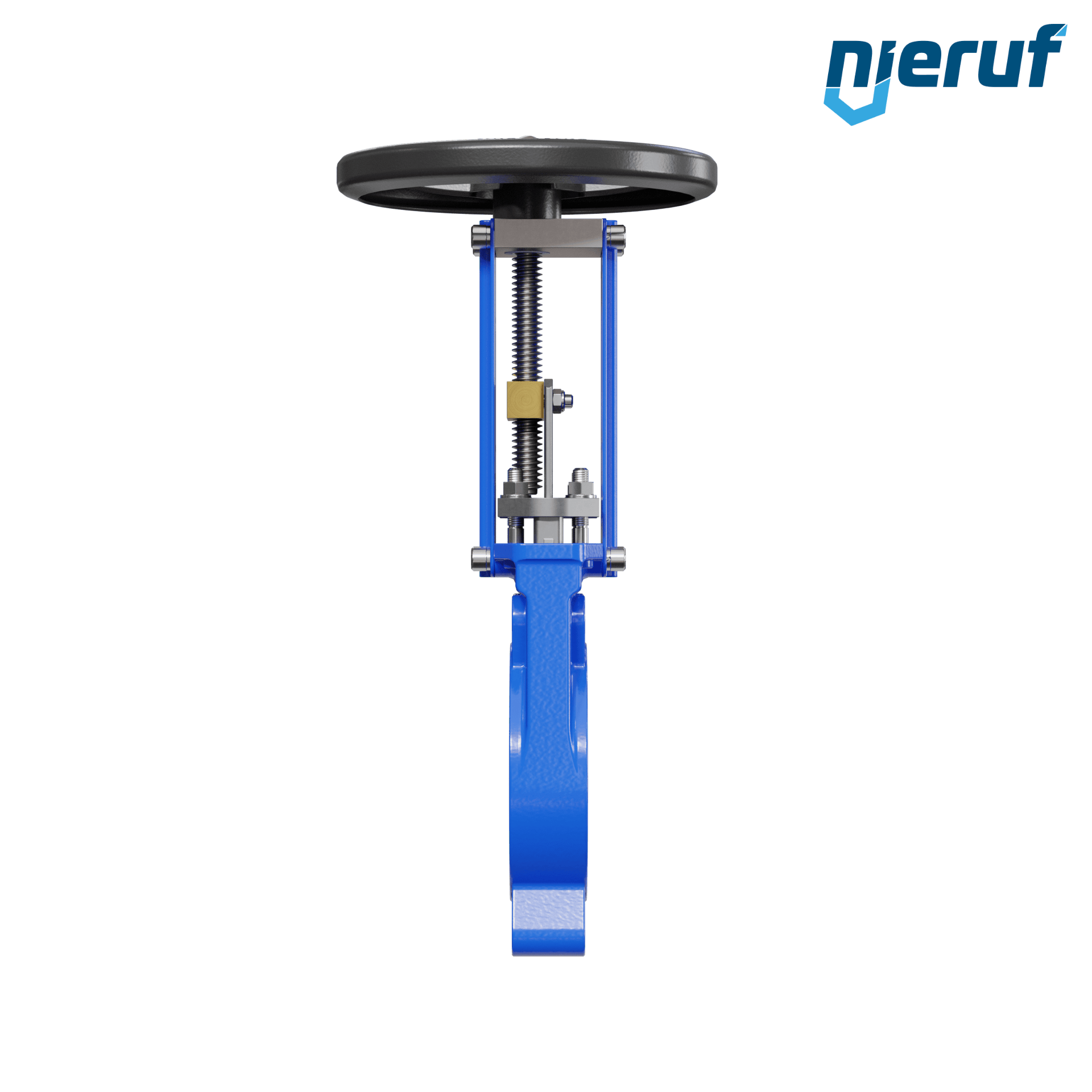

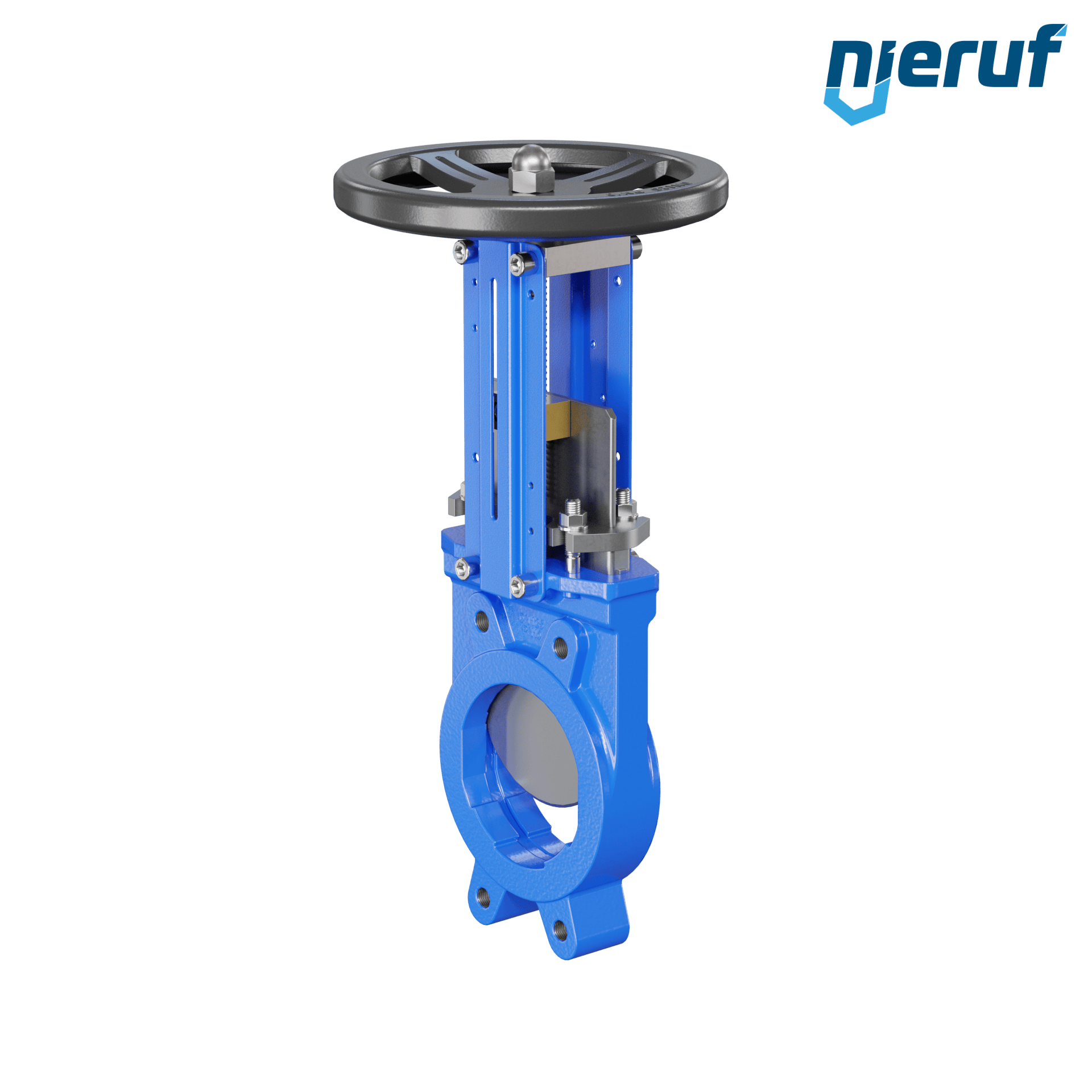

Knife gate valve DN 125 SR01 EPDM handwheel
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Knife gate valve DN 125 DIN EN 1092-2 PN10 EPDM made of cast iron EN GJL-250 bidirectional tightness for liquid and gaseous media
| product: | Knife gate valve |
|---|---|
| type: | SR01 |
| manufacturer: | NieRuf |
| diameter: | DN 125 |
| nominal pressure: | PN10 |
| max pressure: | 10 bar |
| flange: | DIN EN 1092-2 PN10 |
| seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -15°C up to +130°C |
| design: | bidirectional tightness |
| body material: | cast iron EN GJL-250 |
| disc: | stainless steel AISI 304 |
| actuation: | handwheel |
| application: | not rising stem & handwheel |
| installation position: | preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Knife gate valve DN 125 SR01 EPDM handwheel
Article no.
: SR01000012
product:
Knife gate valve
type:
SR01
manufacturer:
NieRuf
diameter:
DN 125
nominal pressure:
PN10
max pressure:
10 bar
flange:
DIN EN 1092-2 PN10
seal:
PTFE
media:
liquid and gaseous media
temperature:
-15°C up to +130°C
design:
bidirectional tightness
body material:
cast iron EN GJL-250
disc:
stainless steel AISI 304
actuation:
handwheel
application:
not rising stem & handwheel
installation position:
preferably standing
€7.26 VAT included.
€62.59 VAT included.
