SR03000015

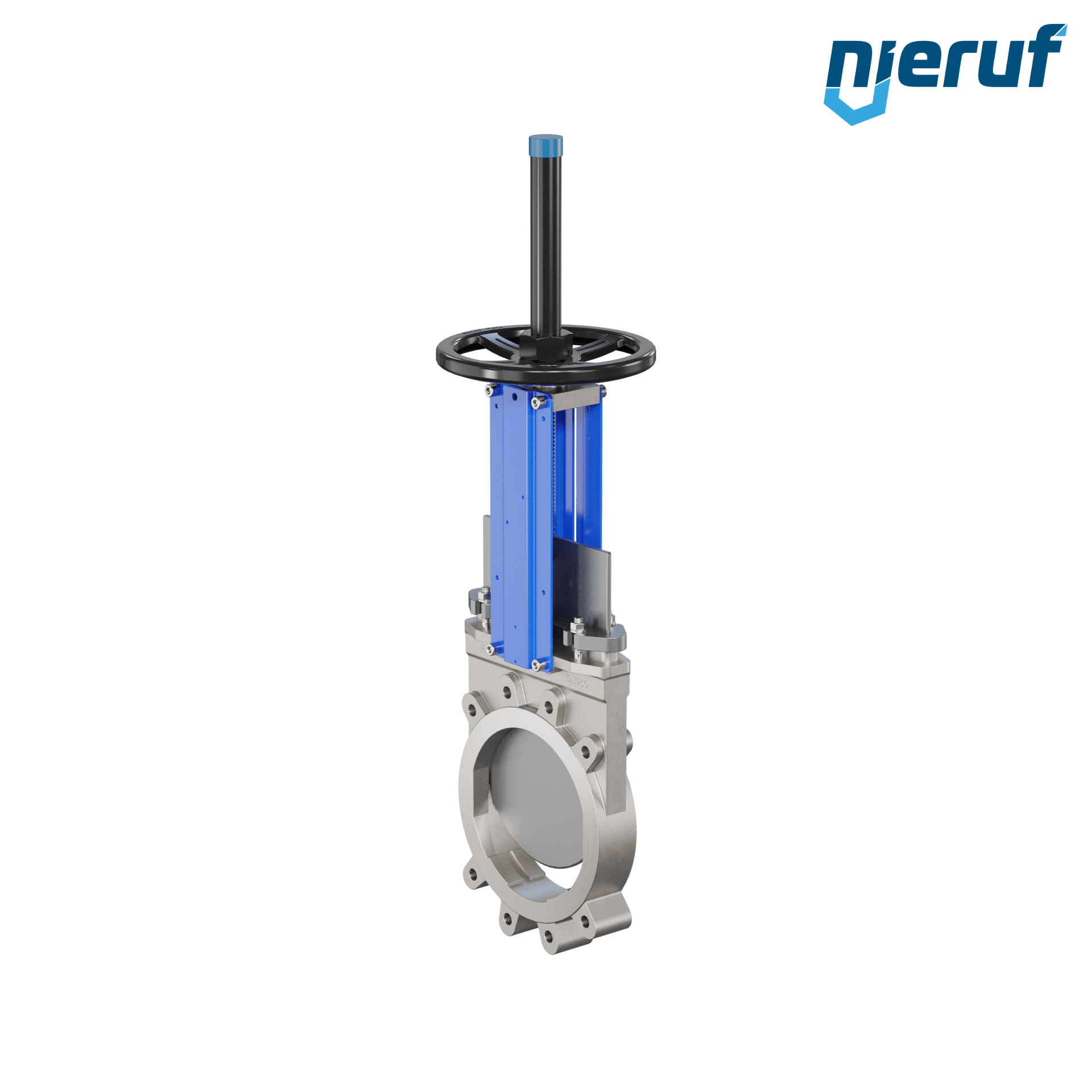

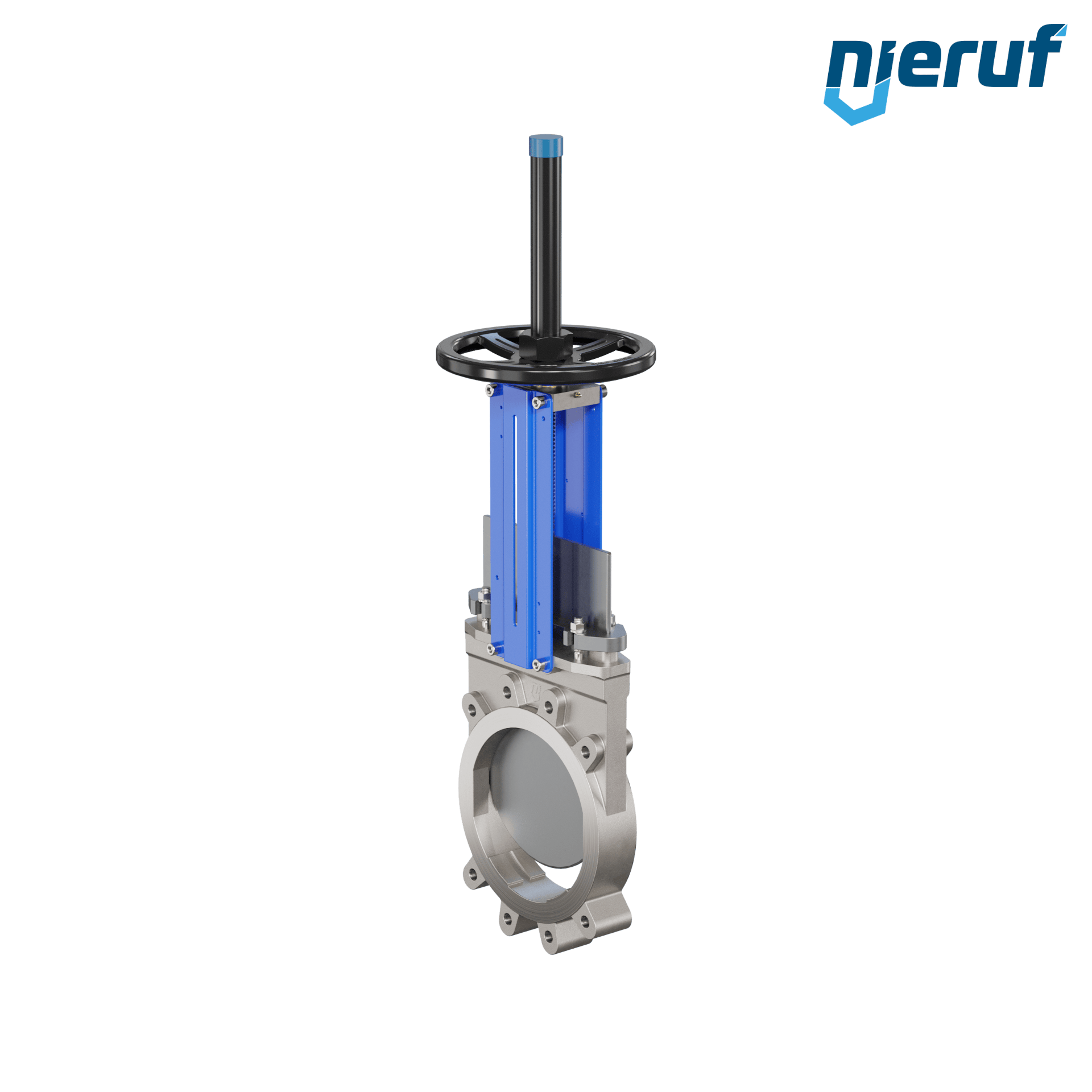

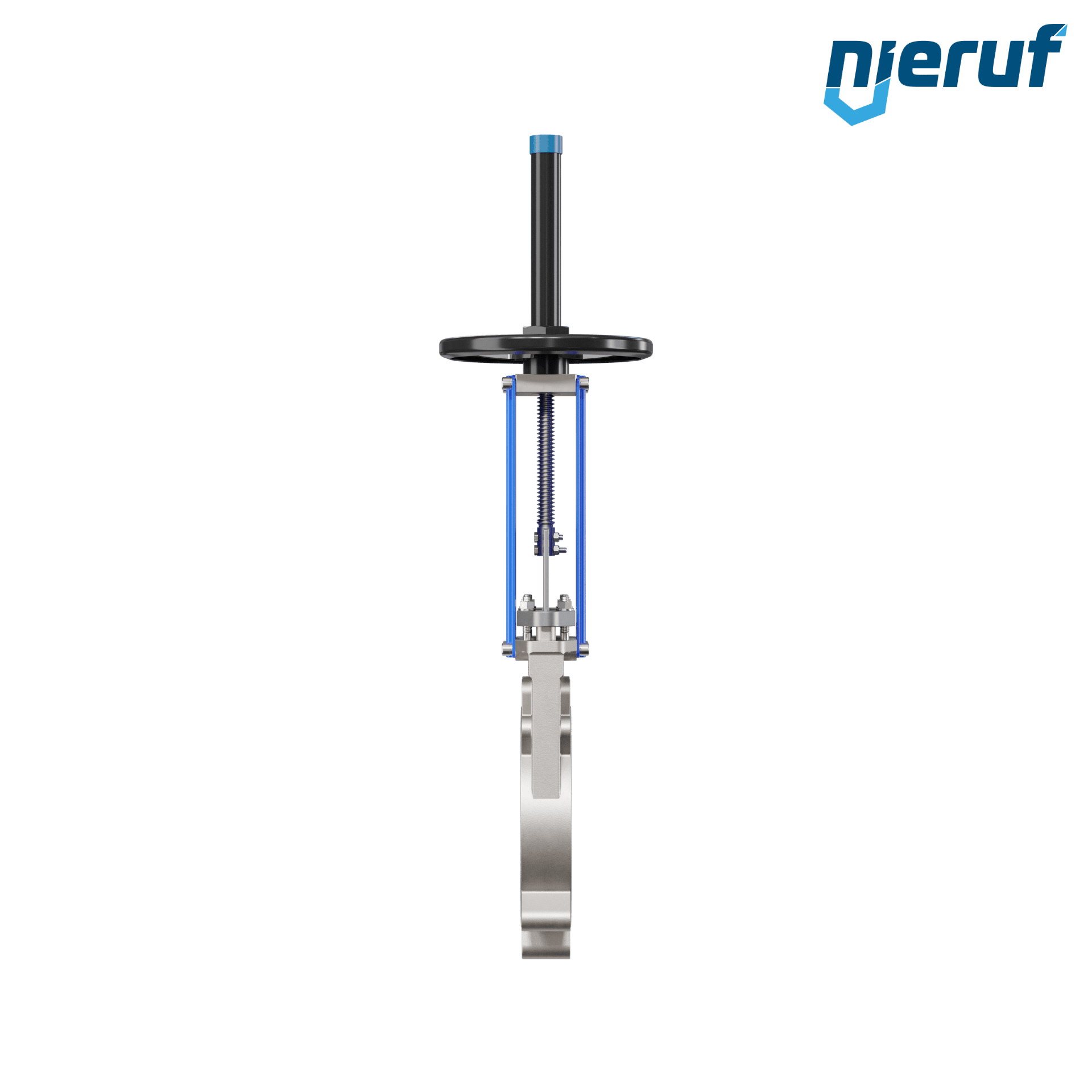

Knife gate valve DN 250 SR03 EPDM handwheel
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Knife gate valve DN 250 DIN EN 1092-1 PN10 EPDM made of stainless steel A351 CF8M unidirectional tightness for liquid and gaseous media
| product: | Knife gate valve |
|---|---|
| type: | SR03 |
| manufacturer: | NieRuf |
| diameter: | DN 250 |
| nominal pressure: | PN10 |
| max pressure: | 8 bar |
| flange: | DIN EN 1092-1 PN10 |
| seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +130°C |
| design: | unidirectional tightness |
| body material: | stainless steel A351 CF8M |
| disc: | stainless steel AISI 316 |
| actuation: | handwheel |
| application: | rising stem & non rising handwheel |
| installation position: | preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Knife gate valve DN 250 SR03 EPDM handwheel
Article no.
: SR03000015
product:
Knife gate valve
type:
SR03
manufacturer:
NieRuf
diameter:
DN 250
nominal pressure:
PN10
max pressure:
8 bar
flange:
DIN EN 1092-1 PN10
seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +130°C
design:
unidirectional tightness
body material:
stainless steel A351 CF8M
disc:
stainless steel AISI 316
actuation:
handwheel
application:
rising stem & non rising handwheel
installation position:
preferably standing
€25.35 VAT included.
