SR02000408

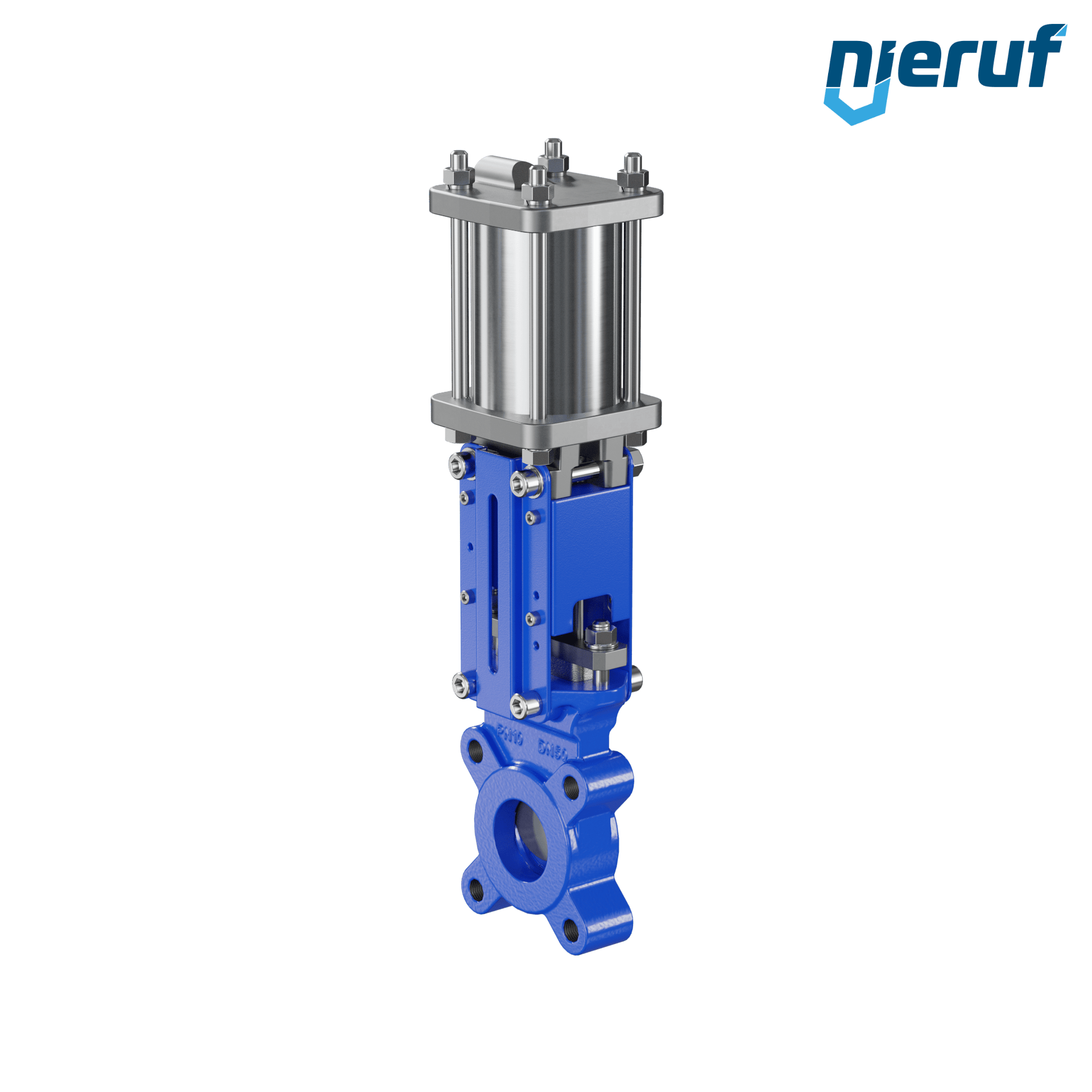

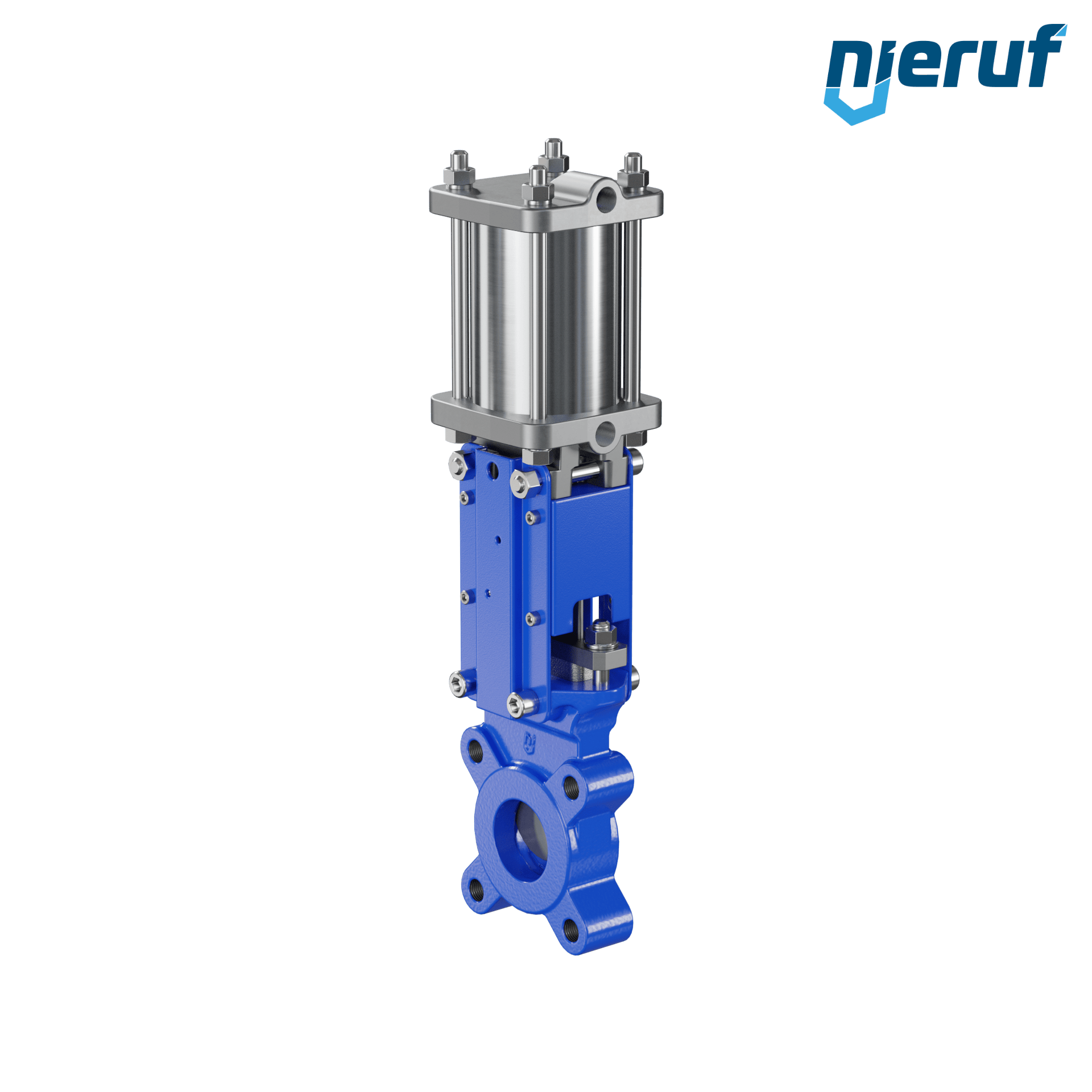

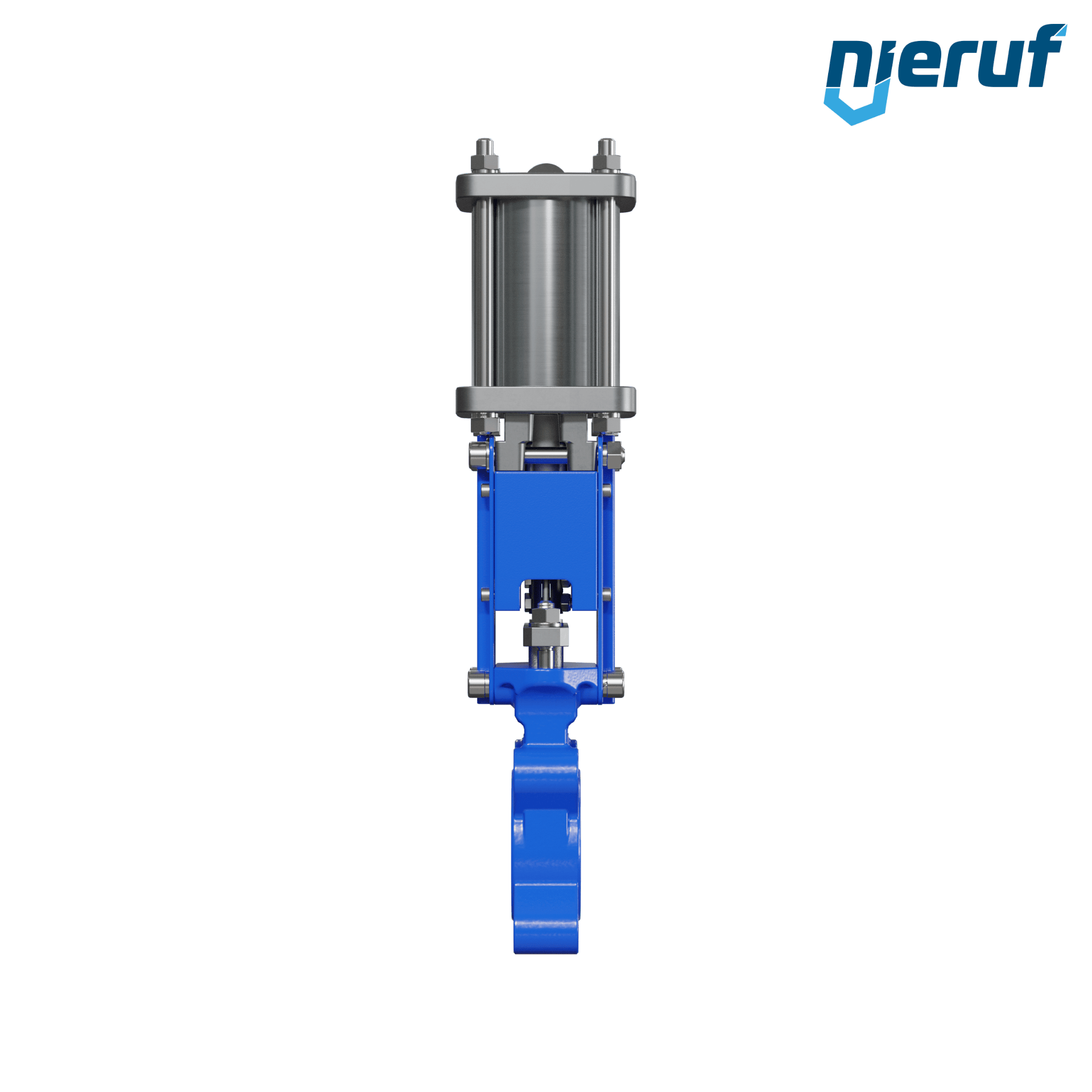

Knife gate valve DN 50 SR02 EPDM pneumatic actuation double acting
Delivery time: 3 - 5 working days
Equipment
Inductive sensor NBB4 for pneumatic Knife gate valve Type SR size DN50 to DN150
€149.94 VAT included.
Accessory kit 230V AC compressed air supply for double acting pneumatic knife gate valve TYPE SR DN50-DN300
€153.03 VAT included.
Accessory kit 24V DC compressed air supply for double acting pneumatic knife gate valve TYPE SR DN50-DN300
€153.03 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Knife gate valve pneumatic actuation double acting DN 50 DIN EN 1092-1 PN10 EPDM made of cast iron EN GJL-250 uni-directional tightness for liquid and gaseous media
| product: | Knife gate valve |
|---|---|
| type: | SR02 |
| manufacturer: | NieRuf |
| diameter: | DN 50 |
| nominal pressure: | PN10 |
| max pressure: | 10 bar |
| flange: | DIN EN 1092-1 PN10 |
| seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | 0°C to +110°C |
| design: | uni-directional tightness |
| body material: | cast iron EN GJL-250 |
| disc: | stainless steel AISI 304 |
| actuation: | pneumatic actuation double acting |
| installation position: | standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Knife gate valve DN 50 SR02 EPDM pneumatic actuation double acting
Article no.
: SR02000408
product:
Knife gate valve
type:
SR02
manufacturer:
NieRuf
diameter:
DN 50
nominal pressure:
PN10
max pressure:
10 bar
flange:
DIN EN 1092-1 PN10
seal:
PTFE
media:
liquid and gaseous media
temperature:
0°C to +110°C
design:
uni-directional tightness
body material:
cast iron EN GJL-250
disc:
stainless steel AISI 304
actuation:
pneumatic actuation double acting
installation position:
standing
€22.37 VAT included.
€3.57 VAT included.
€149.94 VAT included.
€213.25 VAT included.
