SR03000410

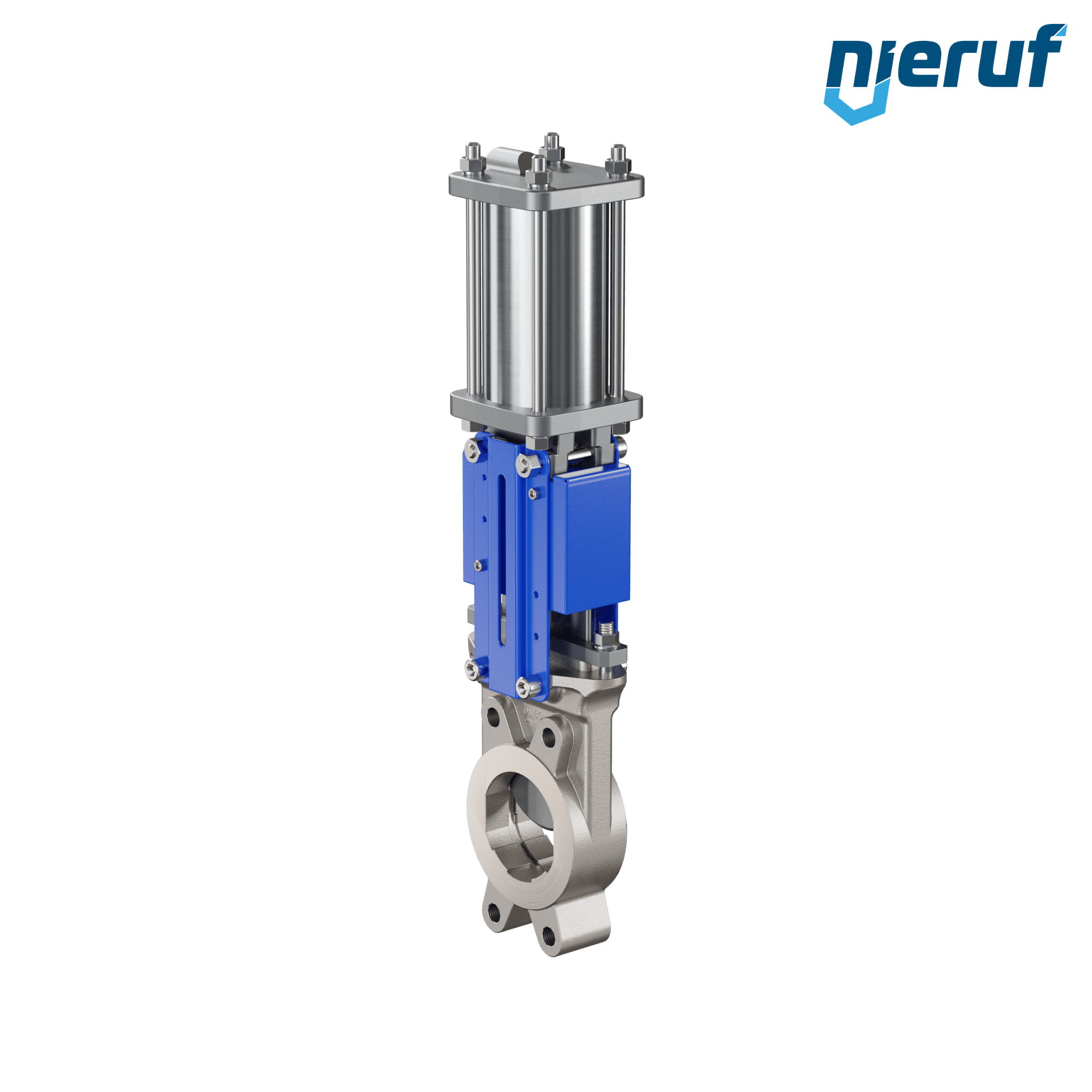

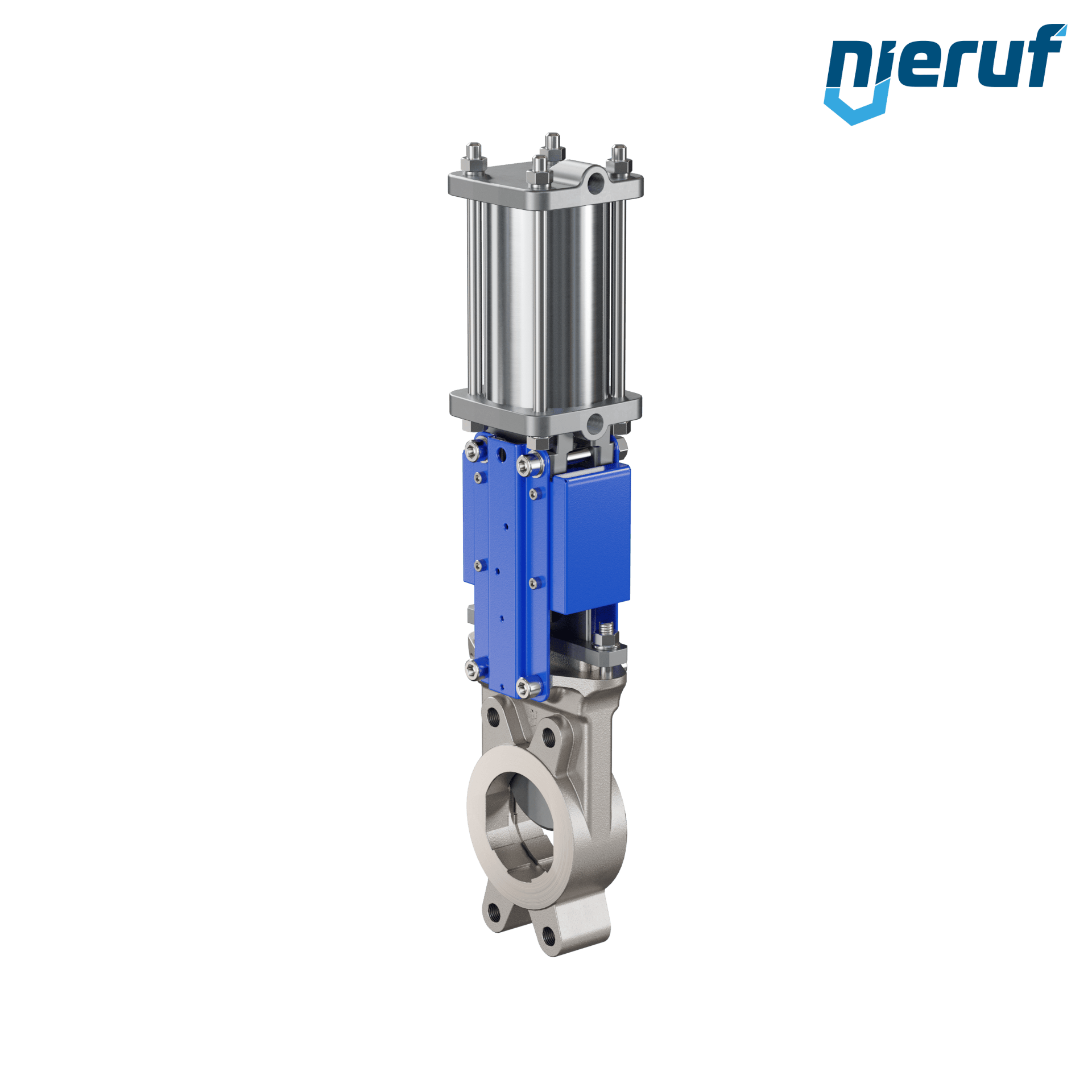

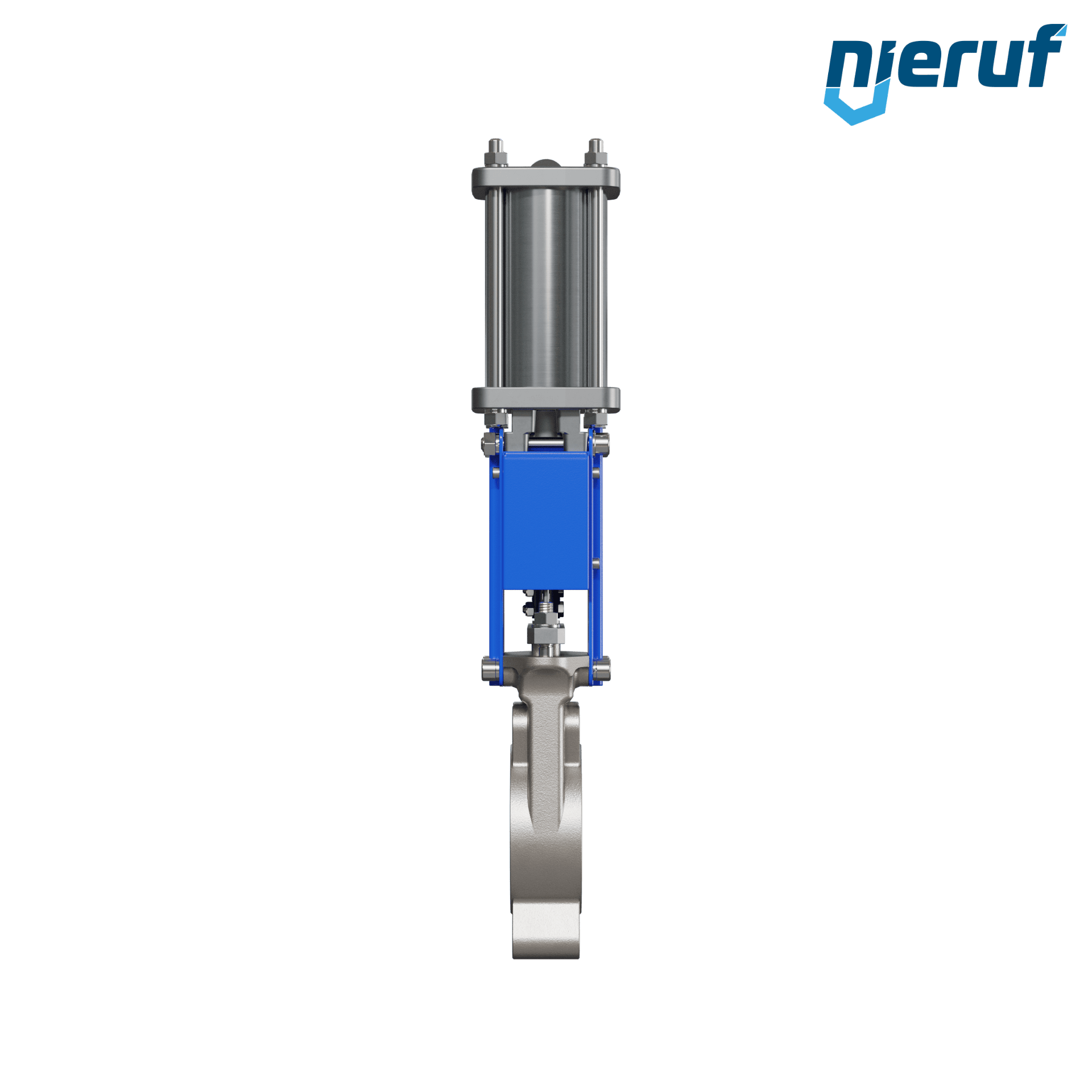

Knife gate valve DN 80 SR03 EPDM pneumatic actuation double acting
Delivery time: 3 - 5 working days
Equipment
Inductive sensor IFS204 for pneumatic Knife gate valve Type SR size DN50 to DN150
€211.58 VAT included.
Accessory kit 230V AC compressed air supply for double acting pneumatic knife gate valve TYPE SR DN50-DN300
€153.03 VAT included.
Accessory kit 24V DC compressed air supply for double acting pneumatic knife gate valve TYPE SR DN50-DN300
€153.03 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Knife gate valve pneumatic actuation double acting DN 80 DIN EN 1092-1 PN10 EPDM made of stainless steel 1.4408 uni-directional tightness for liquid and gaseous media
| product: | Knife gate valve |
|---|---|
| type: | SR03 |
| manufacturer: | NieRuf |
| diameter: | DN 80 |
| nominal pressure: | PN10 |
| max pressure: | 10 bar |
| flange: | DIN EN 1092-1 PN10 |
| seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | 0°C to +110°C |
| design: | uni-directional tightness |
| body material: | stainless steel 1.4408 |
| disc: | stainless steel AISI 316 |
| actuation: | pneumatic actuation double acting |
| installation position: | standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Knife gate valve DN 80 SR03 EPDM pneumatic actuation double acting
Article no.
: SR03000410
product:
Knife gate valve
type:
SR03
manufacturer:
NieRuf
diameter:
DN 80
nominal pressure:
PN10
max pressure:
10 bar
flange:
DIN EN 1092-1 PN10
seal:
PTFE
media:
liquid and gaseous media
temperature:
0°C to +110°C
design:
uni-directional tightness
body material:
stainless steel 1.4408
disc:
stainless steel AISI 316
actuation:
pneumatic actuation double acting
installation position:
standing
