EK06000011

compact-automatic-flange ball valve DN100 EK06 24V

€1,521.90*

€1,811.06 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 3 - 5 working days

Delivery information

Equipment

AKKUPACK02

AkkuPack BSR for S140-S300

€424.00*

€504.56 VAT included.


DPSKIT02

Digital Positioning System for S140-S300

€409.20*

€486.95 VAT included.


VS01010111

joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel

€13.60*

€16.18 VAT included.


FD01000111

flange seal DN100 PN10/16 115x162x2 Klingersil C 4400

€4.50*

€5.36 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: EK06000011

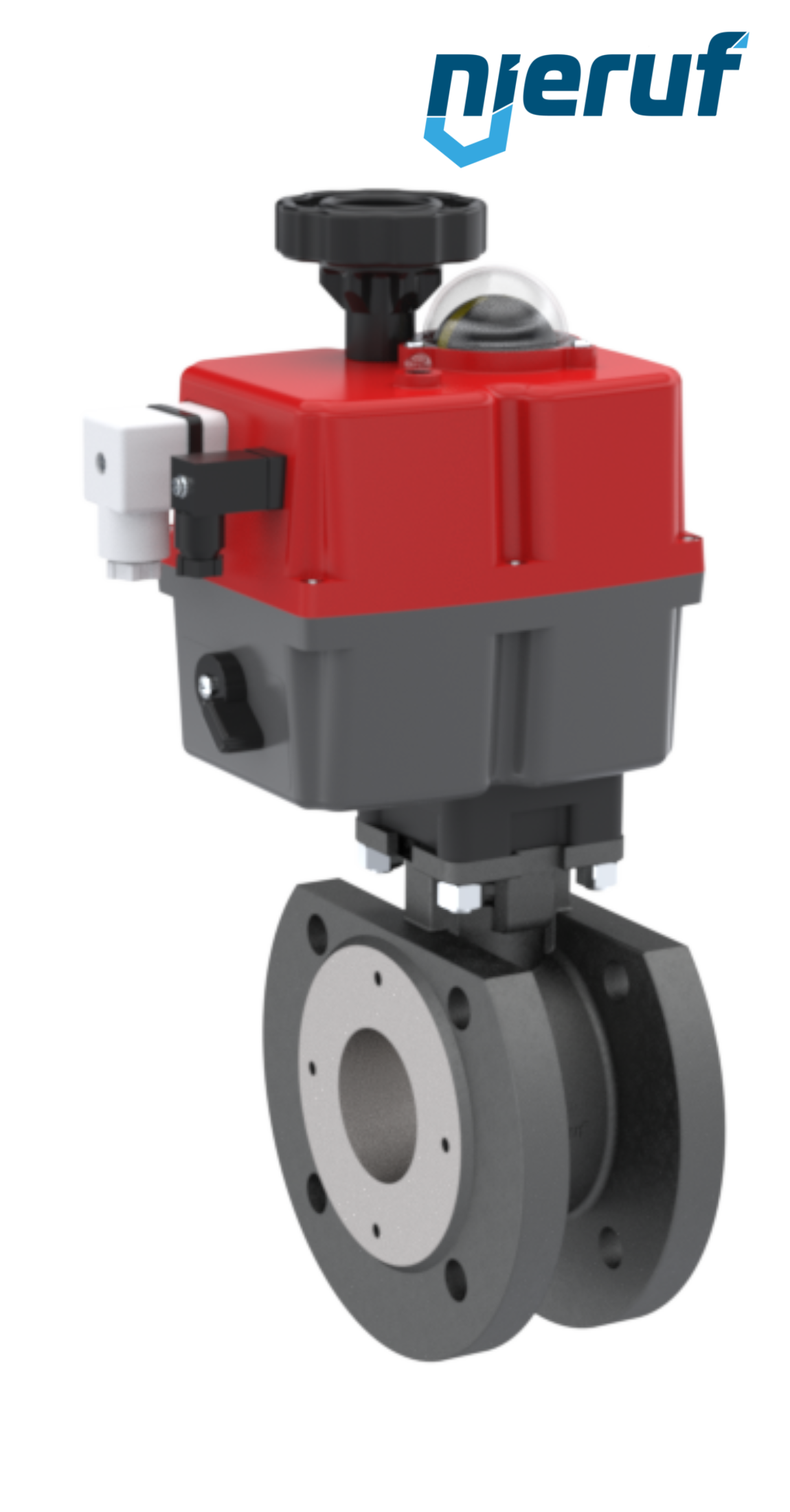

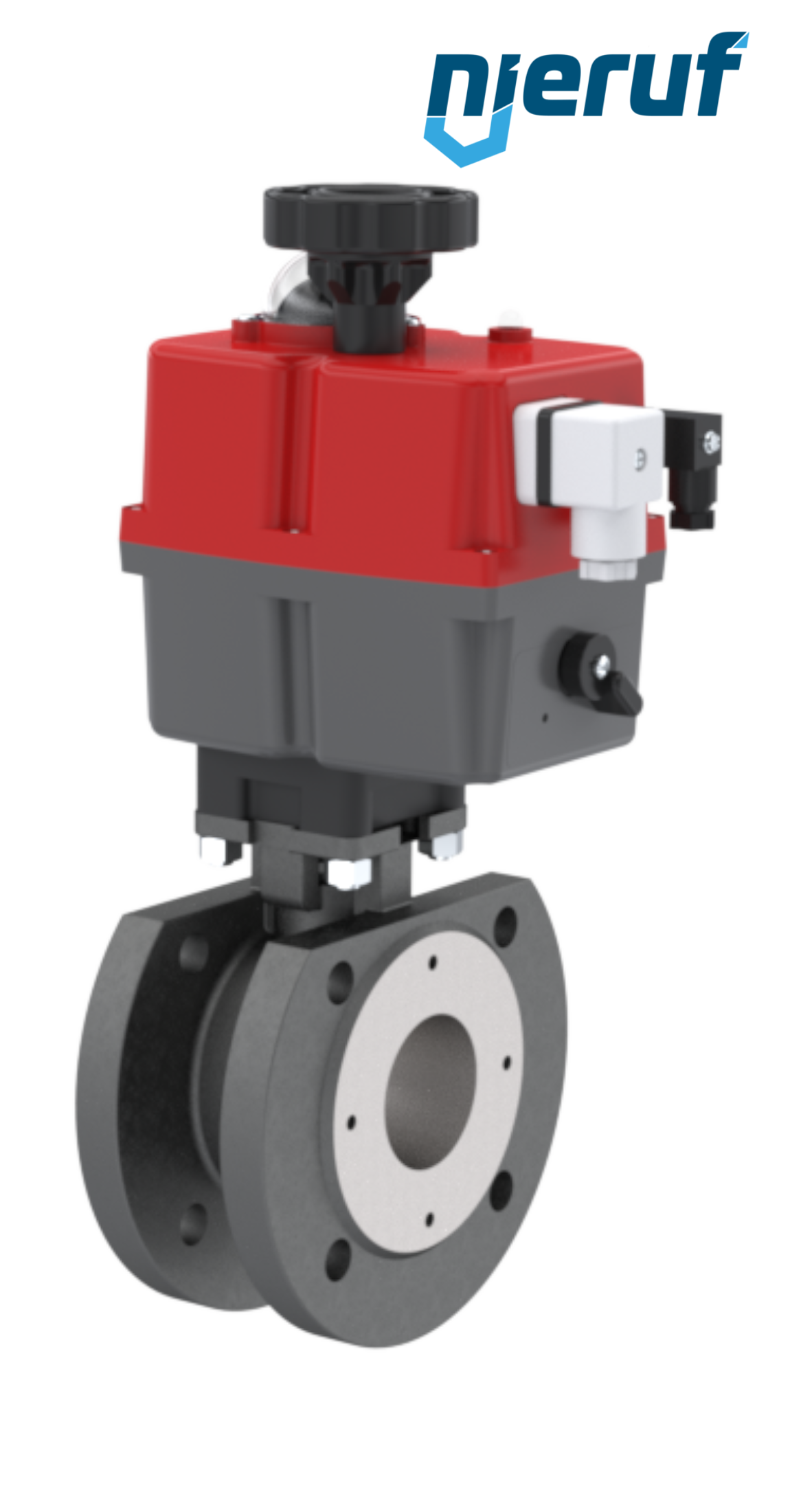

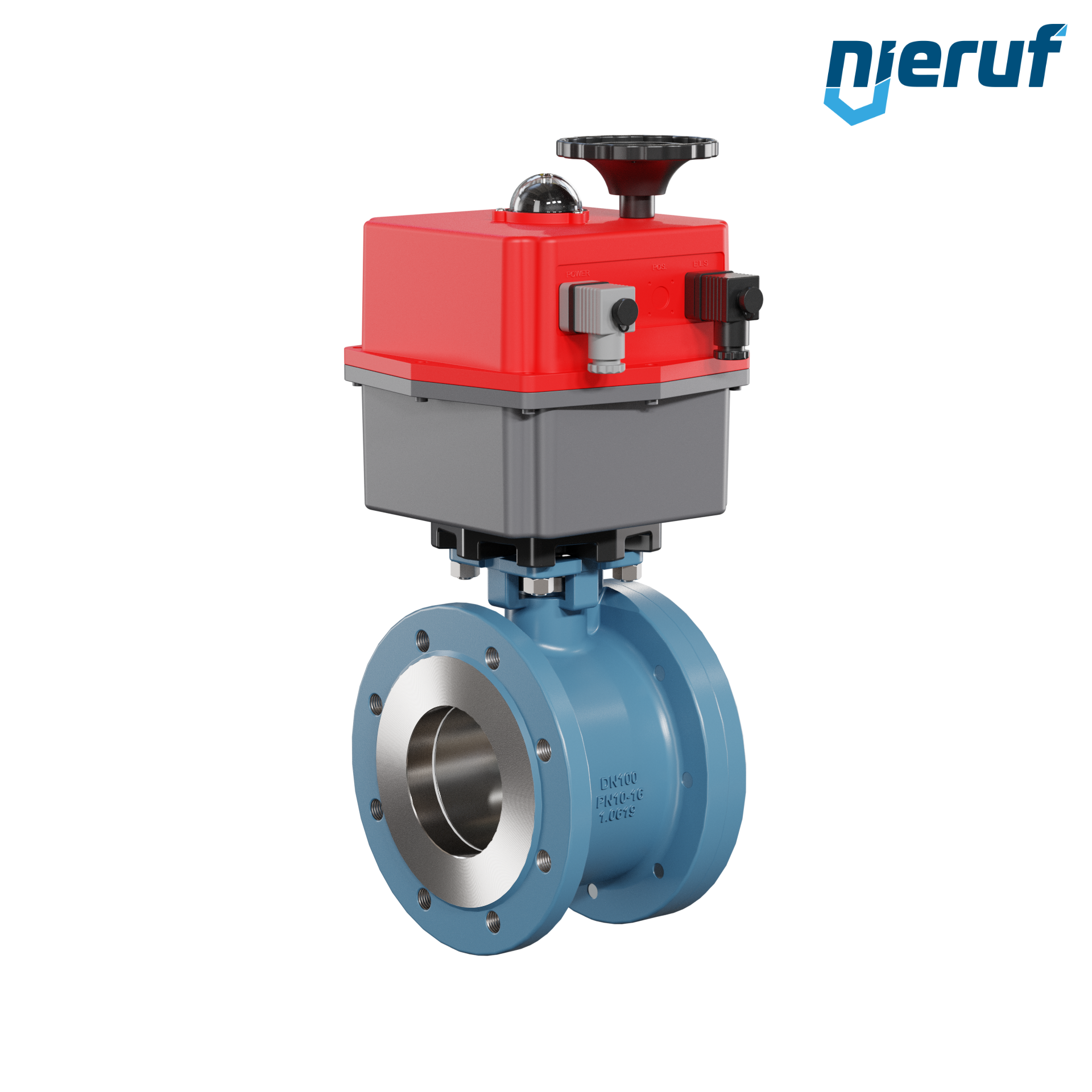

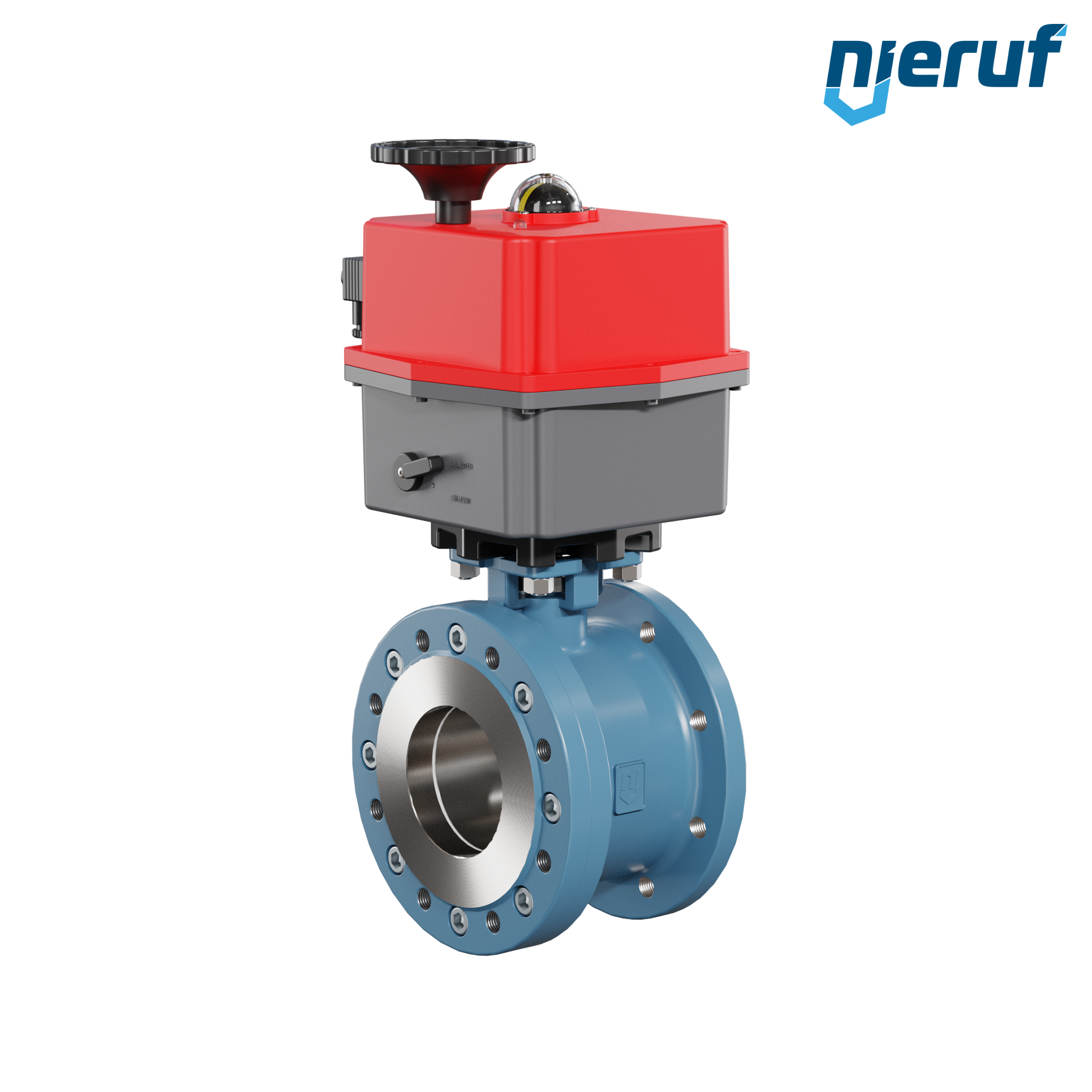

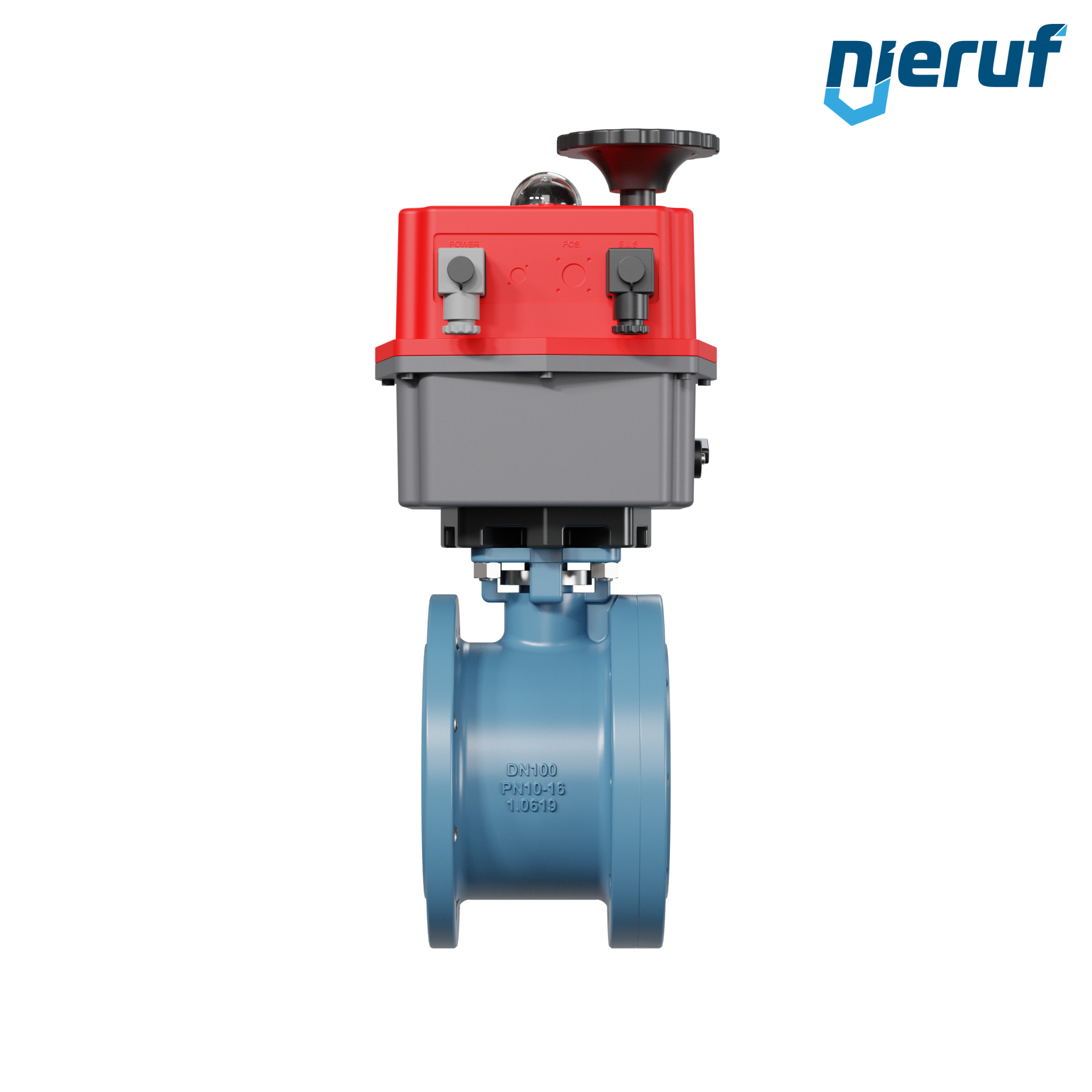

compact-automatic-flange ball valve DN100 EK06 24V

compact-automatic-flange ball valve DN100 carbon steel 1.0619 EK06 electronic actuator S300 - series S for 24V AC/DC

product: compact-automatic-flange ball valve
type: EK06
manufacturer: NieRuf
diameter: DN100
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
design: flange ball valve with Wafer-design
body material: carbon steel 1.0619
ball material: stainless steel 1.4308
ball seal: PTFE / TFM
length: 150mm
actuator: electronic actuator S300 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
authorized for: TA Luft
product description: This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

compact-automatic-flange ball valve DN100 EK06 24V

Article no. : EK06000011
product: compact-automatic-flange ball valve
type: EK06
manufacturer: NieRuf
diameter: DN100
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
design: flange ball valve with Wafer-design
body material: carbon steel 1.0619
ball material: stainless steel 1.4308
ball seal: PTFE / TFM
length: 150mm
actuator: electronic actuator S300 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
authorized for: TA Luft
product description: This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating.

No spare parts were found for the item number .
