EK06010006
compact-automatic-flange ball valve DN32 EK06 24-240V
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you

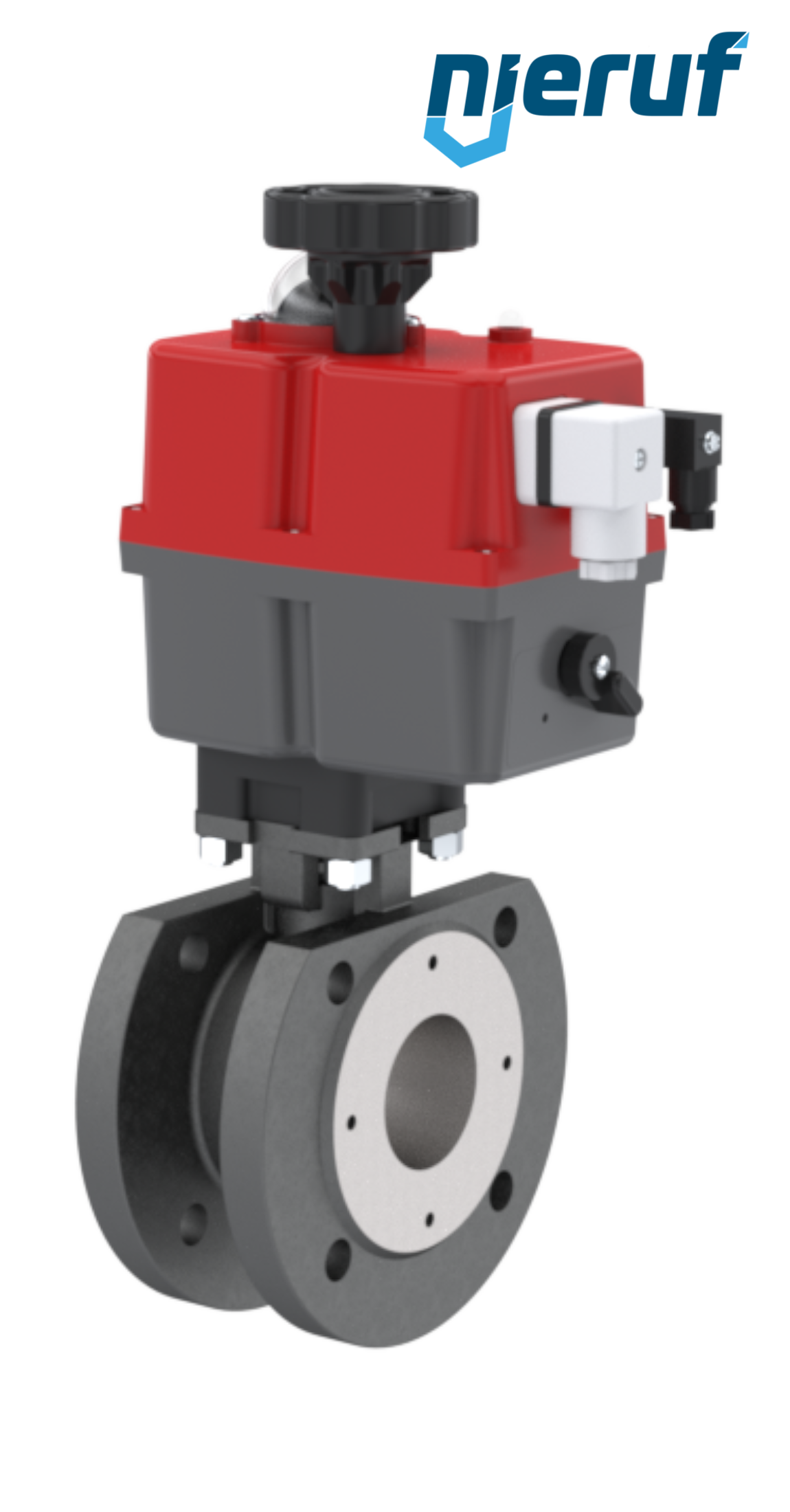

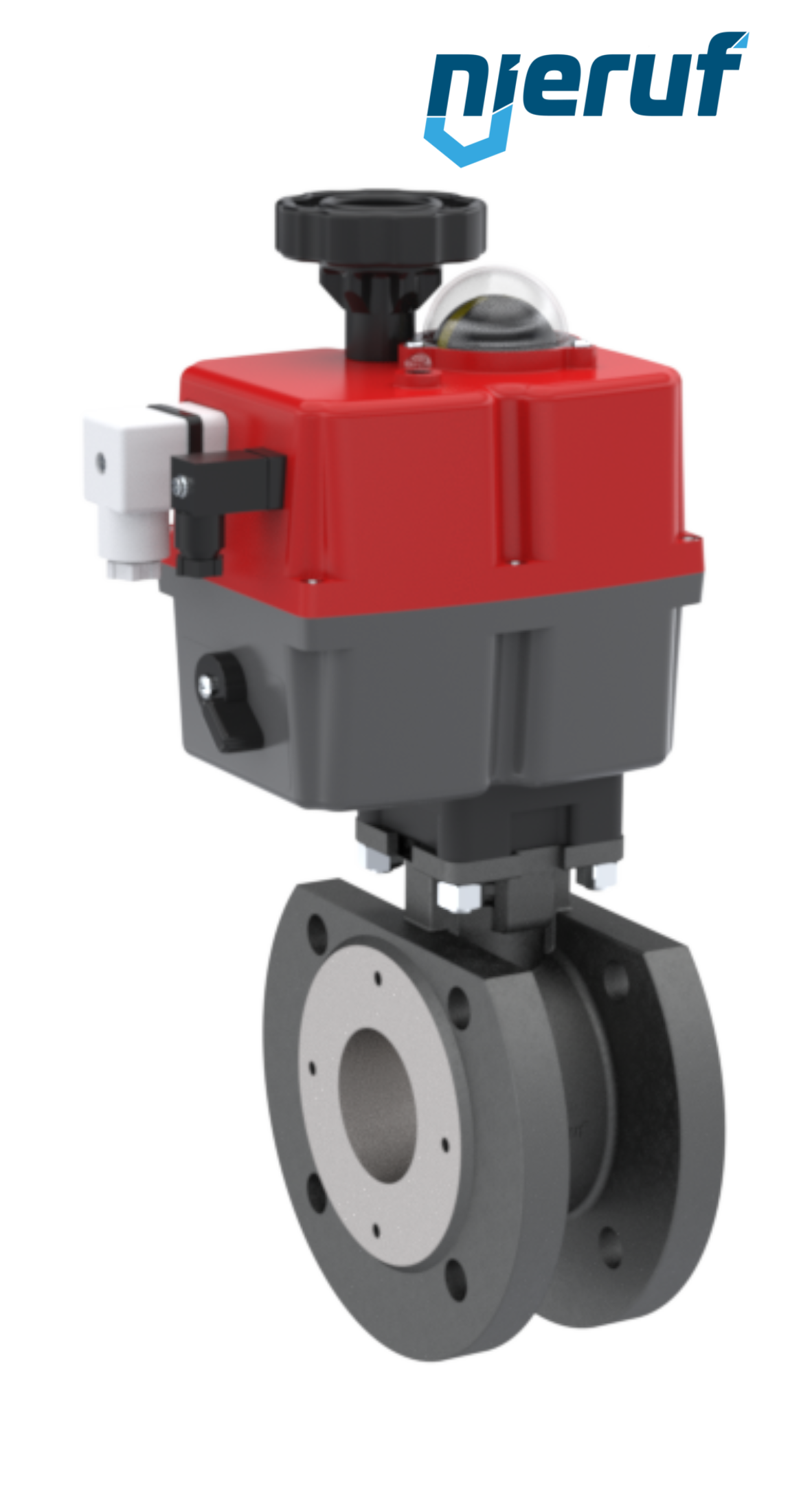

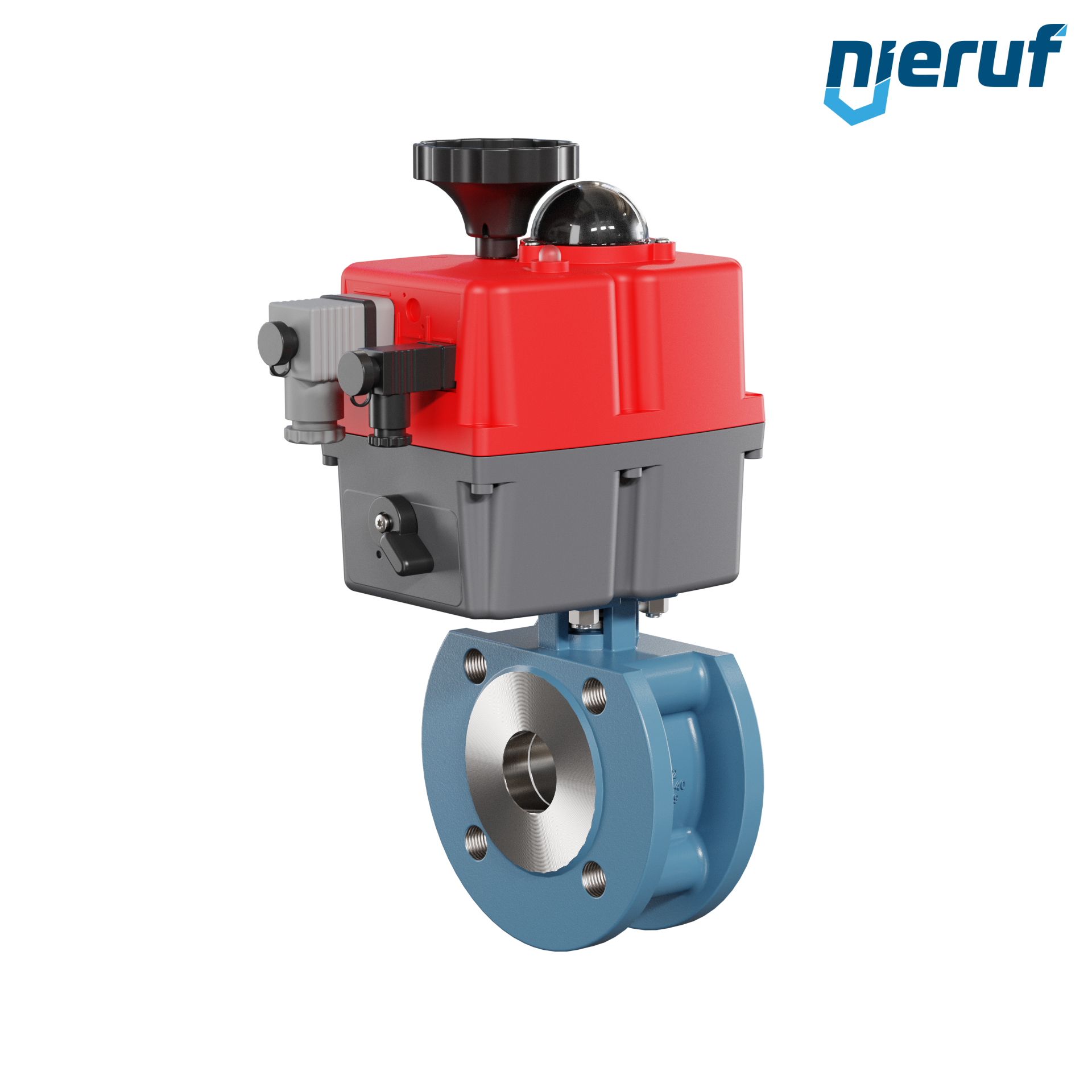

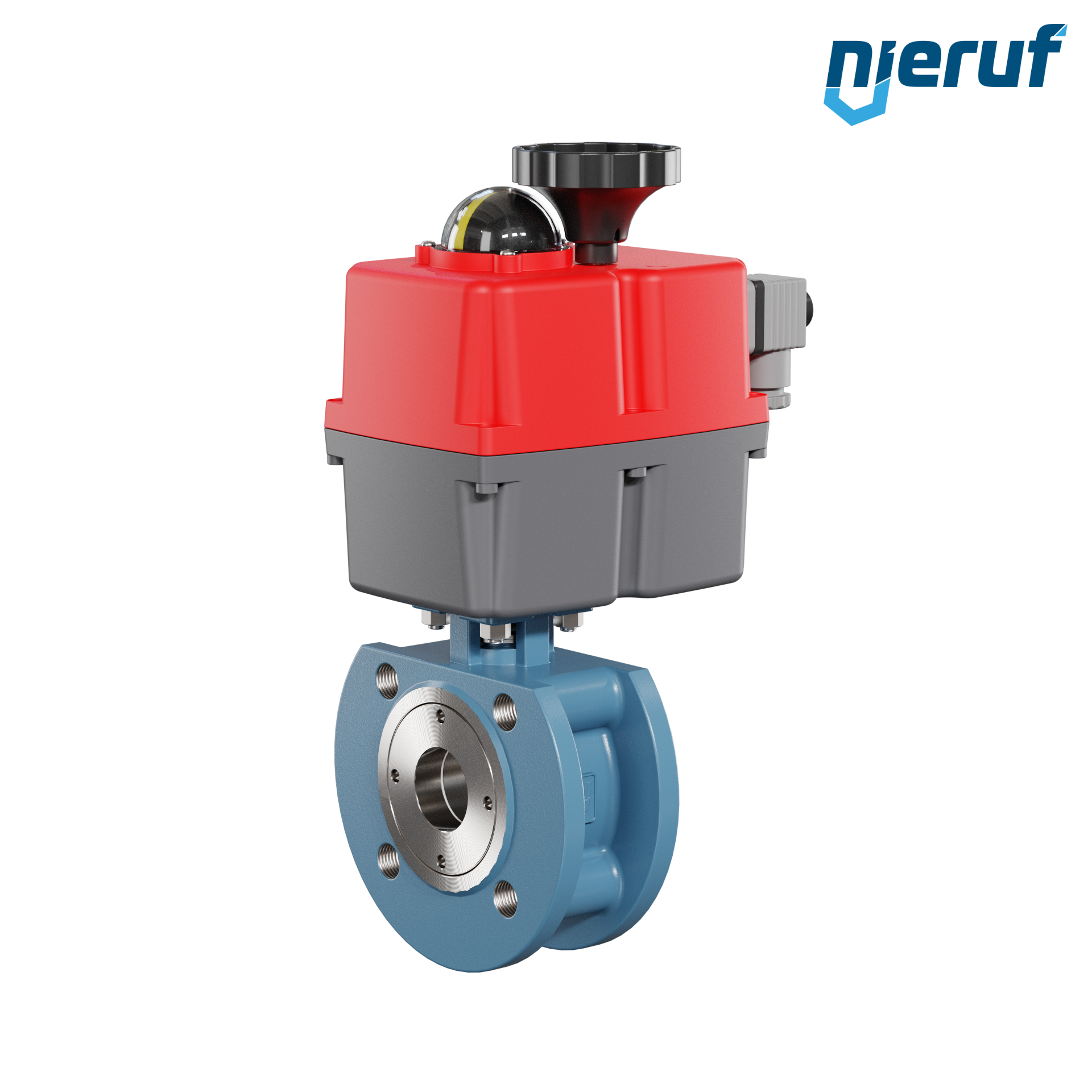

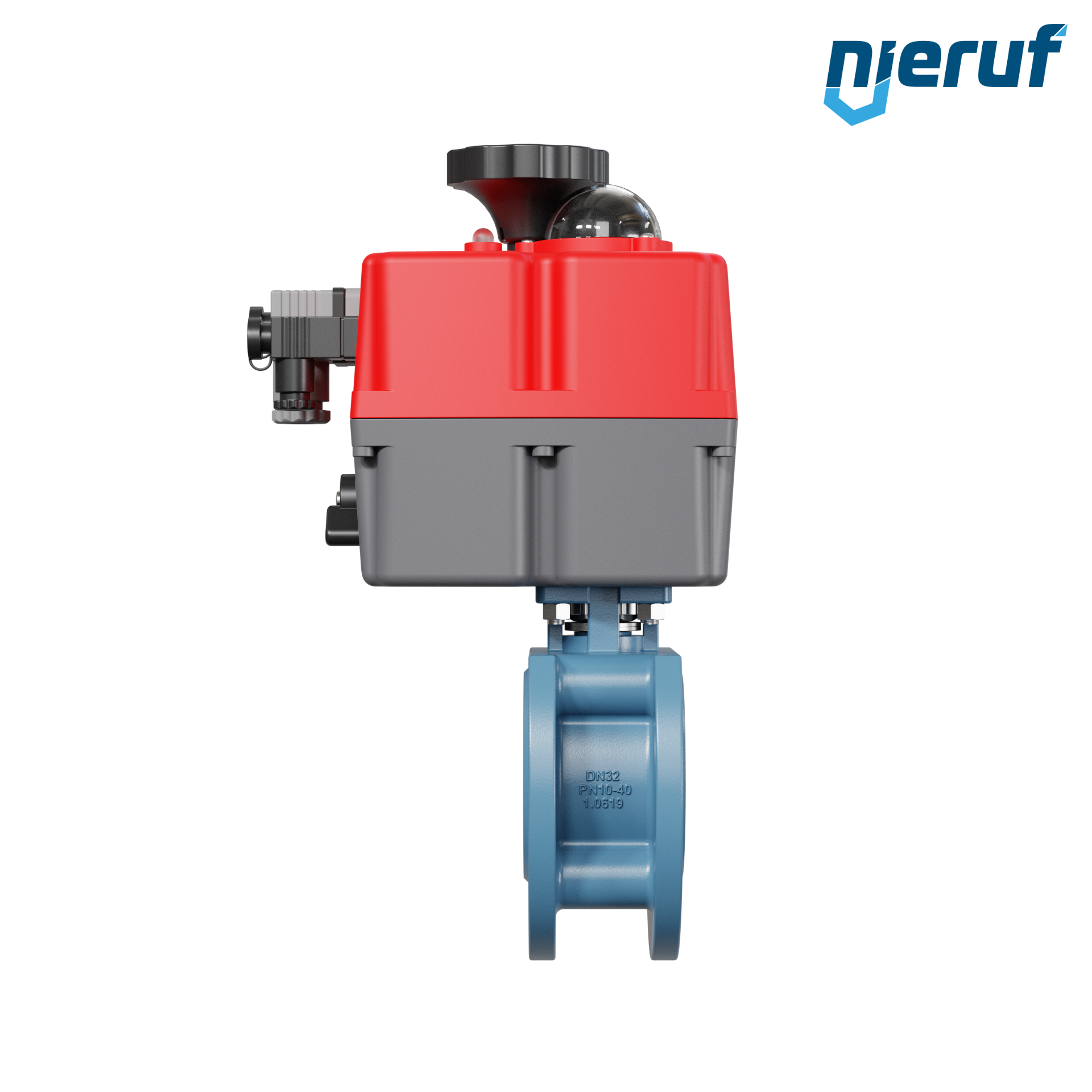

compact-automatic-flange ball valve DN32 carbon steel 1.0619 EK06 electronic actuator S20 - series S for 24-240V AC/DC
product: | compact-automatic-flange ball valve |
---|---|
type: | EK06 |
manufacturer: | NieRuf |
diameter: | DN32 |
connection: | flange dimensions acc. DIN EN 1092-2 PN 16 |
Seal steam: | Viton |
media: | liquid and gaseous media |
temperature: | ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
max. pressure: | PN16 |
design: | flange ball valve with Wafer-design |
body material: | carbon steel 1.0619 |
ball material: | stainless steel 1.4308 |
ball seal: | PTFE / TFM |
length: | 60mm |
actuator: | electronic actuator S20 - series S for 24-240V AC/DC |
actuator informations: | corrosion resistant synthetic body |
installation position: | any position, not upside down |
authorized for: | TA Luft |
product description: | This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
compact-automatic-flange ball valve DN32 EK06 24-240V
Article no.
: EK06010006
product:
compact-automatic-flange ball valve
type:
EK06
manufacturer:
NieRuf
diameter:
DN32
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN16
design:
flange ball valve with Wafer-design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4308
ball seal:
PTFE / TFM
length:
60mm
actuator:
electronic actuator S20 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
authorized for:
TA Luft
product description:
This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
![Catalog](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/illustration/nieruf-katalog.webp?1724066721)
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
