EK06000007
compact-automatic-flange ball valve DN40 EK06 24V
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

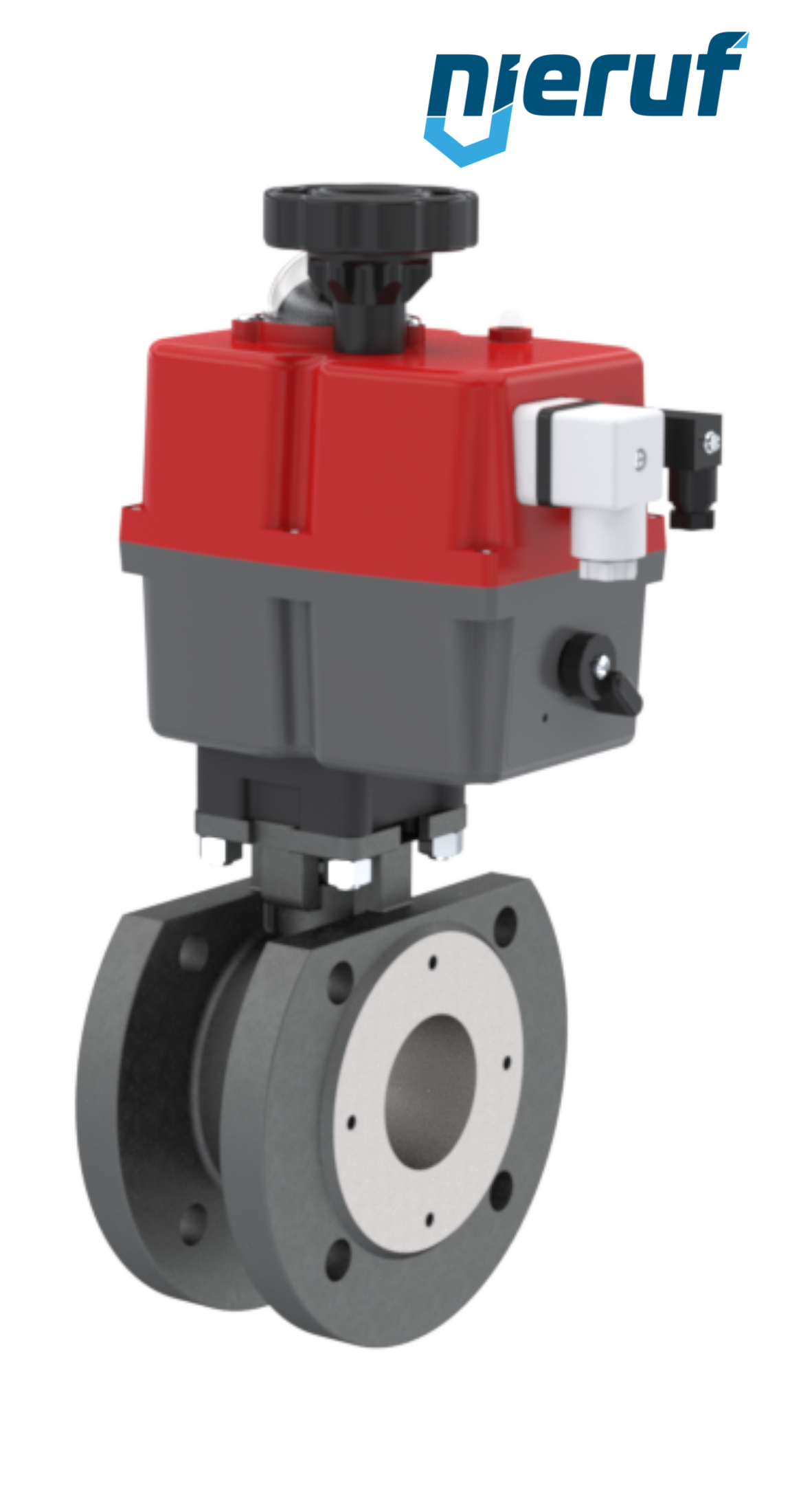

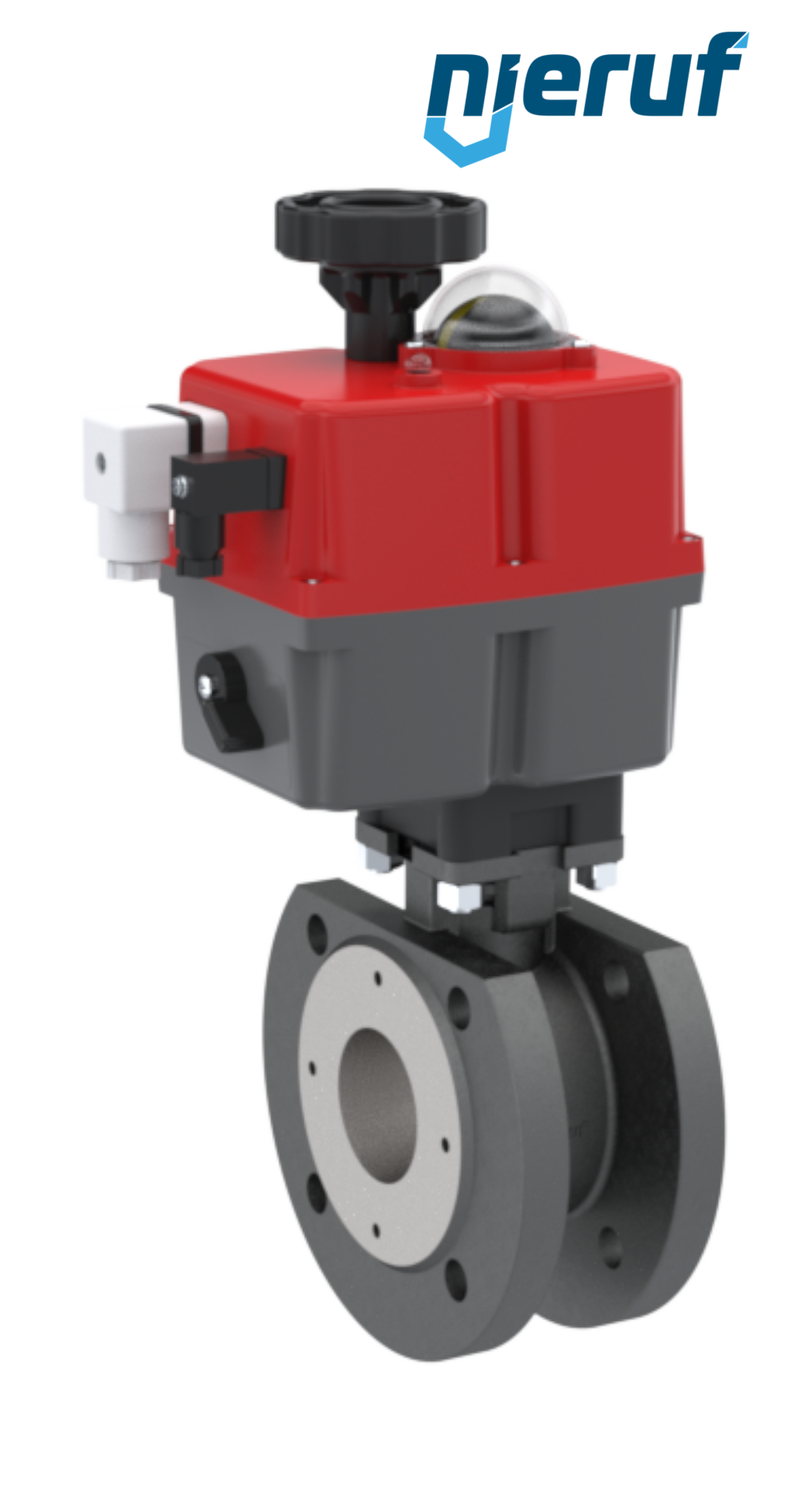

compact-automatic-flange ball valve DN40 carbon steel 1.0619 EK06 24V
| product: | compact-automatic-flange ball valve |
|---|---|
| type: | EK06 |
| manufacturer: | NieRuf |
| diameter: | DN40 |
| connection: | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam: | Viton |
| media: | liquid and gaseous media |
| temperature: | ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure: | PN16 |
| design: | flange ball valve with Wafer-design |
| body material: | carbon steel 1.0619 |
| ball material: | stainless steel 1.4308 |
| ball seal: | PTFE / TFM |
| length: | 65mm |
| actuator: | electronic actuator S35 - series S for 24-240V AC/DC |
| actuator informations: | corrosion resistant synthetic body |
| installation position: | any position, not upside down |
| authorized for: | TA Luft |
| product description: | This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
compact-automatic-flange ball valve DN40 EK06 24V
Article no.
: EK06000007
product:
compact-automatic-flange ball valve
type:
EK06
manufacturer:
NieRuf
diameter:
DN40
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN16
design:
flange ball valve with Wafer-design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4308
ball seal:
PTFE / TFM
length:
65mm
actuator:
electronic actuator S35 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
authorized for:
TA Luft
product description:
This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating.
€2.86 VAT included.
€22.02 VAT included.
€8.09 VAT included.
