TF01092011

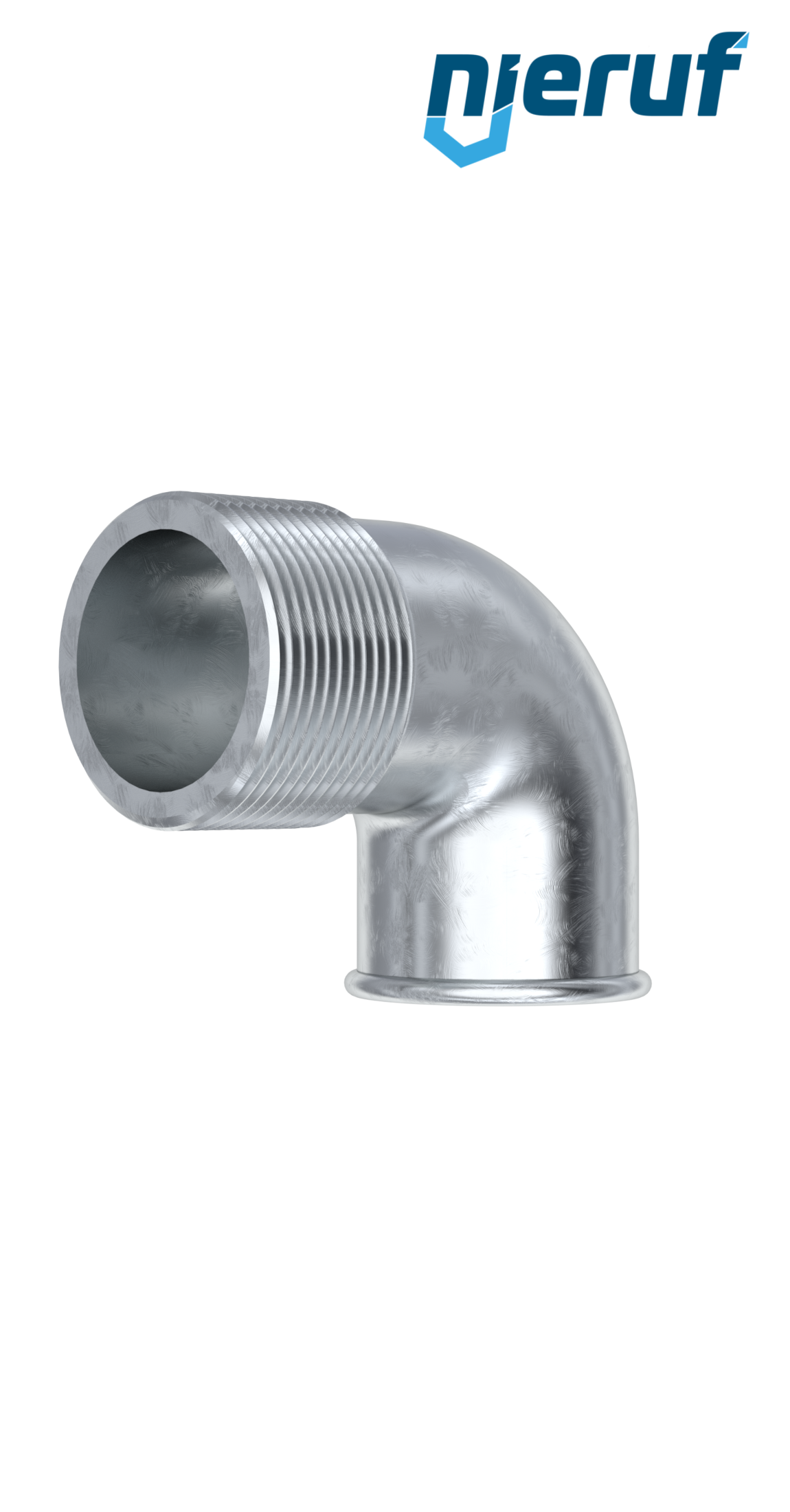

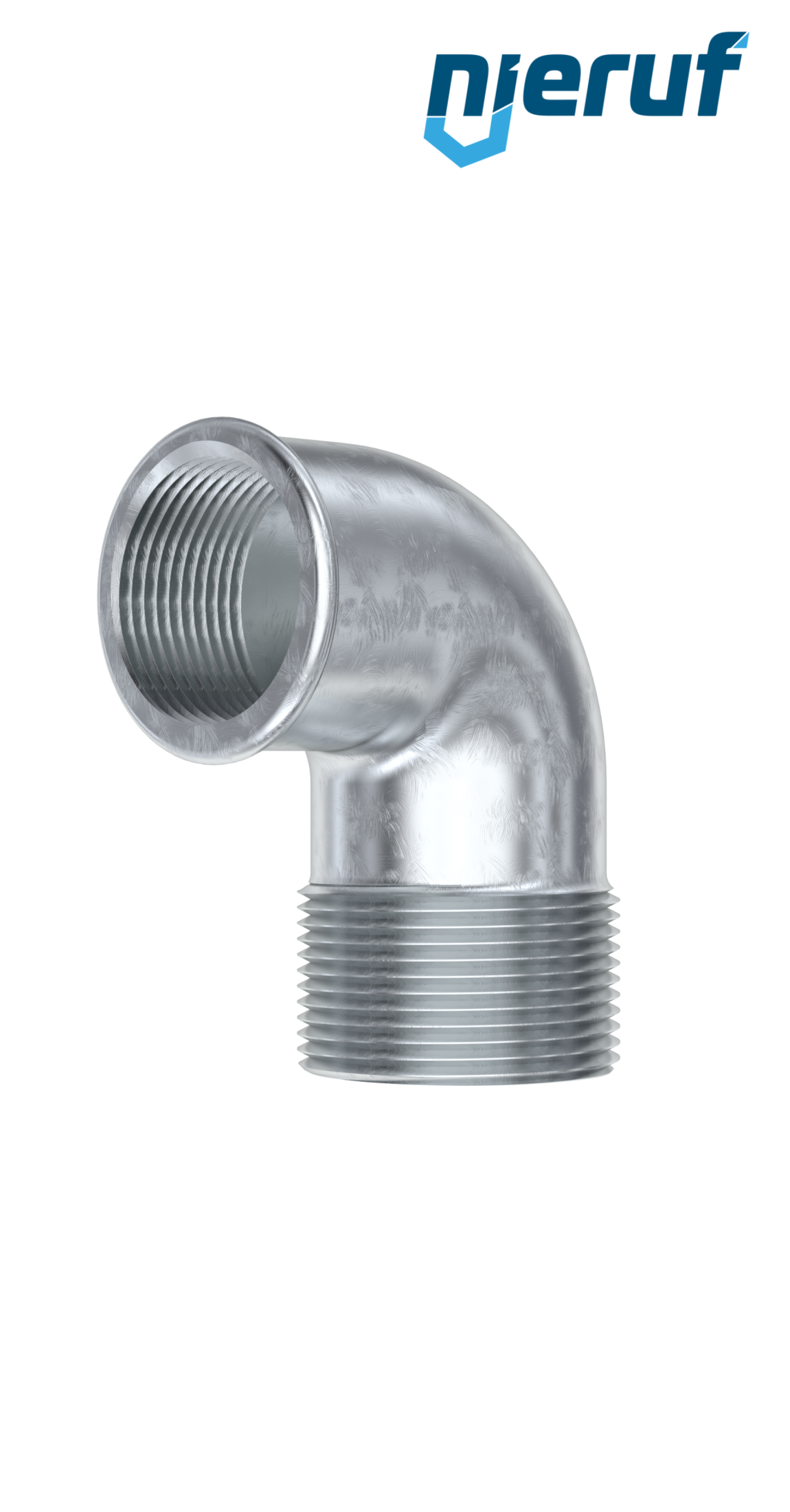

Malleable cast iron fitting elbow no. 92, DN100 - 4" inch galvanized
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
elbow no. 92 with female x male thread DN100 - 4" inch malleable cast iron galvanized for liquid & gaseous media
| product: | elbow |
|---|---|
| type: | TF01-092 |
| manufacturer: | NieRuf |
| design: | 90° angle |
| version: | ISO/EN A4 |
| diameter: | DN100 - 4" inch |
| connection: | female x male thread |
| thread: | acc. to DIN EN 10226-1 / ISO 7-1 |
| authorized for: | DVGW |
| max. working pressure: | 25 bar from -20°C up to +120°C |
| material: | Malleable cast iron EN 1562 galvanized |
| design symbol: | A |
| model number: | 92 |
| product feature: | Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Malleable cast iron fitting elbow no. 92, DN100 - 4" inch galvanized
Article no.
: TF01092011
product:
elbow
type:
TF01-092
manufacturer:
NieRuf
design:
90° angle
version:
ISO/EN A4
diameter:
DN100 - 4" inch
connection:
female x male thread
thread:
acc. to DIN EN 10226-1 / ISO 7-1
authorized for:
DVGW
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
design symbol:
A
model number:
92
product feature:
Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
