TF01090108.2

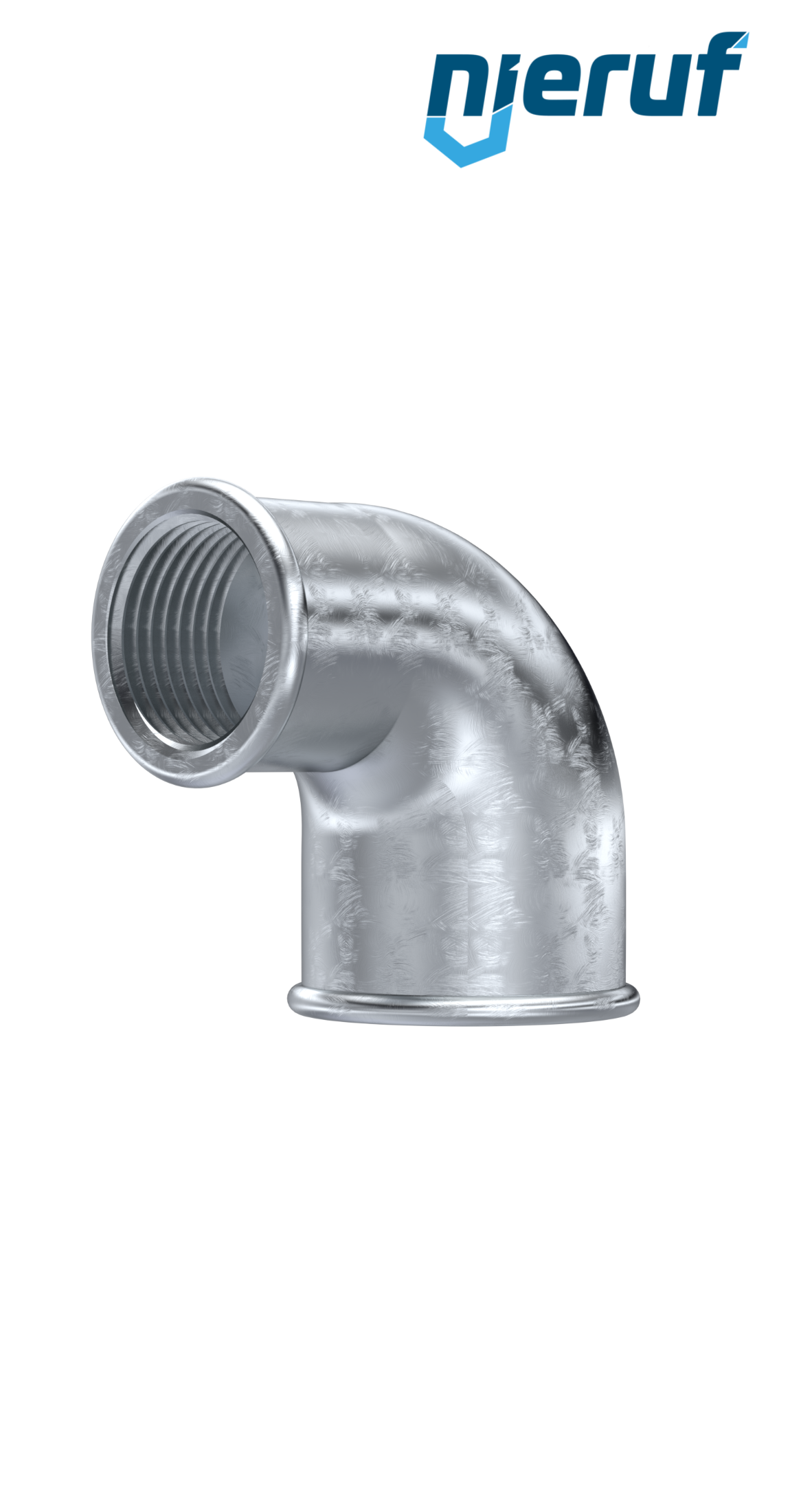

Malleable cast iron fitting elbow reduced no. 90, 2" x 1 1/4" inch galvanized
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
elbow reduced no. 90 with female thread 2" x 1 1/4" inch malleable cast iron galvanized for liquid & gaseous media
| product: | elbow reduced |
|---|---|
| type: | TF01-090 |
| manufacturer: | NieRuf |
| design: | 90° angle |
| version: | ISO/EN A1 |
| diameter: | 2" x 1 1/4" inch |
| connection: | female thread |
| thread: | acc. to DIN EN 10226-1 / ISO 7-1 |
| authorized for: | DVGW |
| max. working pressure: | 25 bar from -20°C up to +120°C |
| material: | Malleable cast iron EN 1562 galvanized |
| design symbol: | A |
| model number: | 90 |
| product feature: | Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Malleable cast iron fitting elbow reduced no. 90, 2" x 1 1/4" inch galvanized
Article no.
: TF01090108.2
product:
elbow reduced
type:
TF01-090
manufacturer:
NieRuf
design:
90° angle
version:
ISO/EN A1
diameter:
2" x 1 1/4" inch
connection:
female thread
thread:
acc. to DIN EN 10226-1 / ISO 7-1
authorized for:
DVGW
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
design symbol:
A
model number:
90
product feature:
Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
