TF01097002

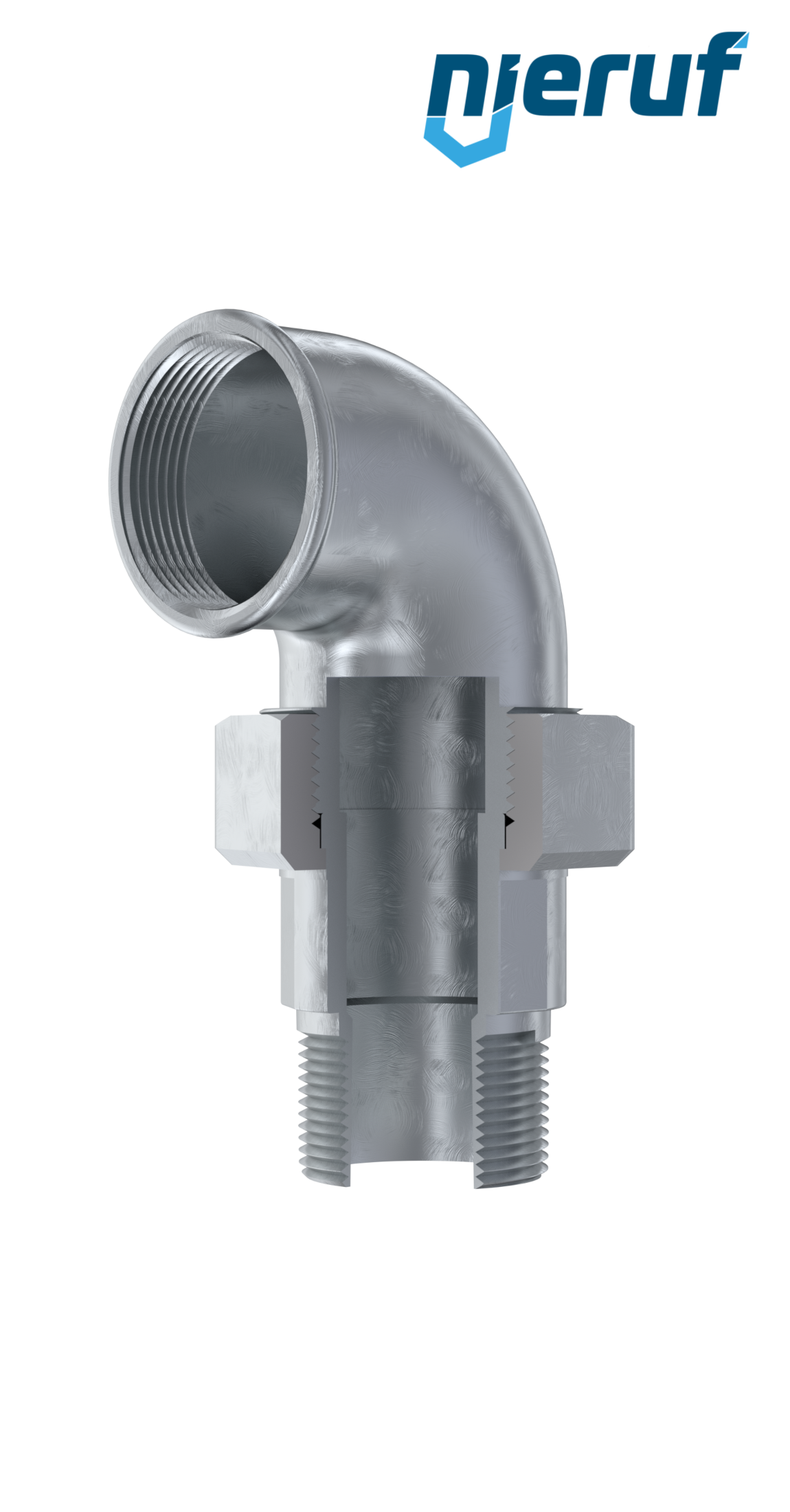

Malleable cast iron fitting union ellbow no. 97, DN10 - 3/8" inch galvanized
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
union ellbow no. 97 with female x male thread DN10 - 3/8" inch malleable cast iron galvanized for liquid & gaseous media
| product: | union ellbow |
|---|---|
| type: | TF01-097 |
| manufacturer: | NieRuf |
| design: | flat sealing |
| version: | ISO/EN UA2 |
| diameter: | DN10 - 3/8" inch |
| connection: | female x male thread |
| thread: | acc. to DIN EN 10226-1 / ISO 7-1 |
| authorized for: | DVGW |
| max. working pressure: | 25 bar from -20°C up to +120°C |
| material: | Malleable cast iron EN 1562 galvanized |
| design symbol: | A |
| model number: | 97 |
| product feature: | Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Malleable cast iron fitting union ellbow no. 97, DN10 - 3/8" inch galvanized
Article no.
: TF01097002
product:
union ellbow
type:
TF01-097
manufacturer:
NieRuf
design:
flat sealing
version:
ISO/EN UA2
diameter:
DN10 - 3/8" inch
connection:
female x male thread
thread:
acc. to DIN EN 10226-1 / ISO 7-1
authorized for:
DVGW
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
design symbol:
A
model number:
97
product feature:
Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
€89.85 VAT included.
