NV01000001

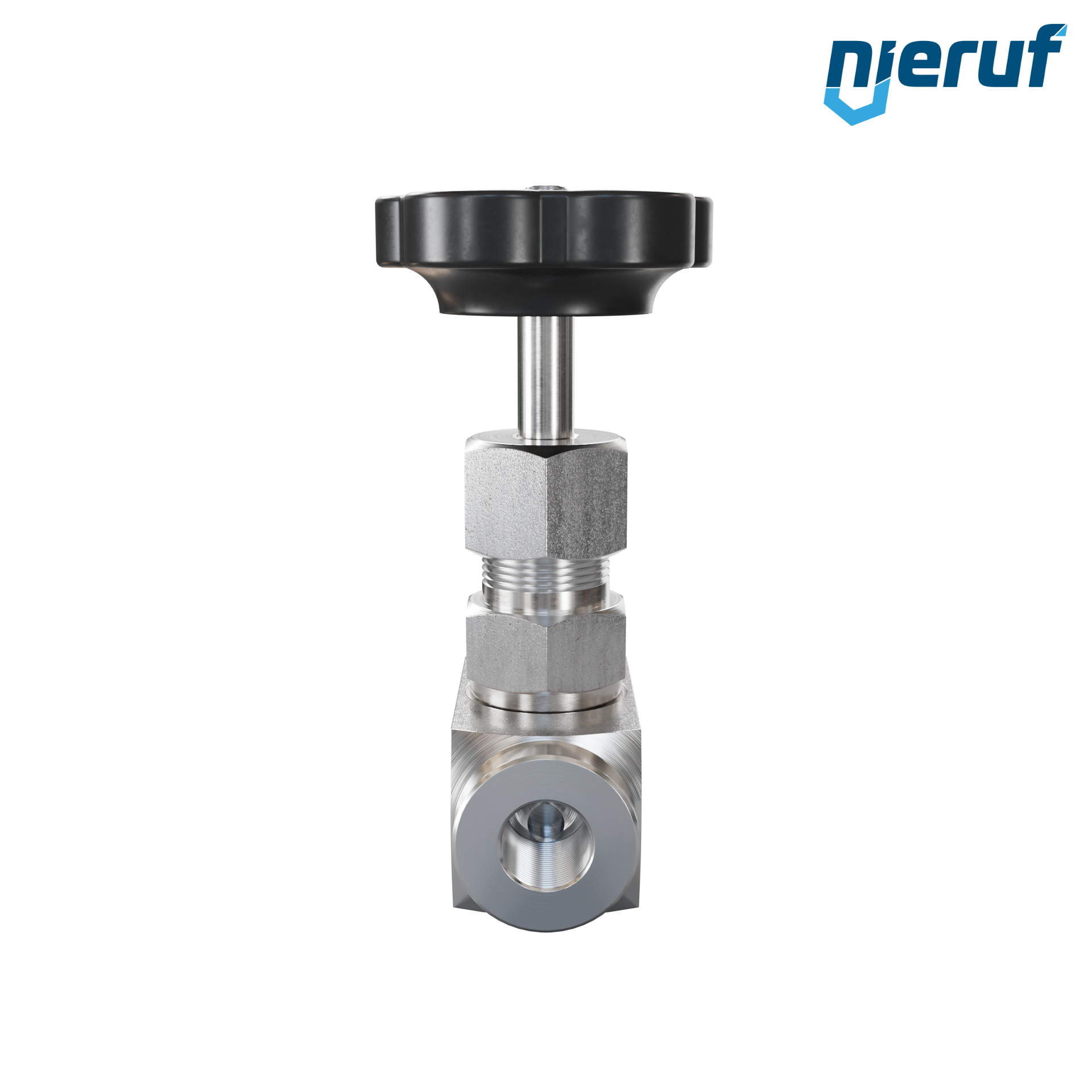

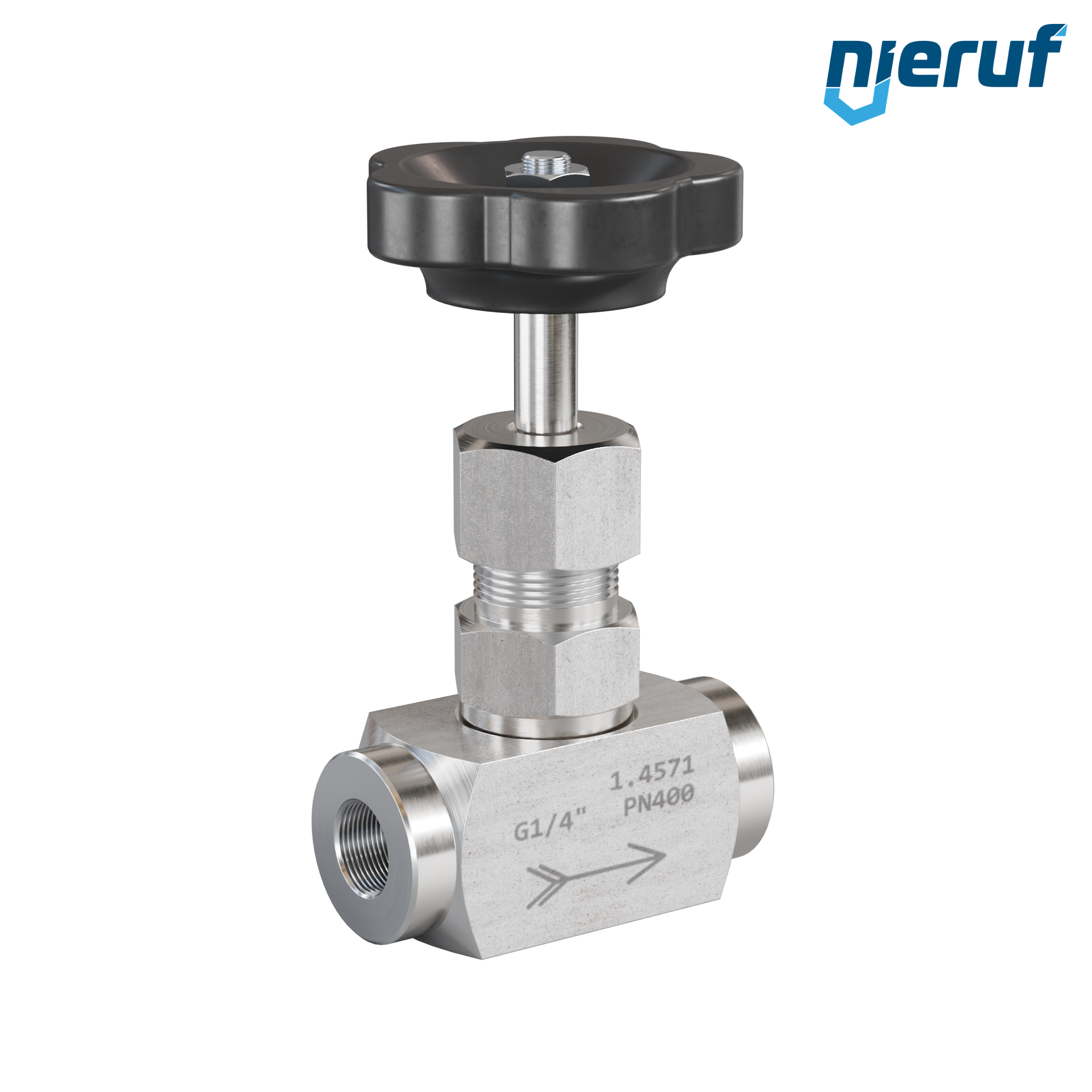

high pressure needle valve 1/4" inch NV01 stainless steel 1.4571
Delivery time: in stock
Express delivery*:
Shipping on: Wednesday, 20. November
Guaranteed delivery until Thursday, 21. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
high pressure needle valve 1/4" inch block execution made of stainless steel 1.4571 pressure up to max. 400 bar
| product: | high pressure needle valve |
|---|---|
| type: | NV01 |
| manufacturer: | NieRuf |
| design: | block execution |
| diameter: | 1/4" inch |
| connection: | female thread |
| material: | stainless steel 1.4571 |
| material head: | stainless steel 1.4571 |
| spindle: | stainless steel 1.4571 |
| handwheel: | plastic |
| seal: | PTFE |
| Kv-value m3/h: | 0,42 |
| media: | liquid and gaseous media |
| temperature: | up to max. +250°C |
| pressure range+DT:GA: | up to max. 400 bar |
| product feature: | For precise control of the media. Ideal for control a flow in the system. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
high pressure needle valve 1/4" inch NV01 stainless steel 1.4571
Article no.
: NV01000001
product:
high pressure needle valve
type:
NV01
manufacturer:
NieRuf
design:
block execution
diameter:
1/4" inch
connection:
female thread
material:
stainless steel 1.4571
material head:
stainless steel 1.4571
spindle:
stainless steel 1.4571
handwheel:
plastic
seal:
PTFE
Kv-value m3/h:
0,42
media:
liquid and gaseous media
temperature:
up to max. +250°C
pressure range+DT:GA:
up to max. 400 bar
product feature:
For precise control of the media. Ideal for control a flow in the system.
€1.90 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
