AK09020110
PFA-Butterfly-valve PTFE AK09 DN80 PN10-PN16 handwheel gearbox silicone insert
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 25. November
Guaranteed delivery until Tuesday, 26. November, 12 o'clock
Order in within by express delivery
Questions about the article?
Our employee Max Eisele
will be happy to help you

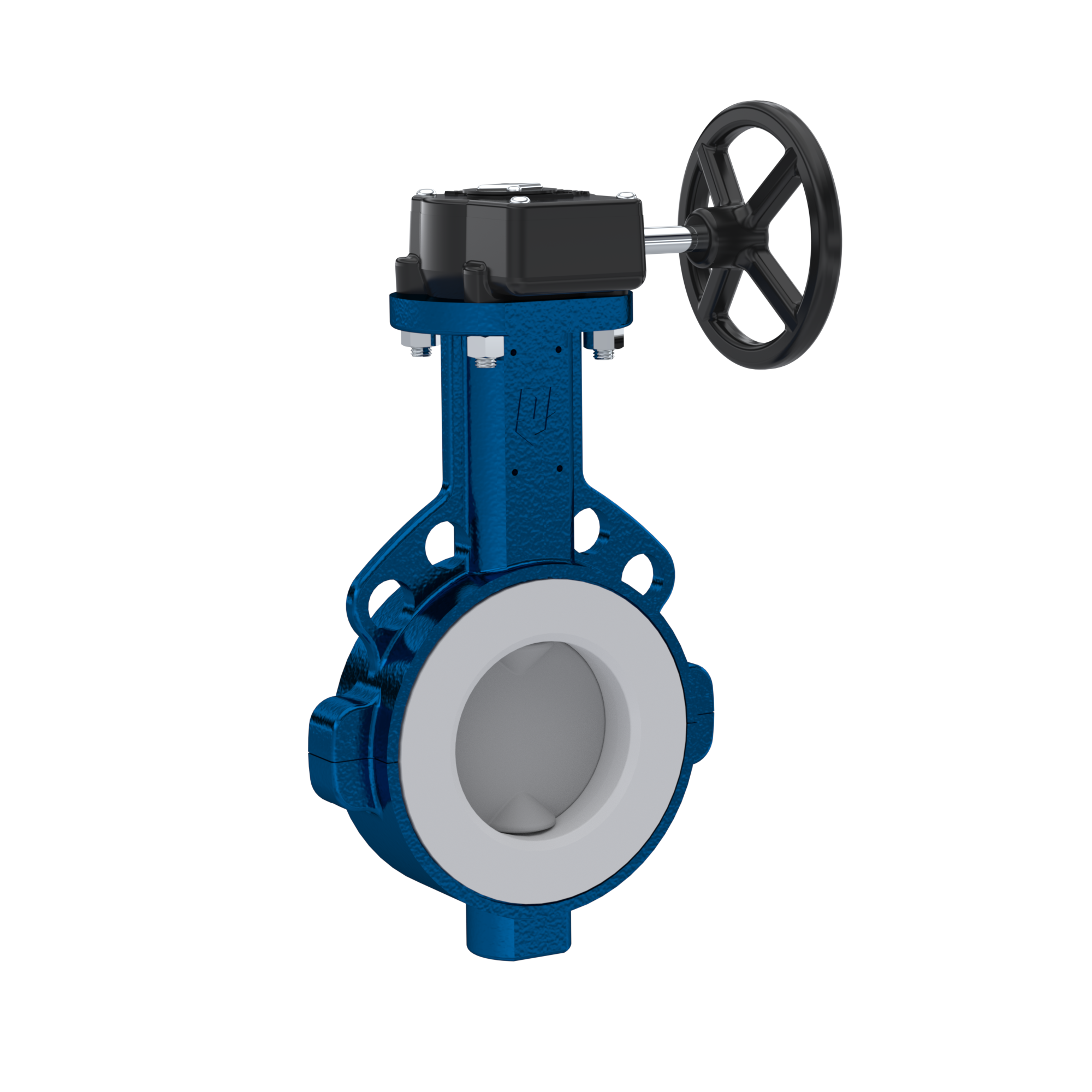

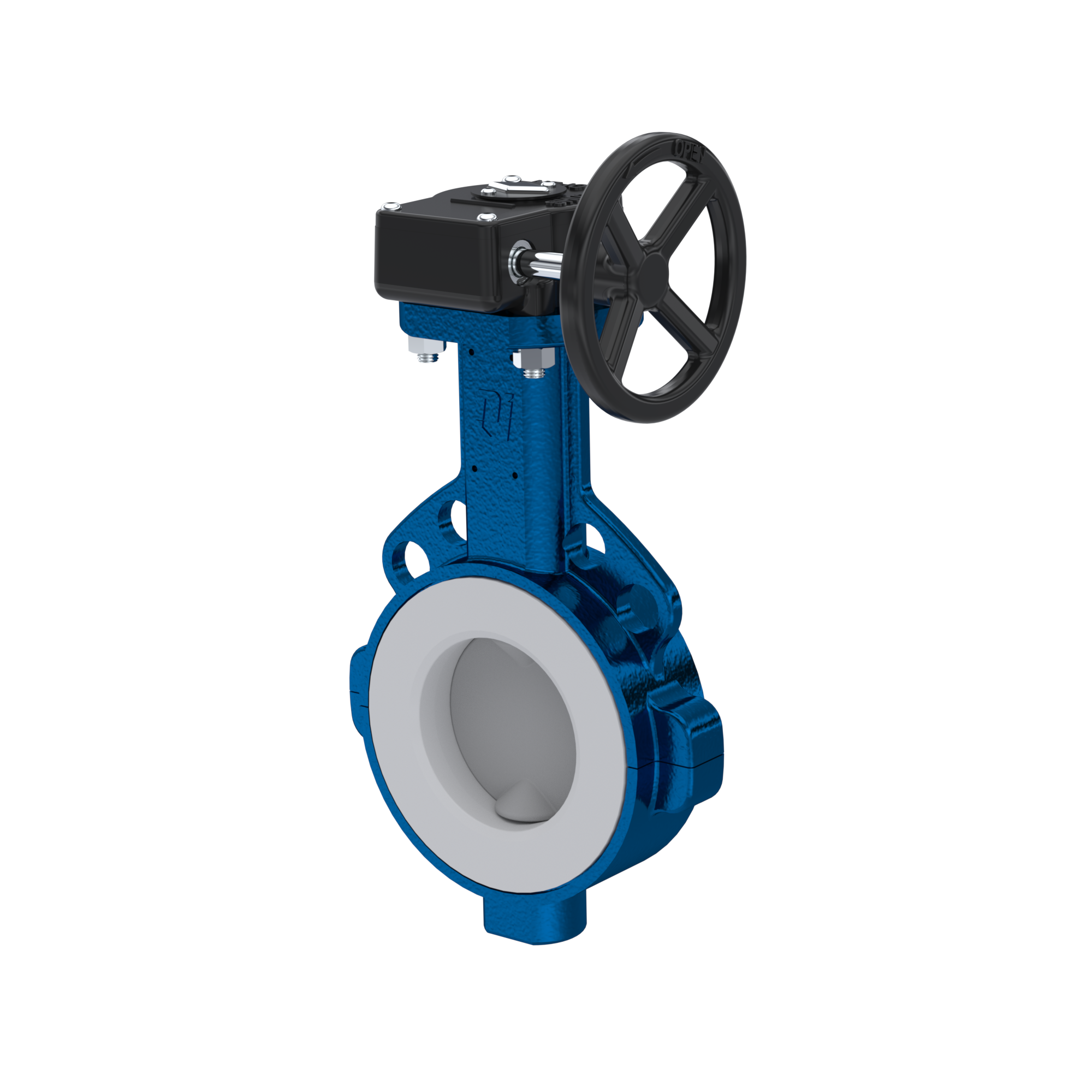

PFA-Butterfly-valve DN80 PN10-PN16 Wafer type with handwheel gearbox seal made of PTFE and silicone insert for aggressive media
| product: | PFA-Butterfly-valve |
|---|---|
| type: | AK09 |
| manufacturer: | NieRuf |
| diameter: | DN80 |
| nominal pressure: | PN10-PN16 |
| max. working pressure: | 10 bar |
| sleeves: | PTFE |
| media: | liquid, gaseous and aggressive media |
| temperature: | -20°C up to +200°C |
| design: | Wafer type |
| body material: | ductile iron 5.3103 epoxy-coating 120μm |
| disc: | PFA |
| Insert: | silicone |
| actuation: | handwheel gearbox |
| application: | for extreme usage |
| installation position: | shaft preferably horizontal |
| product feature: | PFA-butterfly-valve and PTFE sleeve for aggressive media |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PFA-Butterfly-valve PTFE AK09 DN80 PN10-PN16 handwheel gearbox silicone insert
Article no.
: AK09020110
product:
PFA-Butterfly-valve
type:
AK09
manufacturer:
NieRuf
diameter:
DN80
nominal pressure:
PN10-PN16
max. working pressure:
10 bar
sleeves:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up to +200°C
design:
Wafer type
body material:
ductile iron 5.3103 epoxy-coating 120μm
disc:
PFA
Insert:
silicone
actuation:
handwheel gearbox
application:
for extreme usage
installation position:
shaft preferably horizontal
product feature:
PFA-butterfly-valve and PTFE sleeve for aggressive media
€1,202.97 VAT included.
€2,044.54 VAT included.
