AK10320012

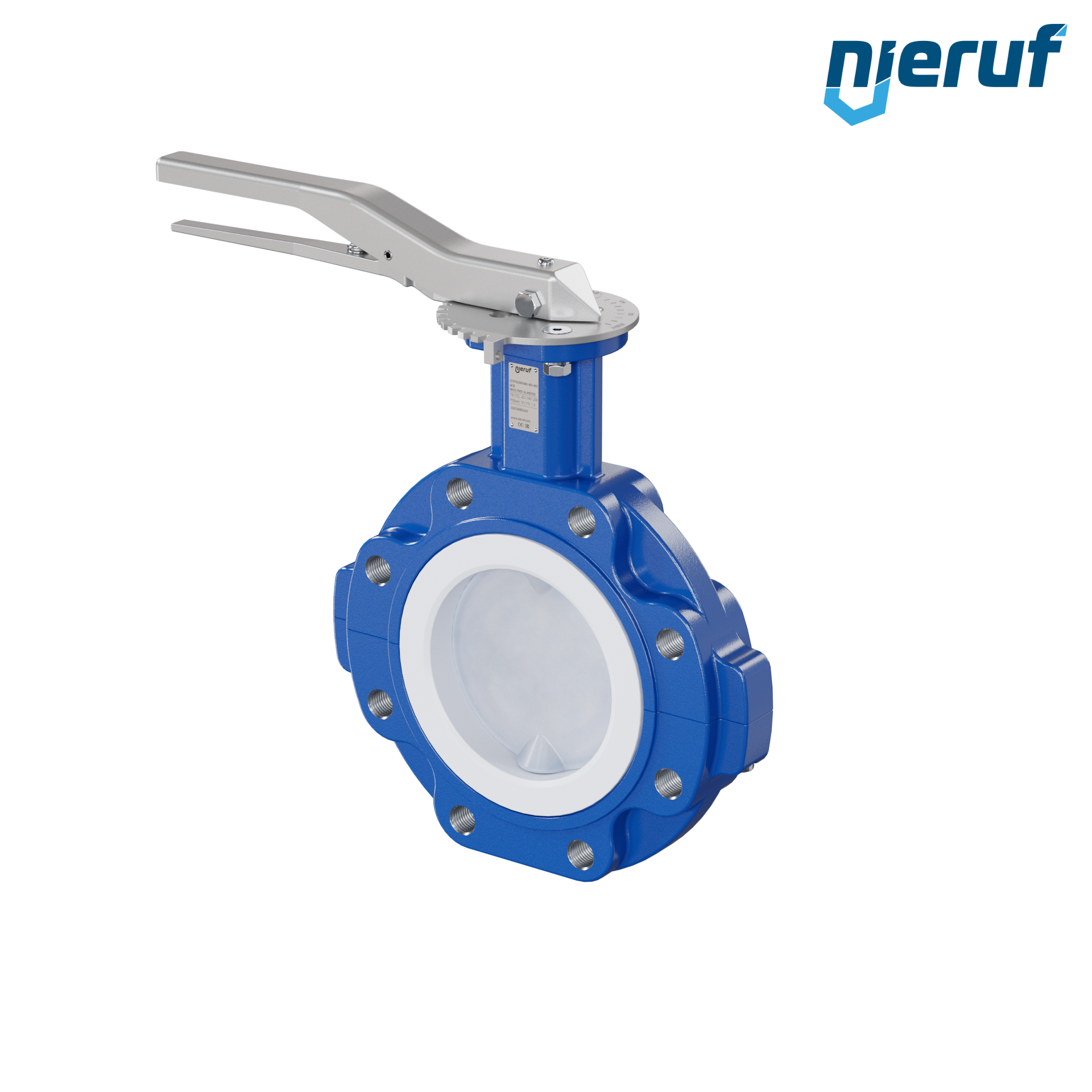

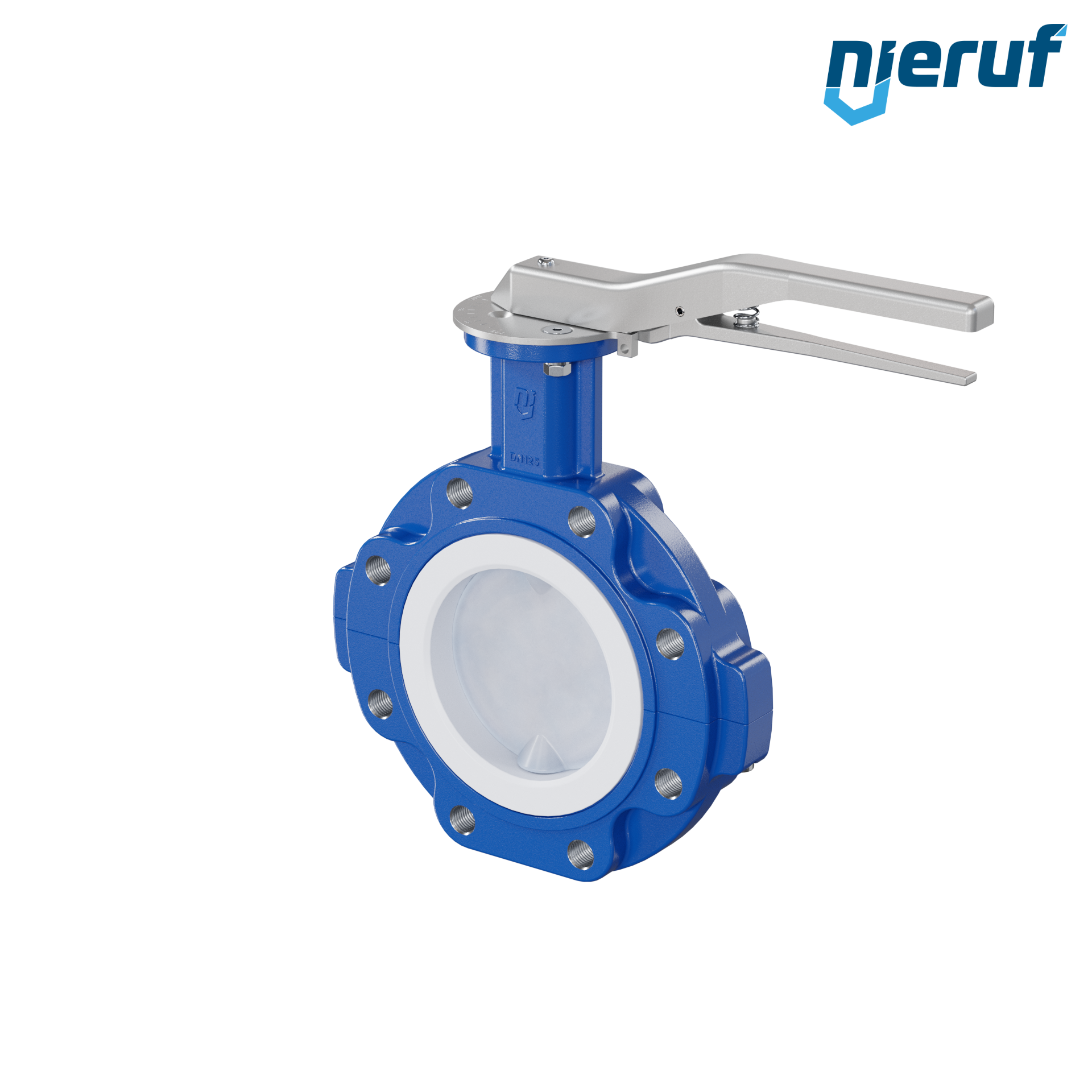

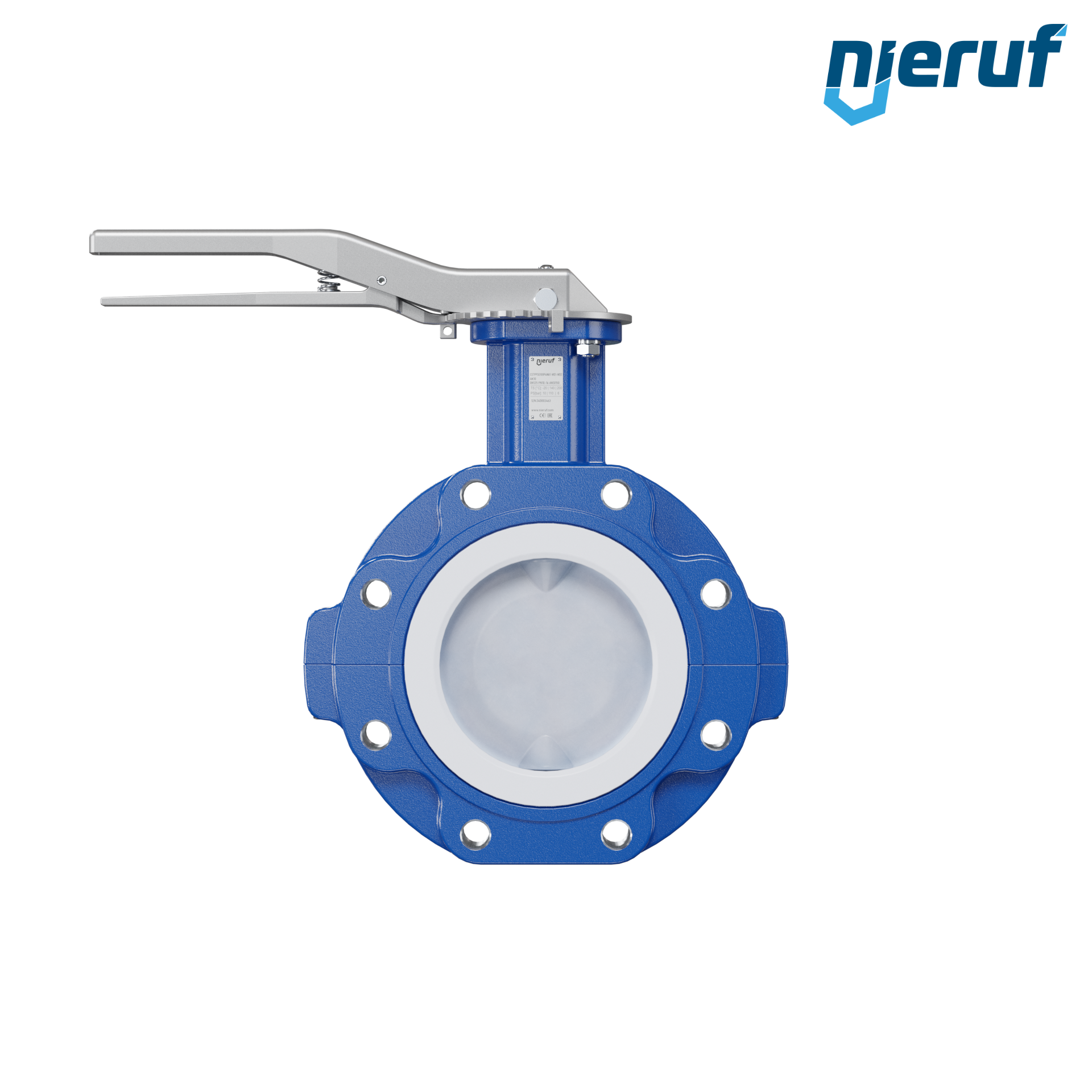

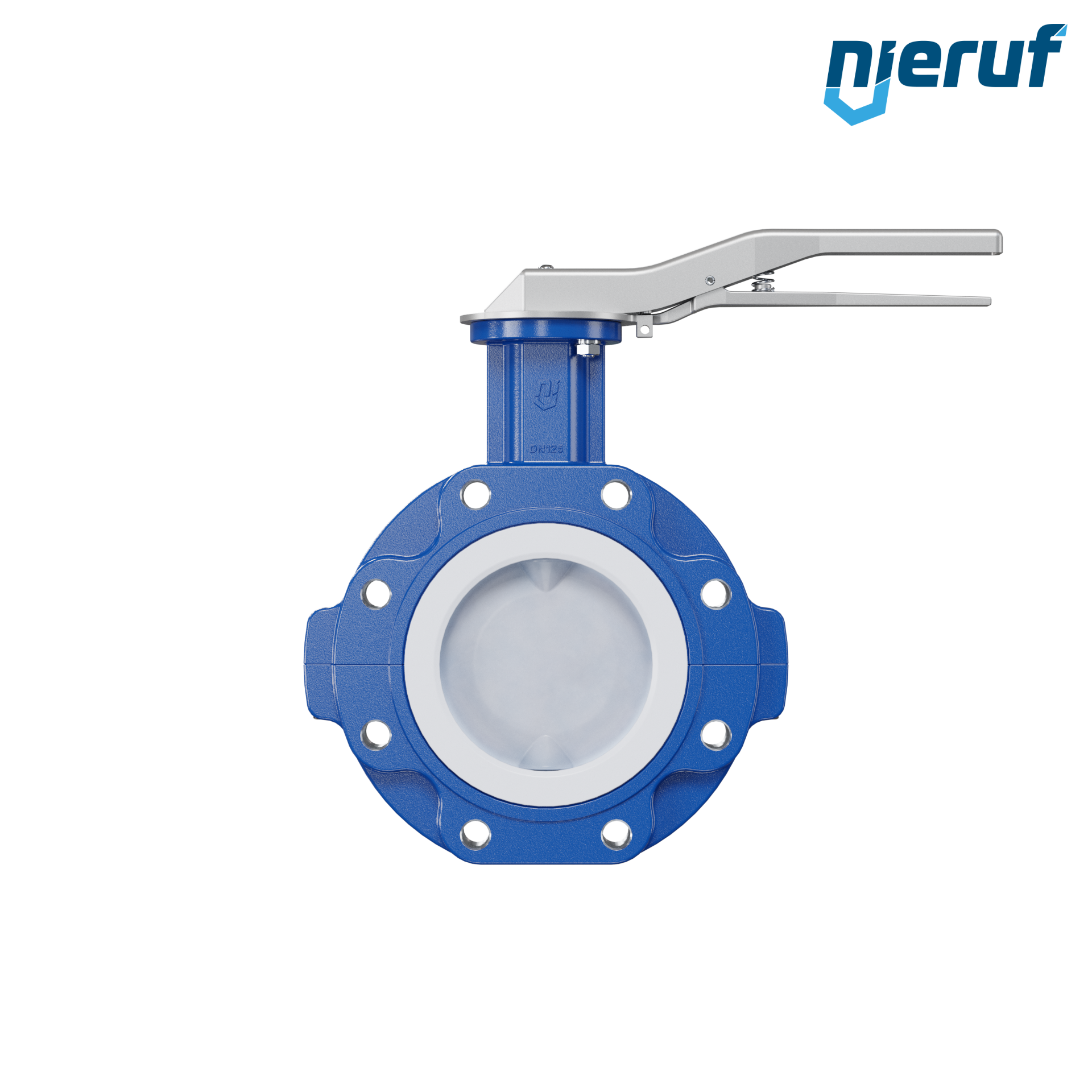

PFA-Butterfly-valve PTFE AK10 DN125 ANSI150 lever silicone insert
Delivery time: 2 - 3 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you
PFA-Butterfly-valve DN125 ANSI150 Lug type with lever seal made of PTFE and silicone insert for aggressive media
| product: | PFA-Butterfly-valve |
|---|---|
| type: | AK10 |
| manufacturer: | NieRuf |
| diameter: | DN125 |
| nominal pressure: | ANSI150 |
| max. working pressure: | 10 bar |
| sleeves: | PTFE |
| media: | liquid, gaseous and aggressive media |
| temperature: | -20°C up to +200°C |
| design: | Lug type |
| body material: | ductile iron 5.3103 epoxy-coating 120μm |
| disc: | PFA |
| Insert: | silicone |
| actuation: | lever |
| application: | for extreme usage |
| installation position: | shaft preferably horizontal |
| product feature: | PFA-butterfly-valve and PTFE sleeve for aggressive media |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PFA-Butterfly-valve PTFE AK10 DN125 ANSI150 lever silicone insert
Article no.
: AK10320012
product:
PFA-Butterfly-valve
type:
AK10
manufacturer:
NieRuf
diameter:
DN125
nominal pressure:
ANSI150
max. working pressure:
10 bar
sleeves:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up to +200°C
design:
Lug type
body material:
ductile iron 5.3103 epoxy-coating 120μm
disc:
PFA
Insert:
silicone
actuation:
lever
application:
for extreme usage
installation position:
shaft preferably horizontal
product feature:
PFA-butterfly-valve and PTFE sleeve for aggressive media
€1,995.51 VAT included.
