FK13010011

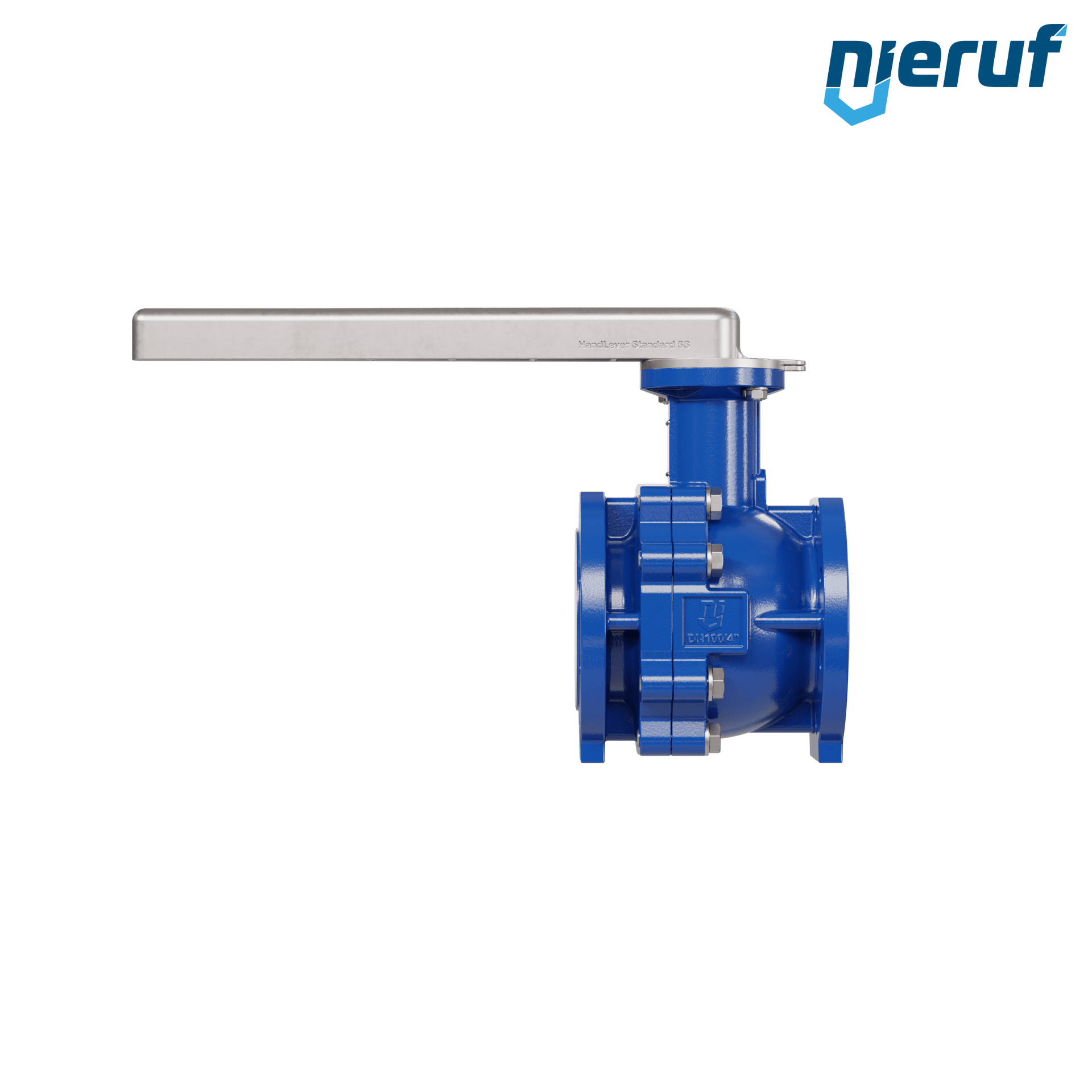

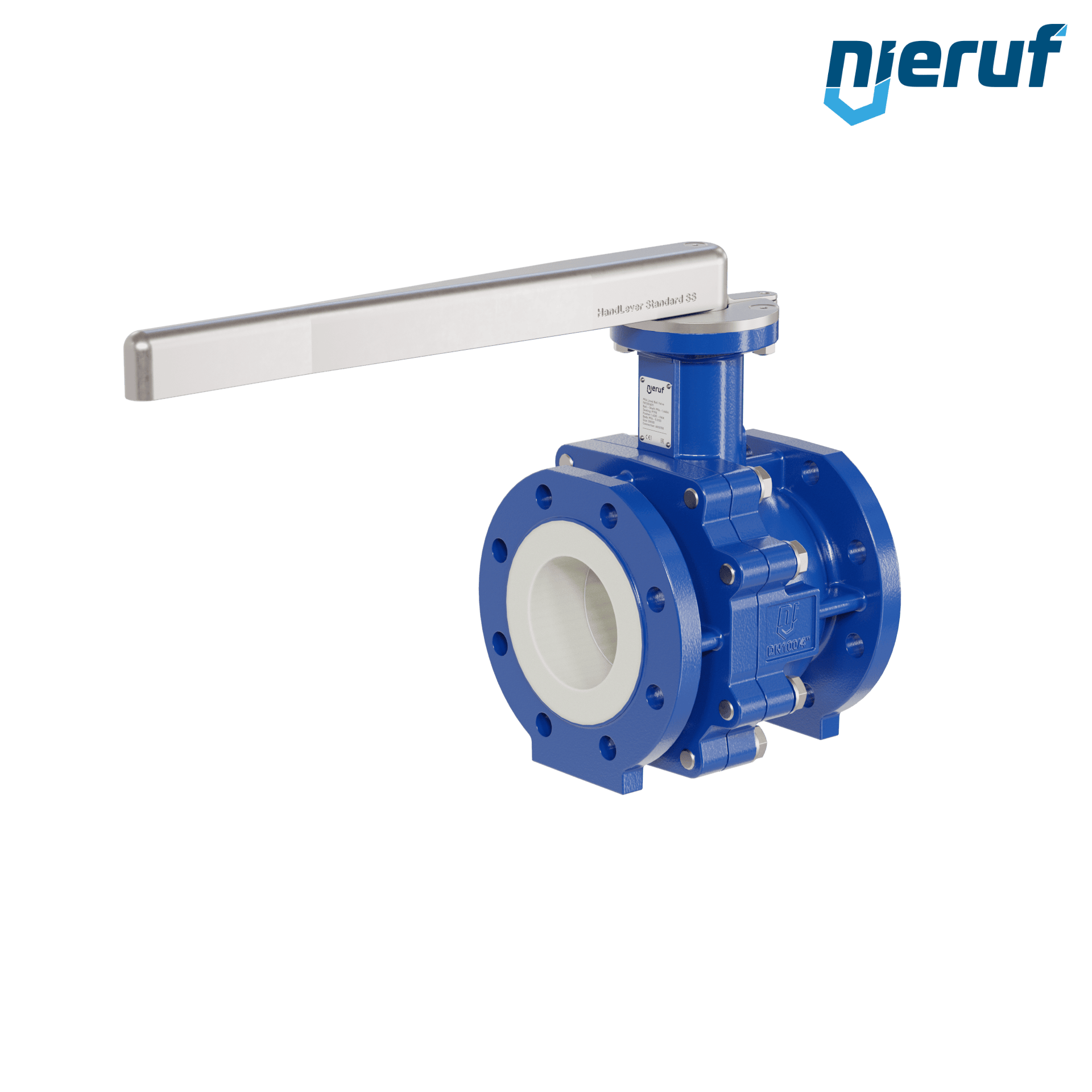

PFA-flange ball valve FK13 DN100 - 4" inch ANSI 150 made of spheroidal graphite cast iron with lever hand
Delivery time: 2 - 3 weeks
Equipment
PFA-Butterfly-valve PTFE AK10 DN100 ANSI150 lever silicone insert
€1,116.46 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
PFA-flange ball valve FK13 DN100 ANSI 150 body spheroidal graphite cast iron 5.3103 ball PFA seal PTFE for liquid, gaseous and aggressive media with lever handle
| product: | PFA-flange ball valve |
|---|---|
| type: | FK13 |
| manufacturer: | NieRuf |
| diameter: | DN100 - 4" inch |
| connection: | flange dimensions acc. to ANSI150 |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid, gaseous and aggressive media |
| temperature: | -20°C up tp +200°C |
| max. pressure: | ANSI 150 |
| design: | full port design |
| body material: | spheroidal graphite cast iron 5.3103 |
| lining: | PFA |
| ball material: | PFA |
| length: | ASME B16.10 |
| actuator: | lever handle made of steel |
| installation position: | any position |
| authorized for: | TA Luft |
| product description: | This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PFA-flange ball valve FK13 DN100 - 4" inch ANSI 150 made of spheroidal graphite cast iron with lever hand
Article no.
: FK13010011
product:
PFA-flange ball valve
type:
FK13
manufacturer:
NieRuf
diameter:
DN100 - 4" inch
connection:
flange dimensions acc. to ANSI150
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up tp +200°C
max. pressure:
ANSI 150
design:
full port design
body material:
spheroidal graphite cast iron 5.3103
lining:
PFA
ball material:
PFA
length:
ASME B16.10
actuator:
lever handle made of steel
installation position:
any position
authorized for:
TA Luft
product description:
This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.
€1,459.18 VAT included.
€1,116.46 VAT included.
