FK13010008

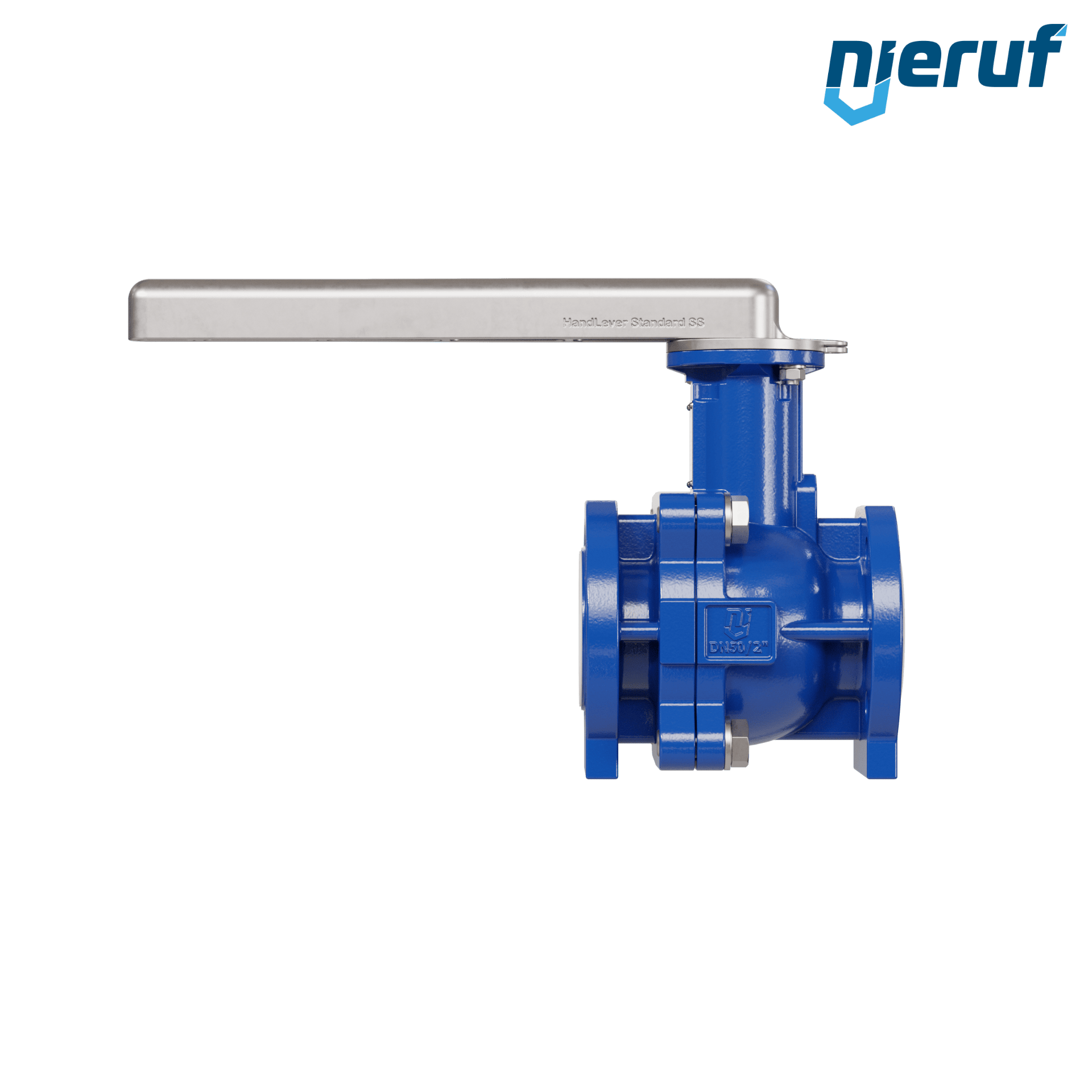

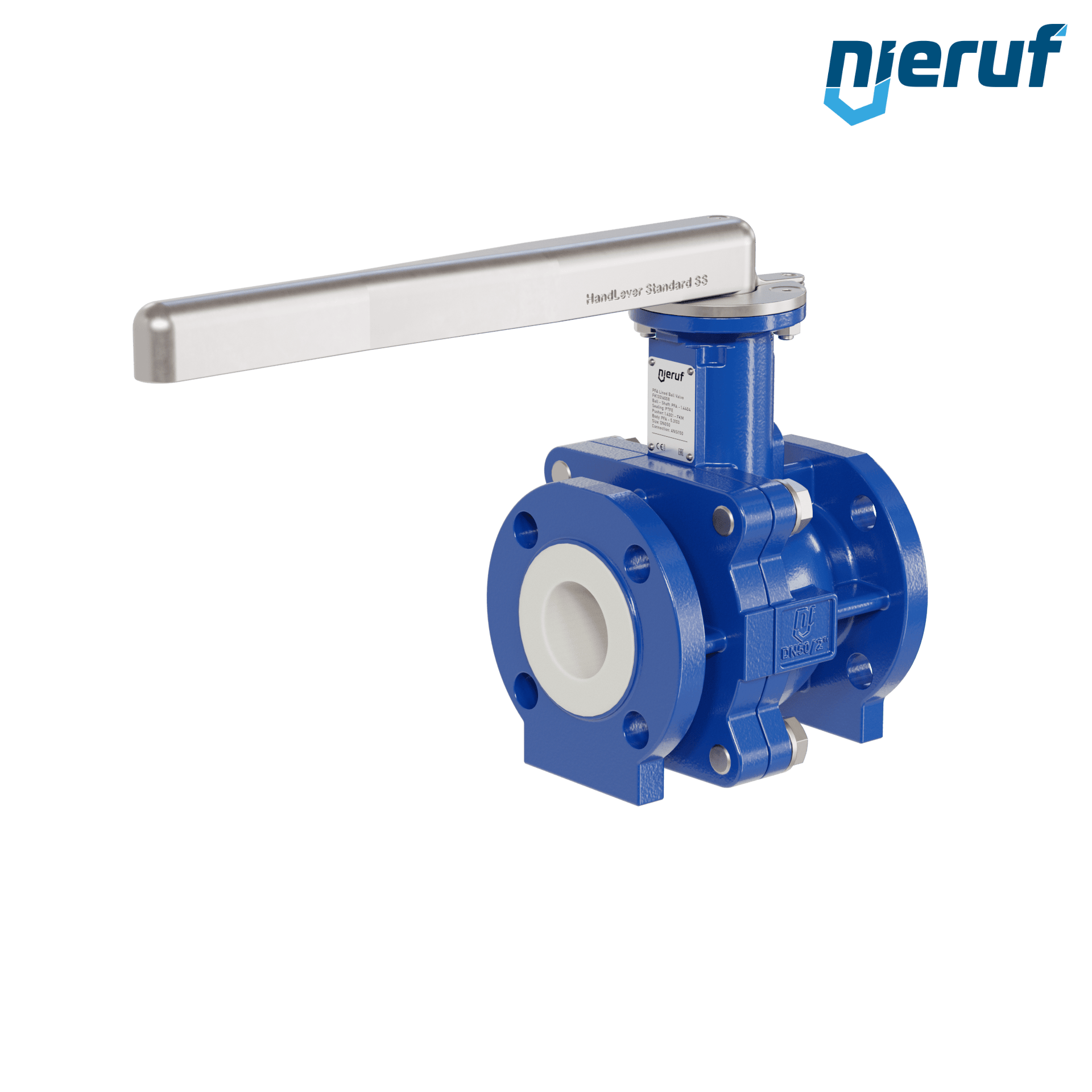

PFA-flange ball valve FK13 DN50 - 2" inch ANSI 150 made of spheroidal graphite cast iron with lever hand
- Delivery time
- 2 - 3 weeks
Equipment
PFA-Butterfly-valve PTFE AK10 DN50 ANSI150 lever silicone insert
€789.21 VAT included.
Questions about the article?
PFA-flange ball valve FK13 DN50 ANSI 150 body spheroidal graphite cast iron 5.3103 ball PFA seal PTFE for liquid, gaseous and aggressive media with lever handle
| product | PFA-flange ball valve |
|---|---|
| type | FK13 |
| manufacturer | NieRuf |
| diameter | DN50 - 2" inch |
| connection | flange dimensions acc. to ANSI150 |
| Seal steam | PTFE |
| ball seal | PTFE |
| media | liquid, gaseous and aggressive media |
| temperature | -20°C up tp +200°C |
| max. pressure | ANSI 150 |
| design | full port design |
| body material | spheroidal graphite cast iron 5.3103 |
| lining | PFA |
| ball material | PFA |
| length | ASME B16.10 |
| actuator | lever handle made of steel |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PFA-flange ball valve FK13 DN50 - 2" inch ANSI 150 made of spheroidal graphite cast iron with lever hand
Article no.
: FK13010008
product:
PFA-flange ball valve
type:
FK13
manufacturer:
NieRuf
diameter:
DN50 - 2" inch
connection:
flange dimensions acc. to ANSI150
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up tp +200°C
max. pressure:
ANSI 150
design:
full port design
body material:
spheroidal graphite cast iron 5.3103
lining:
PFA
ball material:
PFA
length:
ASME B16.10
actuator:
lever handle made of steel
installation position:
any position
authorized for:
TA Luft
product description:
This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.
