FK13001011

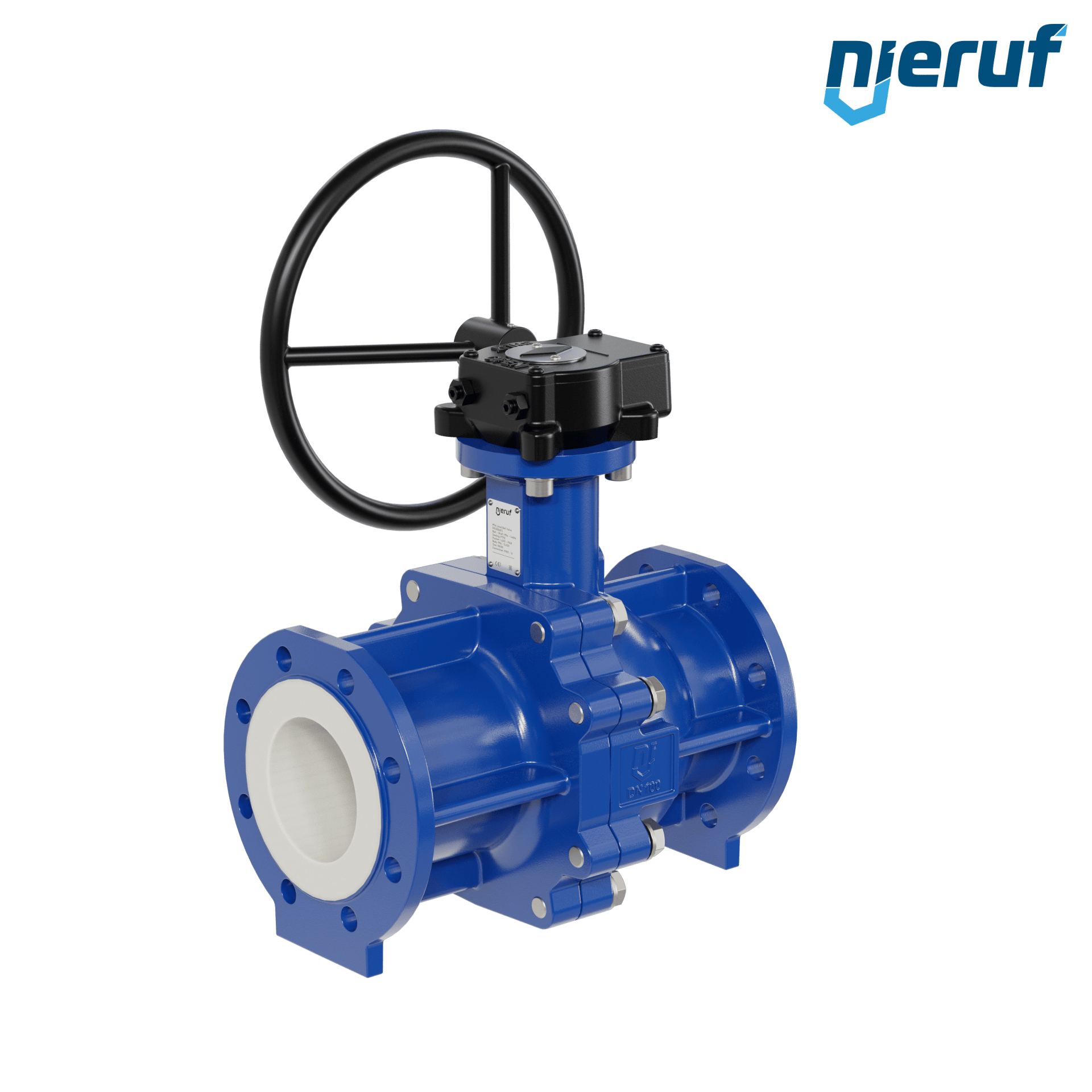

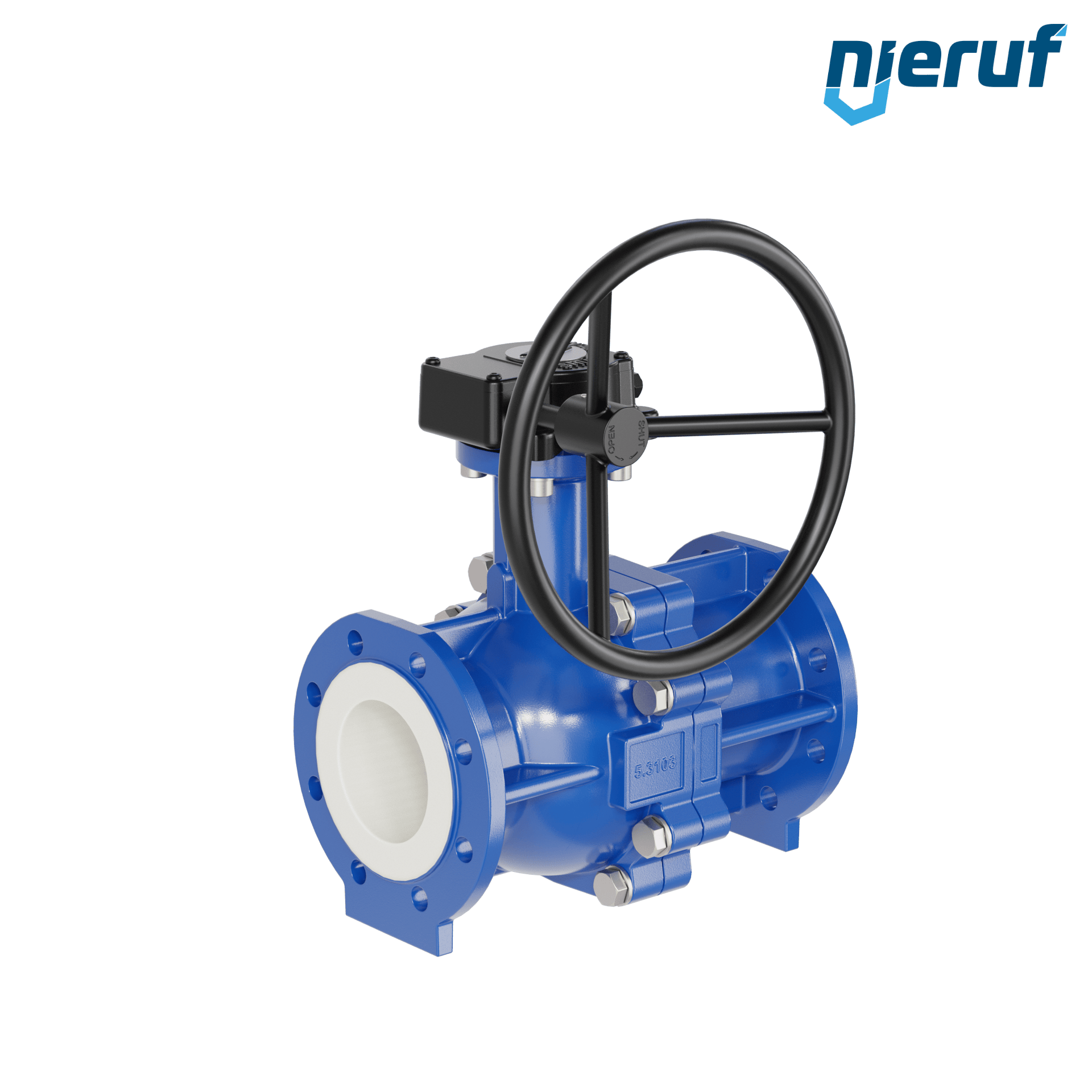

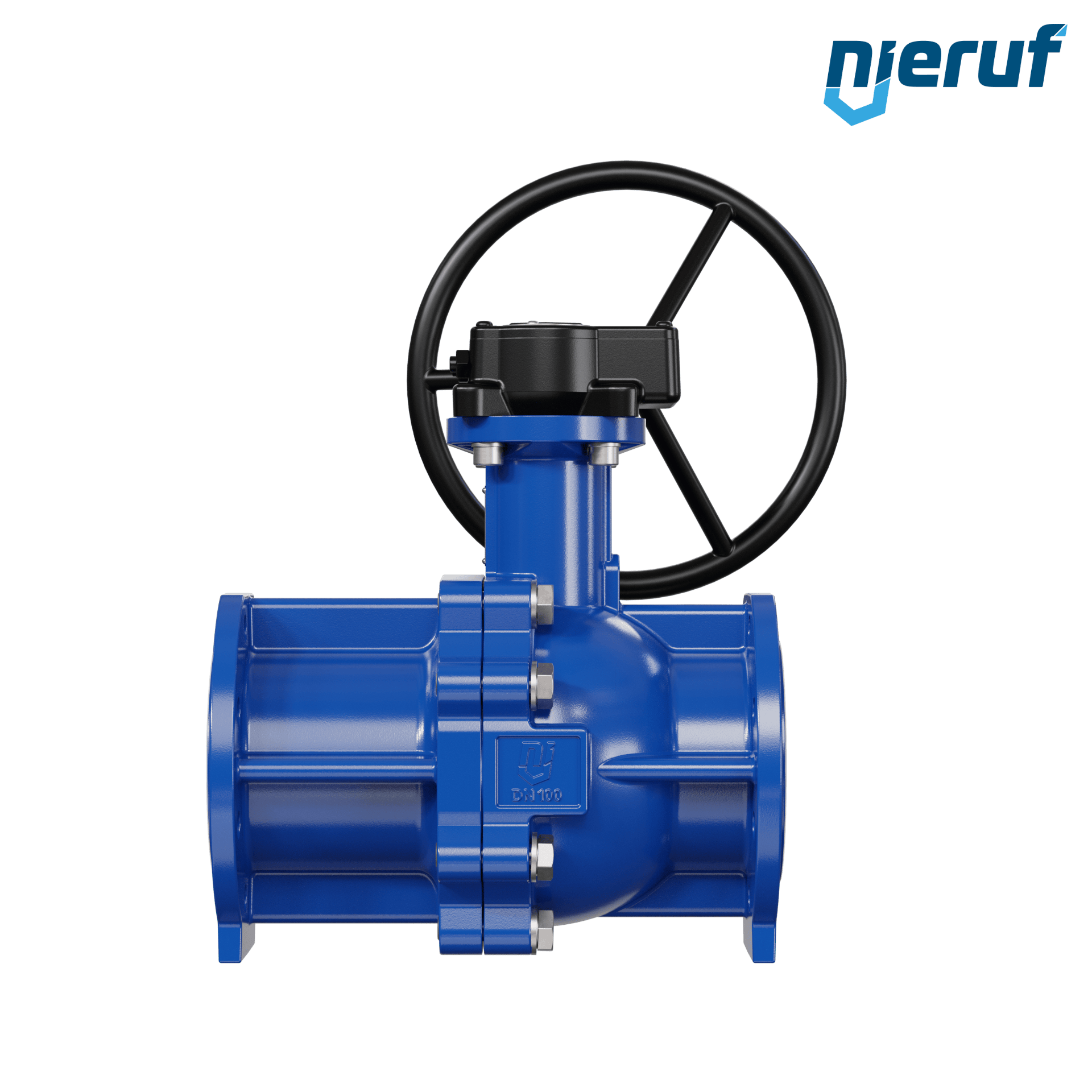

PFA-flange ball valve FK13 DN100 - 4" inch PN10/16 made of spheroidal graphite cast iron with worm gear
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
PFA-Butterfly-valve PTFE AK10 DN100 PN10-PN16 lever silicone insert
€1,116.46 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
PFA-flange ball valve FK13 DN100 PN10/16 body spheroidal graphite cast iron 5.3103 ball PFA seal PTFE for liquid, gaseous and aggressive media with worm gear
| product: | PFA-flange ball valve |
|---|---|
| type: | FK13 |
| manufacturer: | NieRuf |
| diameter: | DN100 - 4" inch |
| connection: | flange dimensions acc. to EN 1092-1 PN10-16 |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid, gaseous and aggressive media |
| temperature: | -20°C up tp +200°C |
| max. pressure: | PN10/16 |
| design: | full port design |
| body material: | spheroidal graphite cast iron 5.3103 |
| lining: | PFA |
| ball material: | PFA |
| length: | DIN EN 558, R 1 |
| actuator: | worm gear made of cast iron |
| installation position: | any position |
| authorized for: | TA Luft |
| product description: | This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PFA-flange ball valve FK13 DN100 - 4" inch PN10/16 made of spheroidal graphite cast iron with worm gear
Article no.
: FK13001011
product:
PFA-flange ball valve
type:
FK13
manufacturer:
NieRuf
diameter:
DN100 - 4" inch
connection:
flange dimensions acc. to EN 1092-1 PN10-16
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up tp +200°C
max. pressure:
PN10/16
design:
full port design
body material:
spheroidal graphite cast iron 5.3103
lining:
PFA
ball material:
PFA
length:
DIN EN 558, R 1
actuator:
worm gear made of cast iron
installation position:
any position
authorized for:
TA Luft
product description:
This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.
€1,459.18 VAT included.
€1,116.46 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
