FK13000003

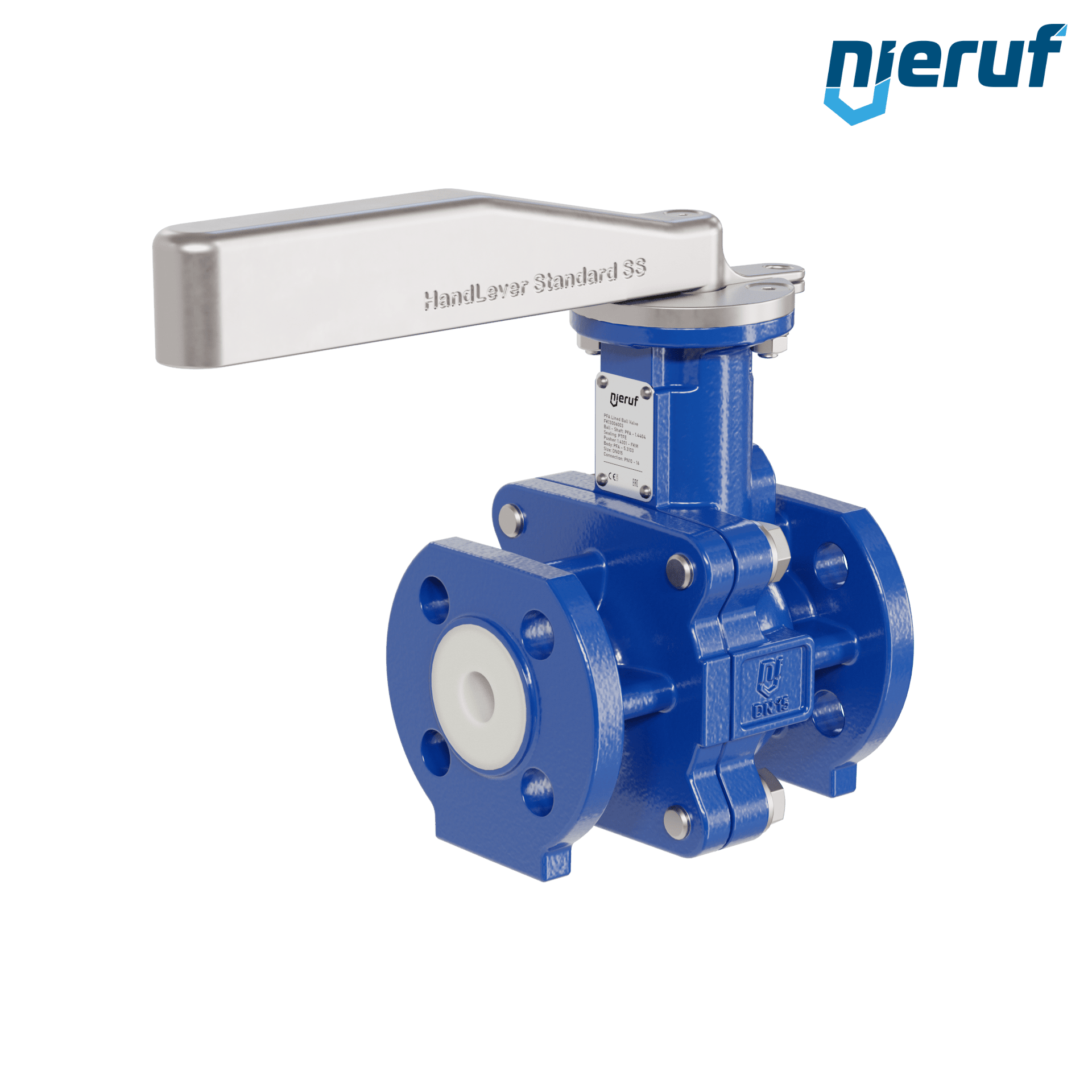

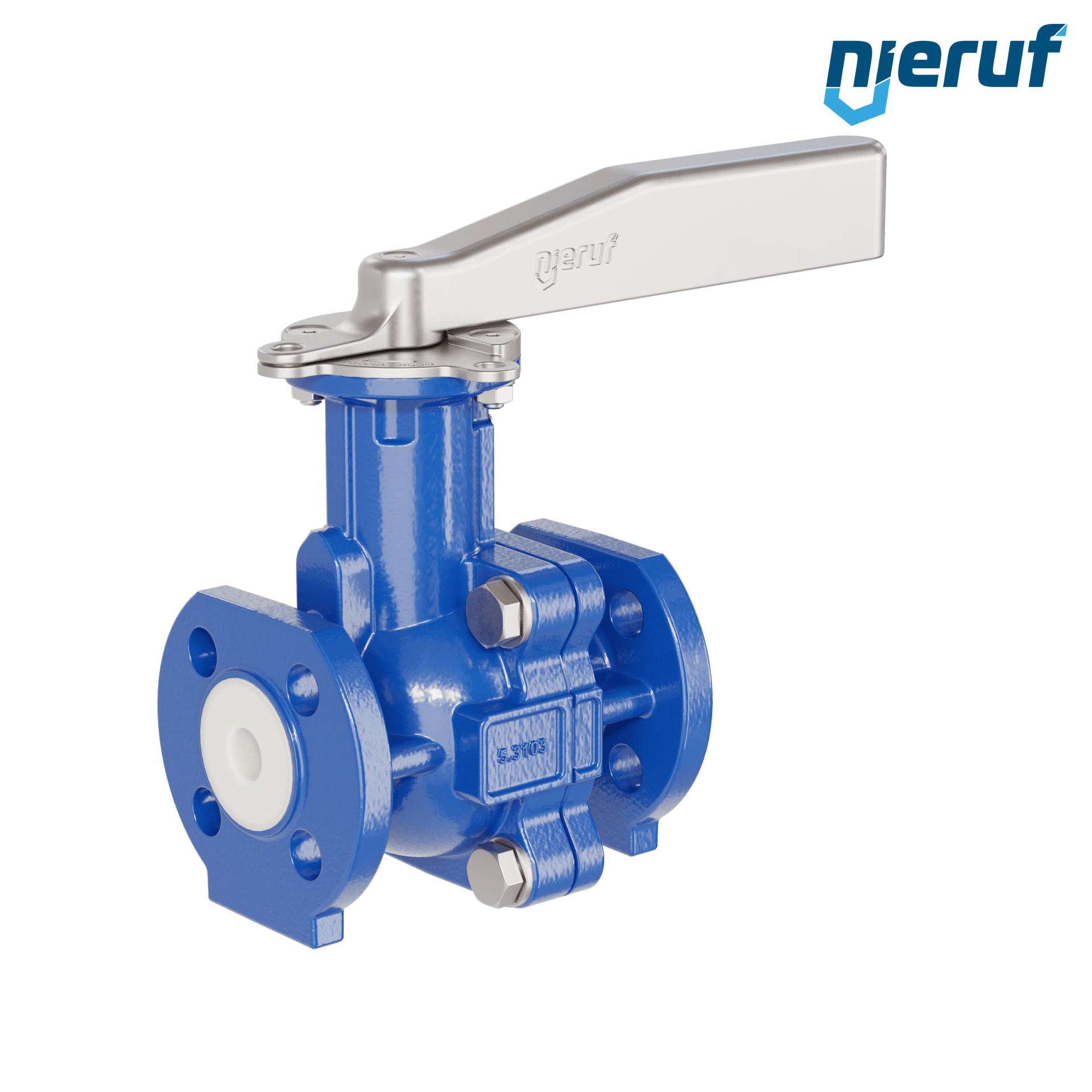

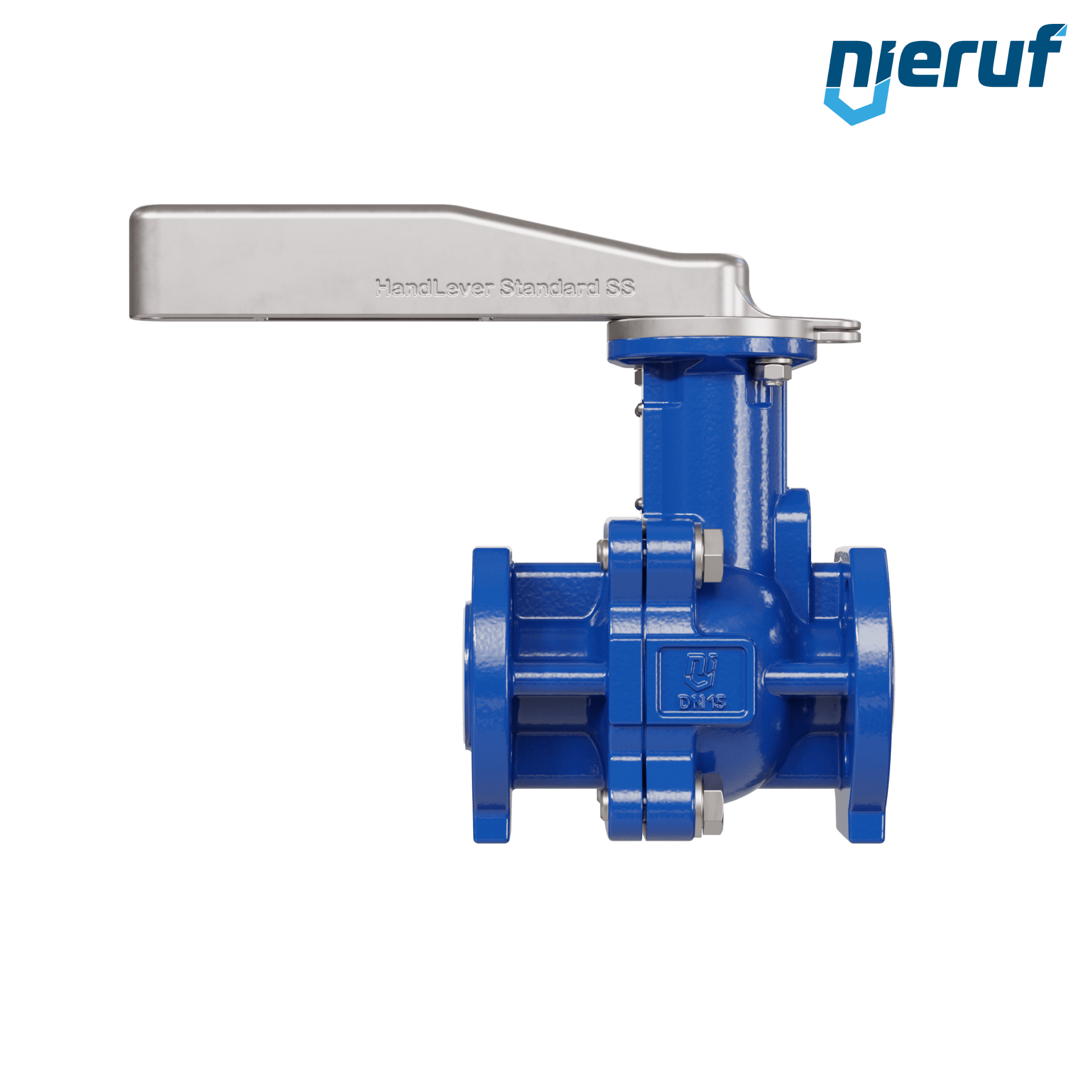

PFA-flange ball valve FK13 DN15 - 1/2" inch PN10/16 made of spheroidal graphite cast iron with lever hand

€494.80*

€588.81 VAT included.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Monday, 23. December

Guaranteed delivery until Tuesday, 24. December, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

RV05000303

PTFE-check valve DN15 - 1/2" inch PN10 DIN EN 1092-1

€225.40*

€268.23 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FK13000003
PFA-flange ball valve FK13 DN15 - 1/2" inch PN10/16 made of spheroidal graphite cast iron with lever hand

PFA-flange ball valve FK13 DN15 PN10/16 body spheroidal graphite cast iron 5.3103 ball PFA seal PTFE for liquid, gaseous and aggressive media with lever handle

product: PFA-flange ball valve
type: FK13
manufacturer: NieRuf
diameter: DN15 - 1/2" inch
connection: flange dimensions acc. to EN 1092-1 PN10-16
Seal steam: PTFE
ball seal: PTFE
media: liquid, gaseous and aggressive media
temperature: -20°C up tp +200°C
max. pressure: PN10/16
design: full port design
body material: spheroidal graphite cast iron 5.3103
lining: PFA
ball material: PFA
length: DIN EN 558, R 1
actuator: lever handle made of steel
installation position: any position
authorized for: TA Luft
product description: This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

PFA-flange ball valve FK13 DN15 - 1/2" inch PN10/16 made of spheroidal graphite cast iron with lever hand

Article no. : FK13000003
product: PFA-flange ball valve
type: FK13
manufacturer: NieRuf
diameter: DN15 - 1/2" inch
connection: flange dimensions acc. to EN 1092-1 PN10-16
Seal steam: PTFE
ball seal: PTFE
media: liquid, gaseous and aggressive media
temperature: -20°C up tp +200°C
max. pressure: PN10/16
design: full port design
body material: spheroidal graphite cast iron 5.3103
lining: PFA
ball material: PFA
length: DIN EN 558, R 1
actuator: lever handle made of steel
installation position: any position
authorized for: TA Luft
product description: This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.

No spare parts were found for the item number .


FAQ

There for you


Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.

You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com

Catalog

Quality


Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
