FK13000004

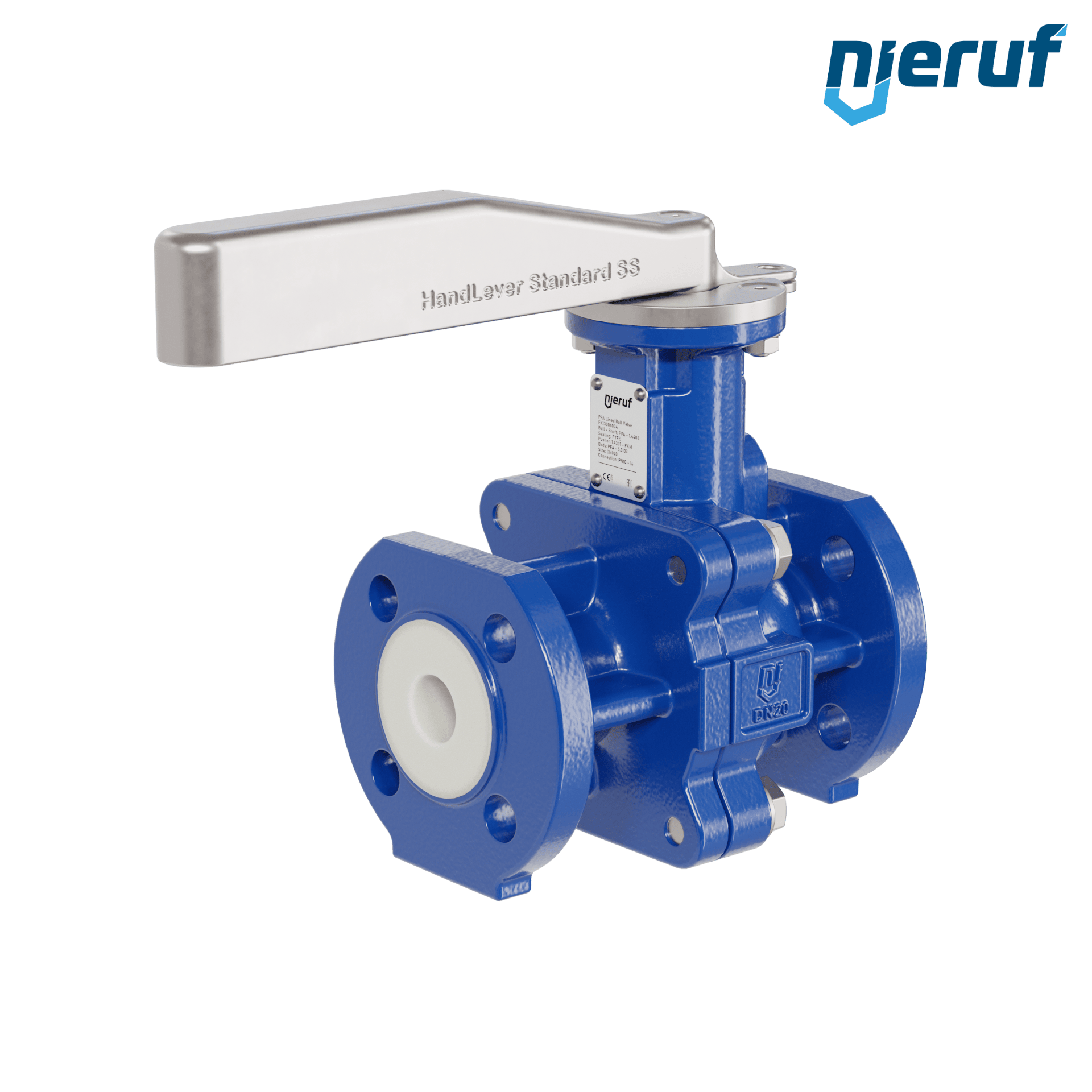

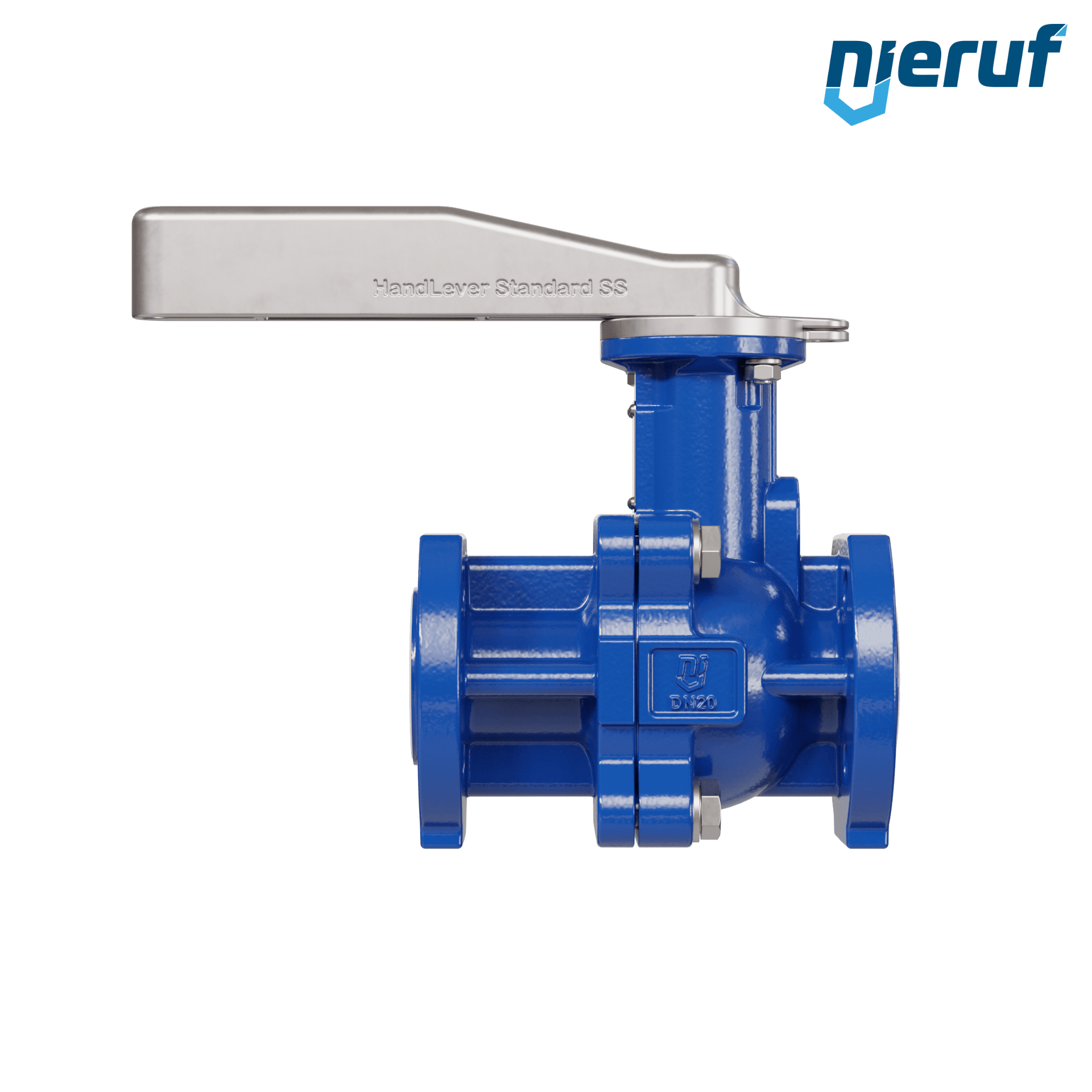

PFA-flange ball valve FK13 DN20 - 3/4" inch PN10/16 made of spheroidal graphite cast iron with lever hand
Delivery time: in stock
Express delivery*:
Shipping on: Wednesday, 20. November
Guaranteed delivery until Thursday, 21. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
PFA-flange ball valve FK13 DN20 PN10/16 body spheroidal graphite cast iron 5.3103 ball PFA seal PTFE for liquid, gaseous and aggressive media with lever handle
| product: | PFA-flange ball valve |
|---|---|
| type: | FK13 |
| manufacturer: | NieRuf |
| diameter: | DN20 - 3/4" inch |
| connection: | flange dimensions acc. to EN 1092-1 PN10-16 |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid, gaseous and aggressive media |
| temperature: | -20°C up tp +200°C |
| max. pressure: | PN10/16 |
| design: | full port design |
| body material: | spheroidal graphite cast iron 5.3103 |
| lining: | PFA |
| ball material: | PFA |
| length: | DIN EN 558, R 1 |
| actuator: | lever handle made of steel |
| installation position: | any position |
| authorized for: | TA Luft |
| product description: | This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PFA-flange ball valve FK13 DN20 - 3/4" inch PN10/16 made of spheroidal graphite cast iron with lever hand
Article no.
: FK13000004
product:
PFA-flange ball valve
type:
FK13
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
connection:
flange dimensions acc. to EN 1092-1 PN10-16
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up tp +200°C
max. pressure:
PN10/16
design:
full port design
body material:
spheroidal graphite cast iron 5.3103
lining:
PFA
ball material:
PFA
length:
DIN EN 558, R 1
actuator:
lever handle made of steel
installation position:
any position
authorized for:
TA Luft
product description:
This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.
€295.60 VAT included.
