KV04211002

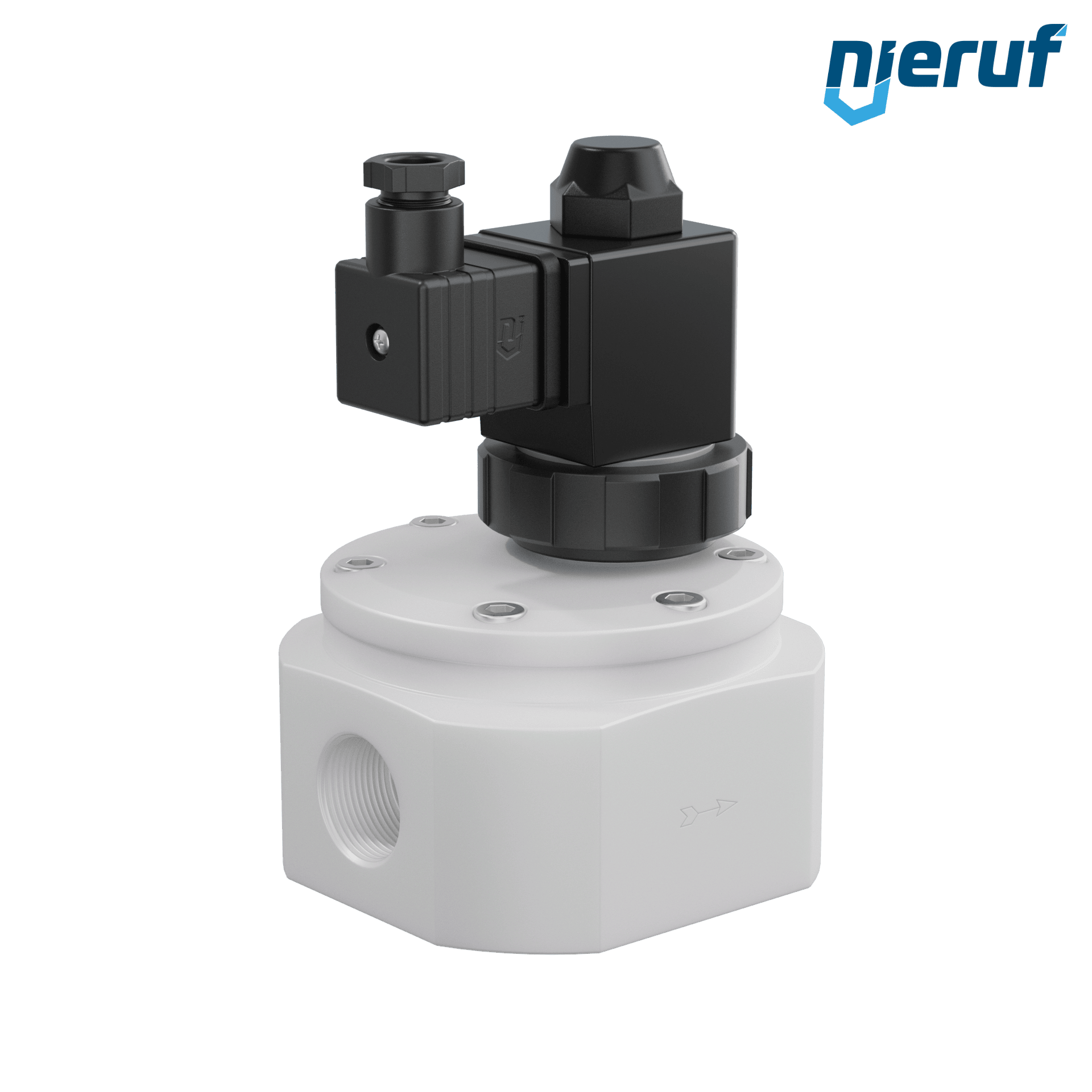

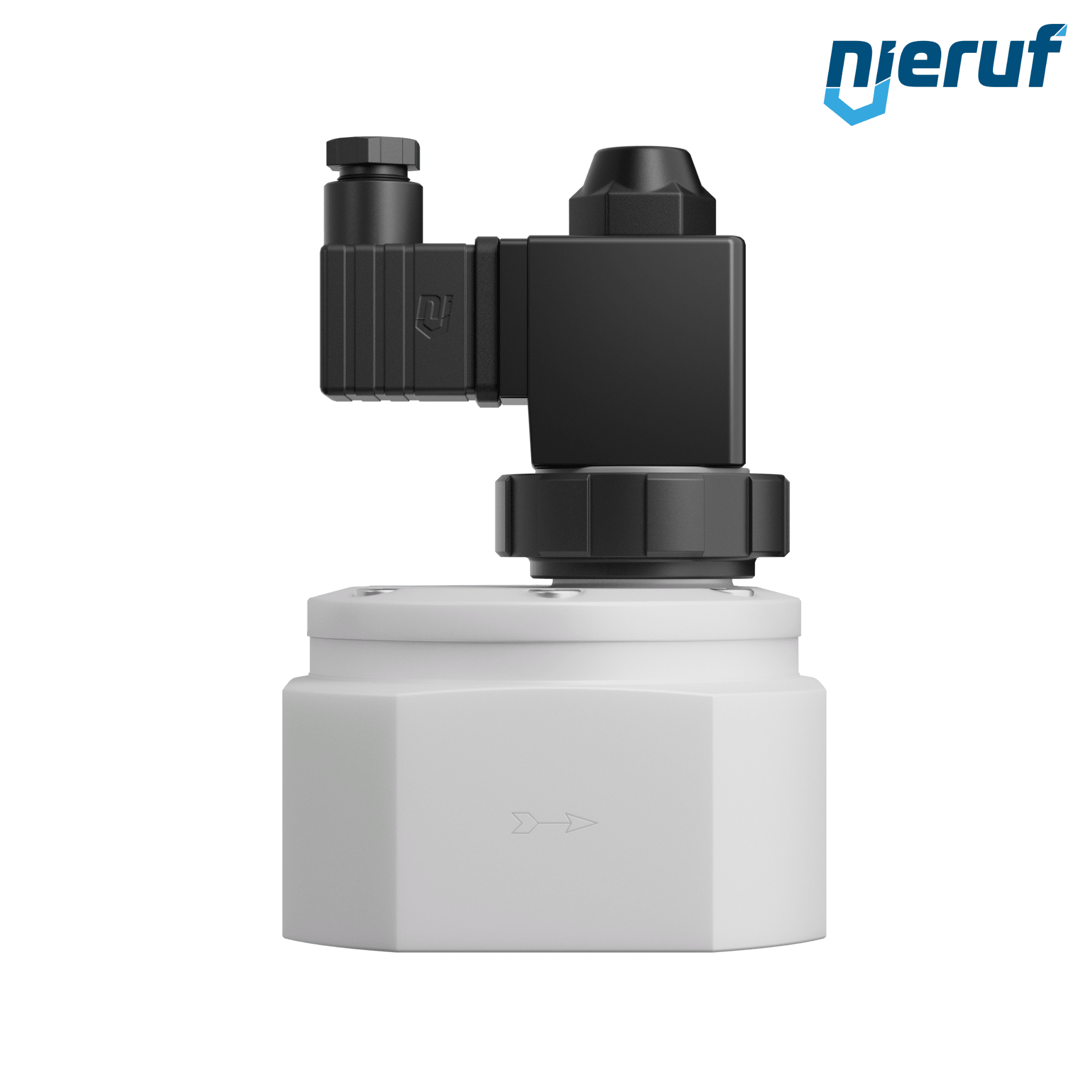

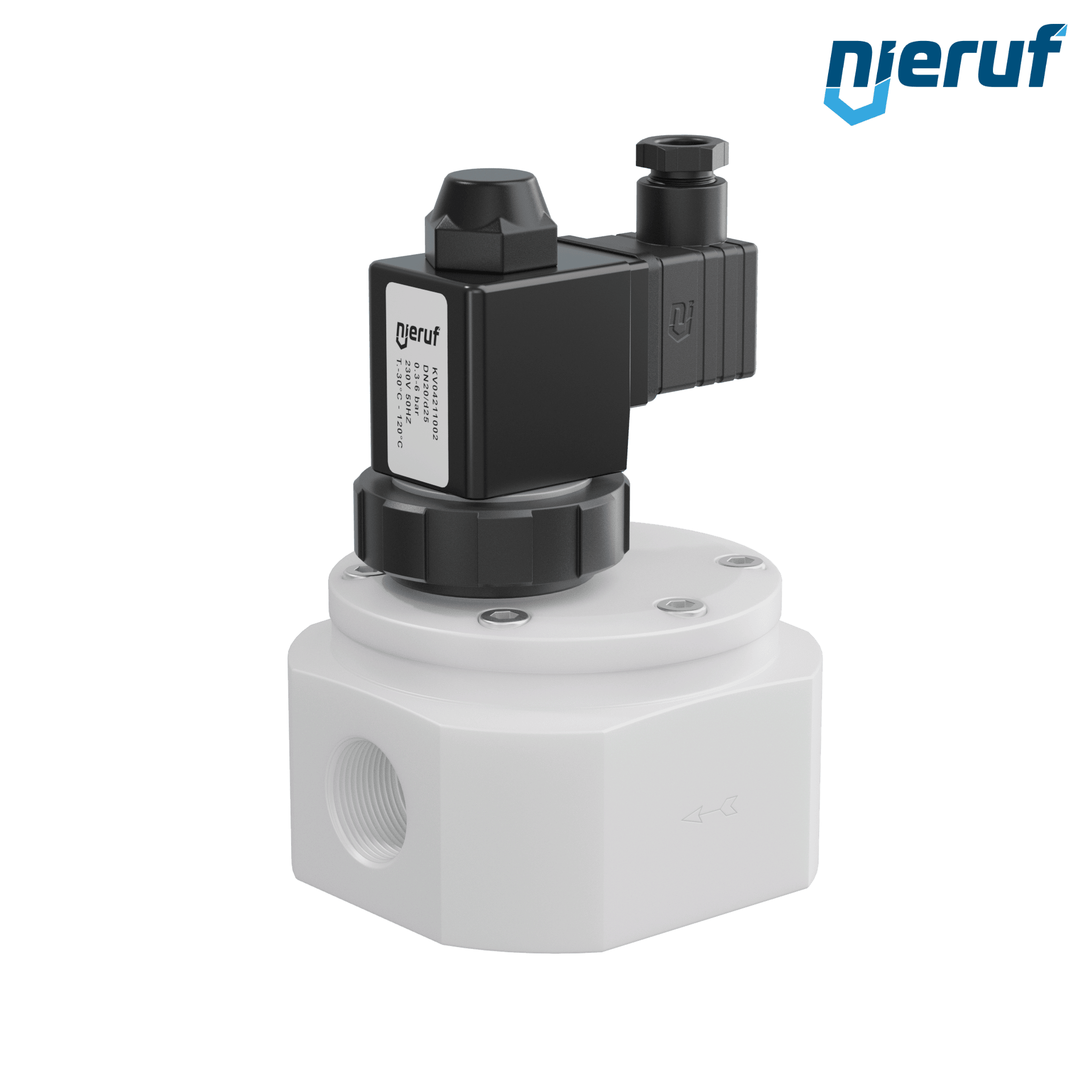

Solenoid valve G 3/4" Zoll PTFE KV04 FKM 230V 50Hz
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Ways Solenoid valve G 3/4" Zoll DN20 made of PTFE seal FKM pilot operated nominal voltage 230V 50Hz pressure 0,3 - 6 bar
| product: | Solenoid valve |
|---|---|
| type: | KV04 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN20 |
| connection: | G 3/4" inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 9,8 m³/h |
| function: | NC - normally closed |
| control: | pilot operated |
| material: | PTFE |
| seal: | FKM |
| voltage: | 230V 50Hz |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 6,5 VA |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | check data sheet |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0,3 - 6 bar |
| installation position: | solenoid preferably above |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 3/4" Zoll PTFE KV04 FKM 230V 50Hz
Article no.
: KV04211002
product:
Solenoid valve
type:
KV04
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN20
connection:
G 3/4" inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
9,8 m³/h
function:
NC - normally closed
control:
pilot operated
material:
PTFE
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
6,5 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
check data sheet
temperature ambiente:
max up to +50°C
max. pressure:
0,3 - 6 bar
installation position:
solenoid preferably above
