RV05000313
PTFE-check valve DN150 - 6" inch PN10 DIN EN 1092-1
Delivery time: 2 - 3 weeks
Equipment
joint set check valve/flange DN150 - 6" Inch for flange PN10/16 stainless steel
€70.45 VAT included.
PFA-Butterfly-valve PTFE AK10 DN150 PN10-PN16 lever silicone insert
€1,588.53 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

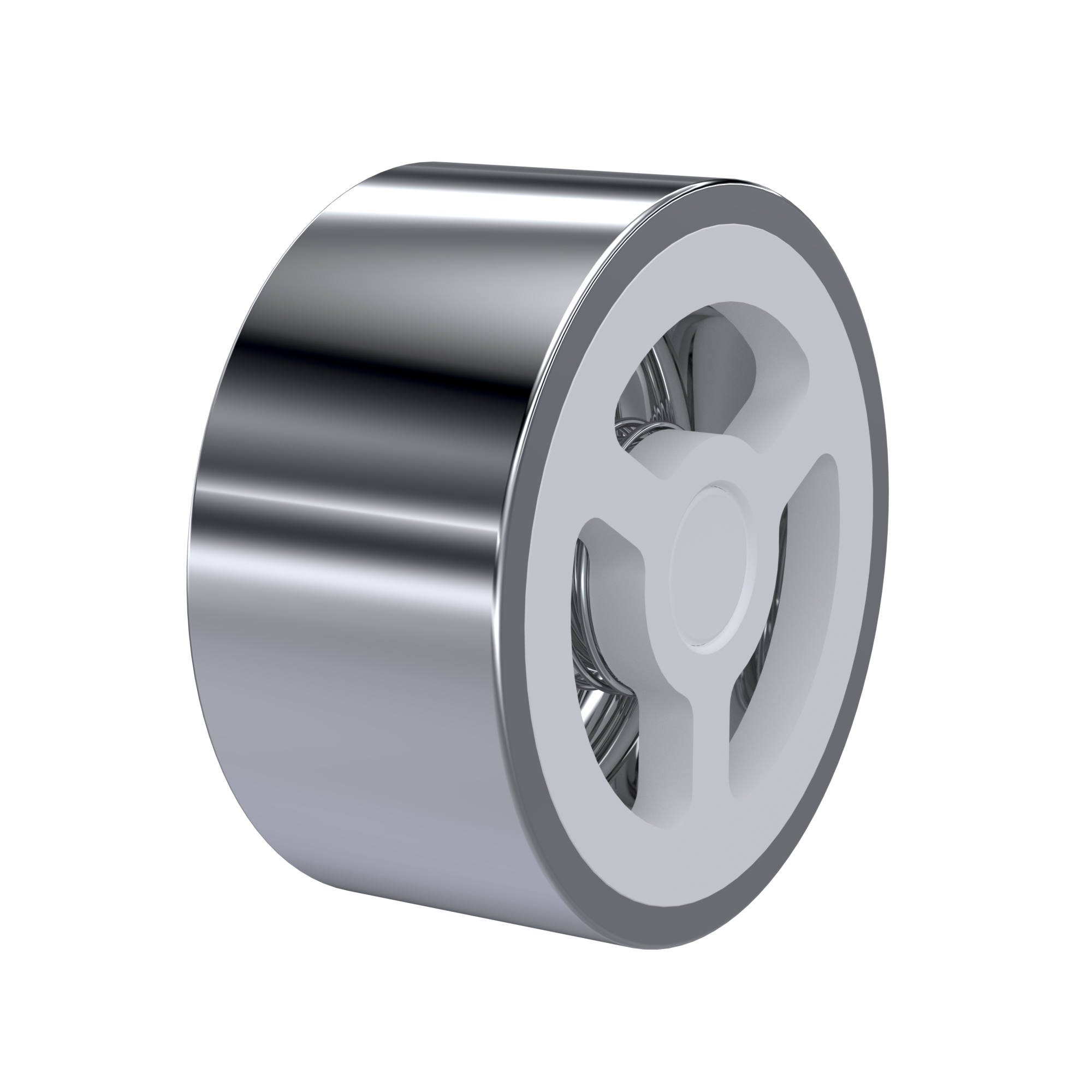

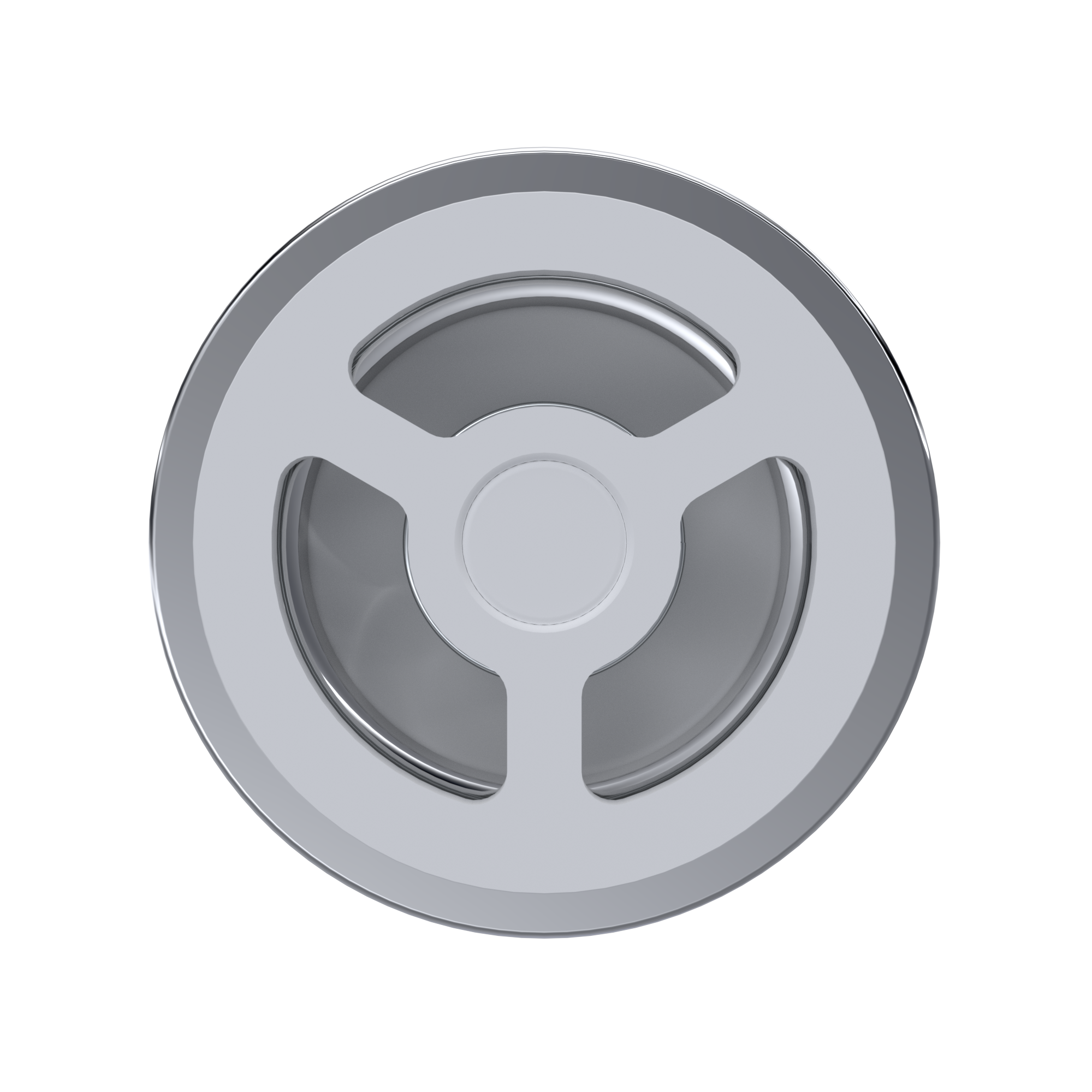

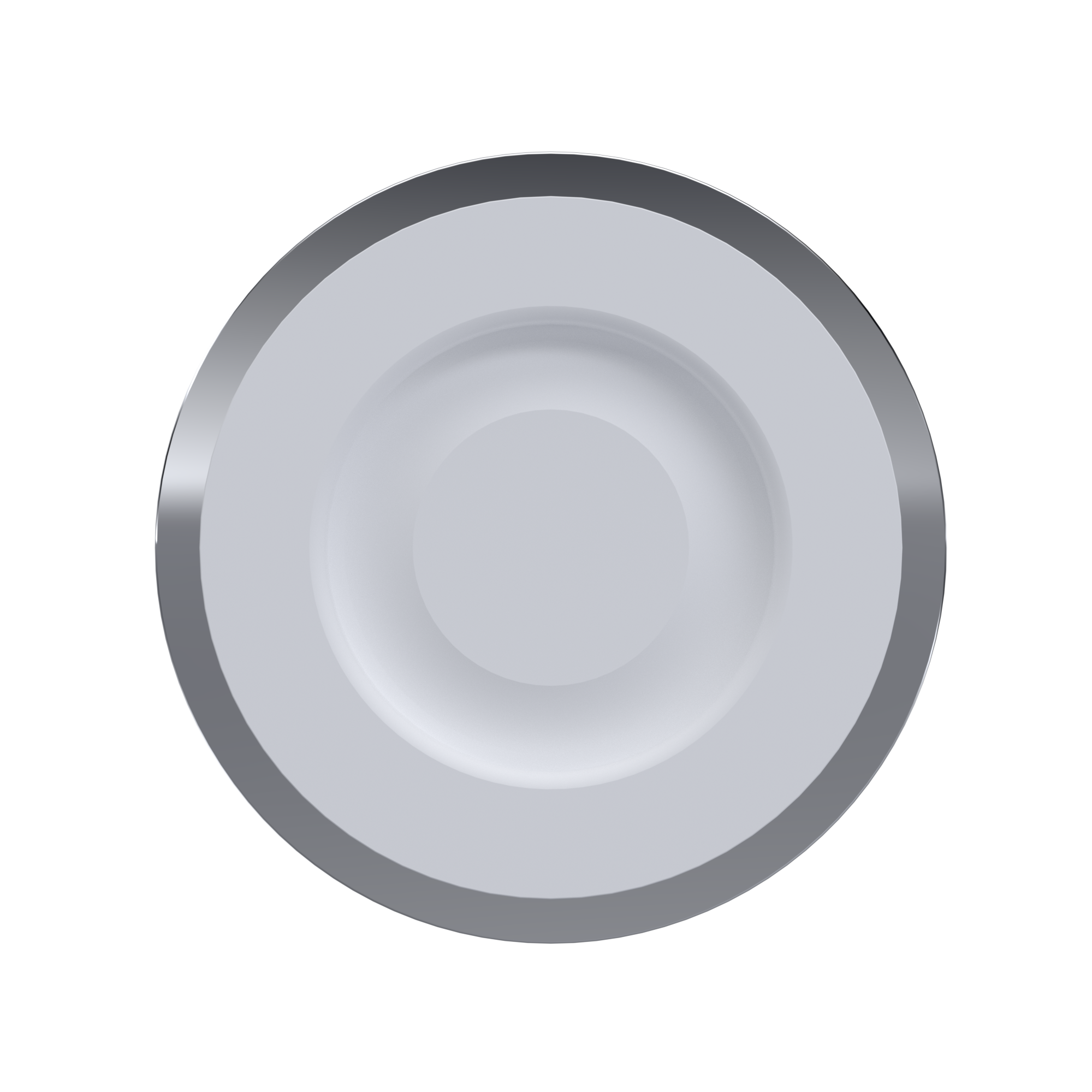

disco check valve DN150 - 6" inch Dichtung aus PTFE für liquid and gaseous media PN10 DIN EN 1092-1
| product: | PTFE-check valve |
|---|---|
| type: | RV05 |
| manufacturer: | NieRuf |
| design: | disco check valve |
| diameter: | DN150 - 6" inch |
| body material: | stainless steel 1.4301 |
| disc material: | PTFE + 25% fiberglass |
| seal: | PTFE |
| tightness acc. to DIN EN 12266: | leak rate D |
| temperature: | -200°C up to +160°C |
| flange: | PN10 DIN EN 1092-1 |
| pressure range: | 0 - 10 bar |
| Kv-value in m3/h: | 286,59 |
| spring material: | Hastelloy C4, PFA coated |
| media: | liquid and gaseous media |
| installation position: | any position |
| product feature: | face to face according DIN EN 558 row 52 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PTFE-check valve DN150 - 6" inch PN10 DIN EN 1092-1
Article no.
: RV05000313
product:
PTFE-check valve
type:
RV05
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN150 - 6" inch
body material:
stainless steel 1.4301
disc material:
PTFE + 25% fiberglass
seal:
PTFE
tightness acc. to DIN EN 12266:
leak rate D
temperature:
-200°C up to +160°C
flange:
PN10 DIN EN 1092-1
pressure range:
0 - 10 bar
Kv-value in m3/h:
286,59
spring material:
Hastelloy C4, PFA coated
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558 row 52
