RV05000304
PTFE-check valve DN20 - 3/4" inch PN10 DIN EN 1092-1
Delivery time: 2 - 3 weeks
Equipment

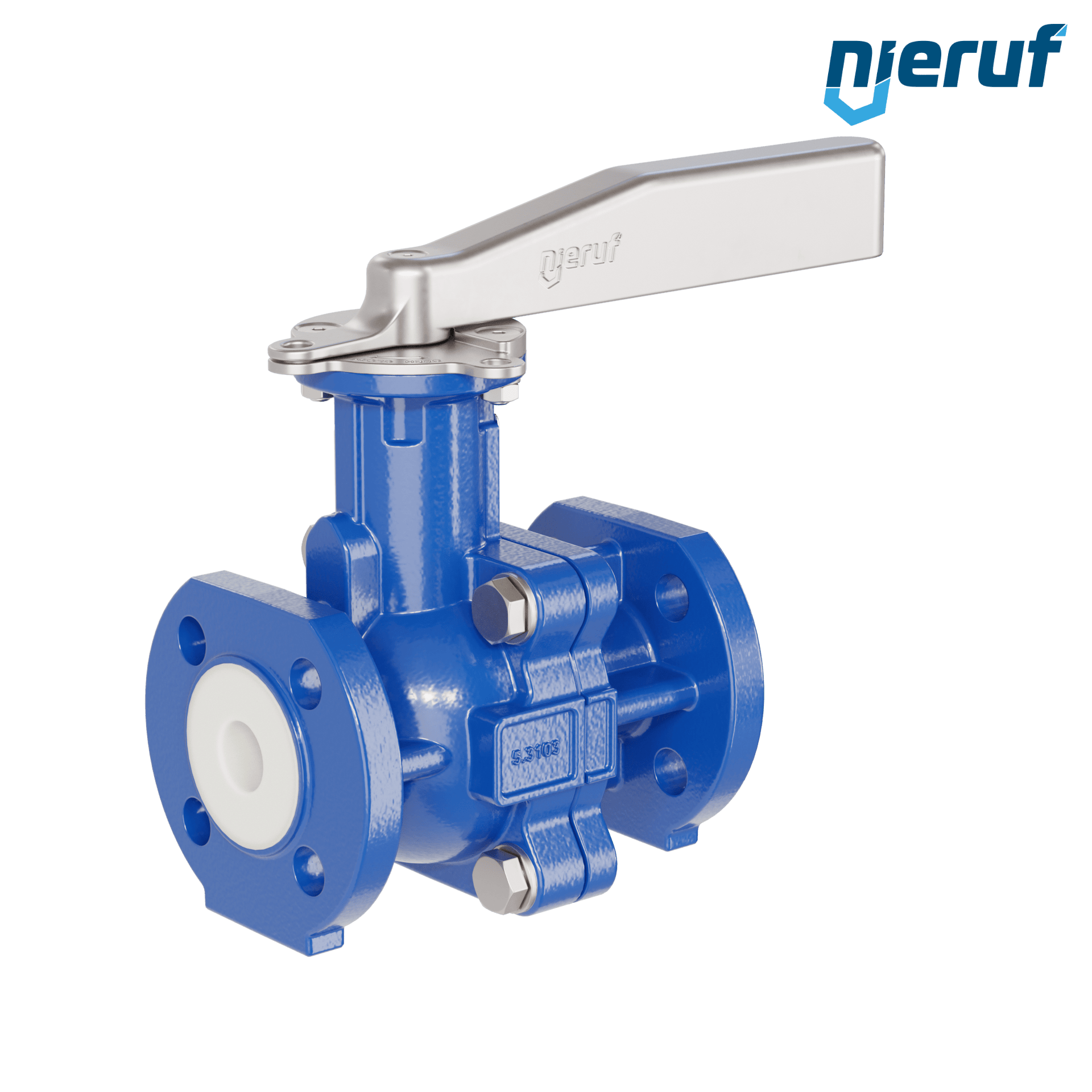

PFA-flange ball valve FK13 DN20 - 3/4" inch PN10/16 made of spheroidal graphite cast iron with lever hand
€588.81 VAT included.
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
€26.78 VAT included.
joint set check valve/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€5.71 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
disco check valve DN20 - 3/4" inch Dichtung aus PTFE für liquid and gaseous media PN10 DIN EN 1092-1
| product: | PTFE-check valve |
|---|---|
| type: | RV05 |
| manufacturer: | NieRuf |
| design: | disco check valve |
| diameter: | DN20 - 3/4" inch |
| body material: | stainless steel 1.4301 |
| disc material: | PTFE + 25% fiberglass |
| seal: | PTFE |
| tightness acc. to DIN EN 12266: | leak rate D |
| temperature: | -200°C up to +160°C |
| flange: | PN10 DIN EN 1092-1 |
| pressure range: | 0 - 10 bar |
| Kv-value in m3/h: | 5,69 |
| spring material: | Hastelloy C4, PFA coated |
| media: | liquid and gaseous media |
| installation position: | any position |
| product feature: | face to face according DIN EN 558 row 52 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PTFE-check valve DN20 - 3/4" inch PN10 DIN EN 1092-1
Article no.
: RV05000304
product:
PTFE-check valve
type:
RV05
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN20 - 3/4" inch
body material:
stainless steel 1.4301
disc material:
PTFE + 25% fiberglass
seal:
PTFE
tightness acc. to DIN EN 12266:
leak rate D
temperature:
-200°C up to +160°C
flange:
PN10 DIN EN 1092-1
pressure range:
0 - 10 bar
Kv-value in m3/h:
5,69
spring material:
Hastelloy C4, PFA coated
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558 row 52
