RV05000305
PTFE-check valve DN25 - 1" inch PN10 DIN EN 1092-1
Delivery time: 2 - 3 weeks
Equipment
PFA-Butterfly-valve PTFE AK10 DN25 PN10-PN16 lever silicone insert
€660.69 VAT included.

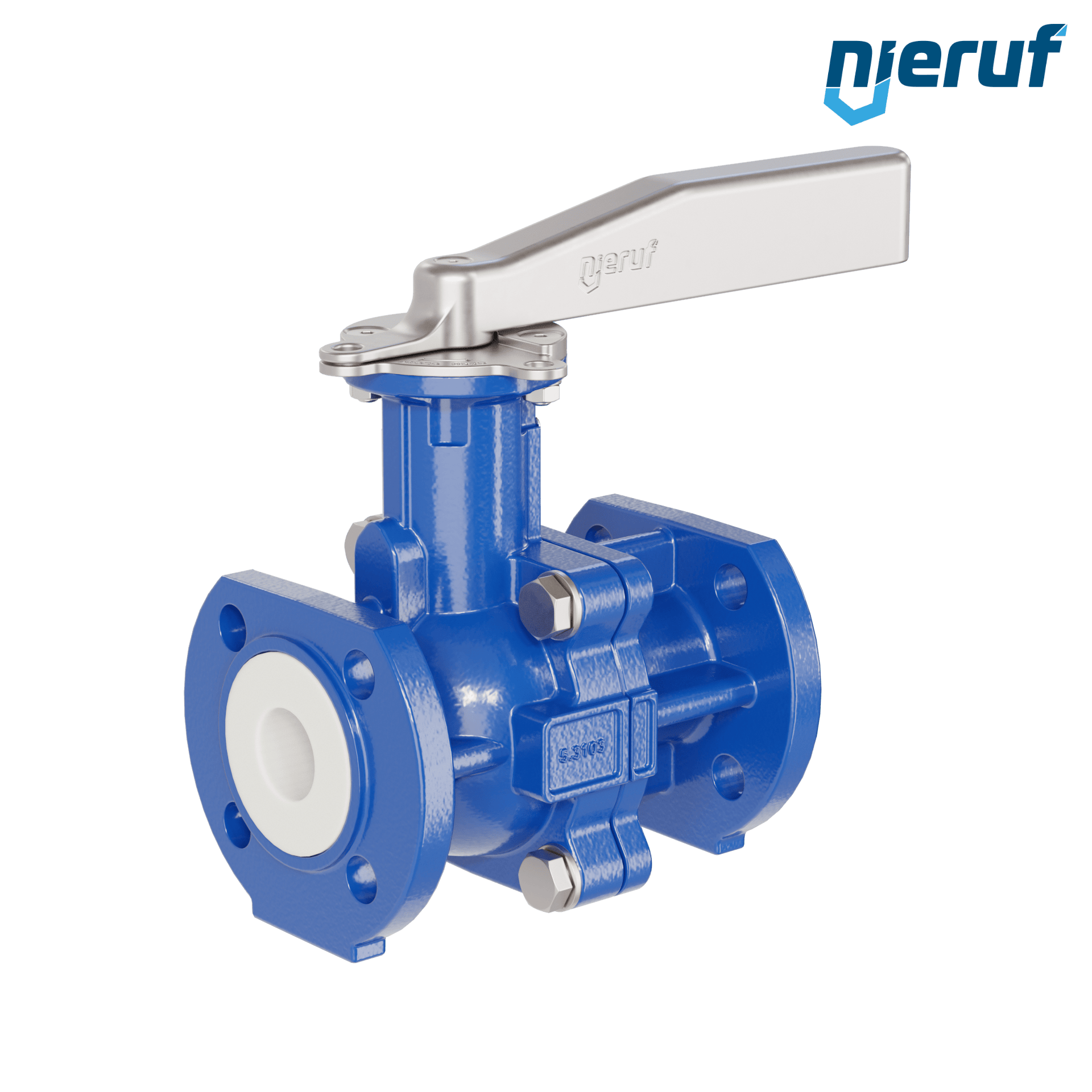

PFA-flange ball valve FK13 DN25 - 1" inch PN10/16 made of spheroidal graphite cast iron with lever hand
€588.81 VAT included.
joint set check valve/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€5.71 VAT included.
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
€32.49 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
disco check valve DN25 - 1" inch Dichtung aus PTFE für liquid and gaseous media PN10 DIN EN 1092-1
| product: | PTFE-check valve |
|---|---|
| type: | RV05 |
| manufacturer: | NieRuf |
| design: | disco check valve |
| diameter: | DN25 - 1" inch |
| body material: | stainless steel 1.4301 |
| disc material: | PTFE + 25% fiberglass |
| seal: | PTFE |
| tightness acc. to DIN EN 12266: | leak rate D |
| temperature: | -200°C up to +160°C |
| flange: | PN10 DIN EN 1092-1 |
| pressure range: | 0 - 10 bar |
| Kv-value in m3/h: | 11,14 |
| spring material: | Hastelloy C4, PFA coated |
| media: | liquid and gaseous media |
| installation position: | any position |
| product feature: | face to face according DIN EN 558 row 52 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PTFE-check valve DN25 - 1" inch PN10 DIN EN 1092-1
Article no.
: RV05000305
product:
PTFE-check valve
type:
RV05
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN25 - 1" inch
body material:
stainless steel 1.4301
disc material:
PTFE + 25% fiberglass
seal:
PTFE
tightness acc. to DIN EN 12266:
leak rate D
temperature:
-200°C up to +160°C
flange:
PN10 DIN EN 1092-1
pressure range:
0 - 10 bar
Kv-value in m3/h:
11,14
spring material:
Hastelloy C4, PFA coated
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558 row 52
€32.49 VAT included.
€5.71 VAT included.
€660.69 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
