KK03010002
PVC-3-way-ball valve d 20 KK03 PTFE/EPDM L Drilling
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

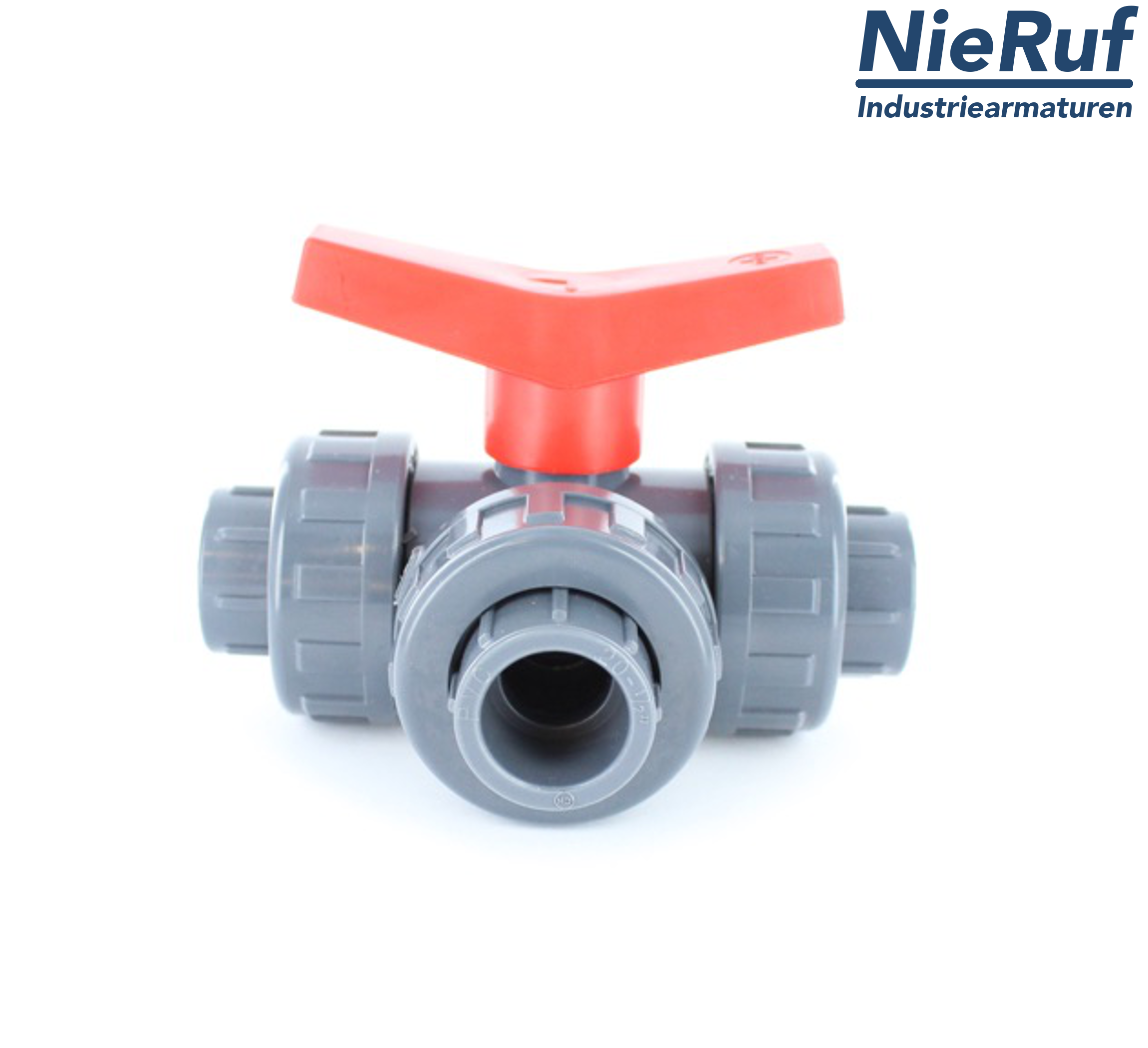

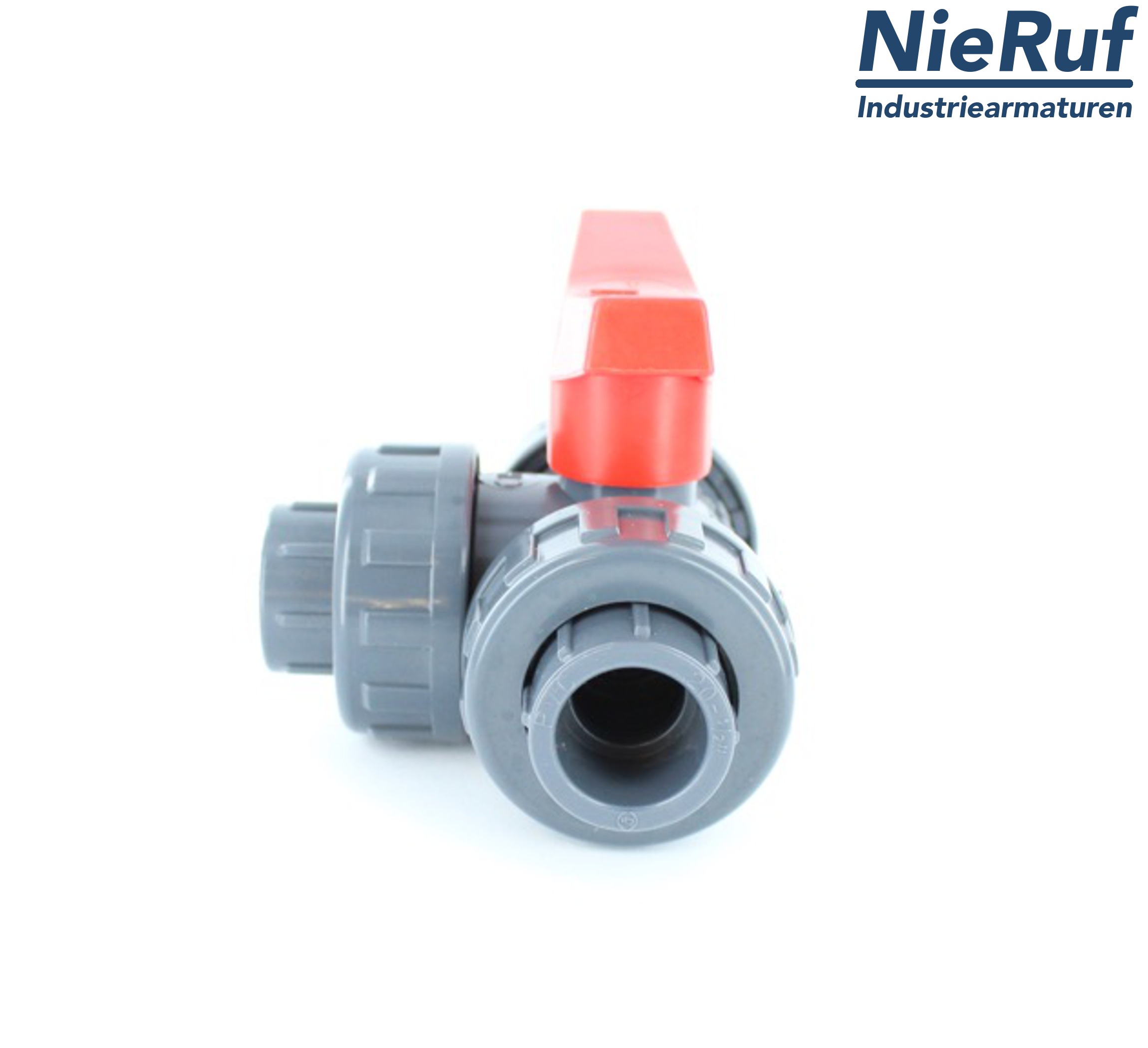

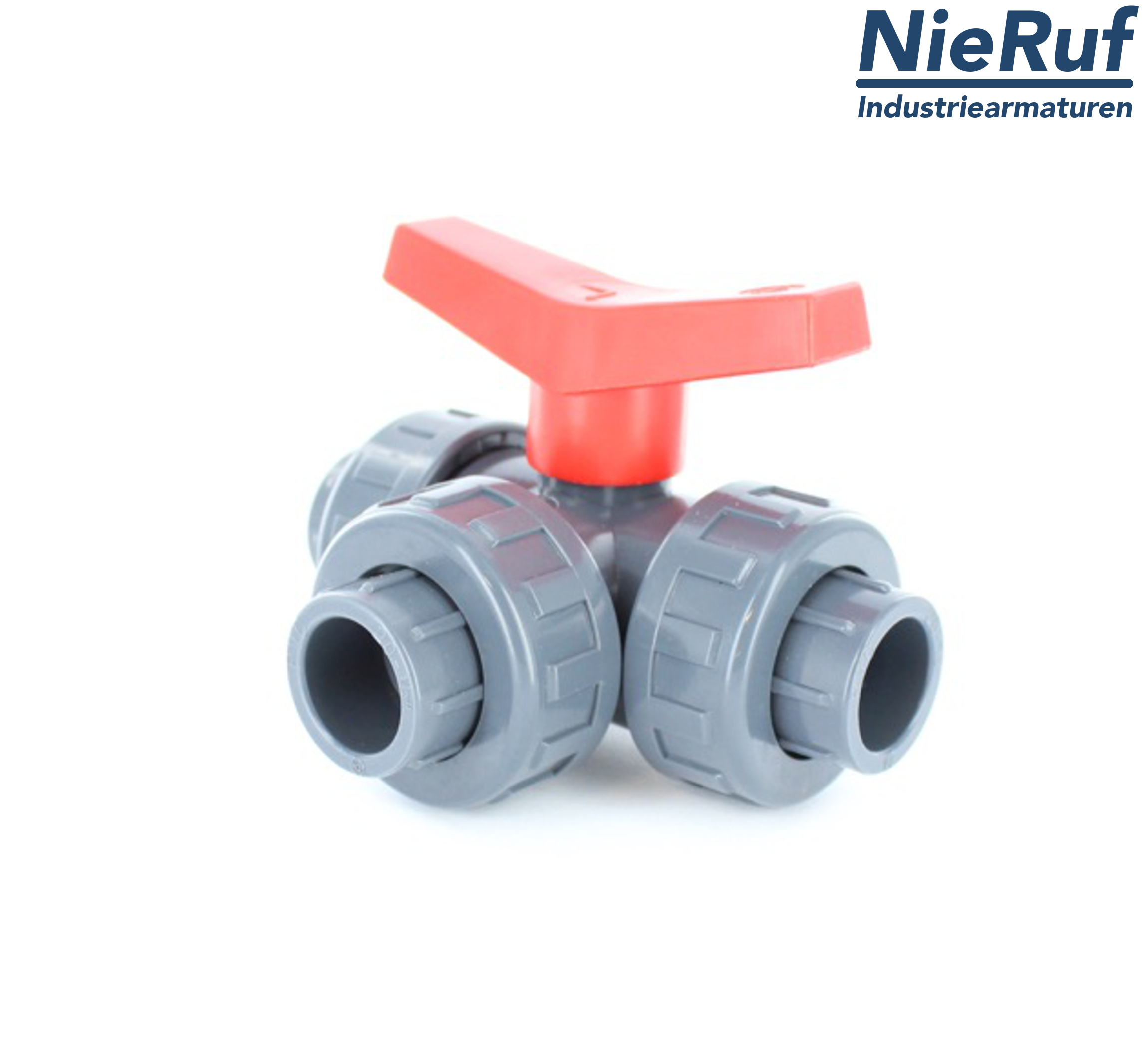

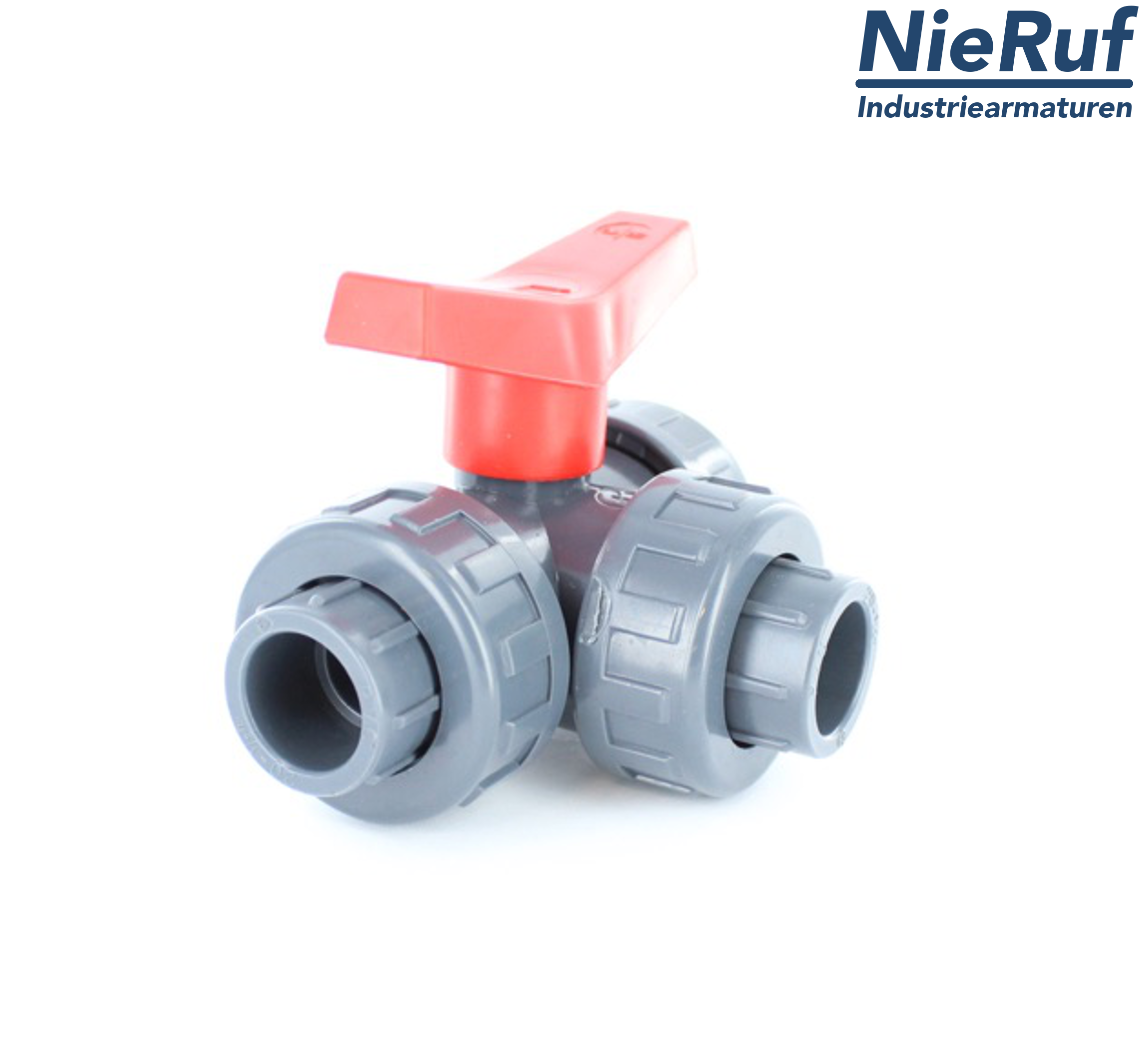

PVC-3-way-ball valve d 20 PVC-U KK03 seal: PTFE/EPDM adhesive connection lever L Drilling for liquid and gaseous media
| product: | PVC-3-way-ball valve |
|---|---|
| type: | KK03 |
| manufacturer: | NieRuf |
| diameter: | d20 |
| connection: | adhesive connection |
| Seal steam: | PTFE/EPDM |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | - 10°C up to 60°C - depending on working pressure and media |
| max. pressure: | PN10 |
| design: | L Drilling |
| body material: | PVC-U |
| ball material: | PVC-U |
| length: | 112mm |
| actuator: | lever |
| product description: | 3-way-ball valve with adhesive connection and lever in compact design. To shut off pipeline systems. With L drilling. |
| fields of application: | swimming pool construction, chlorinated water |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PVC-3-way-ball valve d 20 KK03 PTFE/EPDM L Drilling
Article no.
: KK03010002
product:
PVC-3-way-ball valve
type:
KK03
manufacturer:
NieRuf
diameter:
d20
connection:
adhesive connection
Seal steam:
PTFE/EPDM
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
- 10°C up to 60°C - depending on working pressure and media
max. pressure:
PN10
design:
L Drilling
body material:
PVC-U
ball material:
PVC-U
length:
112mm
actuator:
lever
product description:
3-way-ball valve with adhesive connection and lever in compact design. To shut off pipeline systems. With L drilling.
fields of application:
swimming pool construction, chlorinated water
