DM10000106
Piston-pressure reducing valve 1 1/4" Inch NPT DM10 stainless steel FPM / FKM 2.0 - 20.0 bar
Delivery time: 3 - 5 working days
Equipment
pressure gauge 0 - 40,0 bar G 1/4" axial 50 mm stainless steel MM05
€92.94 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

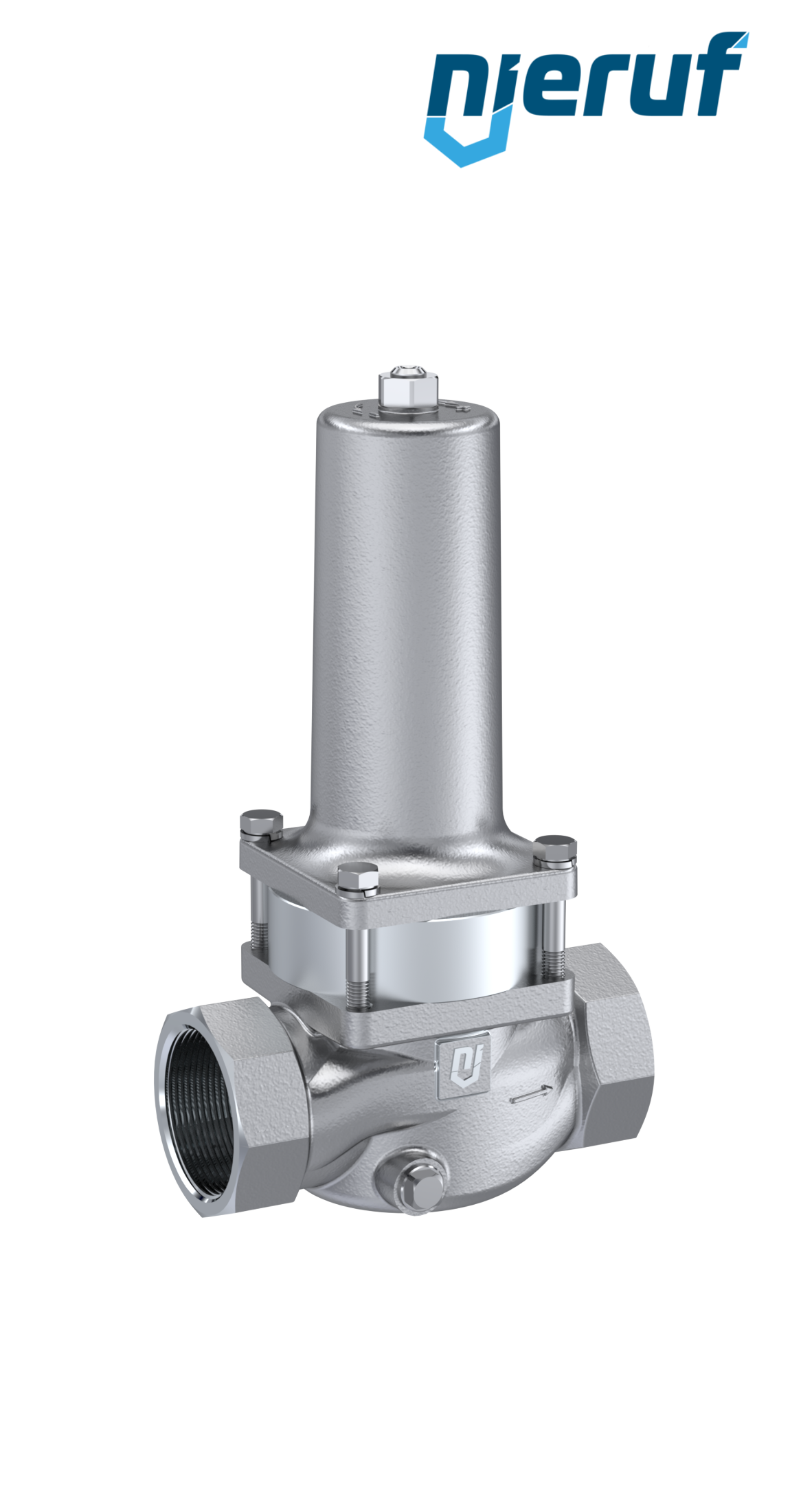

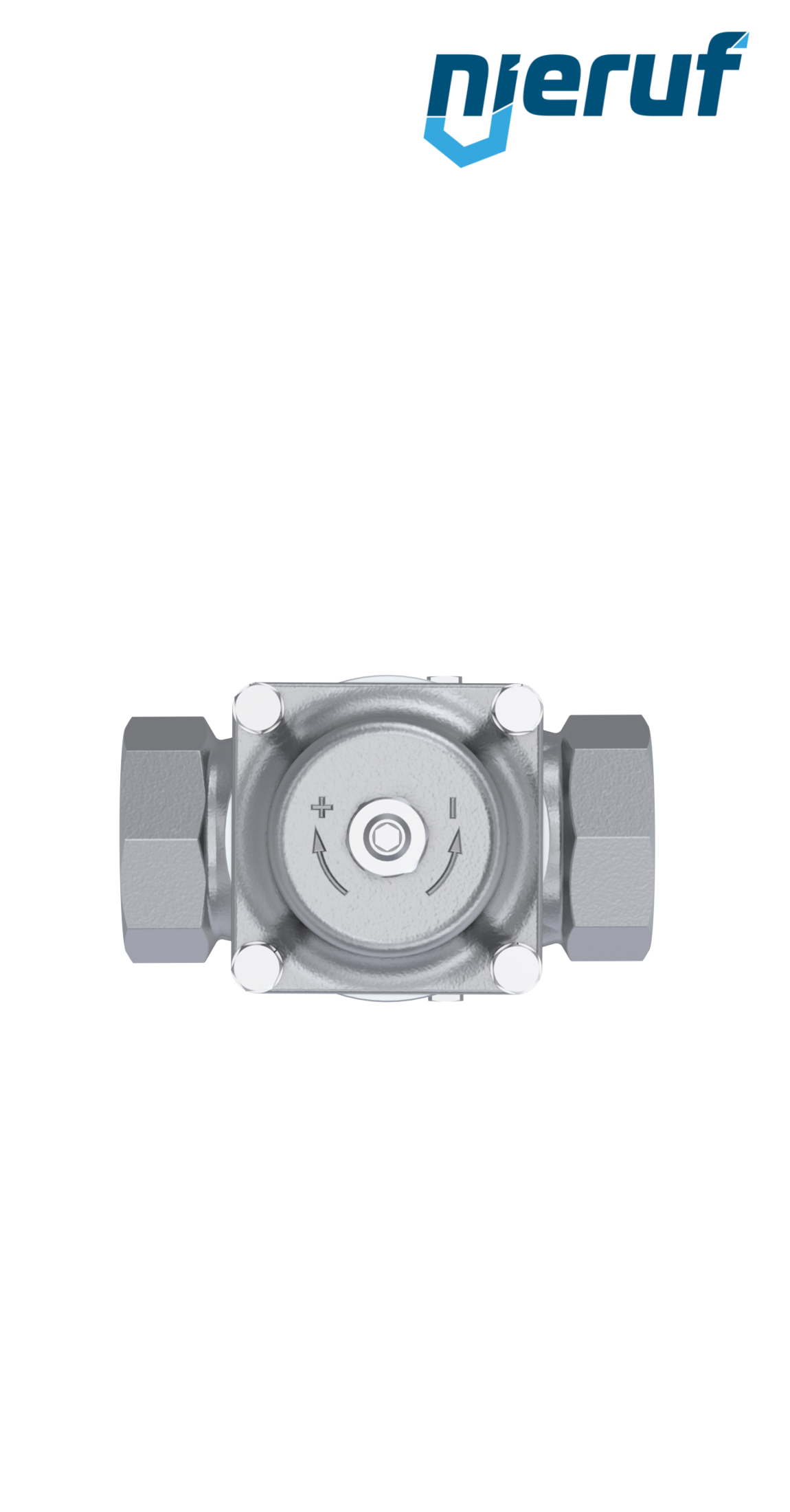

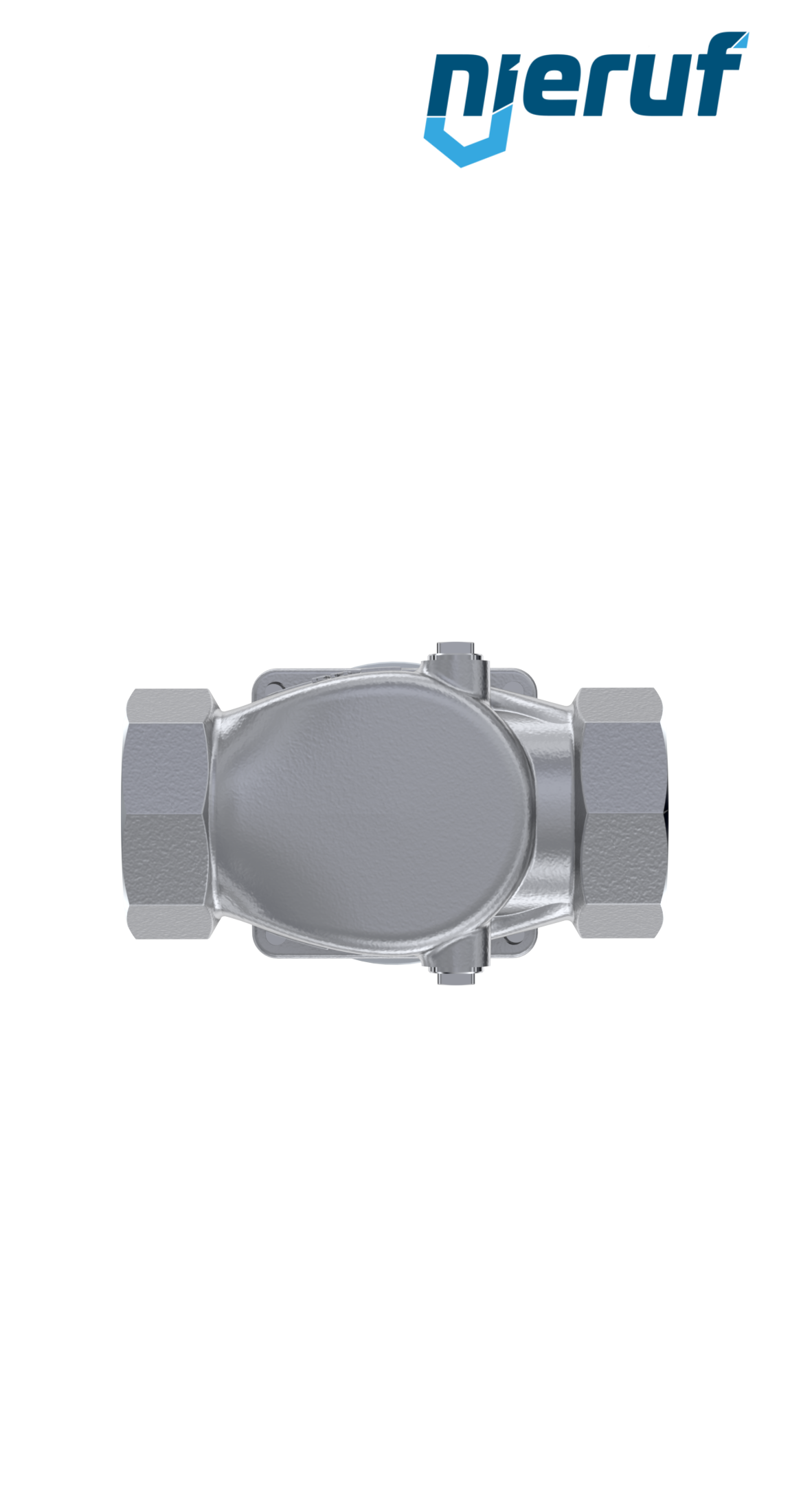

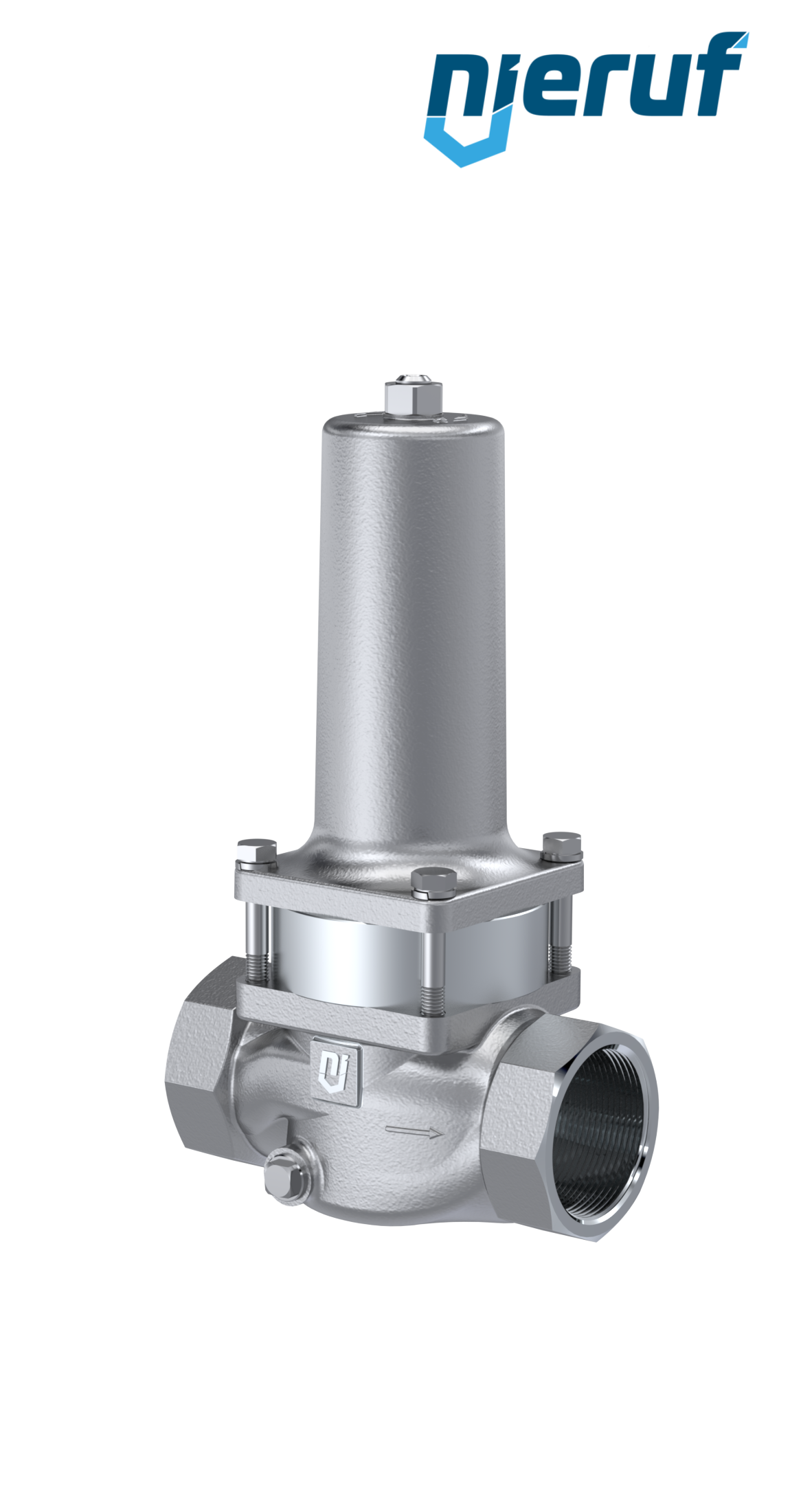

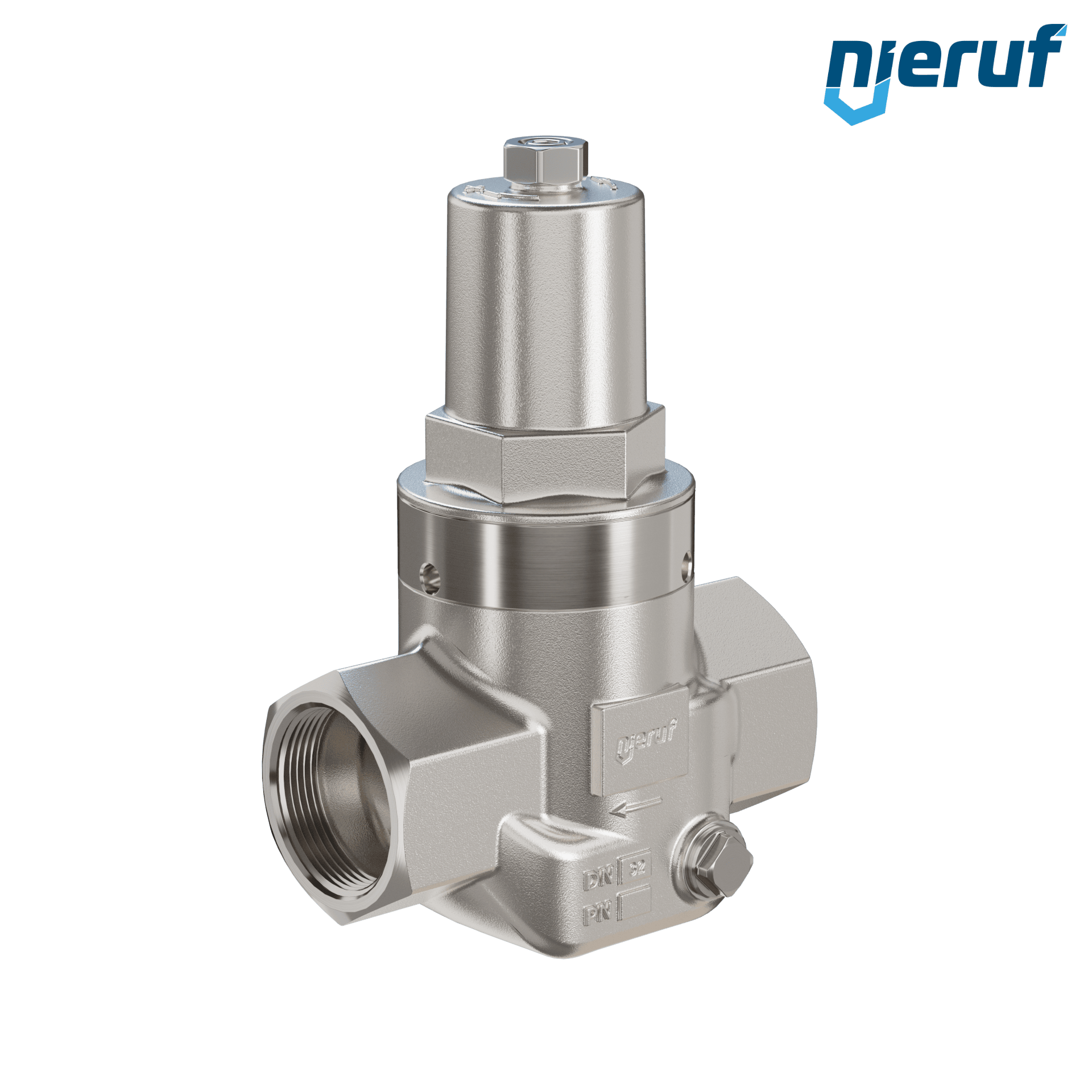

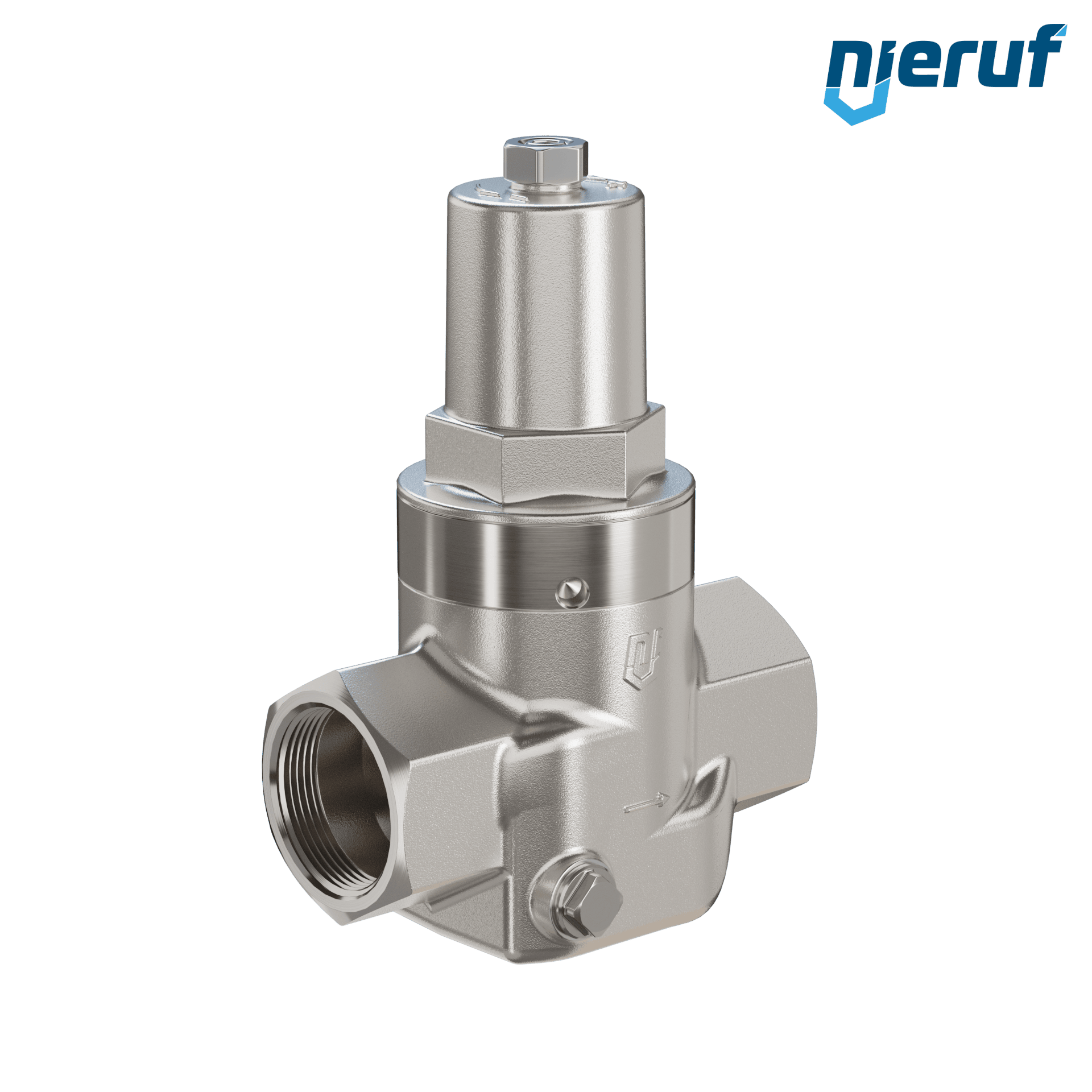

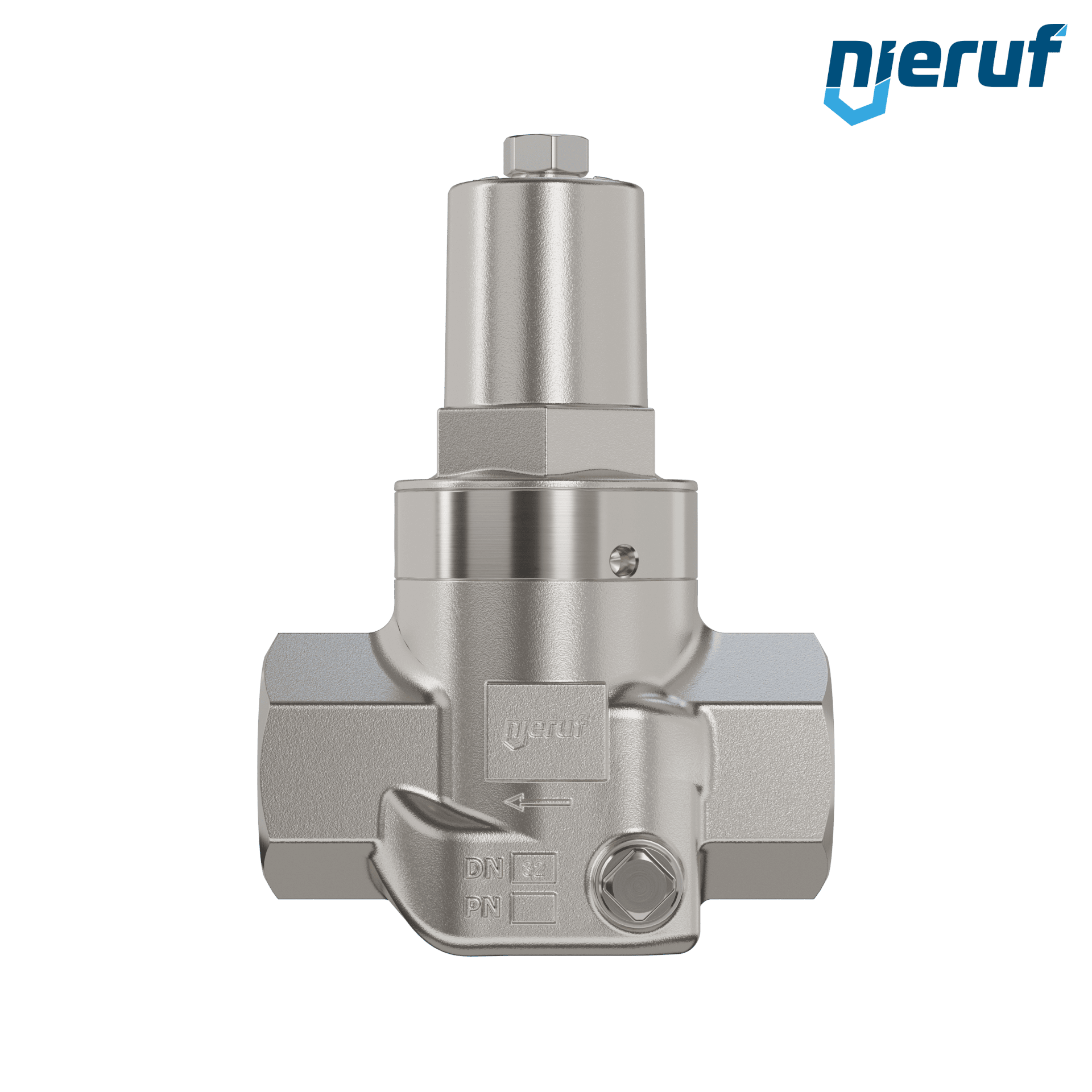

Piston-pressure reducing valve 1 1/4" Inch NPT female thread NPT made of stainless steel seal FPM / FKM for liquid and neutral gaseous media, set pressure 2.0 - 20.0 bar
| product: | Piston-pressure reducing valve |
|---|---|
| type: | DM10 |
| manufacturer: | NieRuf |
| diameter: | 1 1/4" Inch NPT |
| connection: | female thread NPT |
| material: | stainless steel |
| seal: | FPM / FKM |
| media: | liquid and neutral gaseous media |
| temperature: | -10°C up to +190°C |
| range of adjustment: | 2.0 - 20.0 bar |
| max. inlet pressure: | 40 bar |
| design: | straightway form |
| installation position: | any position |
| product feature: | This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Piston-pressure reducing valve 1 1/4" Inch NPT DM10 stainless steel FPM / FKM 2.0 - 20.0 bar
Article no.
: DM10000106
product:
Piston-pressure reducing valve
type:
DM10
manufacturer:
NieRuf
diameter:
1 1/4" Inch NPT
connection:
female thread NPT
material:
stainless steel
seal:
FPM / FKM
media:
liquid and neutral gaseous media
temperature:
-10°C up to +190°C
range of adjustment:
2.0 - 20.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
product feature:
This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting
€92.94 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
