Screw-in connection variants

NieRuf offers the connection elements with different threads and hose connections in various designs. You can buy each connector cheaply from our warehouse using our online shop. Deliveries are mostly made on the same day. A brief overview of our assortment is shown below:

EF01 straight screw-in connection, in brass or stainless steel, also available in a conical thread form.

EF02 Brass manometer screw connection

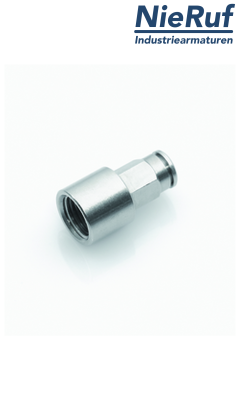

EF03 Straight brass or connector

EF04 Stainless steel or brass bracket connector

EF05 Brass or stainless steel T-connector

EF06 Brass angle swivel screw connection

EF07 Stainless steel or brass bracket screw connection, also available in conical shape (threaded)

EF08 Stainless steel or brass bracket screw-in connection in conical form

Installing the screw-in Connections

When installing the connection elements, it should be ensured that the hose has been cut straight, deburred and cleaned. So that an optimum seal can be guaranteed, the hose should not be oval. The compressed air hose must be inserted into the screw connection as far as the limit stop. You can check the fit by gently pulling the hose. If you want to loosen the hose again, the pressure ring has to be pressed. The hose can then be loosened from the connection element with a rotating movement. When re-assembling the hose, the end should be cut straight again so that its plug-in and removal capabilities are not affected.
