PF01050108.2
Press Fitting Female Coupling F Pressfitting DN50 - 54,0 mm female thread 2" inch stainless steel
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
Press Fitting Female Coupling PF01-05-01 with press connection F DN50 - 54,0 mm, female thread 2" inch made of stainless steel for liquid and gaseous media
| product: | Press Fitting Female Coupling |
|---|---|
| type: | PF01-05-01 |
| manufacturer: | NieRuf |
| diameter 1: | DN50 - 54,0 mm |
| connection 1: | F |
| diameter 2: | 2" inch |
| connection 2: | female thread |
| Contour: | M-Contour |
| thread: | acc. to DIN EN 10226-1 |

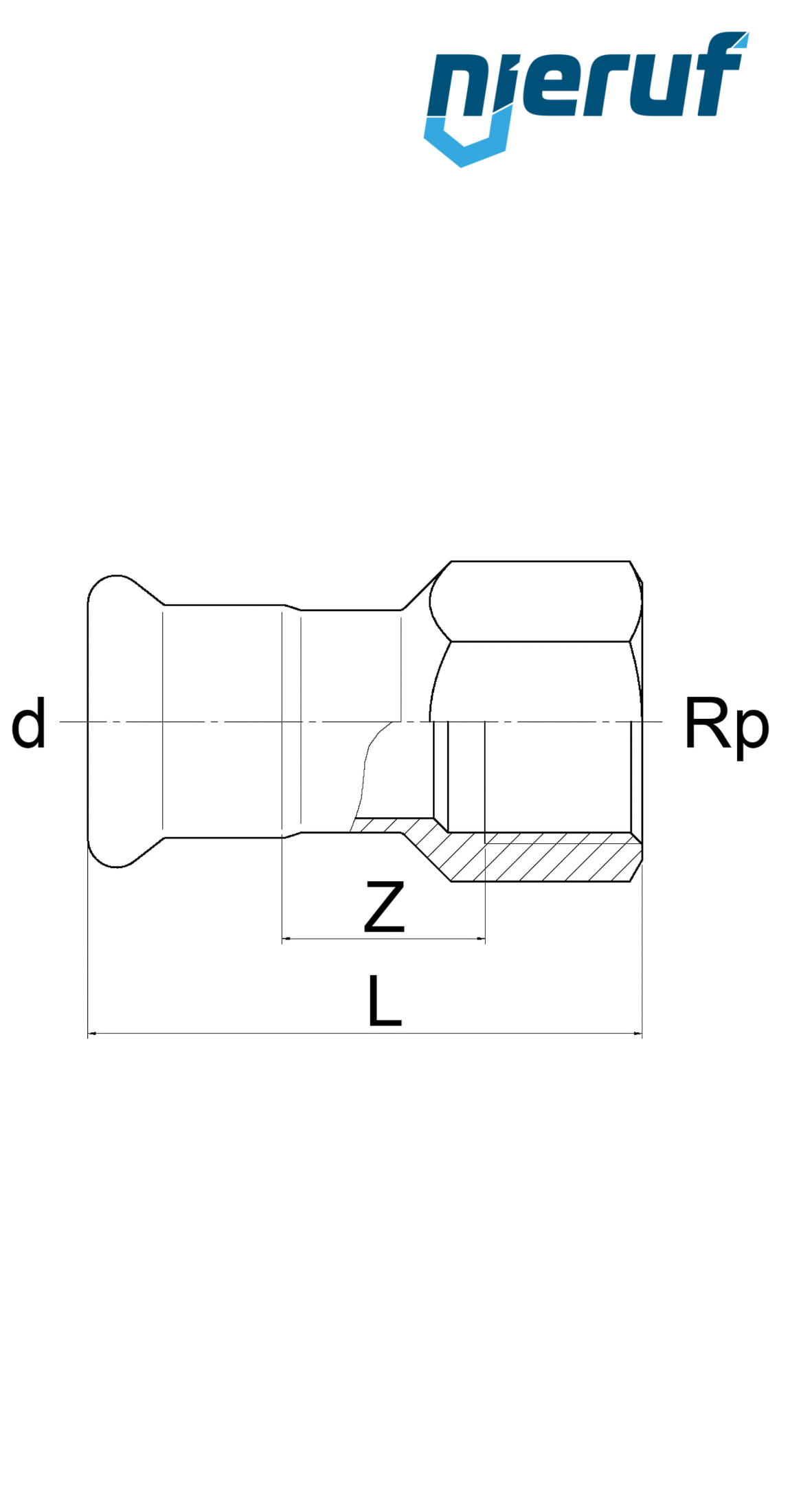

| d: | 54,0 |
| L: | 94,0 |
| Z: | 34,0 |
| Rp: | 2" |
| max. working pressure: | 16 bar at +20°C |
| material: | stainless steel 316 L |
| certification: | DVGW-drinking water |
| product feature 1: | These Pressfittings are ideal to connect pipelines fast and efficiently. |
| product feature 2: | As standard, the press fittings are supplied with an inserted EPDM-LBP seal. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Press Fitting Female Coupling F Pressfitting DN50 - 54,0 mm female thread 2" inch stainless steel
Article no.
: PF01050108.2
product:
Press Fitting Female Coupling
type:
PF01-05-01
manufacturer:
NieRuf
diameter 1:
DN50 - 54,0 mm
connection 1:
F
diameter 2:
2" inch
connection 2:
female thread
Contour:
M-Contour
thread:
acc. to DIN EN 10226-1
d:
54,0
L:
94,0
Z:
34,0
Rp:
2"
max. working pressure:
16 bar at +20°C
material:
stainless steel 316 L
certification:
DVGW-drinking water
product feature 1:
These Pressfittings are ideal to connect pipelines fast and efficiently.
product feature 2:
As standard, the press fittings are supplied with an inserted EPDM-LBP seal.
