DM01020004

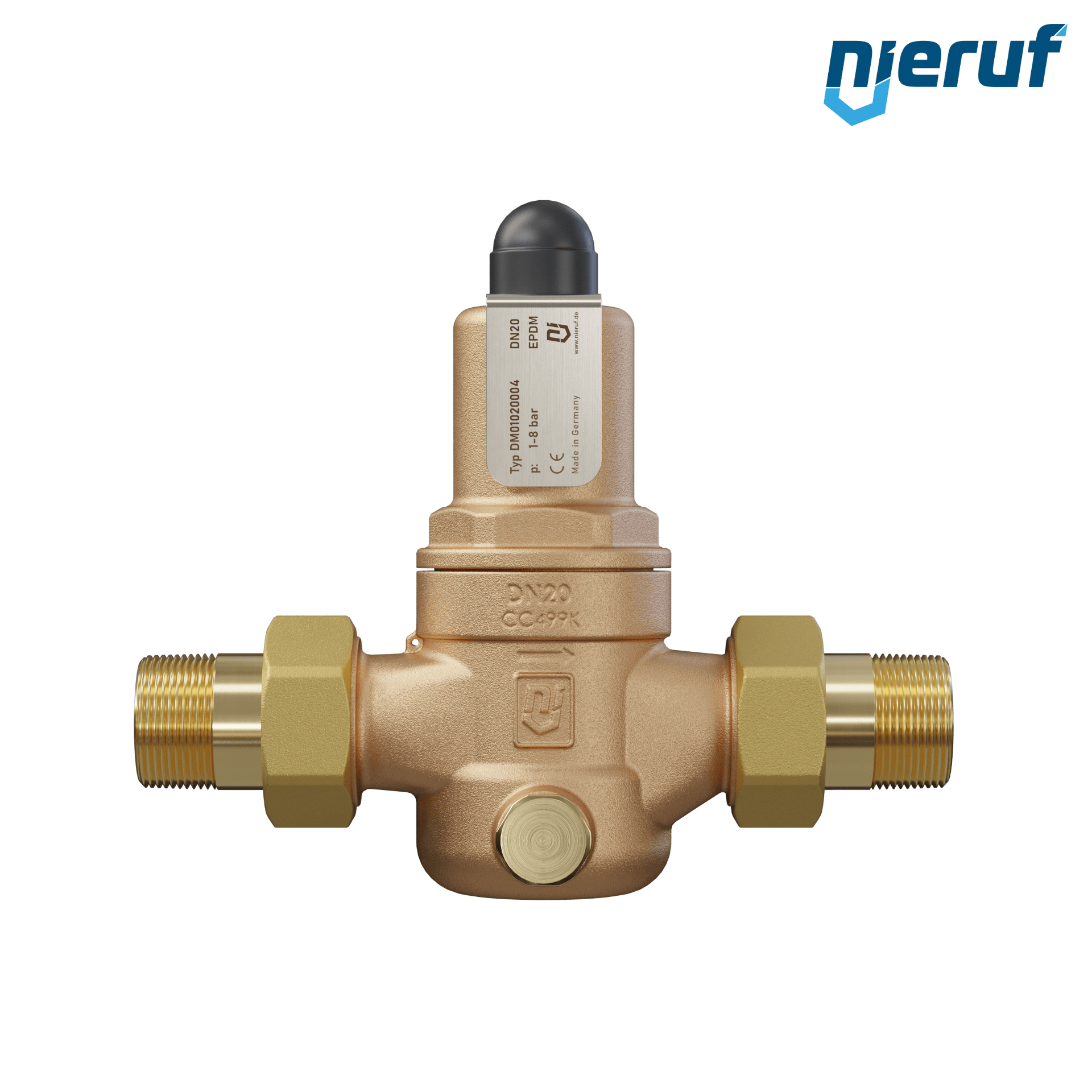

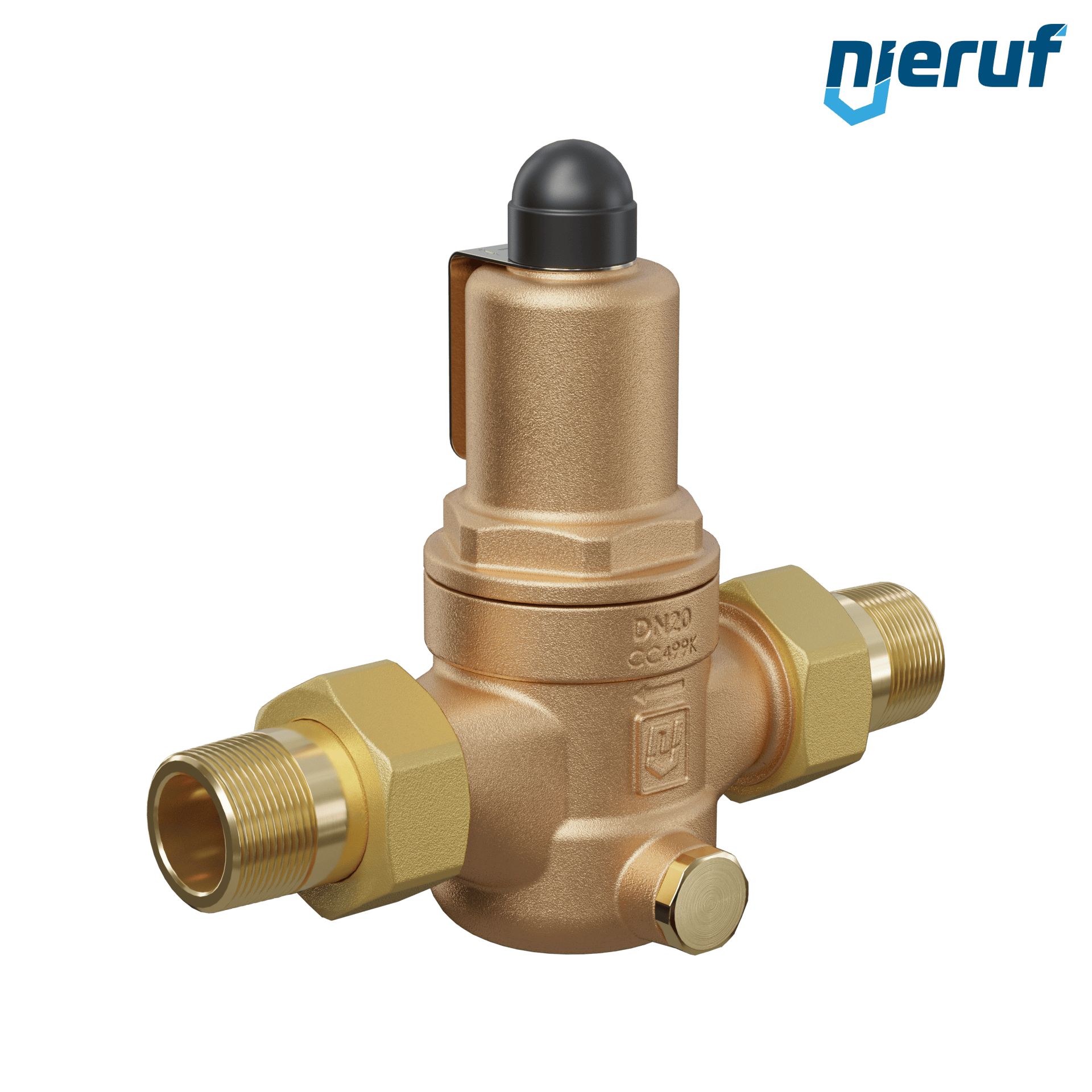

pressure reducing valve 3/4" inch male thread DM01 gunmetal EPDM 1.0 - 8.0 bar
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
pressure reducing valve 3/4" inch male thread male thread BSP-T made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
| product: | pressure reducing valve |
|---|---|
| type: | DM01 |
| manufacturer: | NieRuf |
| diameter: | 3/4" inch male thread |
| connection: | male thread BSP-T |
| material: | gunmetal/brass |
| seal: | EPDM |
| media: | liquid and gaseous media (no steam) |
| temperature: | -20°C up to +120°C |
| range of adjustment: | 1.0 - 8.0 bar |
| max. inlet pressure: | 40 bar |
| design: | straightway form |
| installation position: | any position |
| SIL - safety integrity level: | SIL 2 |
| product feature: | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Pressure adjustment by means of non-rising spindle. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure reducing valve 3/4" inch male thread DM01 gunmetal EPDM 1.0 - 8.0 bar
Article no.
: DM01020004
product:
pressure reducing valve
type:
DM01
manufacturer:
NieRuf
diameter:
3/4" inch male thread
connection:
male thread BSP-T
material:
gunmetal/brass
seal:
EPDM
media:
liquid and gaseous media (no steam)
temperature:
-20°C up to +120°C
range of adjustment:
1.0 - 8.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Pressure adjustment by means of non-rising spindle.
