DM05020011

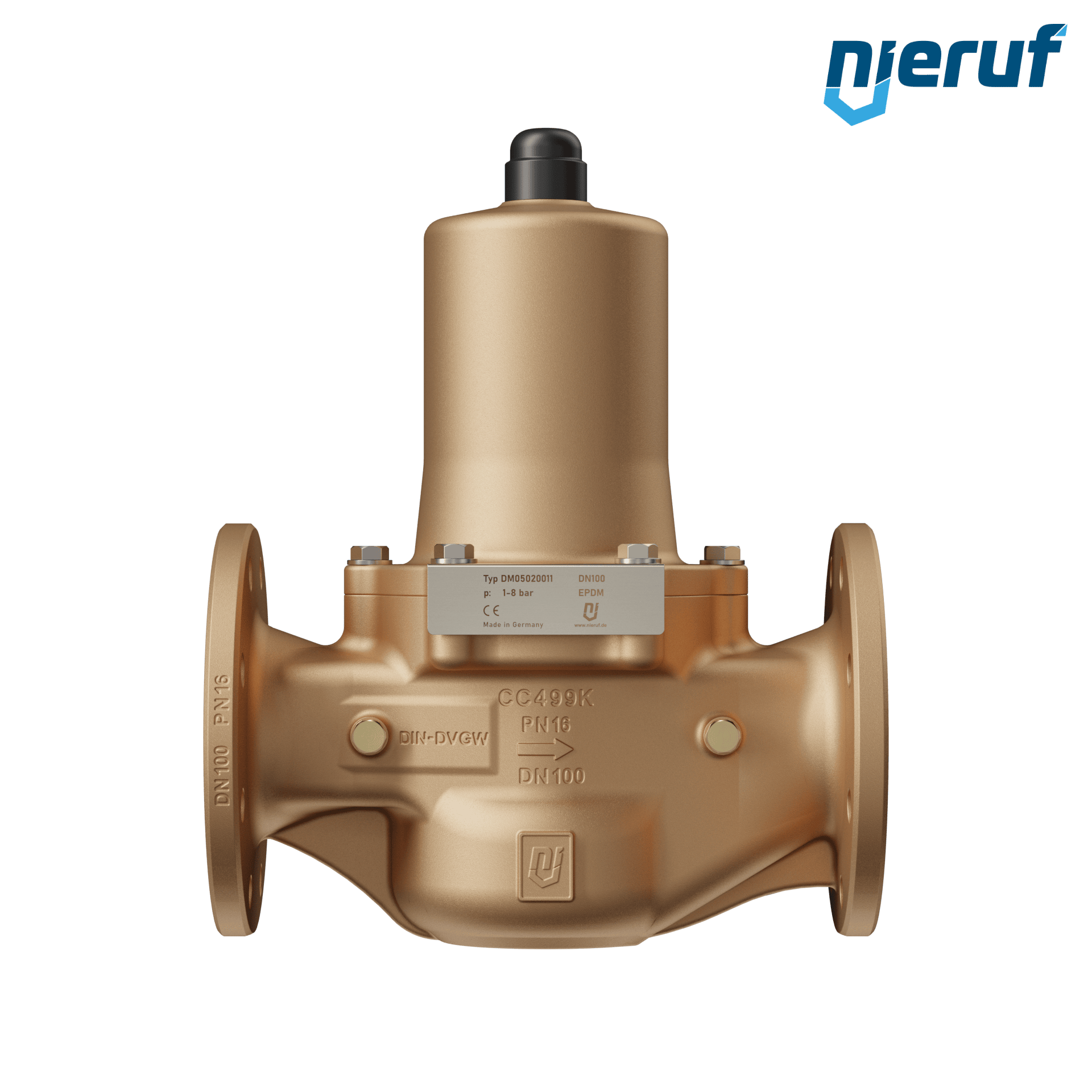

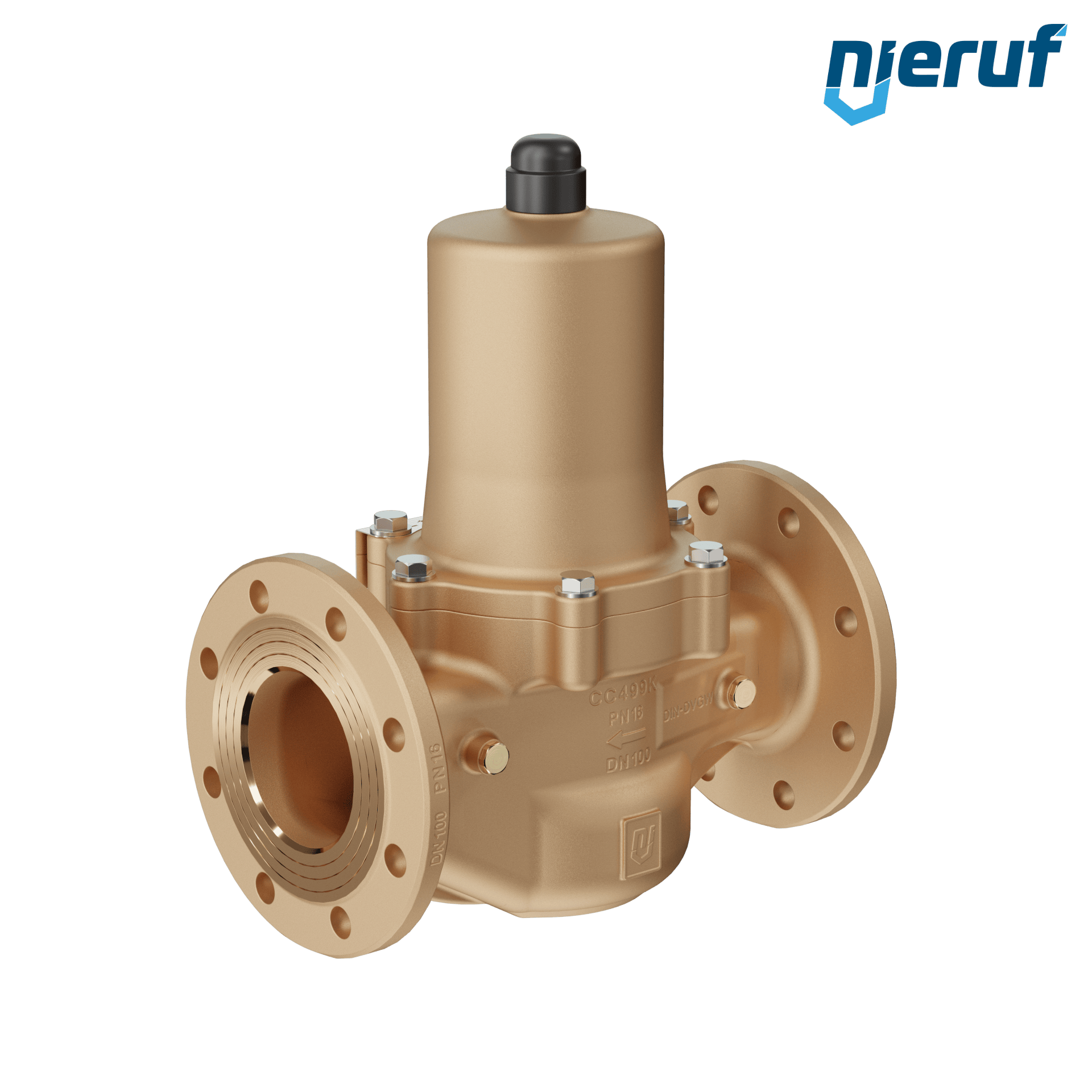

Flange-pressure reducing valve DN 100 PN16 DM05 gunmetal/brass EPDM 1.0 - 8.0 bar
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Flange-pressure reducing valve DN 100 PN16 flange acc. DIN EN 1092 made of gunmetal/brass seal EPDM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
| product: | Flange-pressure reducing valve |
|---|---|
| type: | DM05 |
| manufacturer: | NieRuf |
| diameter: | DN 100 PN16 |
| connection: | flange acc. DIN EN 1092 |
| material: | gunmetal/brass |
| seal: | EPDM |
| media: | liquid and gaseous media (no steam) |
| temperature: | -20°C up to +120°C |
| range of adjustment: | 1.0 - 8.0 bar |
| max. inlet pressure: | 16 bar |
| design: | straightway form |
| installation position: | any position |
| SIL - safety integrity level: | SIL 2 |
| product feature: | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-pressure reducing valve DN 100 PN16 DM05 gunmetal/brass EPDM 1.0 - 8.0 bar
Article no.
: DM05020011
product:
Flange-pressure reducing valve
type:
DM05
manufacturer:
NieRuf
diameter:
DN 100 PN16
connection:
flange acc. DIN EN 1092
material:
gunmetal/brass
seal:
EPDM
media:
liquid and gaseous media (no steam)
temperature:
-20°C up to +120°C
range of adjustment:
1.0 - 8.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle.
€5.36 VAT included.
€40.70 VAT included.
€829.43 VAT included.
€12.61 VAT included.
€16.18 VAT included.
