DM08010004
Flange-pressure reducing valve DN 20 PN40 DM08 stainless steel FKM 0.5 - 2.0 bar
Delivery time: 3 - 5 working days
Equipment
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Delivery time: in stock
Express delivery*:
€14.40 VAT included.
pressure gauge 0 - 4,0 bar G 1/4" axial 50 mm stainless steel MM05
Delivery time: in stock
Express delivery*:
€101.27 VAT included.
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
Delivery time: in stock
Express delivery*:
€2.02 VAT included.
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
Delivery time: in stock
Express delivery*:
€4.28 VAT included.
Alternative

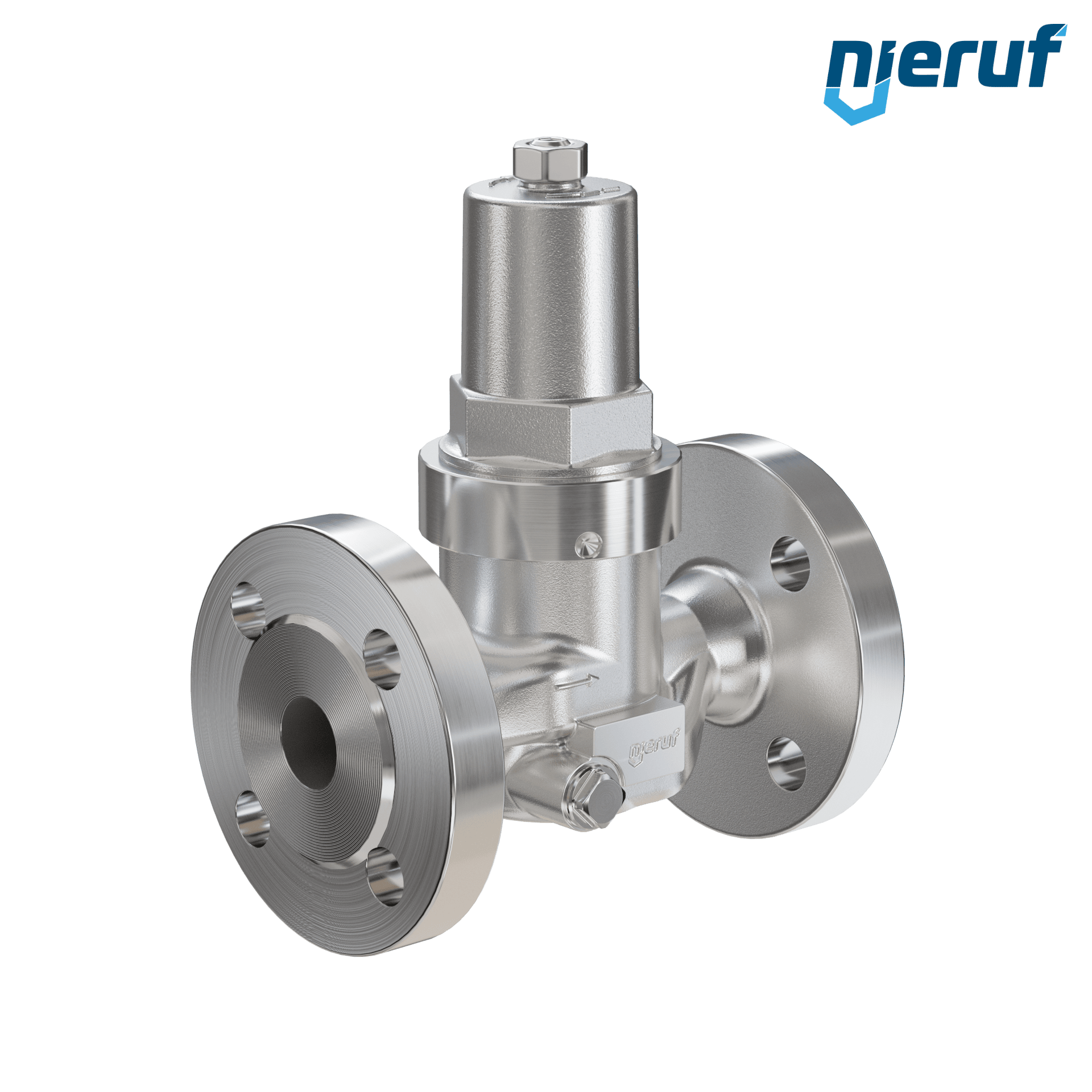

pressure reducing valve DN 20 DM13 stainless steel FPM / FKM 0.2 - 2.0 bar
Delivery time: 3 - 5 working days
€1,062.67 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

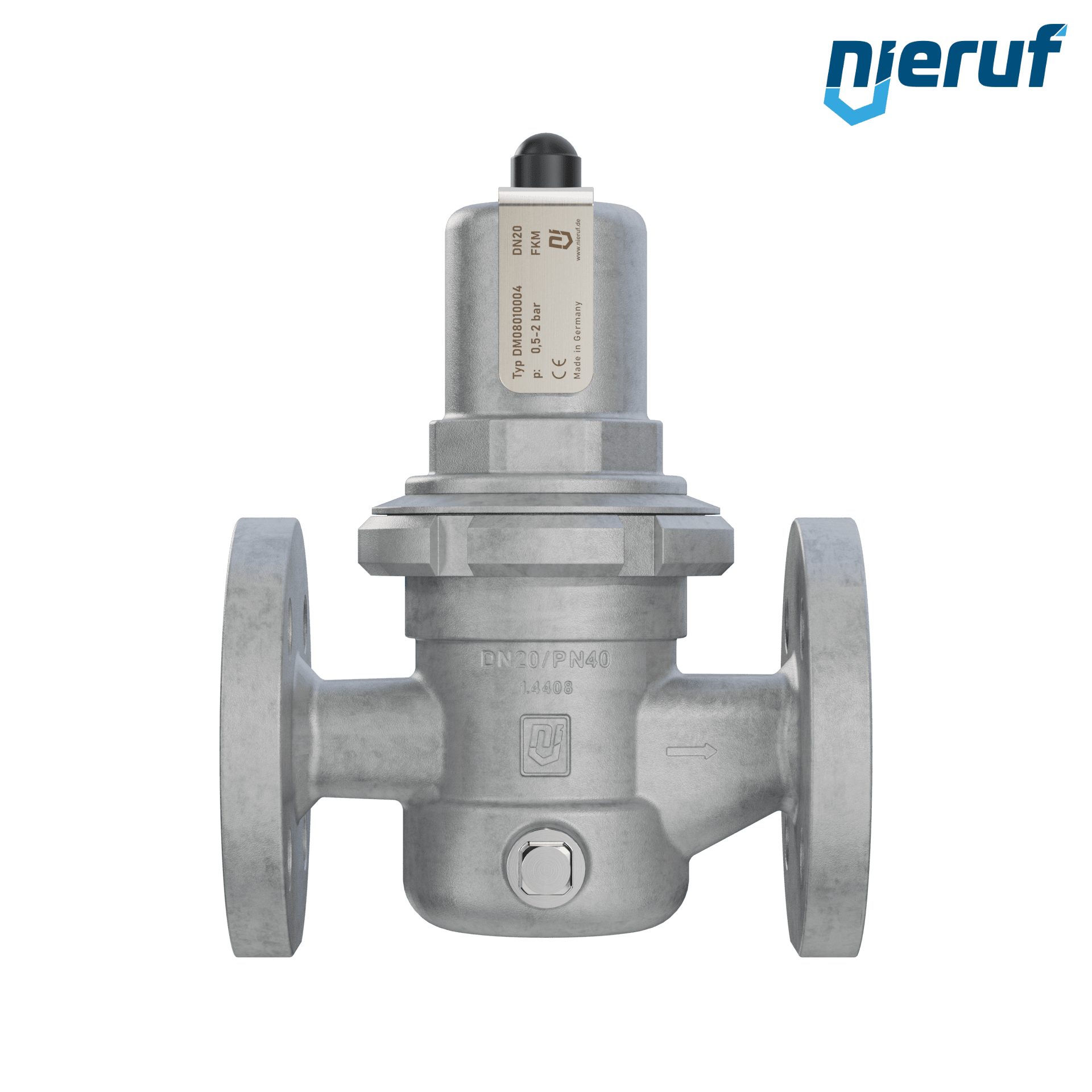

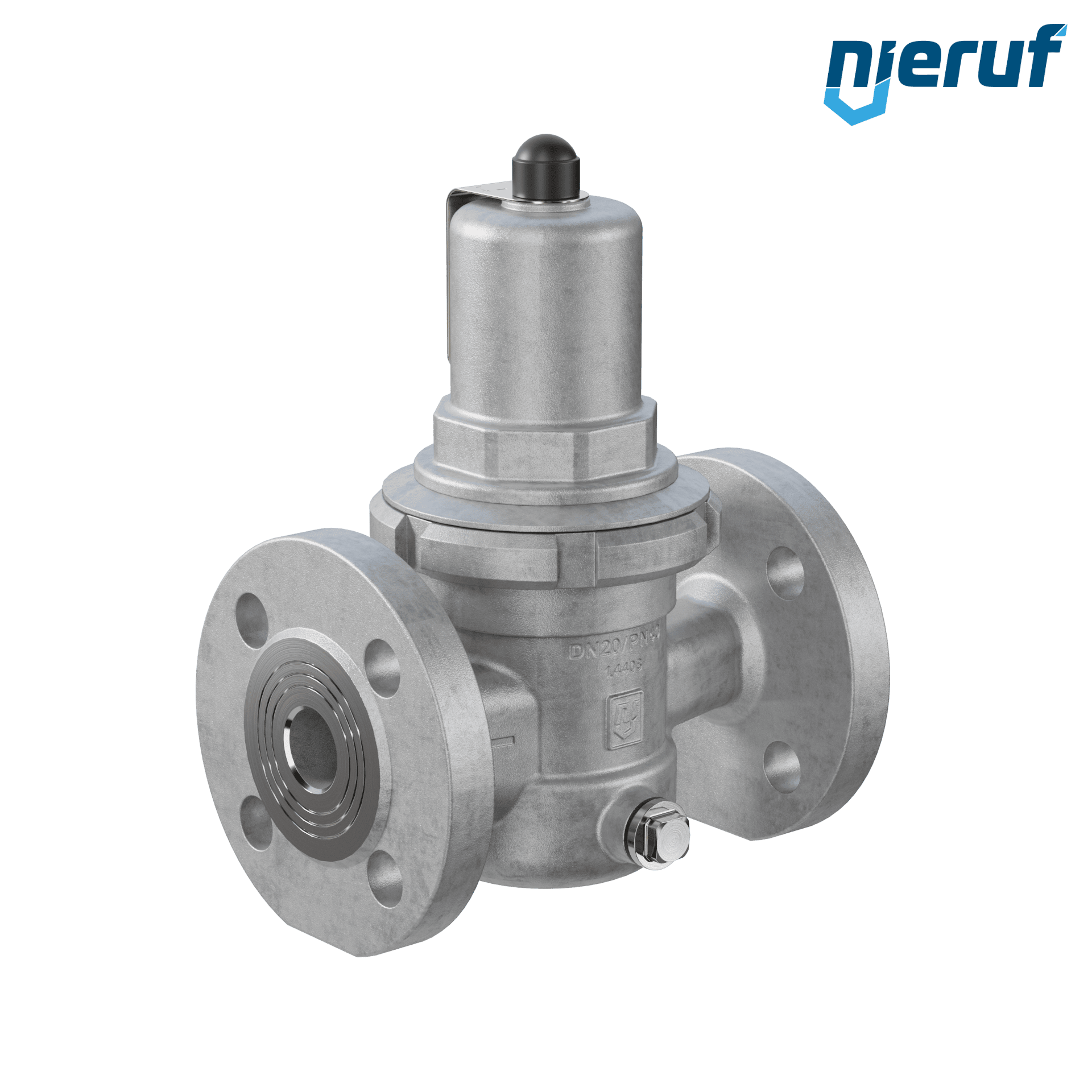

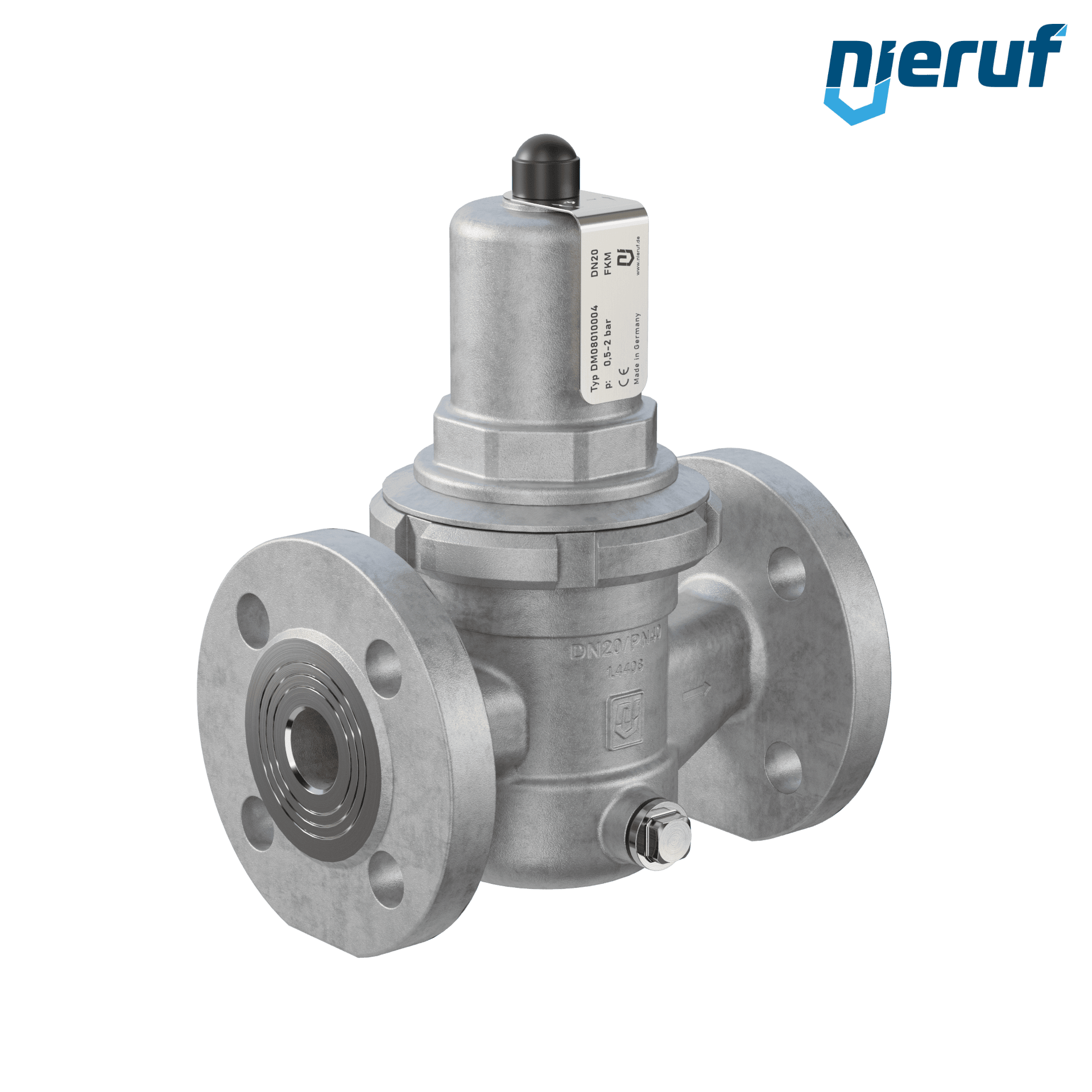

Flange-pressure reducing valve DN 20 PN40 flange acc. DIN EN 1092 made of stainless steel seal FKM for liquid and gaseous media (no steam), set pressure 0.5 - 2.0 bar
| product: | Flange-pressure reducing valve |
|---|---|
| type: | DM08 |
| manufacturer: | NieRuf |
| diameter: | DN 20 PN40 |
| connection: | flange acc. DIN EN 1092 |
| material: | stainless steel |
| seal: | FKM |
| media: | liquid and gaseous media (no steam) |
| temperature: | -10°C up to +120°C |
| range of adjustment: | 0.5 - 2.0 bar |
| max. inlet pressure: | 25 bar |
| design: | straightway form |
| installation position: | any position |
| SIL - safety integrity level: | SIL 2 |
| product feature: | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-pressure reducing valve DN 20 PN40 DM08 stainless steel FKM 0.5 - 2.0 bar
Article no.
: DM08010004
product:
Flange-pressure reducing valve
type:
DM08
manufacturer:
NieRuf
diameter:
DN 20 PN40
connection:
flange acc. DIN EN 1092
material:
stainless steel
seal:
FKM
media:
liquid and gaseous media (no steam)
temperature:
-10°C up to +120°C
range of adjustment:
0.5 - 2.0 bar
max. inlet pressure:
25 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle.
€2.02 VAT included.
€26.78 VAT included.
€116.38 VAT included.
€101.27 VAT included.
€4.76 VAT included.
