DM06020008

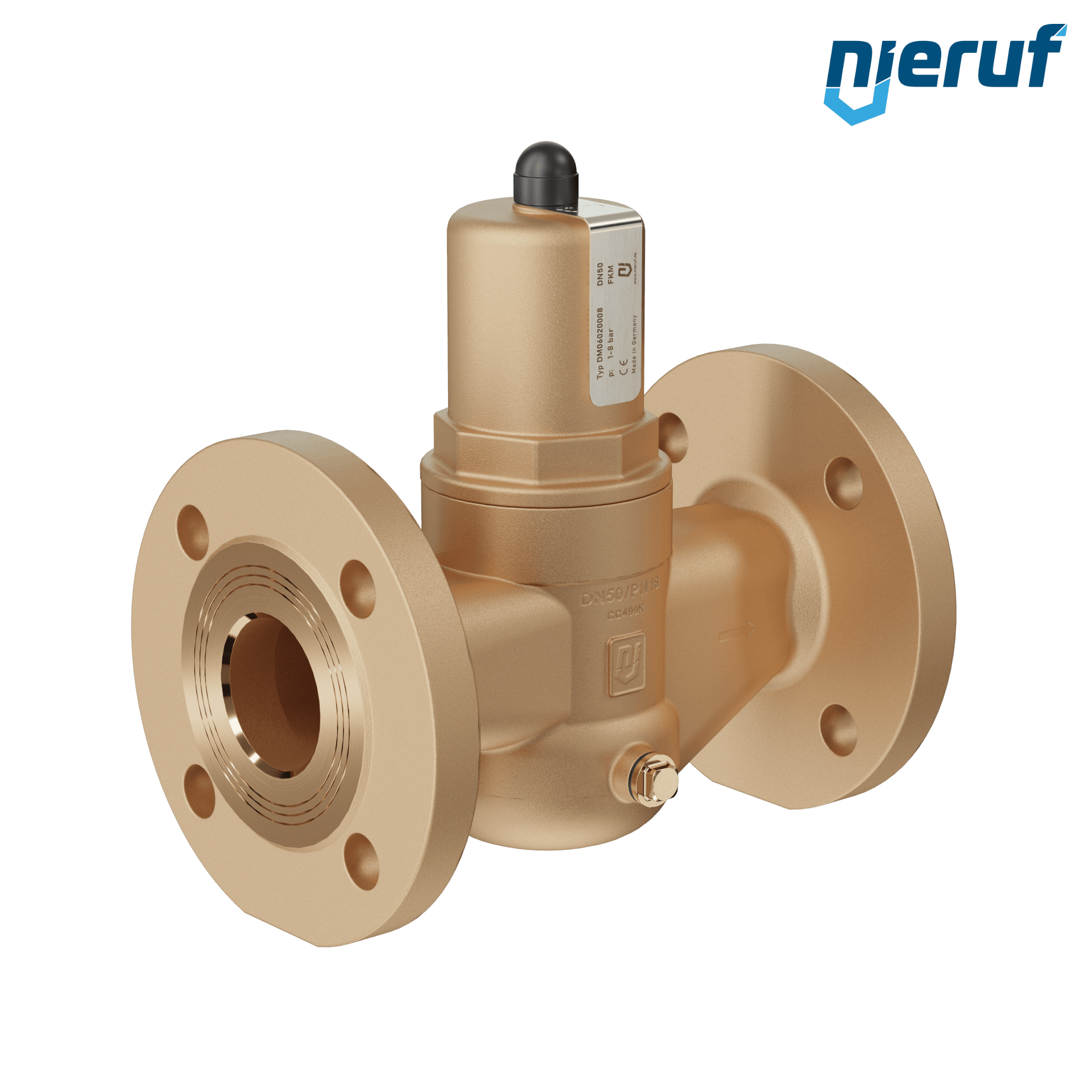

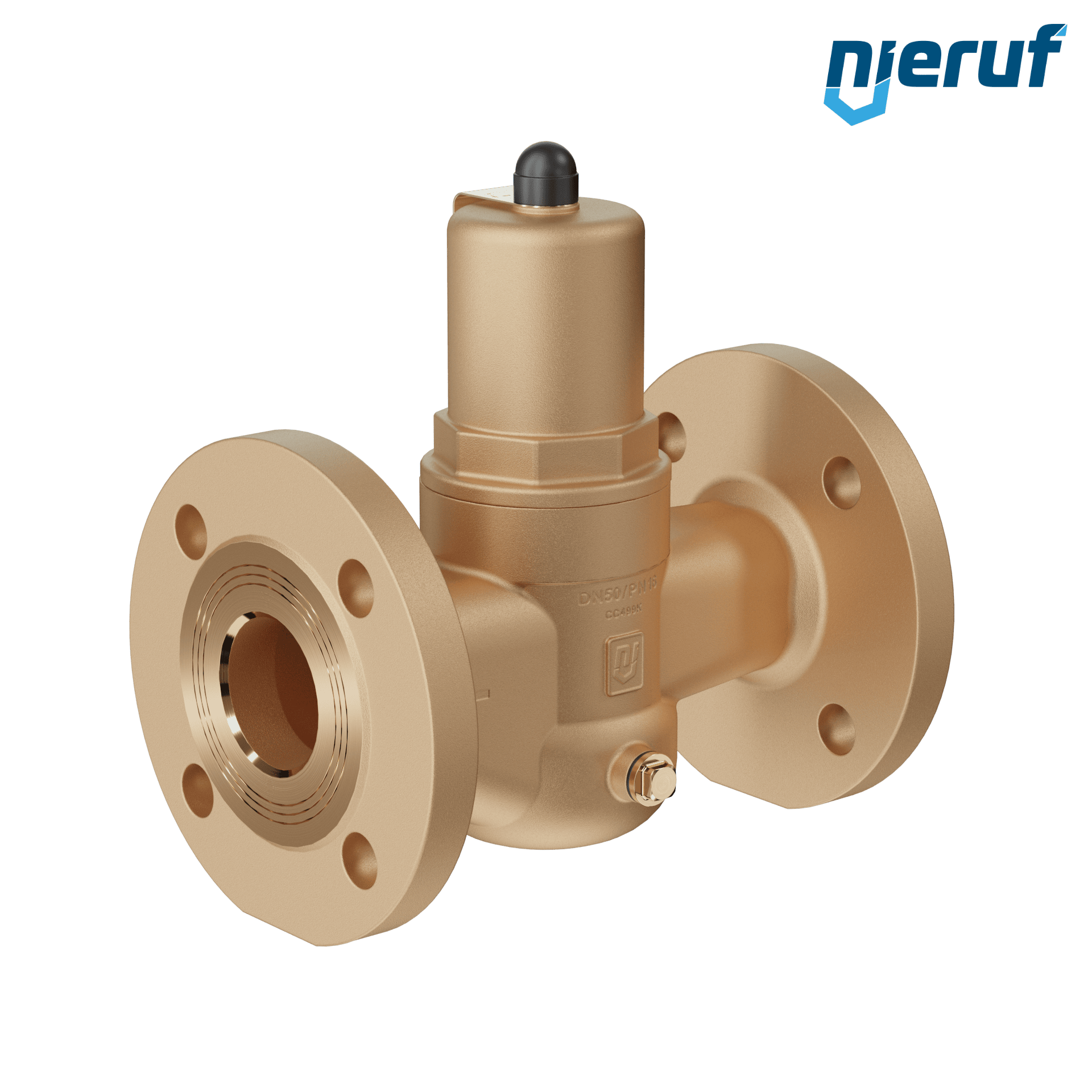

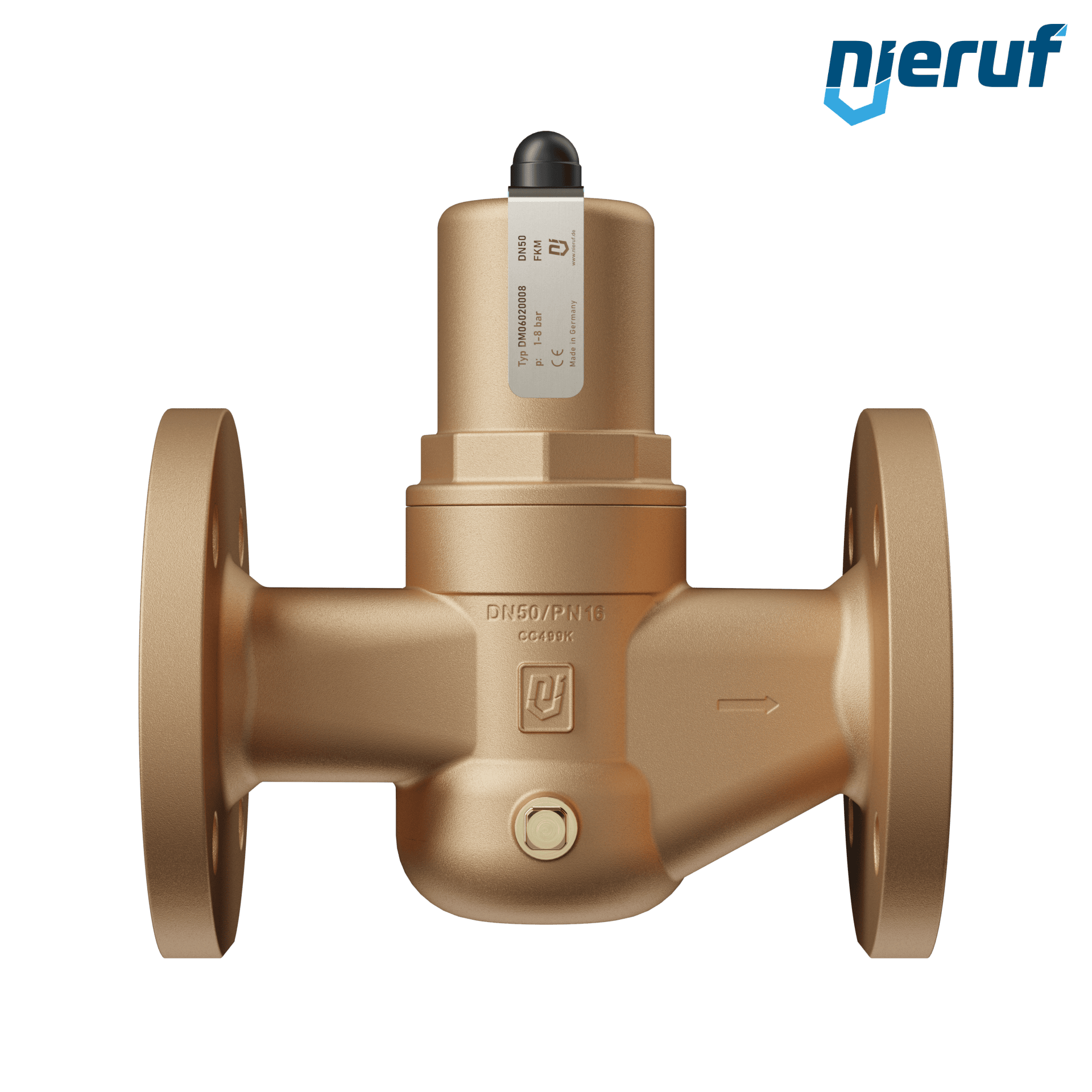

pressure reducing valve DN 50 PN16 DM06 gunmetal/brass FKM 1.0 - 8.0 bar
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
pressure reducing valve DN 50 PN16 flange acc. DIN EN 1092 made of gunmetal/brass seal FKM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar
| product: | pressure reducing valve |
|---|---|
| type: | DM06 |
| manufacturer: | NieRuf |
| diameter: | DN 50 PN16 |
| connection: | flange acc. DIN EN 1092 |
| material: | gunmetal/brass |
| seal: | FKM |
| media: | liquid and gaseous media (no steam) |
| temperature: | -10°C up to +120°C |
| range of adjustment: | 1.0 - 8.0 bar |
| max. inlet pressure: | 16 bar |
| design: | straightway form |
| installation position: | any position |
| SIL - safety integrity level: | SIL 2 |
| product feature: | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure reducing valve DN 50 PN16 DM06 gunmetal/brass FKM 1.0 - 8.0 bar
Article no.
: DM06020008
product:
pressure reducing valve
type:
DM06
manufacturer:
NieRuf
diameter:
DN 50 PN16
connection:
flange acc. DIN EN 1092
material:
gunmetal/brass
seal:
FKM
media:
liquid and gaseous media (no steam)
temperature:
-10°C up to +120°C
range of adjustment:
1.0 - 8.0 bar
max. inlet pressure:
16 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle.
