BE01010005
Pressure vessel vertical BE01 350 liter, 0-11 bar, steel primed
Delivery time: 3 - 5 working days
Equipment
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€50.22 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

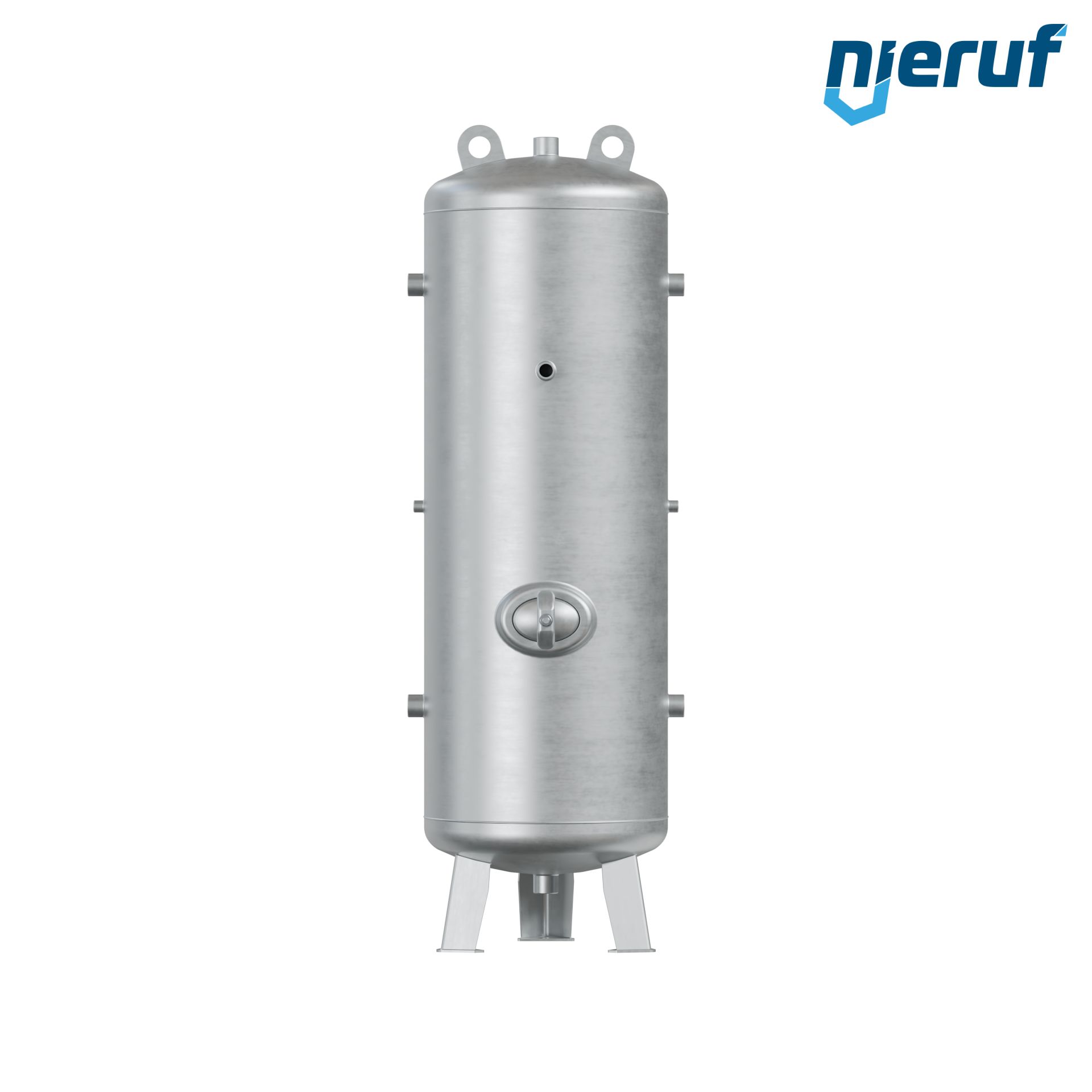

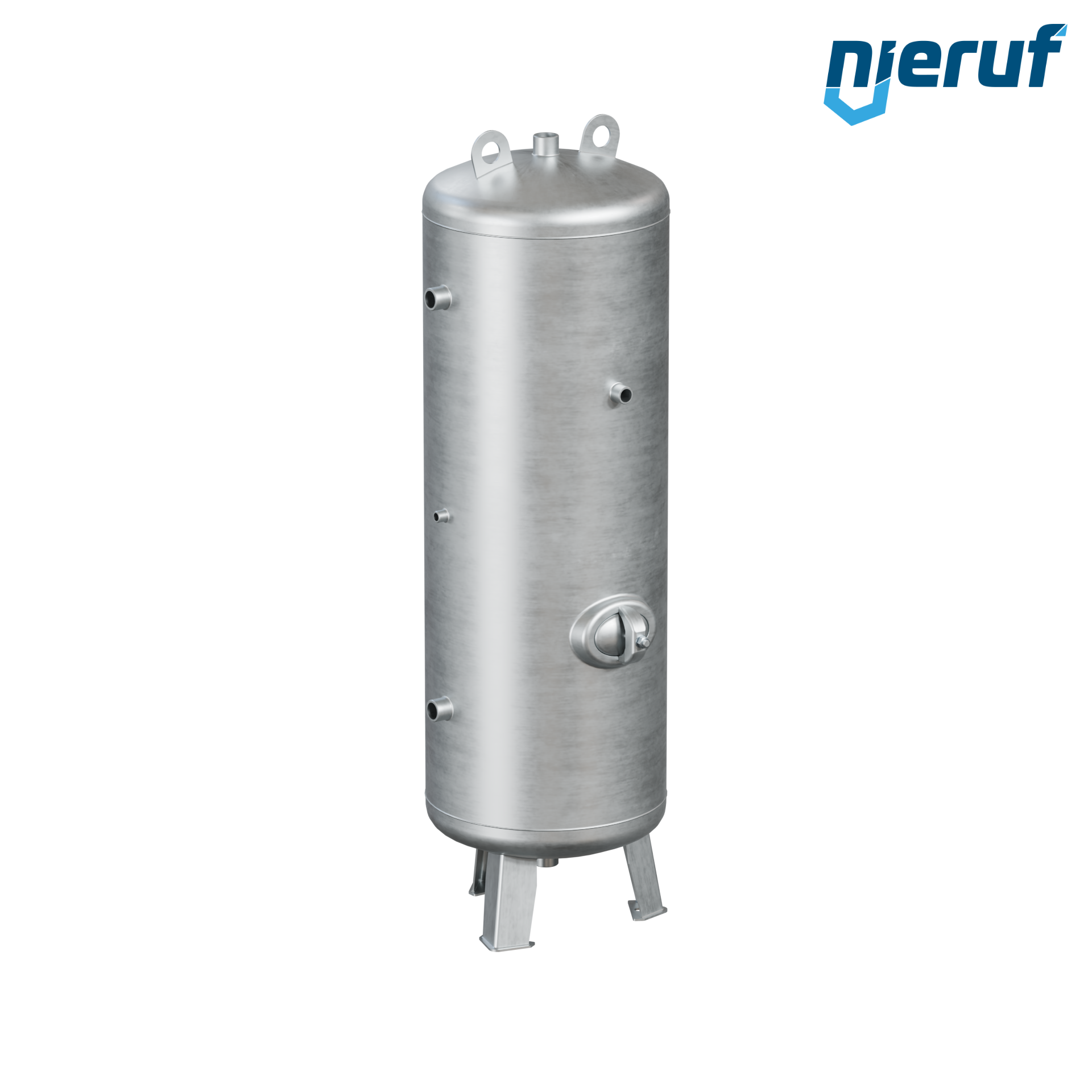

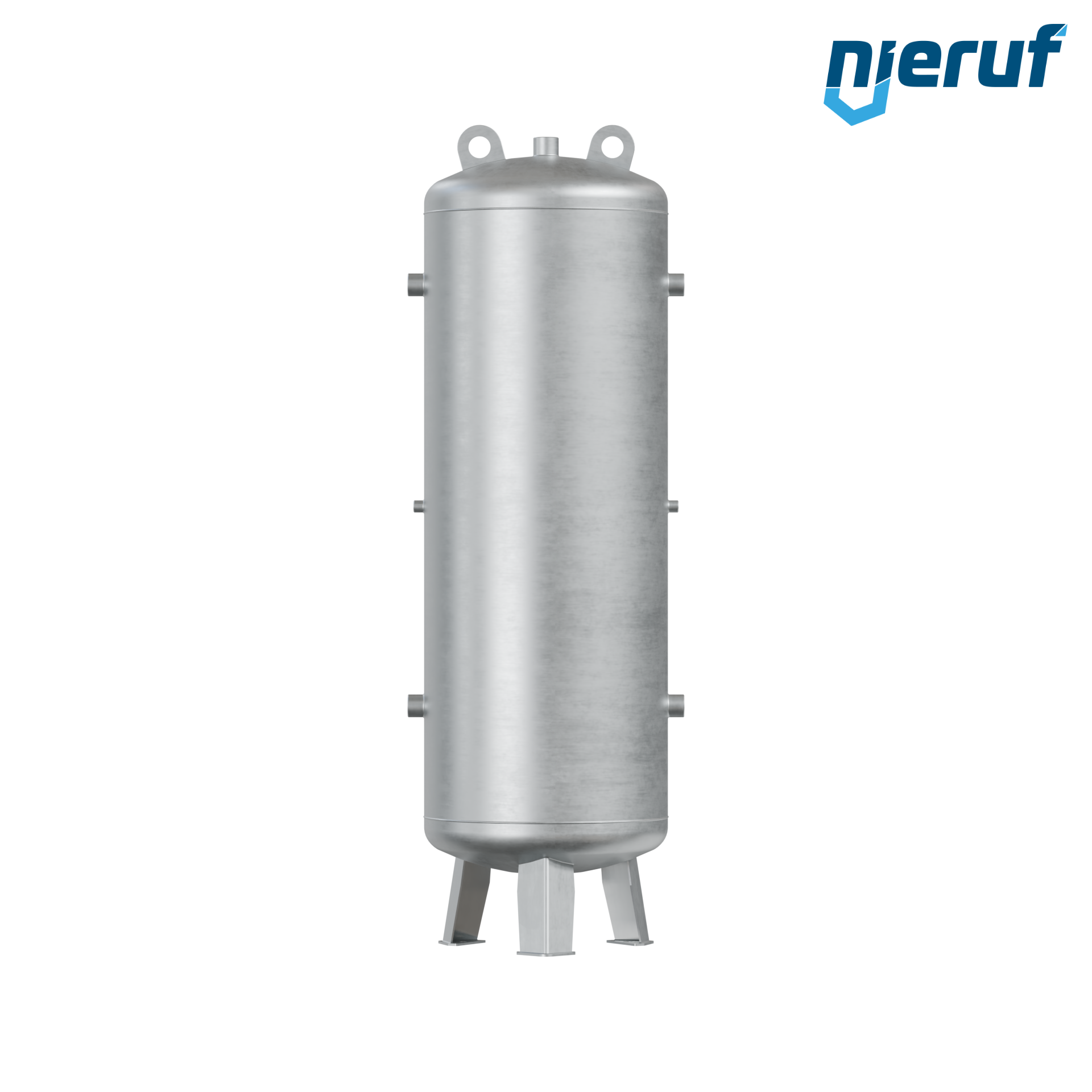

Pressure vessel BE01 with 350 liter volume vertical with operating pressure 0-11 bar made of steel primed (inside raw) and nominal size 550 mm
| product: | Pressure vessel |
|---|---|
| type: | BE01 |
| manufacturer: | NieRuf |
| volume: | 350 liter |
| nominal size: | 550 mm |
| height: | 1785 mm |
| operating pressure: | 0-11 bar |
| version: | vertical |
| temperature: | -20°C up to +50°C |
| material: | steel primed (inside raw) |
| media: | compressed air and nitrogen |
| product feature: | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel vertical BE01 350 liter, 0-11 bar, steel primed
Article no.
: BE01010005
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
350 liter
nominal size:
550 mm
height:
1785 mm
operating pressure:
0-11 bar
version:
vertical
temperature:
-20°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
