BE01001120
Pressure vessel horizontal BE01 10000 liter, 0-16 bar, steel galvanized, nominal size 1800 mm
Delivery time: On request
Equipment
pressure gauge G 1/2" radial 100 mm stainless steel MM07 0 - 25,0 bar without filling, dry
€173.38 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€50.22 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

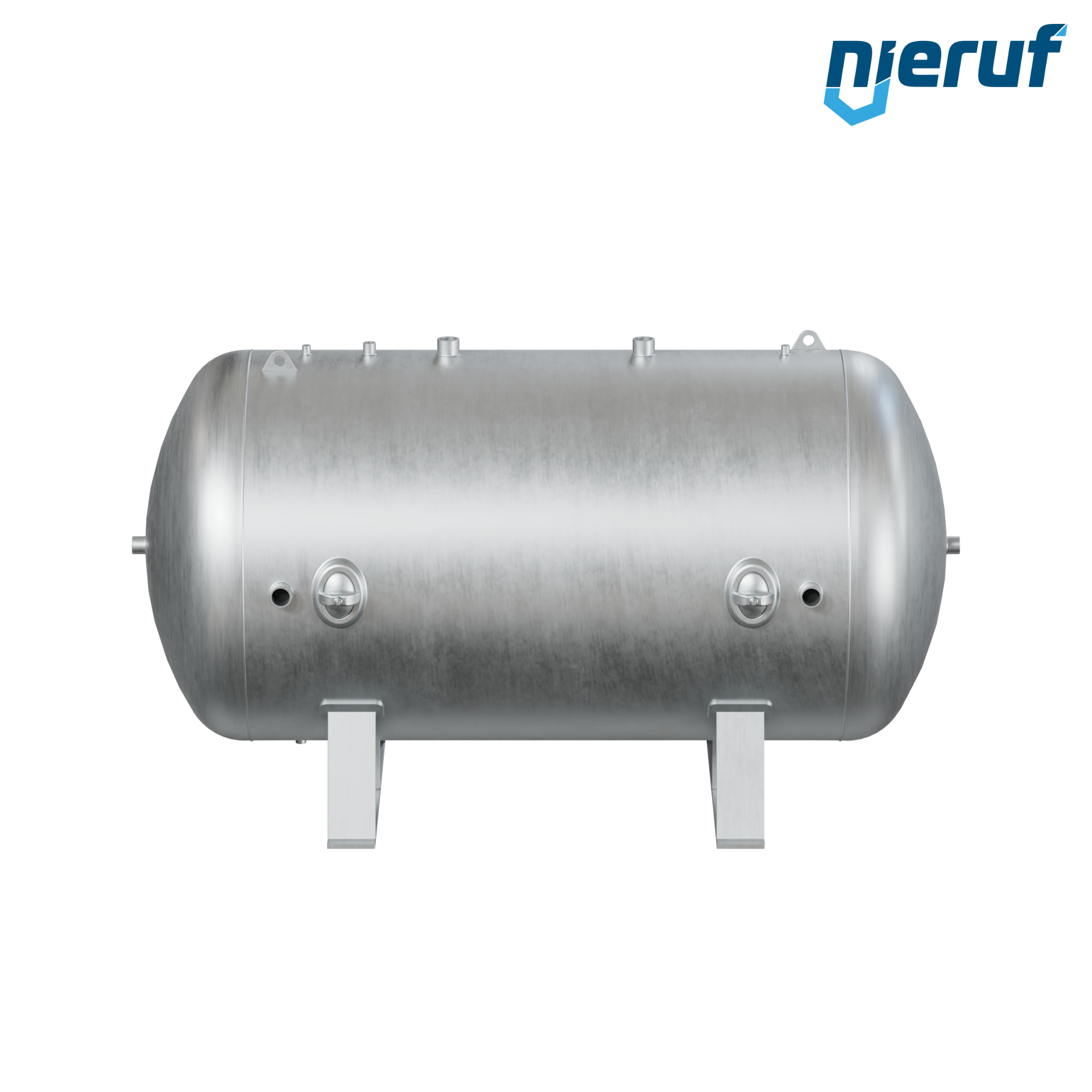

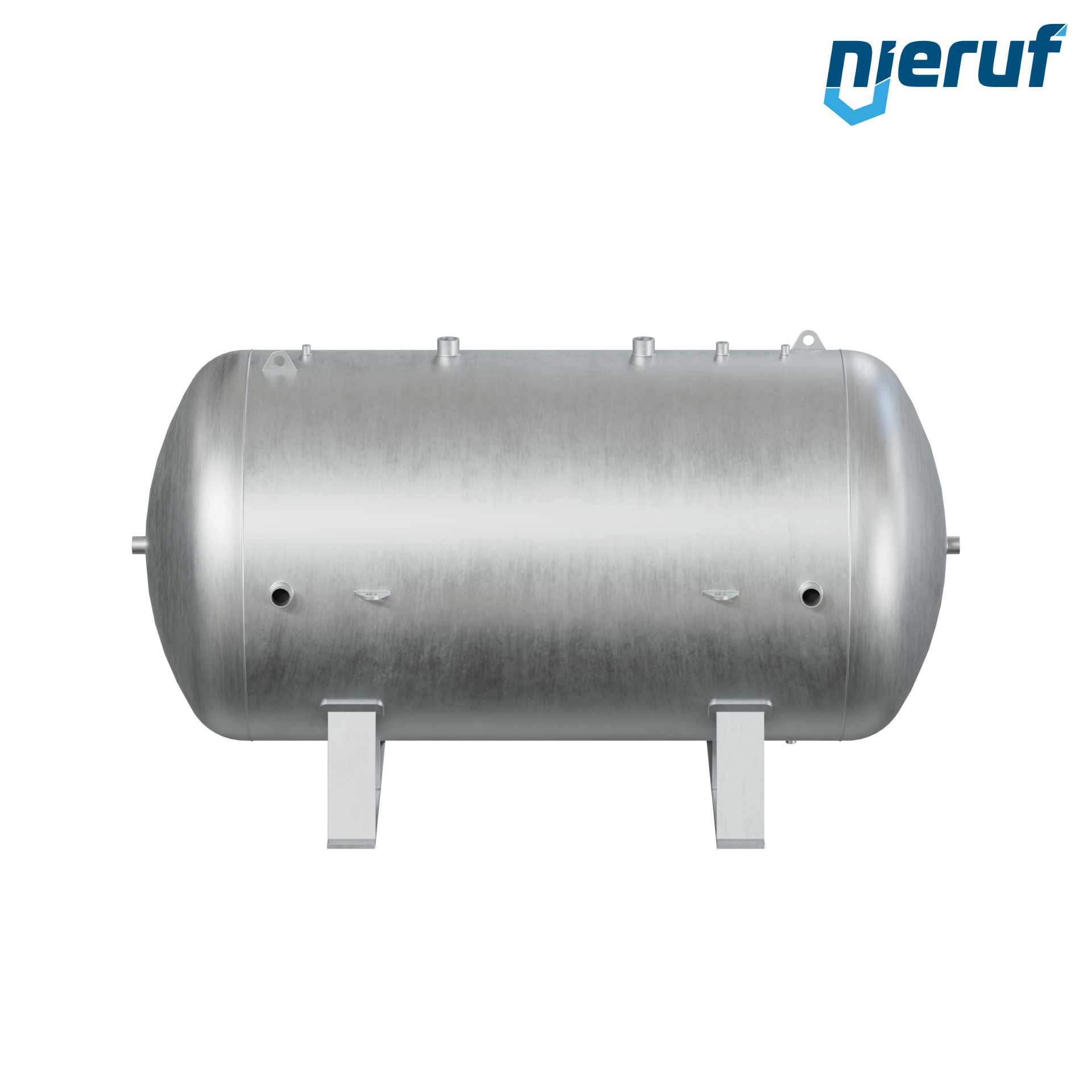

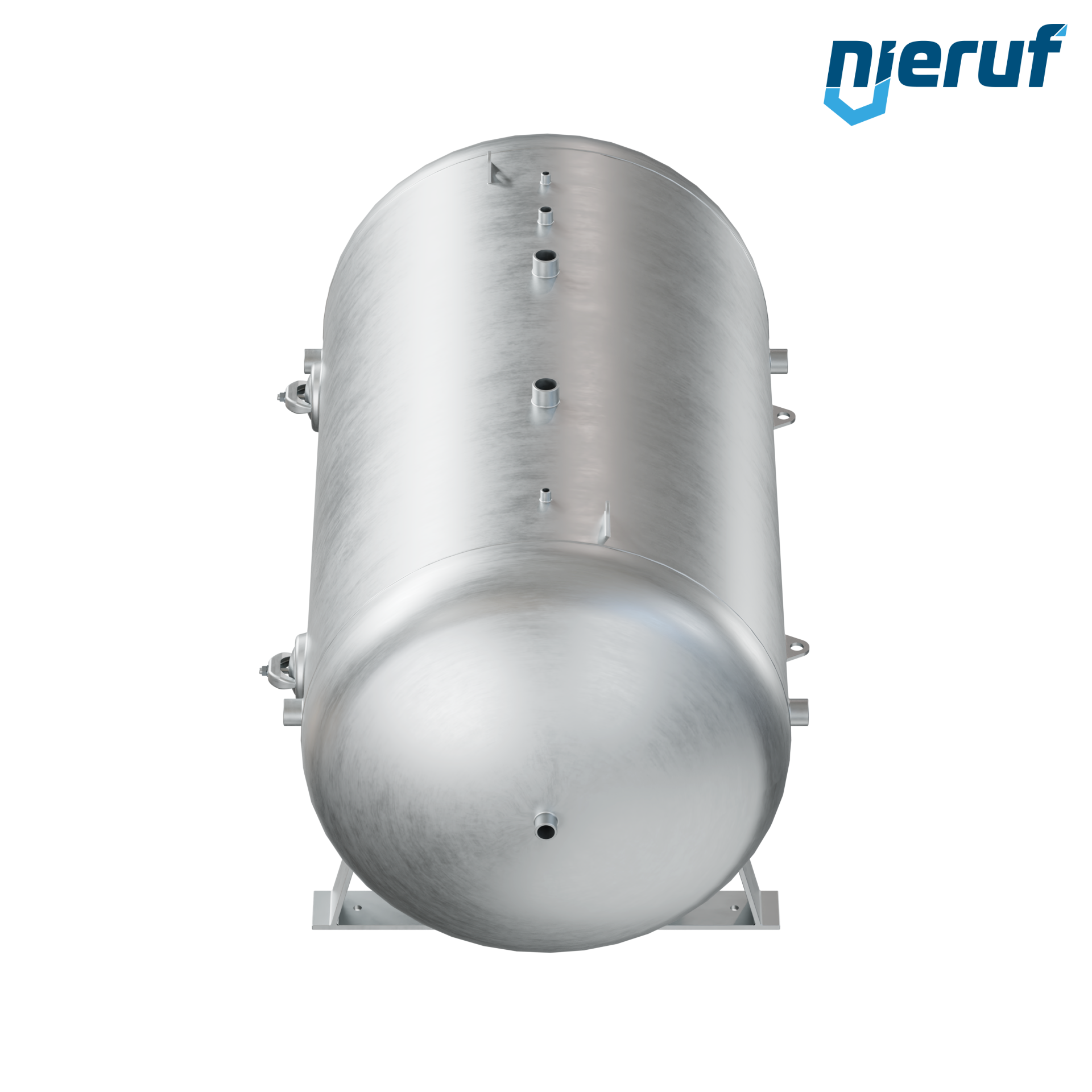

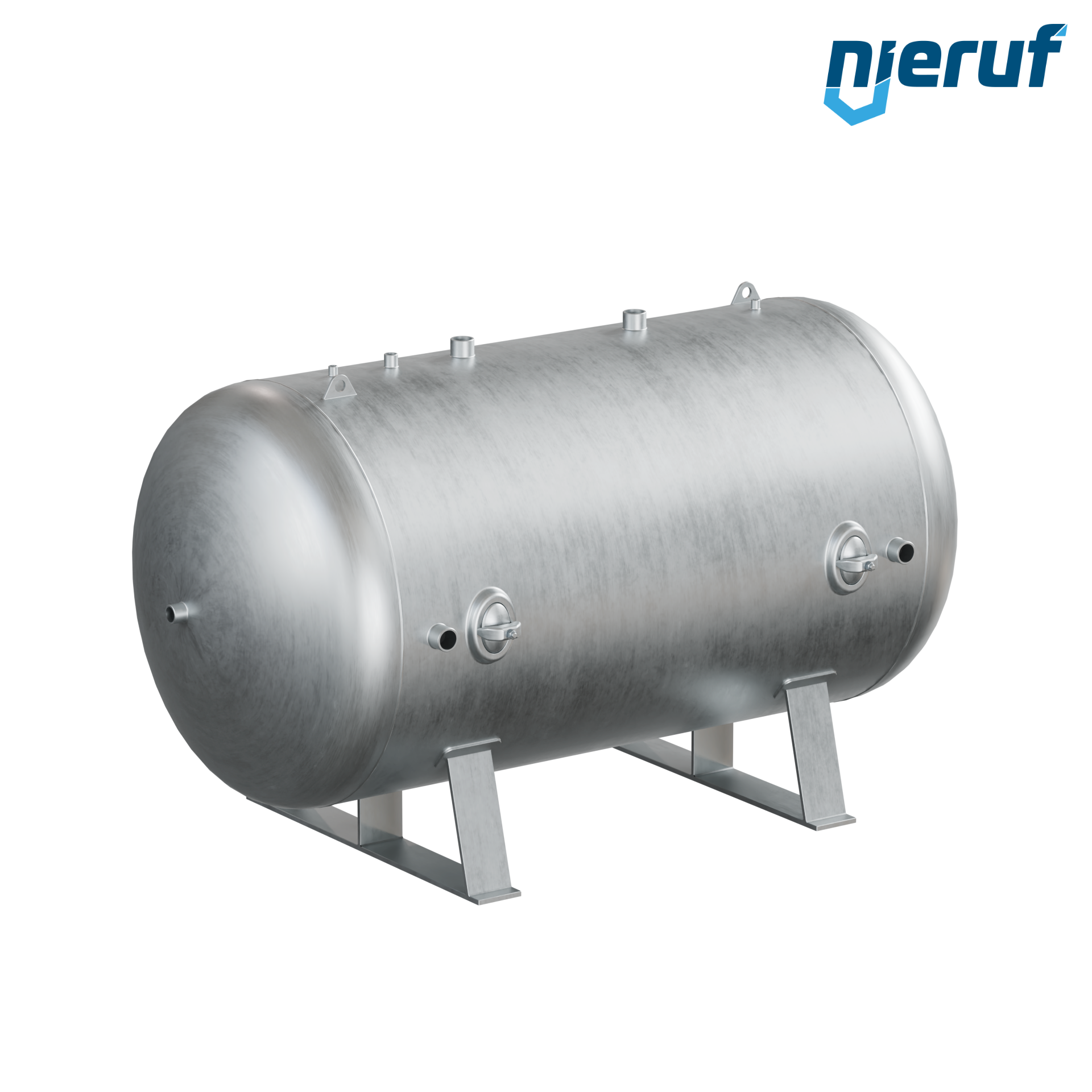

Pressure vessel BE01 with 10000 liter volume horizontal with operating pressure 0-16 bar made of steel galvanized and nominal size 1800 mm
| product: | Pressure vessel |
|---|---|
| type: | BE01 |
| manufacturer: | NieRuf |
| volume: | 10000 liter |
| nominal size: | 1800 mm |
| height: | 2000 mm |
| length: | 4280 mm |
| operating pressure: | 0-16 bar |
| version: | horizontal |
| temperature: | -10°C up to +50°C |
| material: | steel galvanized |
| media: | compressed air and nitrogen |
| product feature: | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 10000 liter, 0-16 bar, steel galvanized, nominal size 1800 mm
Article no.
: BE01001120
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
10000 liter
nominal size:
1800 mm
height:
2000 mm
length:
4280 mm
operating pressure:
0-16 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
€50.22 VAT included.
€173.38 VAT included.
€0.83 VAT included.
€23.80 VAT included.
€662.00 VAT included.
