GS04020010

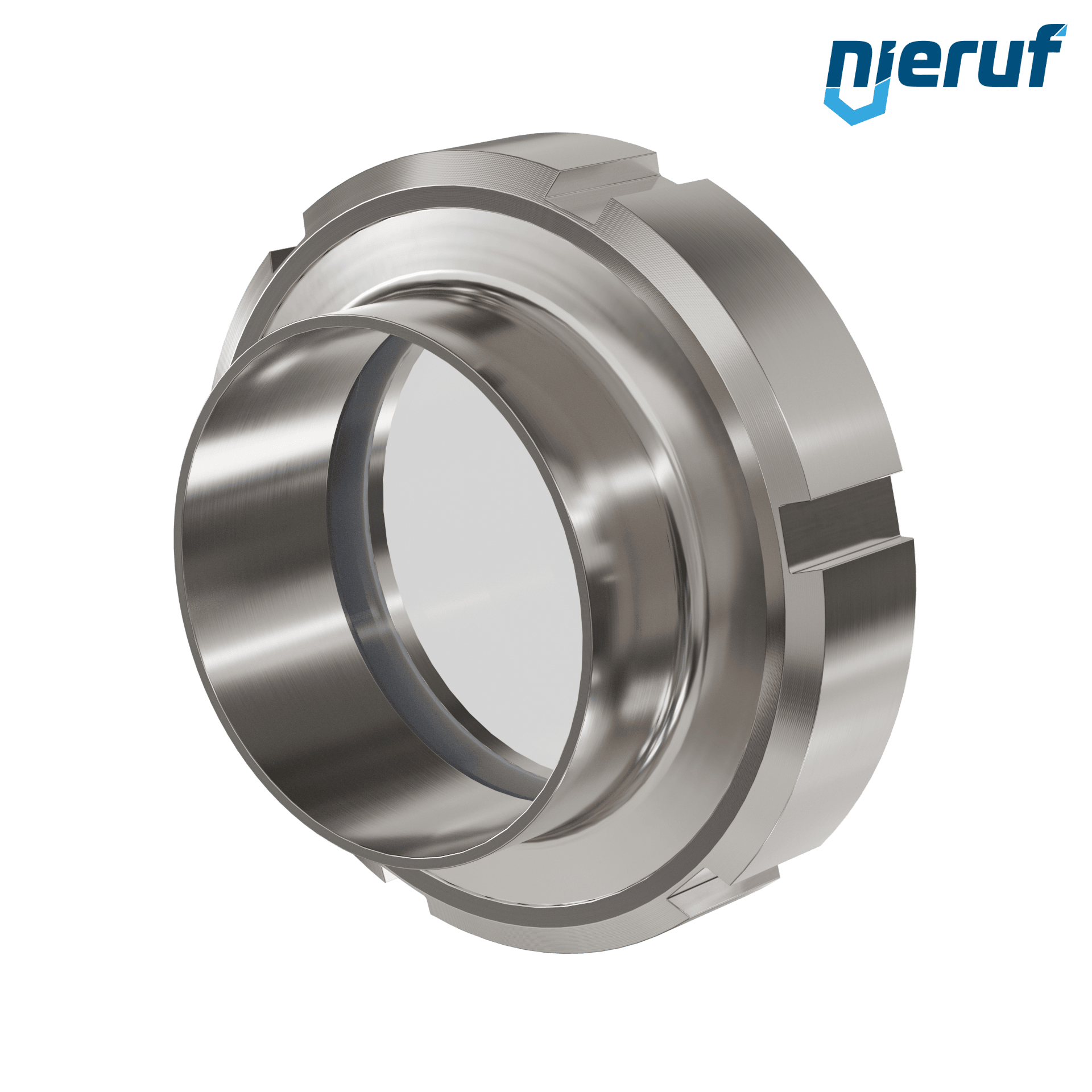

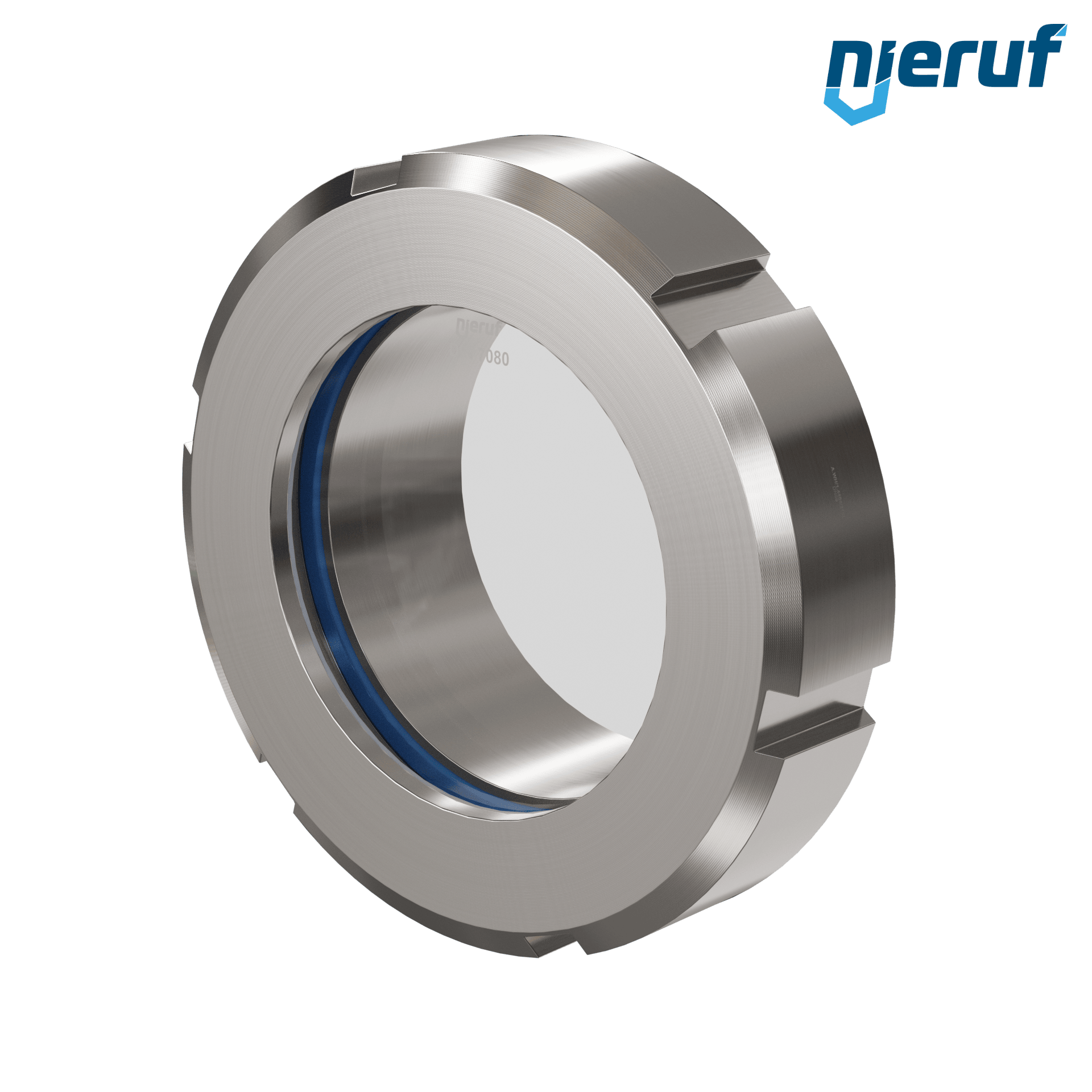

sight flow indicator DN80 - 3" Inch DIN 11851 stainless steel 1.4404 / AISI 316L
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
sight flow indicator DN80 - 3" Inch aus stainless steel 1.4404 / AISI 316L to be welded directly to tank acc. DIN 11851 Glas borosilicate glass 10,0 bar
| product: | sight flow indicator |
|---|---|
| type: | GS04 |
| manufacturer: | NieRuf |
| design: | for welding |
| diameter: | DN80 - 3" Inch |
| connection: | to be welded directly to tank acc. DIN 11851 |
| body material: | stainless steel 1.4404 / AISI 316L |
| glass: | borosilicate glass |
| seal: | NBR |
| media: | liquid and gaseous media |
| temperature: | 0^C up to max + 100°C |
| max. working pressure: | 10,0 bar |
| requirements: | acc. similar DIN 11851 |
| installation position: | any position |
| product feature II: | Application in the food sector, dairy, breweries, beverage industry, and in the pharmaceutical and medical technology sector. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
sight flow indicator DN80 - 3" Inch DIN 11851 stainless steel 1.4404 / AISI 316L
Article no.
: GS04020010
product:
sight flow indicator
type:
GS04
manufacturer:
NieRuf
design:
for welding
diameter:
DN80 - 3" Inch
connection:
to be welded directly to tank acc. DIN 11851
body material:
stainless steel 1.4404 / AISI 316L
glass:
borosilicate glass
seal:
NBR
media:
liquid and gaseous media
temperature:
0^C up to max + 100°C
max. working pressure:
10,0 bar
requirements:
acc. similar DIN 11851
installation position:
any position
product feature II:
Application in the food sector, dairy, breweries, beverage industry, and in the pharmaceutical and medical technology sector.
