GS03010007
flow-through sight flow indicator DN40 - 1 1/2" Inch stainless steel soda lime glass
Delivery time: 2 - 3 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

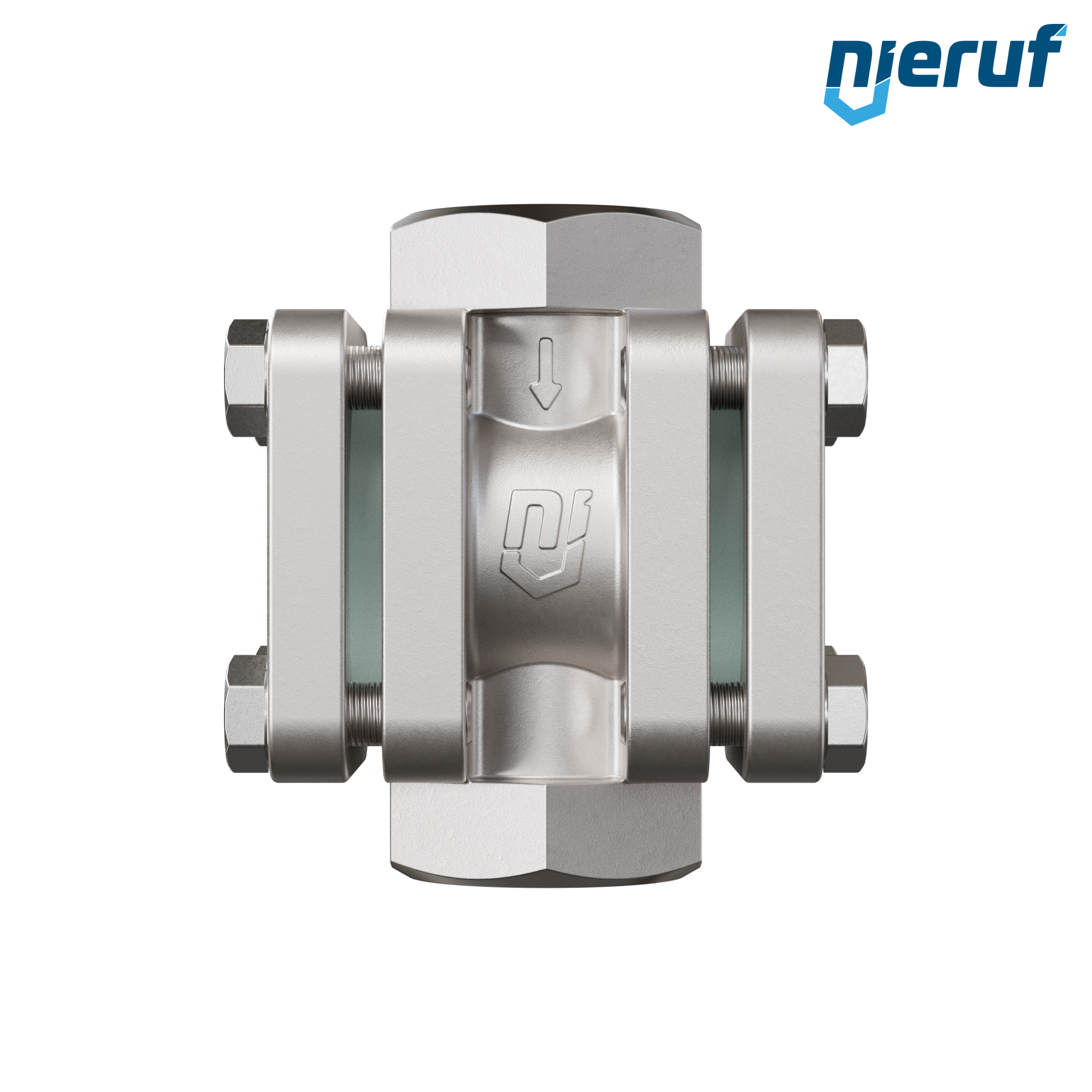

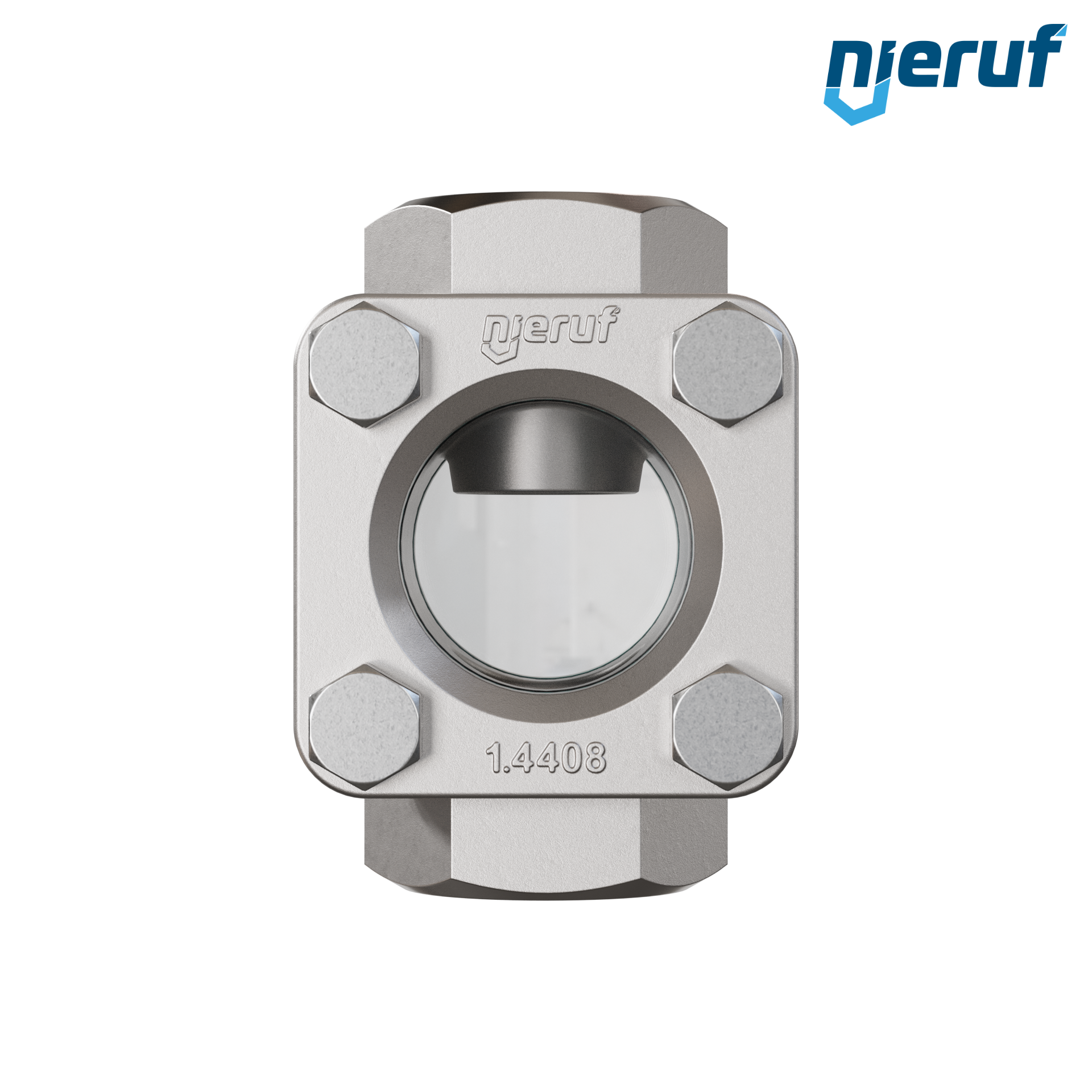

flow-through sight flow indicator DN40 - 1 1/2" Inch Typ GS03 stainless steel soda lime glass graphit max 16 bar
| product: | flow-through sight flow indicator |
|---|---|
| type: | GS03 |
| manufacturer: | NieRuf |
| design: | straightway form |
| diameter: | DN40 - 1 1/2" Inch |
| connection: | female thread |
| body material: | stainless steel |
| cover material: | stainless steel |
| glass: | soda lime glass |
| seal: | graphit |
| media: | liquid and gaseous media |
| temperature: | min -60°C up to max + 150°C |
| max. working pressure: | max 16 bar |
| installation position: | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flow-through sight flow indicator DN40 - 1 1/2" Inch stainless steel soda lime glass
Article no.
: GS03010007
product:
flow-through sight flow indicator
type:
GS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN40 - 1 1/2" Inch
connection:
female thread
body material:
stainless steel
cover material:
stainless steel
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -60°C up to max + 150°C
max. working pressure:
max 16 bar
installation position:
any position
€12.38 VAT included.
€45.58 VAT included.
€14.04 VAT included.
