GS03020006

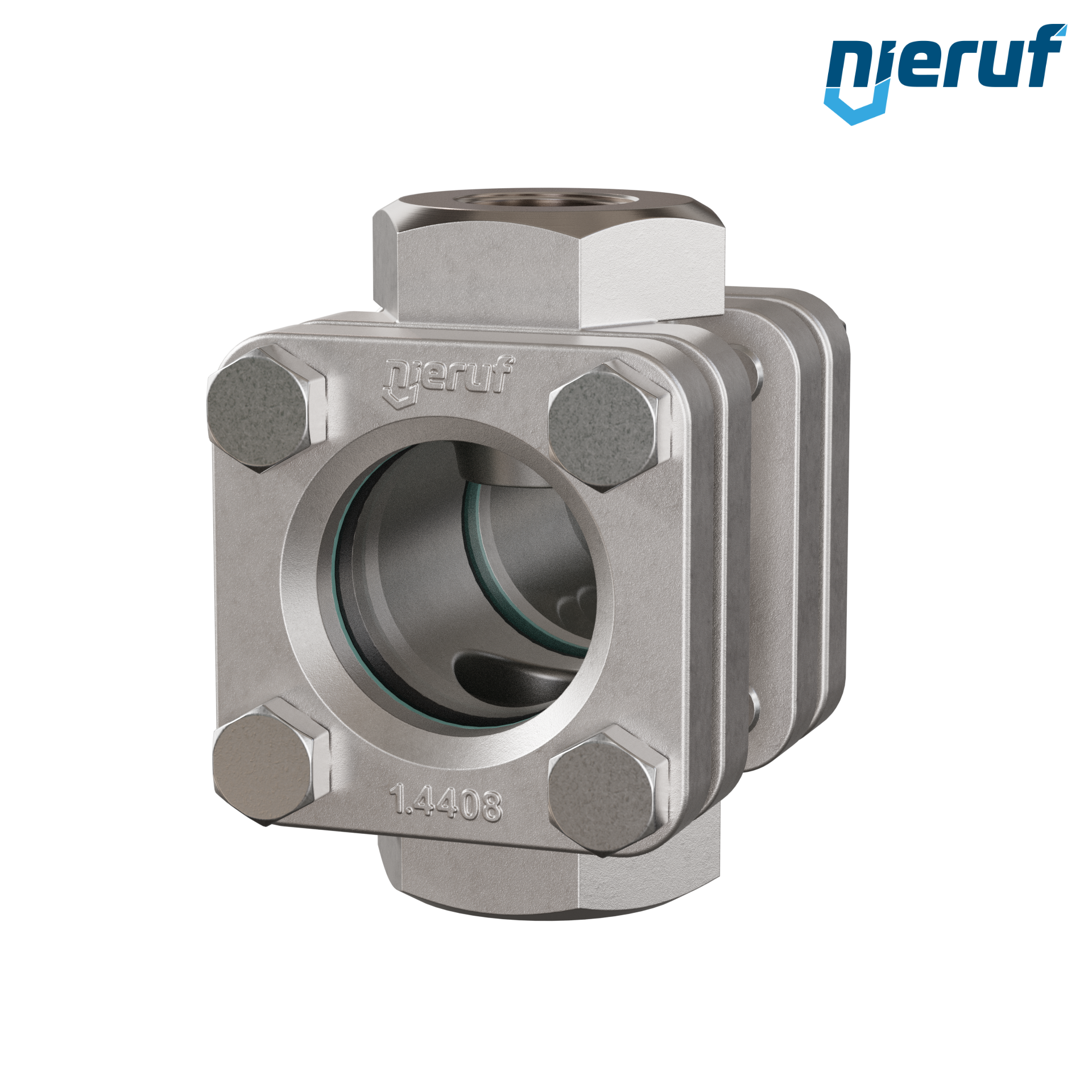

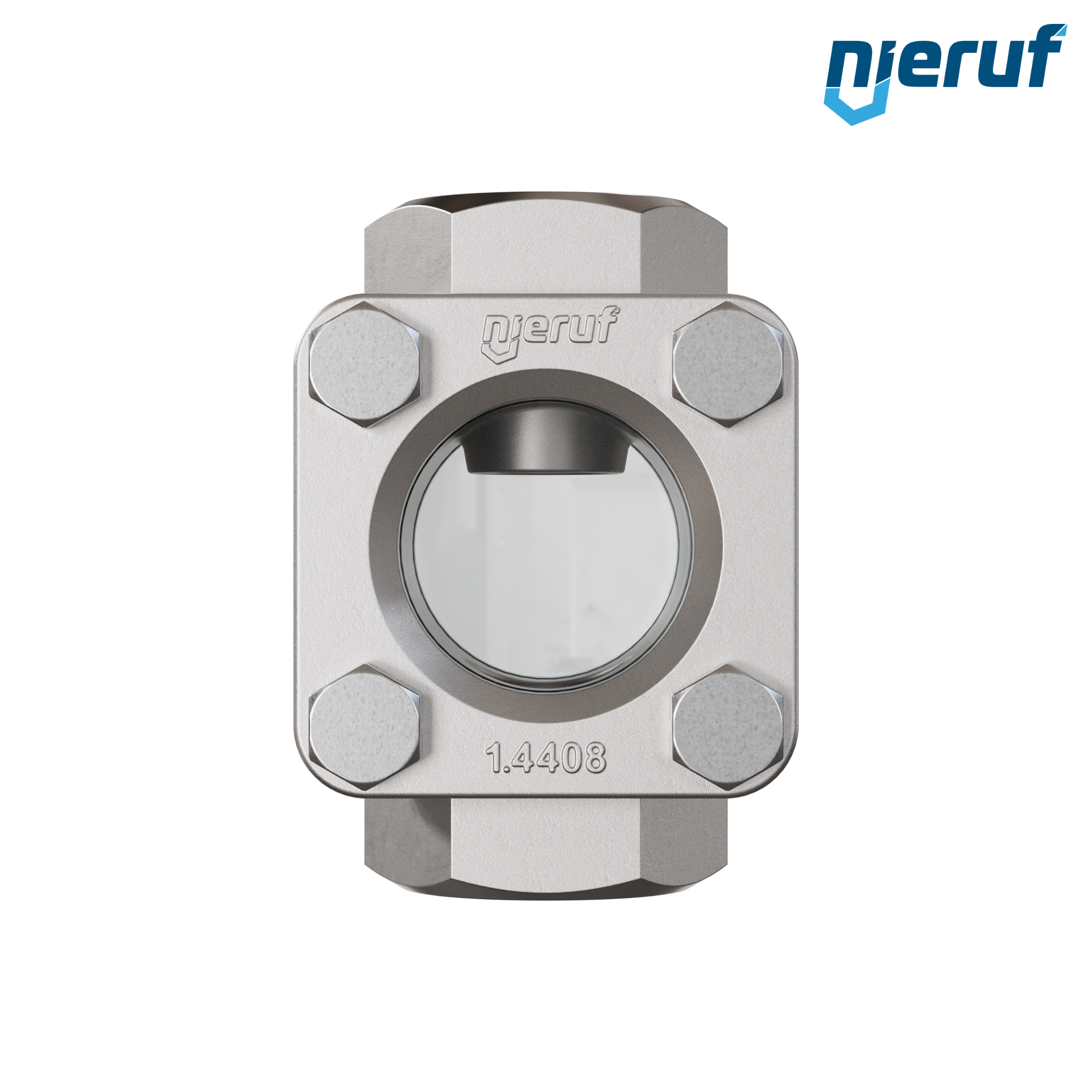

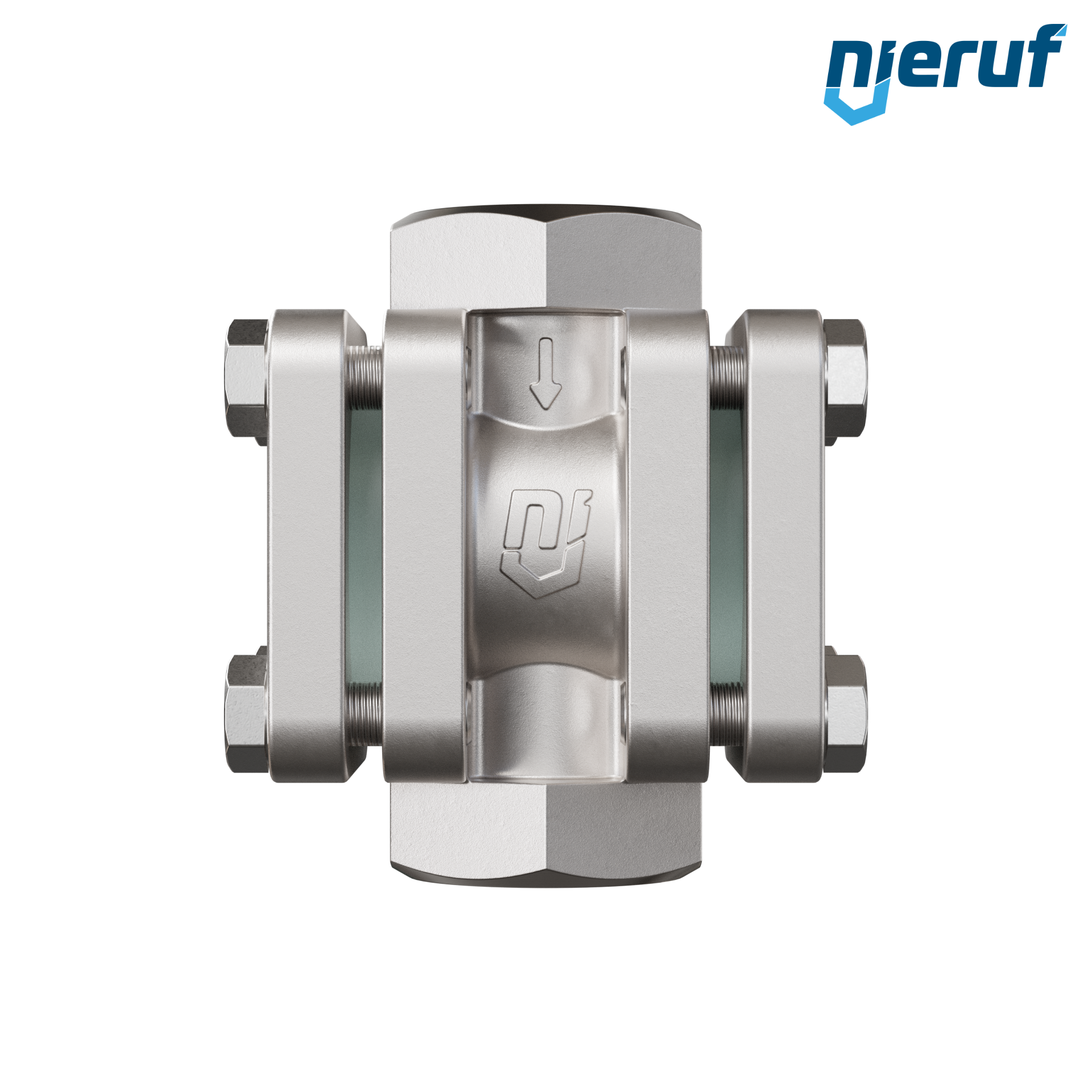

flow-through sight flow indicator DN32 - 1 1/4" inch stainless steel borosilicate glass
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
flow-through sight flow indicator 1 1/4" borosilicate glass Typ GS03 borosilicate glass graphit max 16 bar
| product: | flow-through sight flow indicator |
|---|---|
| type: | GS03 |
| manufacturer: | NieRuf |
| design: | straightway form |
| diameter: | DN32 - 1 1/4" inch |
| connection: | female thread |
| body material: | stainless steel |
| cover material: | stainless steel |
| glass: | borosilicate glass |
| seal: | graphit |
| media: | liquid and gaseous media |
| temperature: | min -60°C up to max + 280°C |
| max. working pressure: | max 16 bar |
| installation position: | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flow-through sight flow indicator DN32 - 1 1/4" inch stainless steel borosilicate glass
Article no.
: GS03020006
product:
flow-through sight flow indicator
type:
GS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN32 - 1 1/4" inch
connection:
female thread
body material:
stainless steel
cover material:
stainless steel
glass:
borosilicate glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -60°C up to max + 280°C
max. working pressure:
max 16 bar
installation position:
any position
