GS03010001
flow-through sight flow indicator DN8 - 1/4" Inch stainless steel soda lime glass
Delivery time: in stock
Express delivery*:
Shipping on: Friday, 22. November
Guaranteed delivery until Monday, 25. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

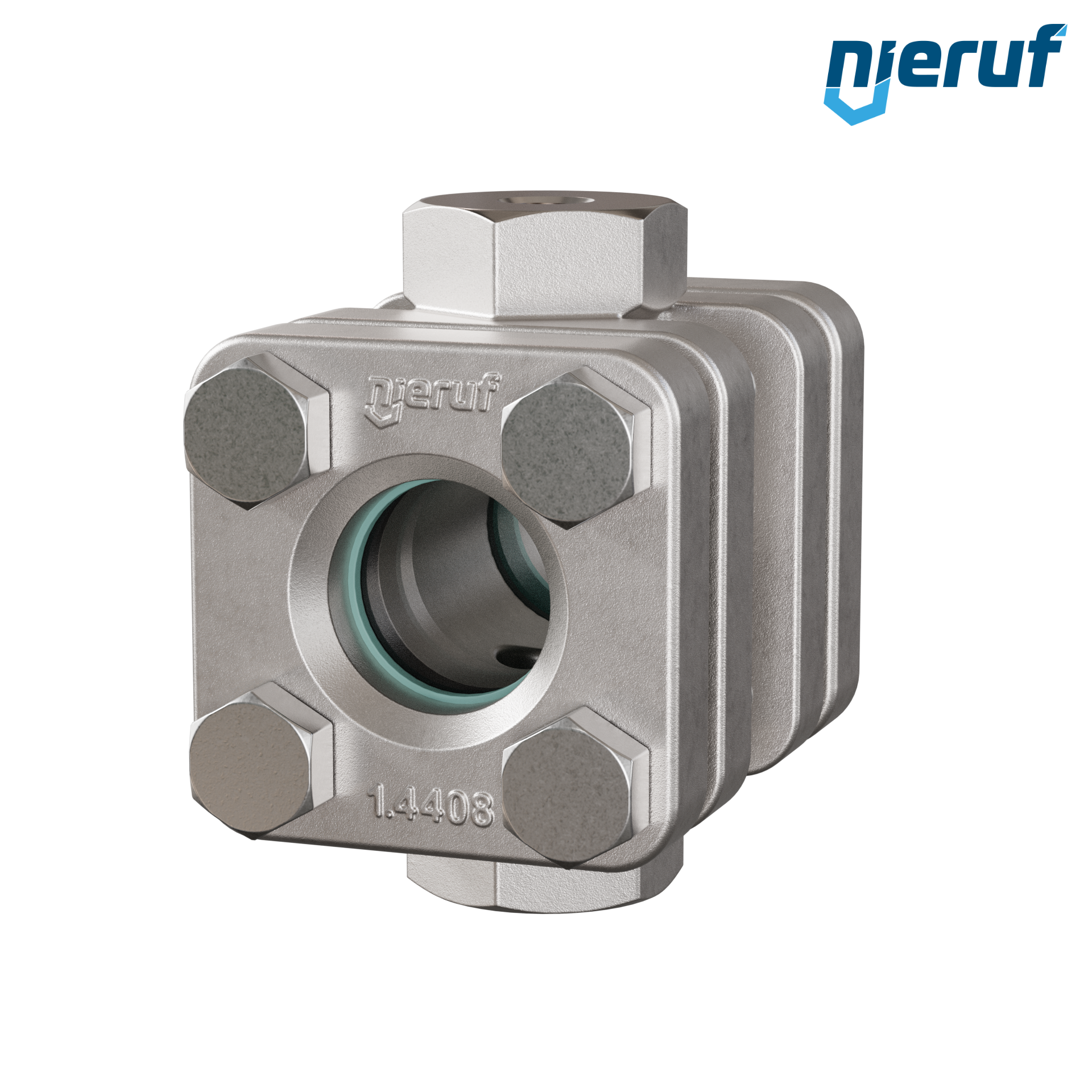

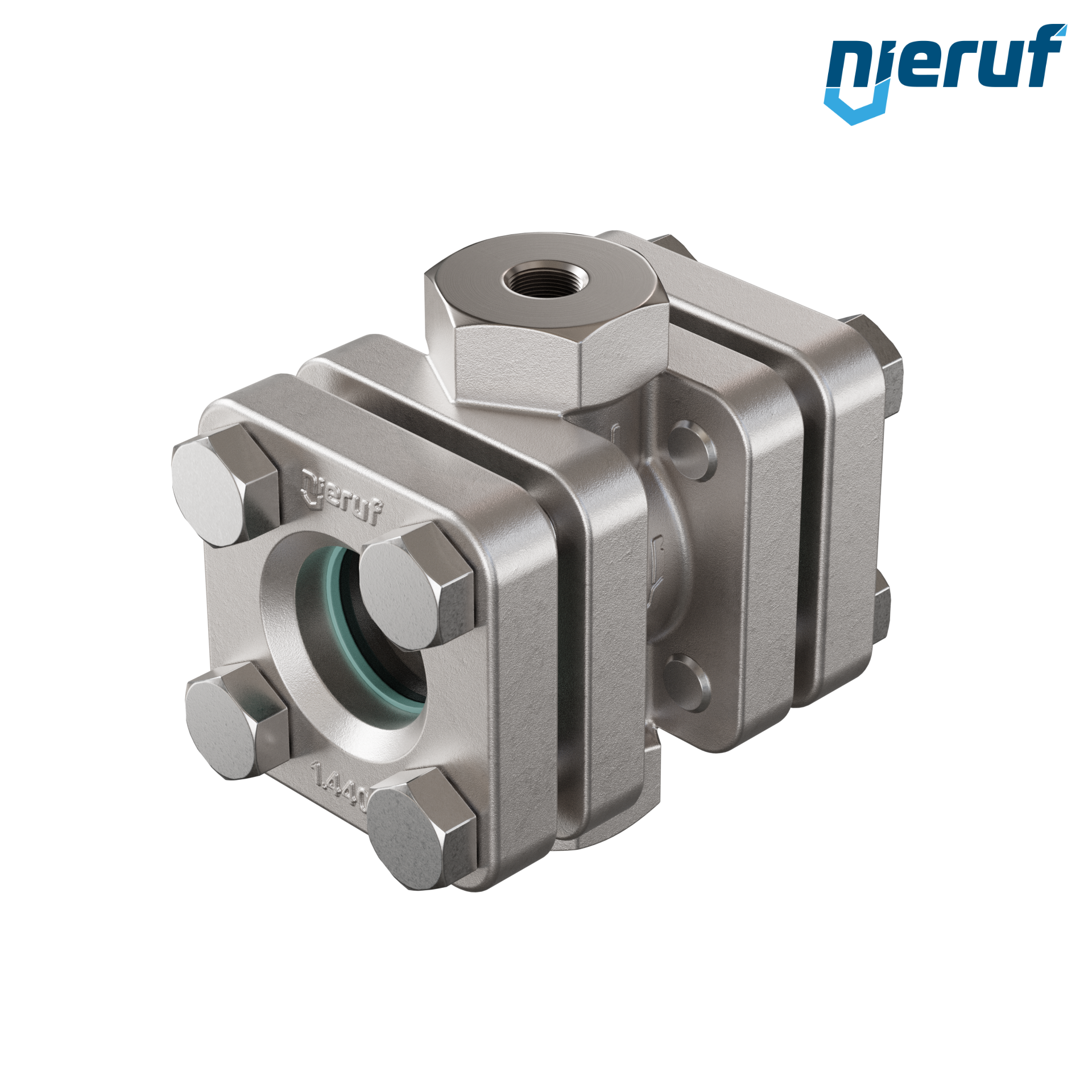

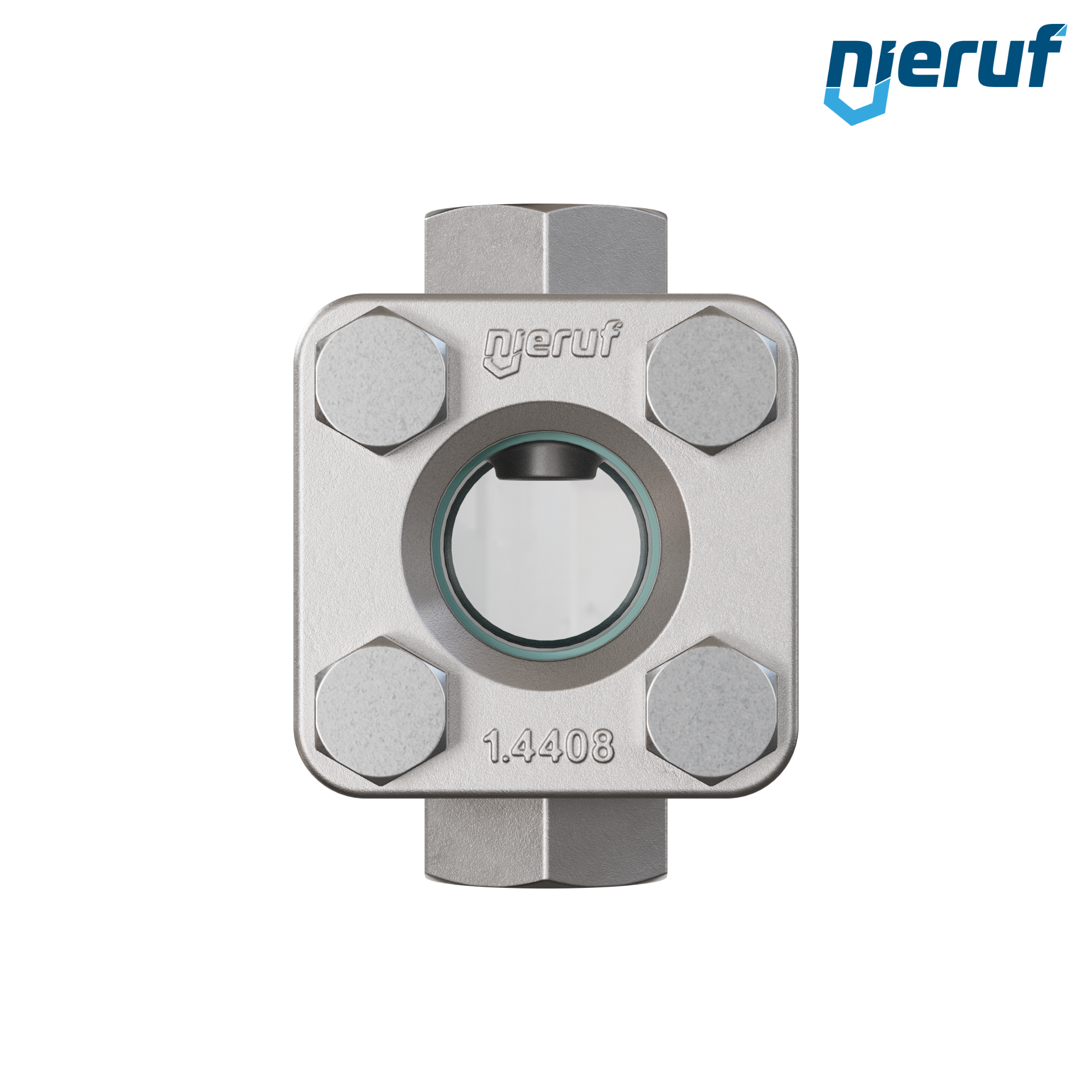

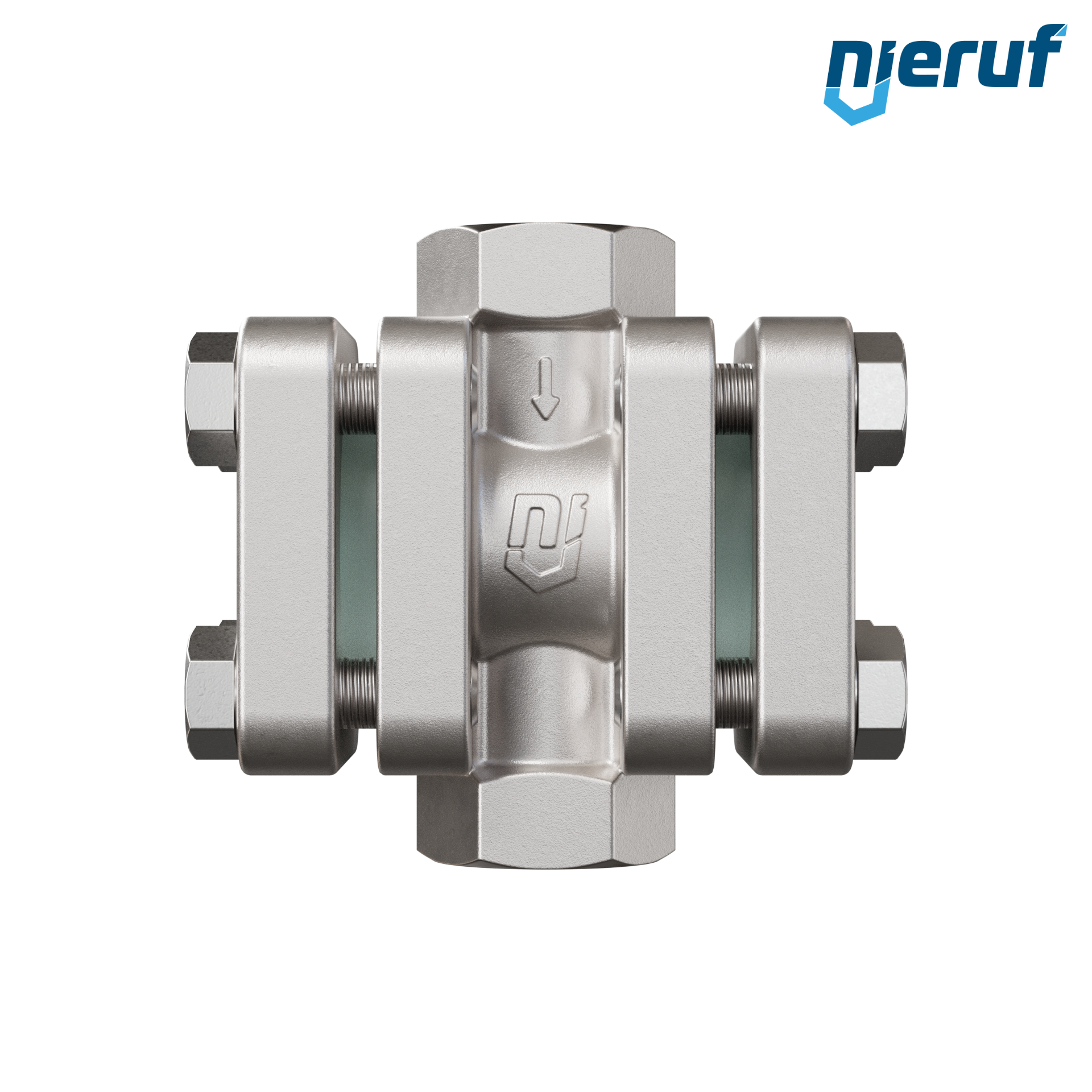

flow-through sight flow indicator DN8 - 1/4" Inch Typ GS03 stainless steel soda lime glass graphit max 16 bar
| product: | flow-through sight flow indicator |
|---|---|
| type: | GS03 |
| manufacturer: | NieRuf |
| design: | straightway form |
| diameter: | DN8 - 1/4" Inch |
| connection: | female thread |
| body material: | stainless steel |
| cover material: | stainless steel |
| glass: | soda lime glass |
| seal: | graphit |
| media: | liquid and gaseous media |
| temperature: | min -60°C up to max + 150°C |
| max. working pressure: | max 16 bar |
| installation position: | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flow-through sight flow indicator DN8 - 1/4" Inch stainless steel soda lime glass
Article no.
: GS03010001
product:
flow-through sight flow indicator
type:
GS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN8 - 1/4" Inch
connection:
female thread
body material:
stainless steel
cover material:
stainless steel
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -60°C up to max + 150°C
max. working pressure:
max 16 bar
installation position:
any position
