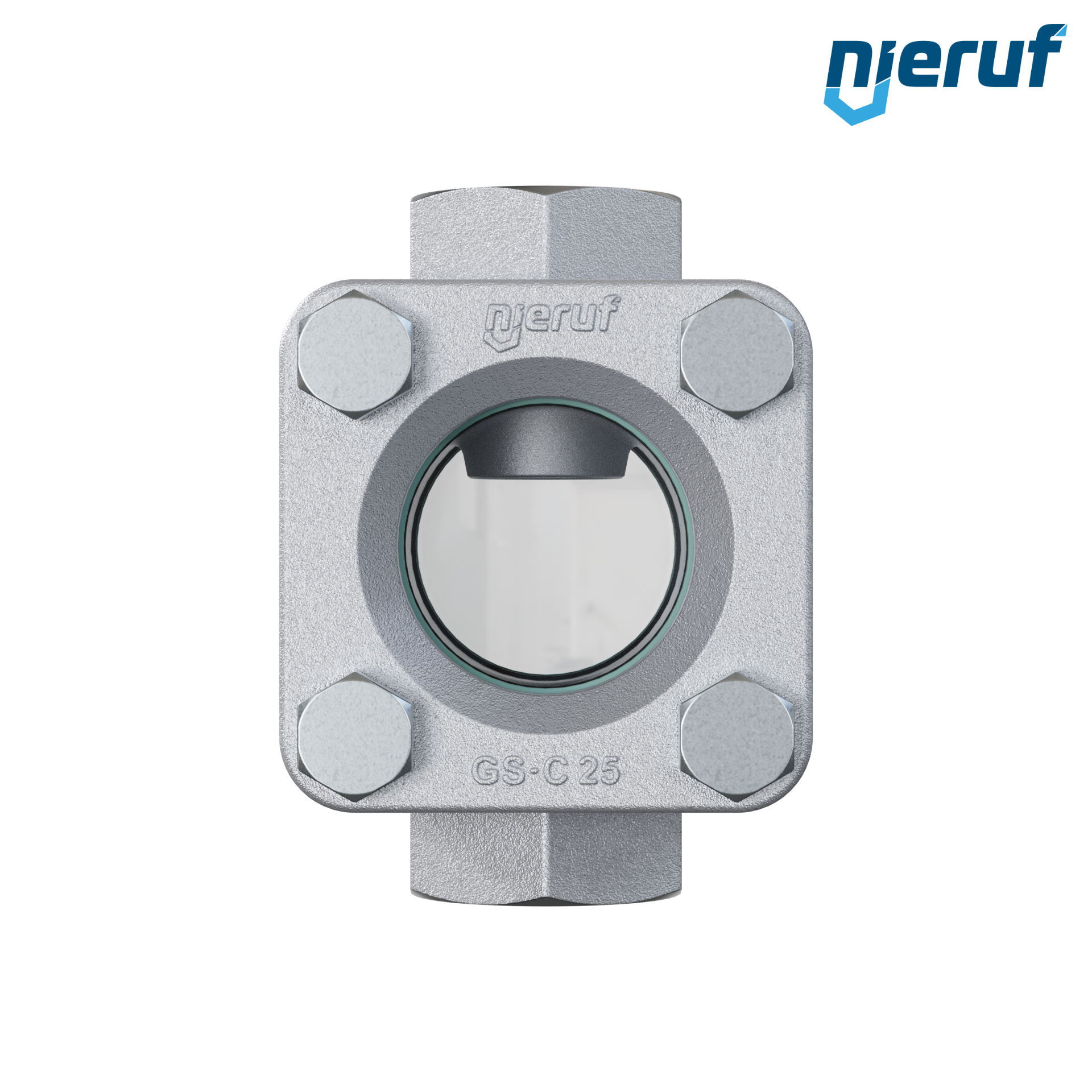

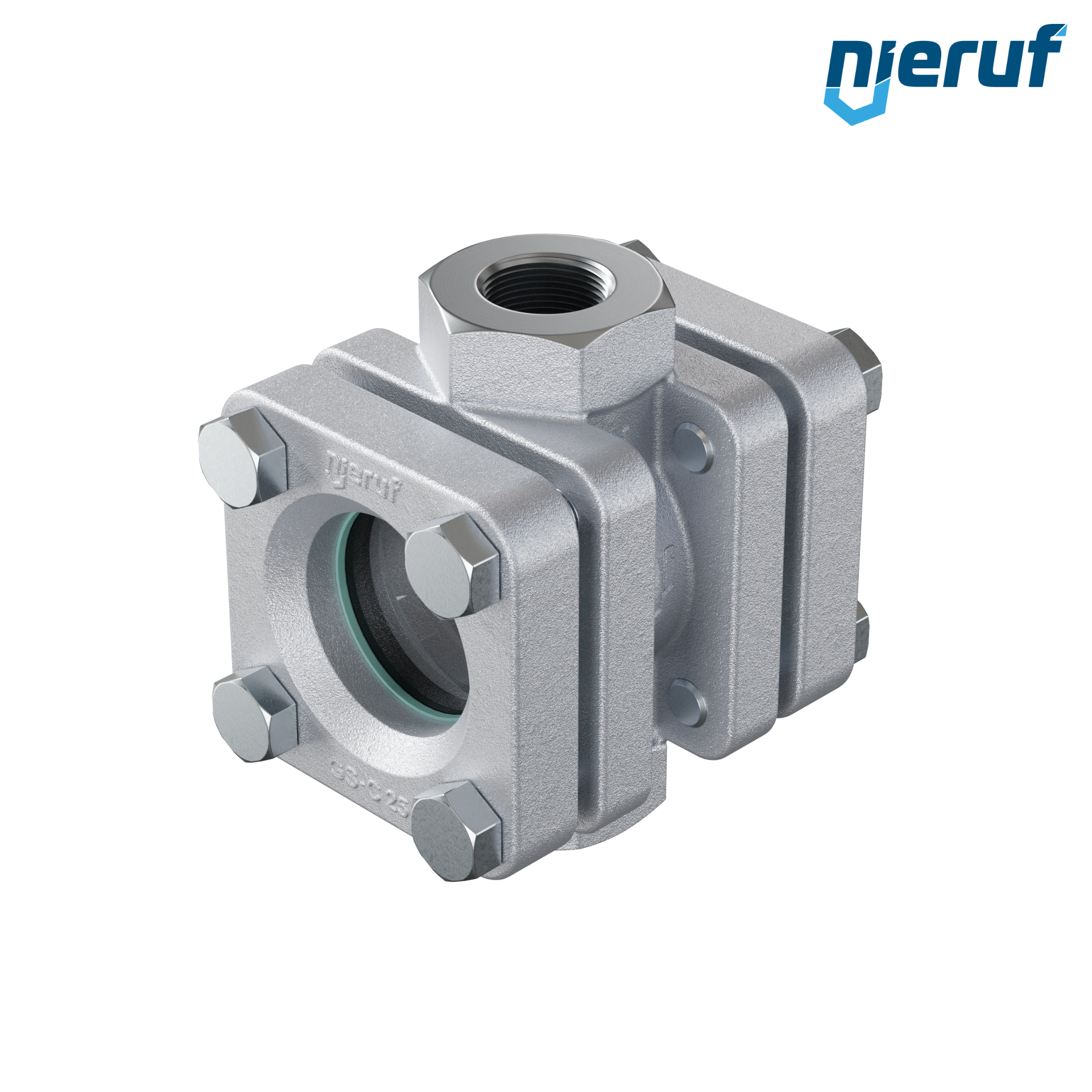

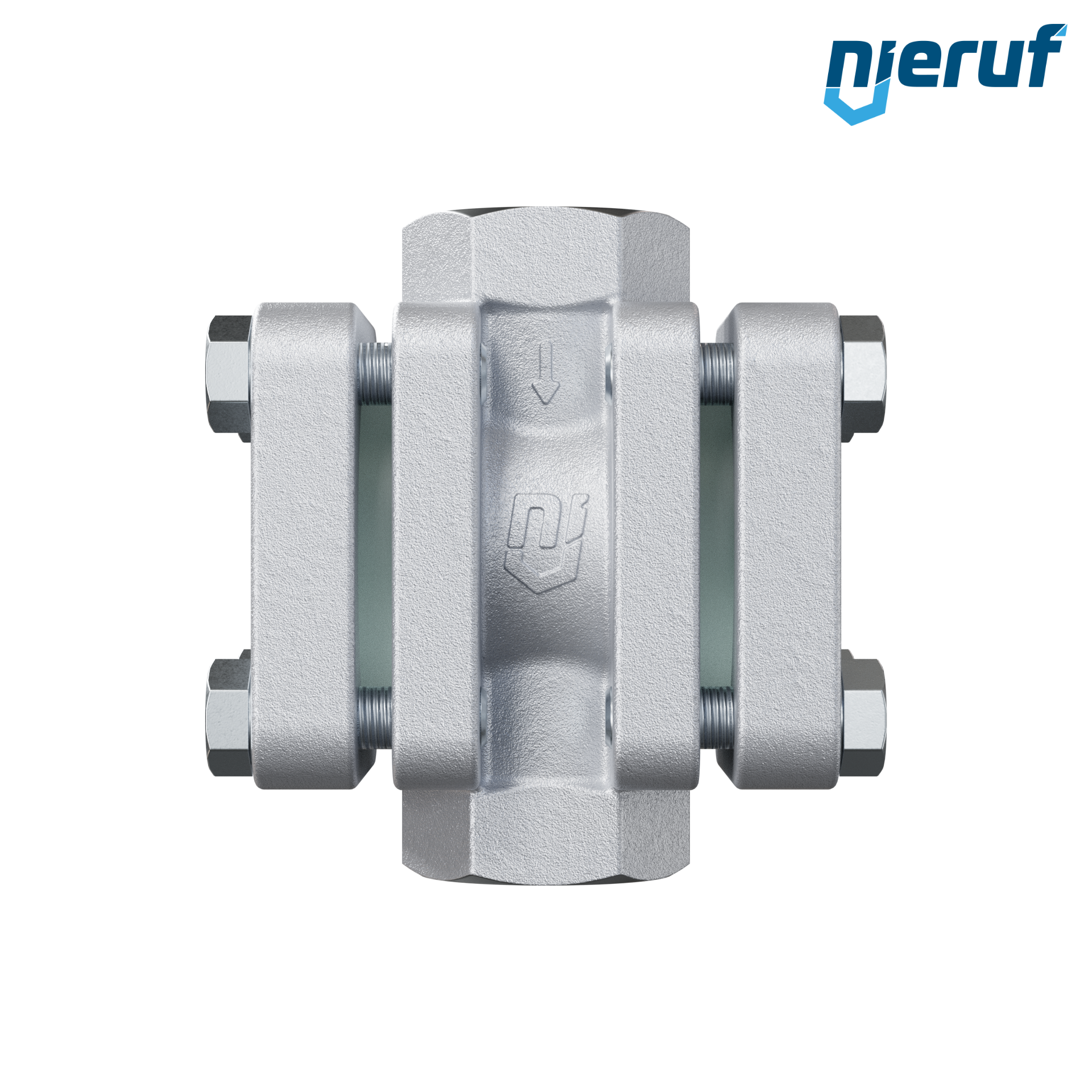

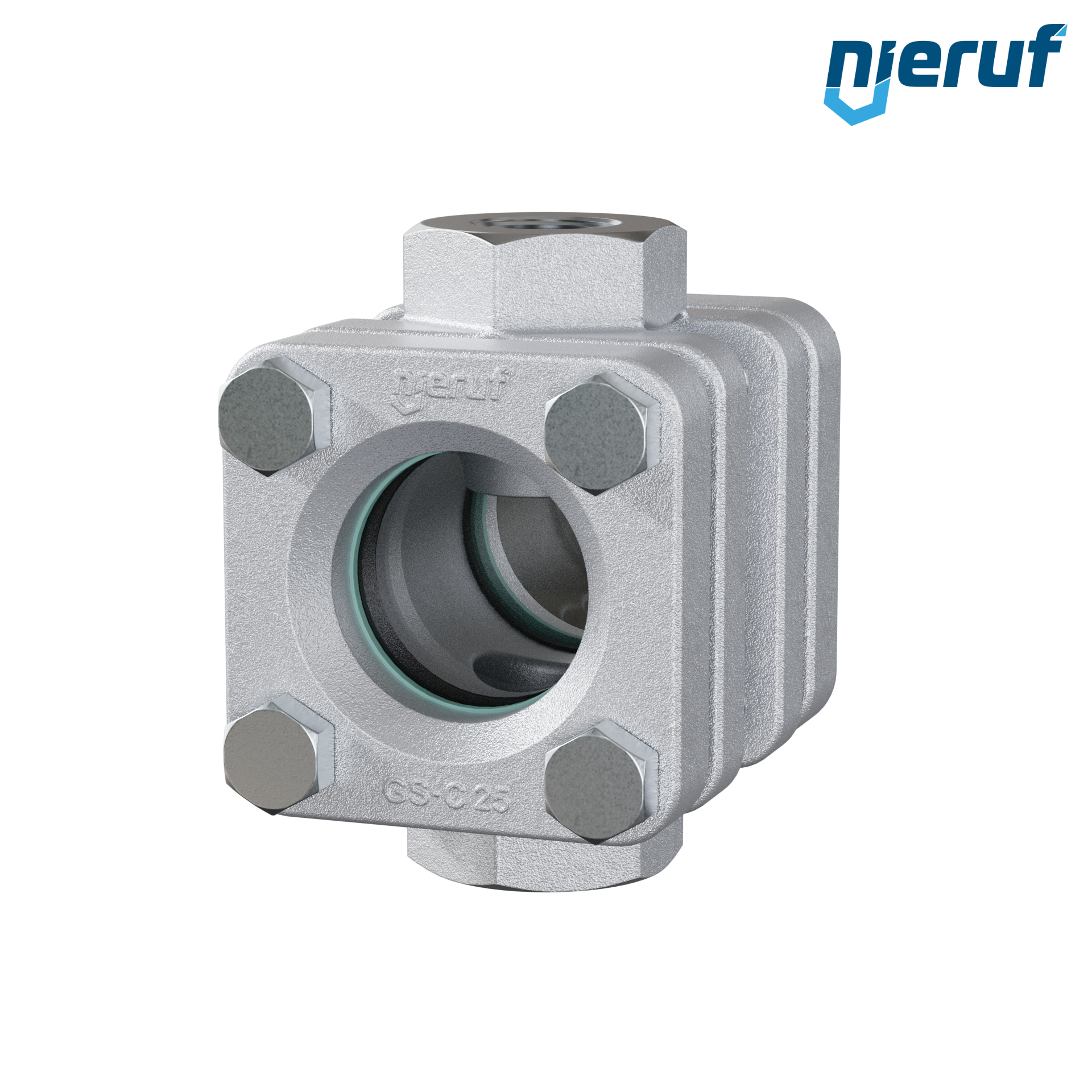

GS02010004
sight flow indicator DN20 - 3/4" Inch GS - C25 soda lime glass
Delivery time: 2 - 3 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
sight flow indicator DN20 - 3/4" Inch Typ GS02 GS - C25 soda lime glass graphit max 16 bar
| product: | sight flow indicator |
|---|---|
| type: | GS02 |
| manufacturer: | NieRuf |
| design: | straightway form |
| diameter: | DN20 - 3/4" Inch |
| connection: | female thread |
| body material: | GS - C25 |
| cover material: | GS - C25 |
| glass: | soda lime glass |
| seal: | graphit |
| media: | liquid and gaseous media |
| temperature: | min -10°C up to max + 150°C |
| max. working pressure: | max 16 bar |
| installation position: | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
sight flow indicator DN20 - 3/4" Inch GS - C25 soda lime glass
Article no.
: GS02010004
product:
sight flow indicator
type:
GS02
manufacturer:
NieRuf
design:
straightway form
diameter:
DN20 - 3/4" Inch
connection:
female thread
body material:
GS - C25
cover material:
GS - C25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -10°C up to max + 150°C
max. working pressure:
max 16 bar
installation position:
any position
€5.59 VAT included.
€23.68 VAT included.
€11.19 VAT included.
