GS02020107

sight flow indicator DN40 - 1 1/2" Inch GS - C25 borosilicate glass design with disc

€507.20*

€603.57 VAT included.

Delivery time
2 - 3 weeks

Equipment

GF01300007

hexagon nipple 1 1/2" inch male stainless steel 316

€6.60*

€7.85 VAT included.


SG01008012

sight glass round SG01 Ø 80 x 12 mm round DIN 7080 - 16

€19.20*

€22.85 VAT included.


×

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

Certified

Certified

Product number: GS02020107

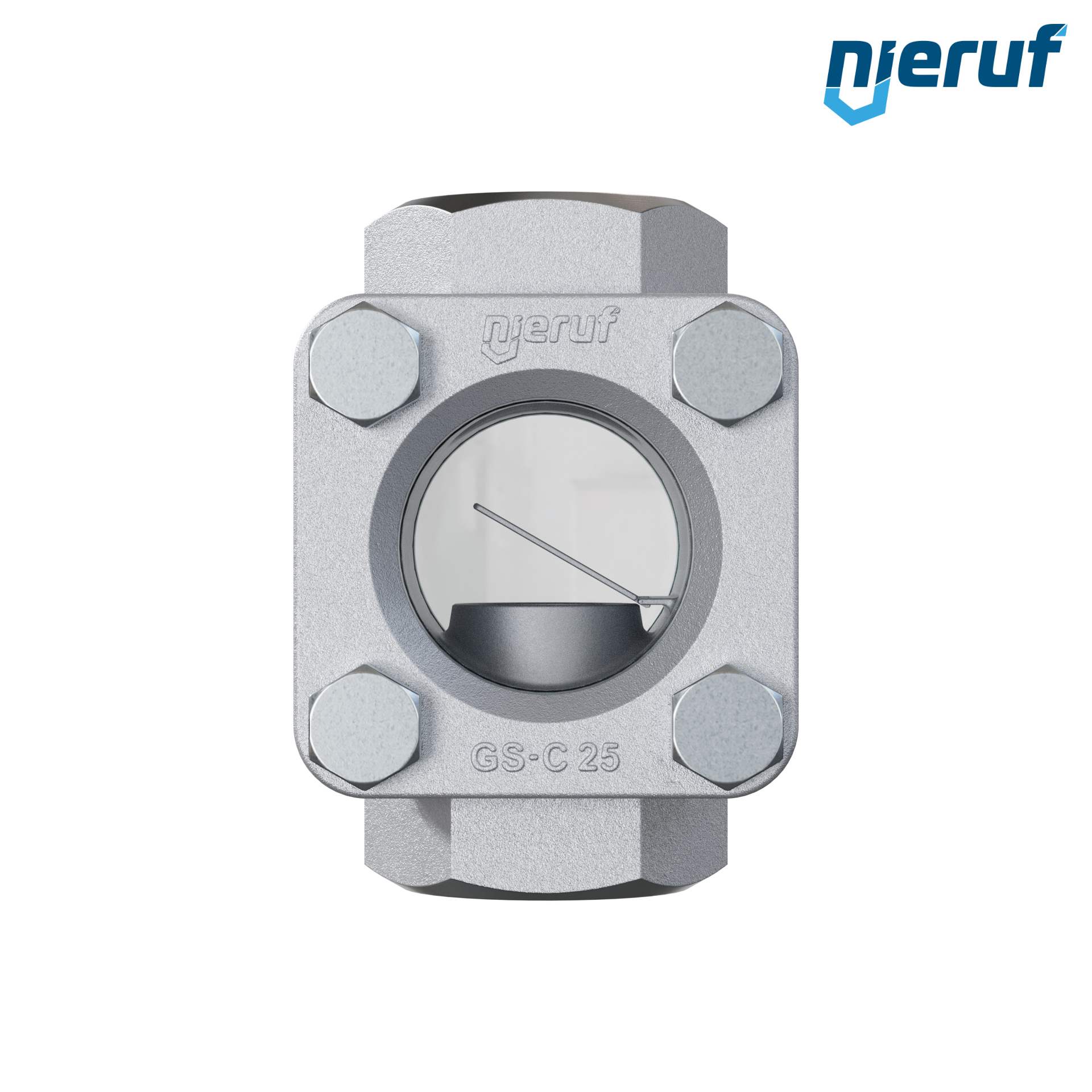

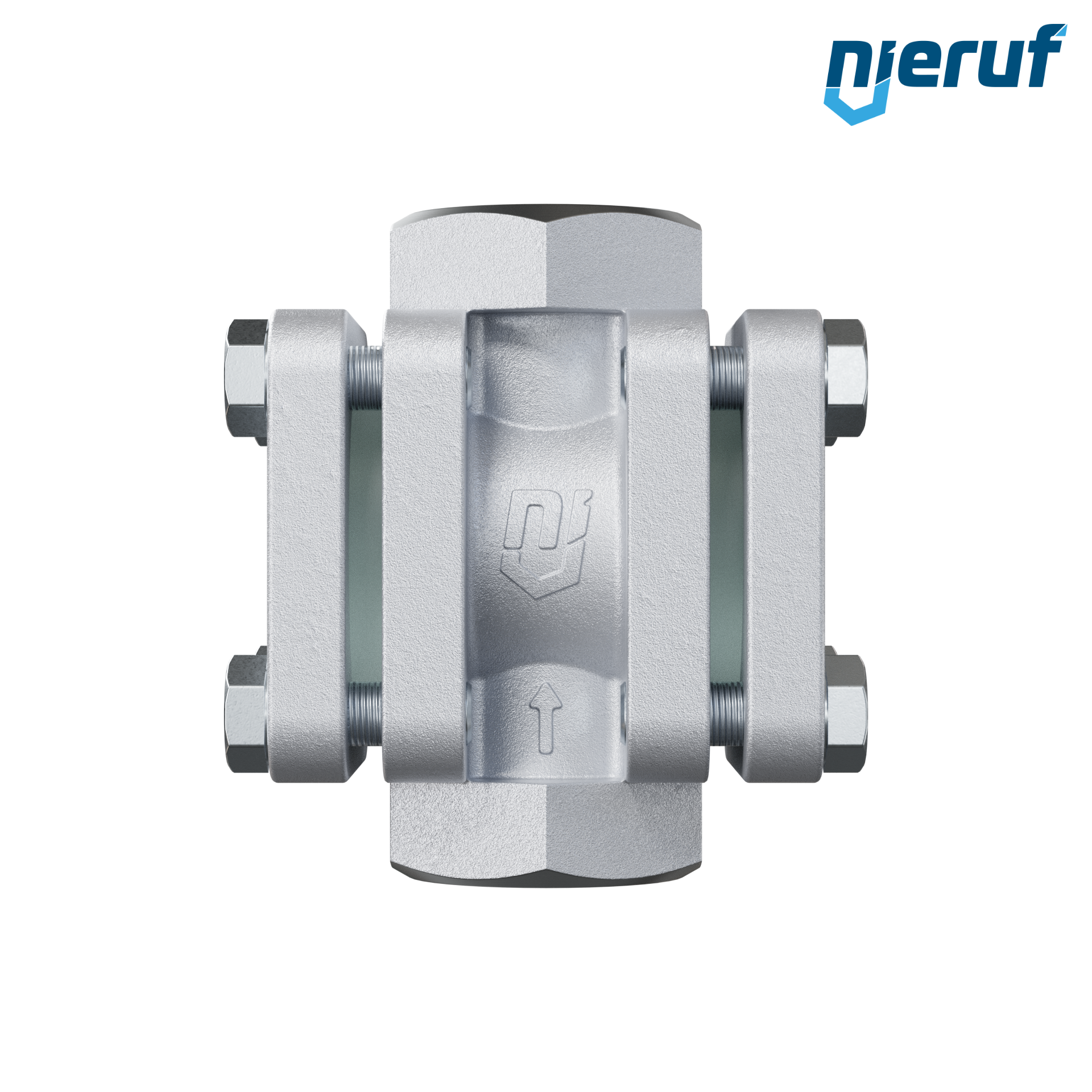

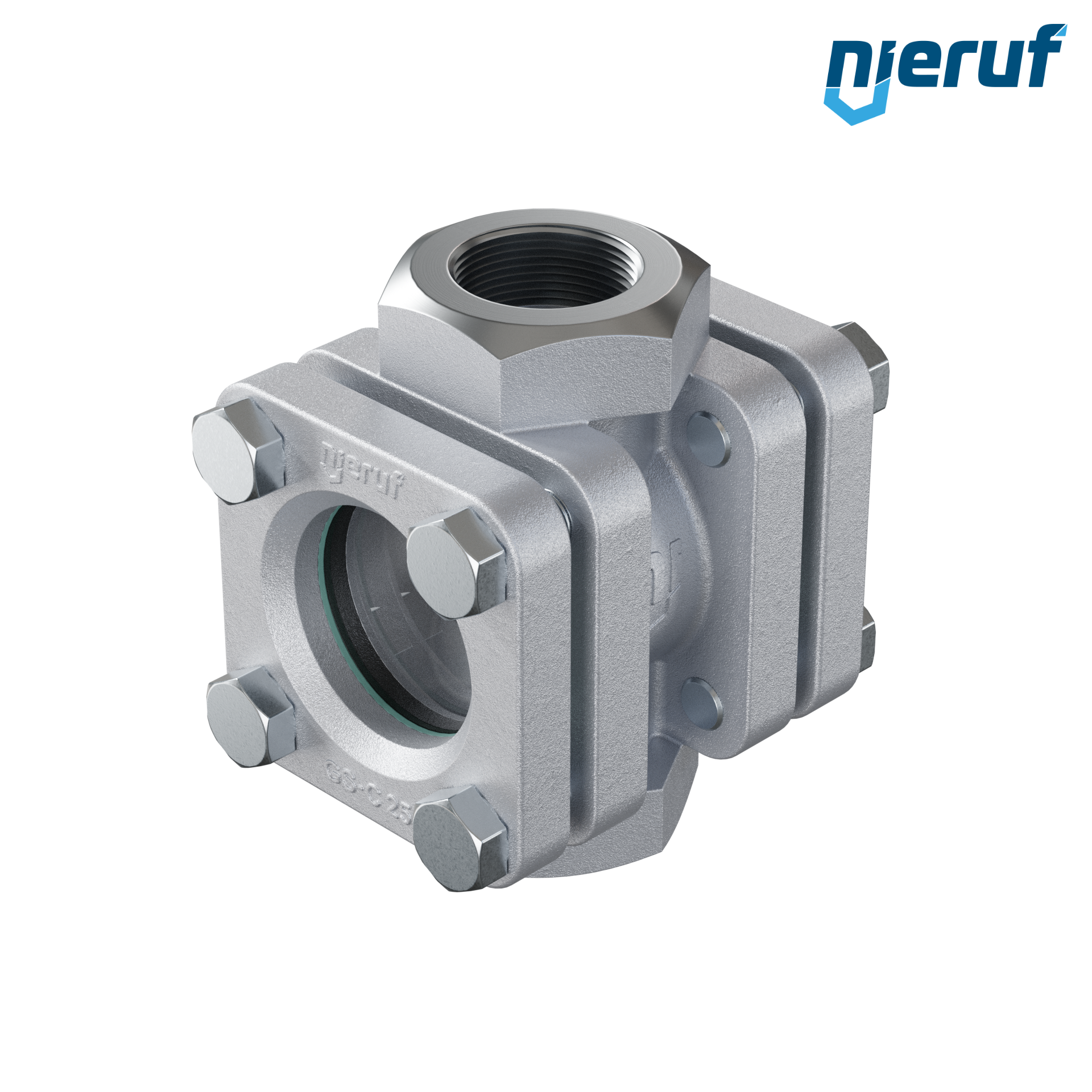

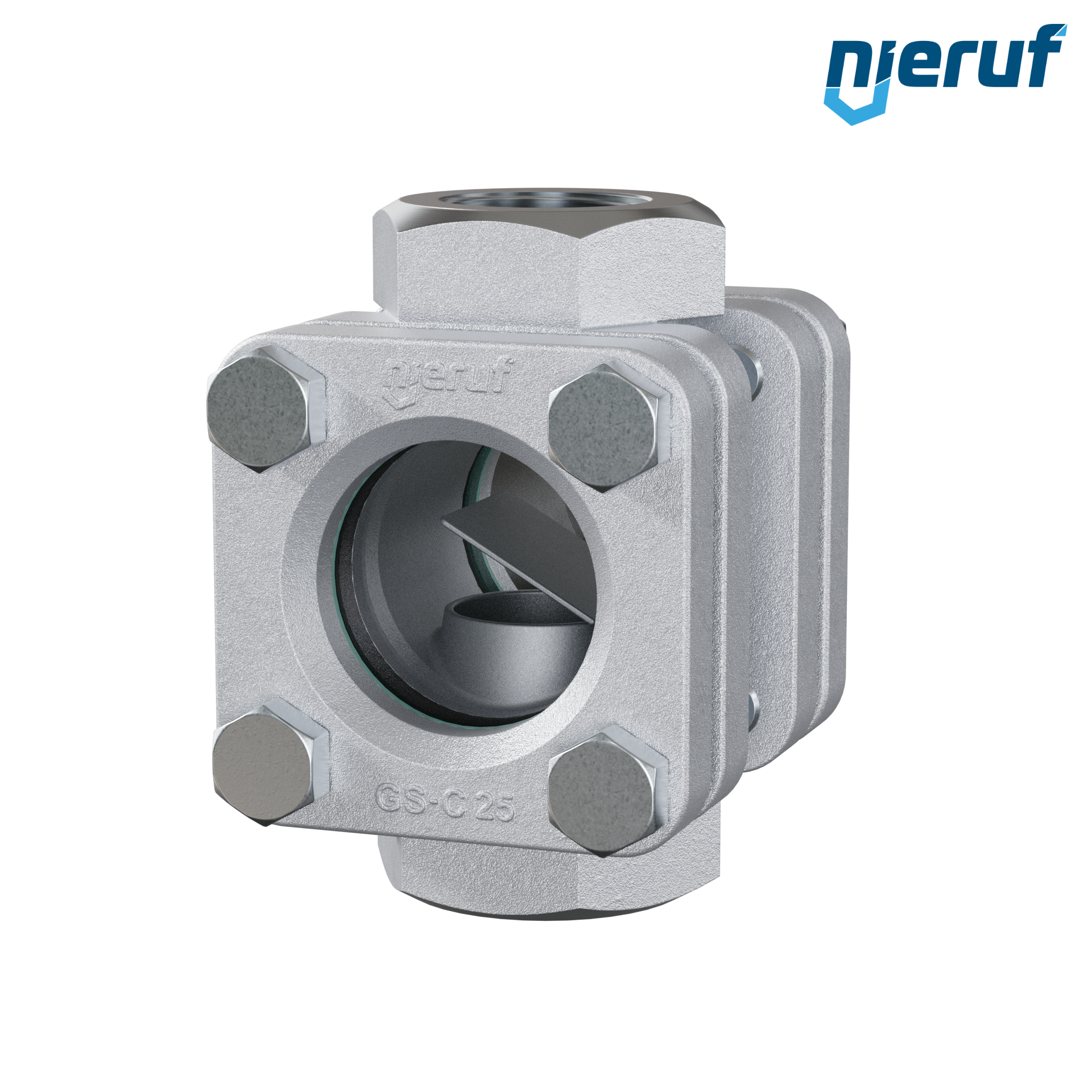

sight flow indicator DN40 - 1 1/2" Inch GS - C25 borosilicate glass design with disc

sight flow indicator 1 1/2" design with disc Typ GS02 borosilicate glass graphit max 16 bar

product sight flow indicator
type GS02
manufacturer NieRuf
design straightway form
diameter DN40 - 1 1/2" Inch
connection female thread
body material GS - C25
cover material GS - C25
glass borosilicate glass
seal graphit
media liquid and gaseous media
temperature min -10°C up to max + 280°C
max. working pressure max 16 bar
installation position horizontal or vertical with direction of flow from the bottom up
product feature design with disc

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

sight flow indicator DN40 - 1 1/2" Inch GS - C25 borosilicate glass design with disc

Article no. : GS02020107
product: sight flow indicator
type: GS02
manufacturer: NieRuf
design: straightway form
diameter: DN40 - 1 1/2" Inch
connection: female thread
body material: GS - C25
cover material: GS - C25
glass: borosilicate glass
seal: graphit
media: liquid and gaseous media
temperature: min -10°C up to max + 280°C
max. working pressure: max 16 bar
installation position: horizontal or vertical with direction of flow from the bottom up
product feature: design with disc
