EV04110003

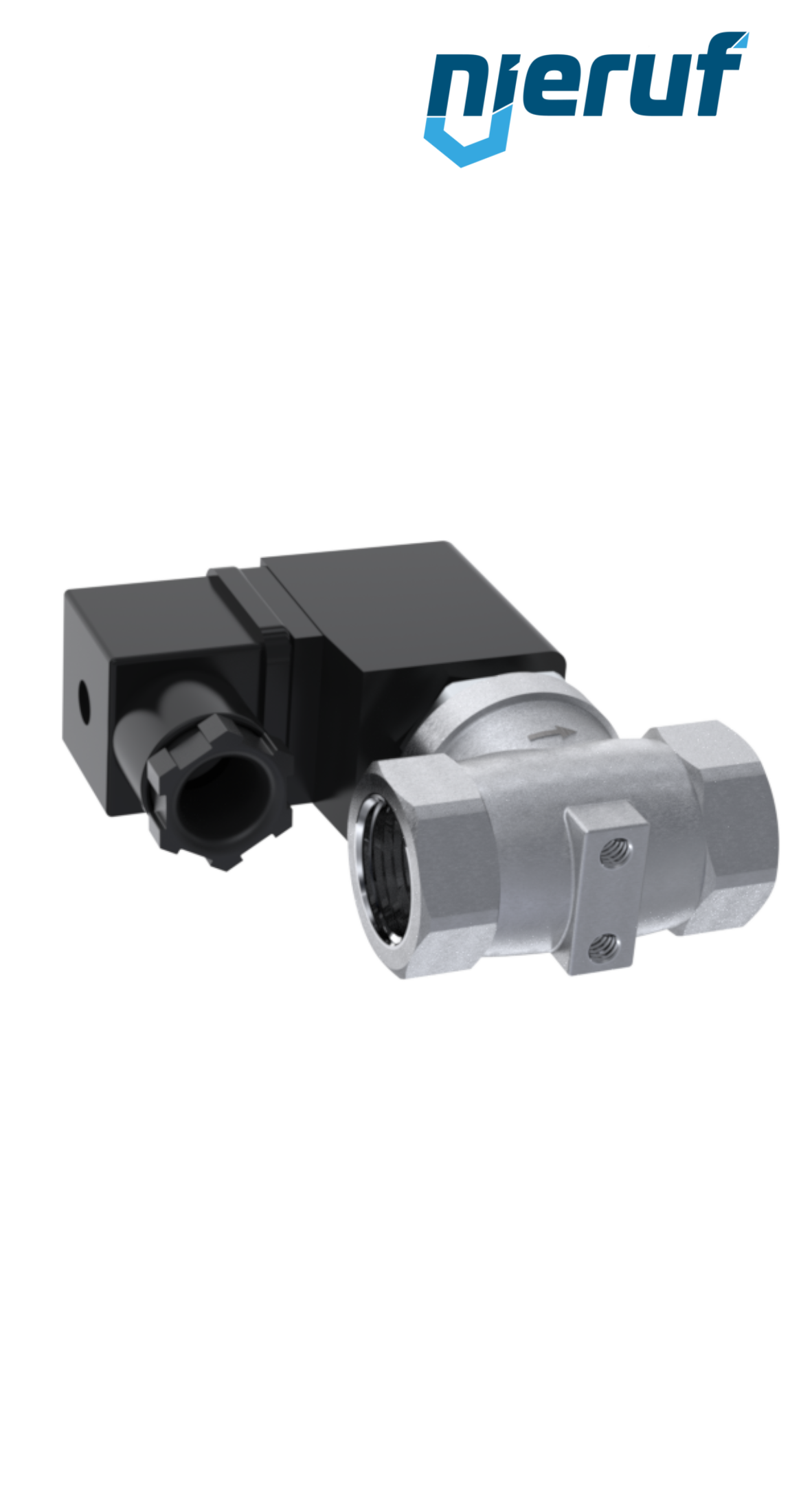

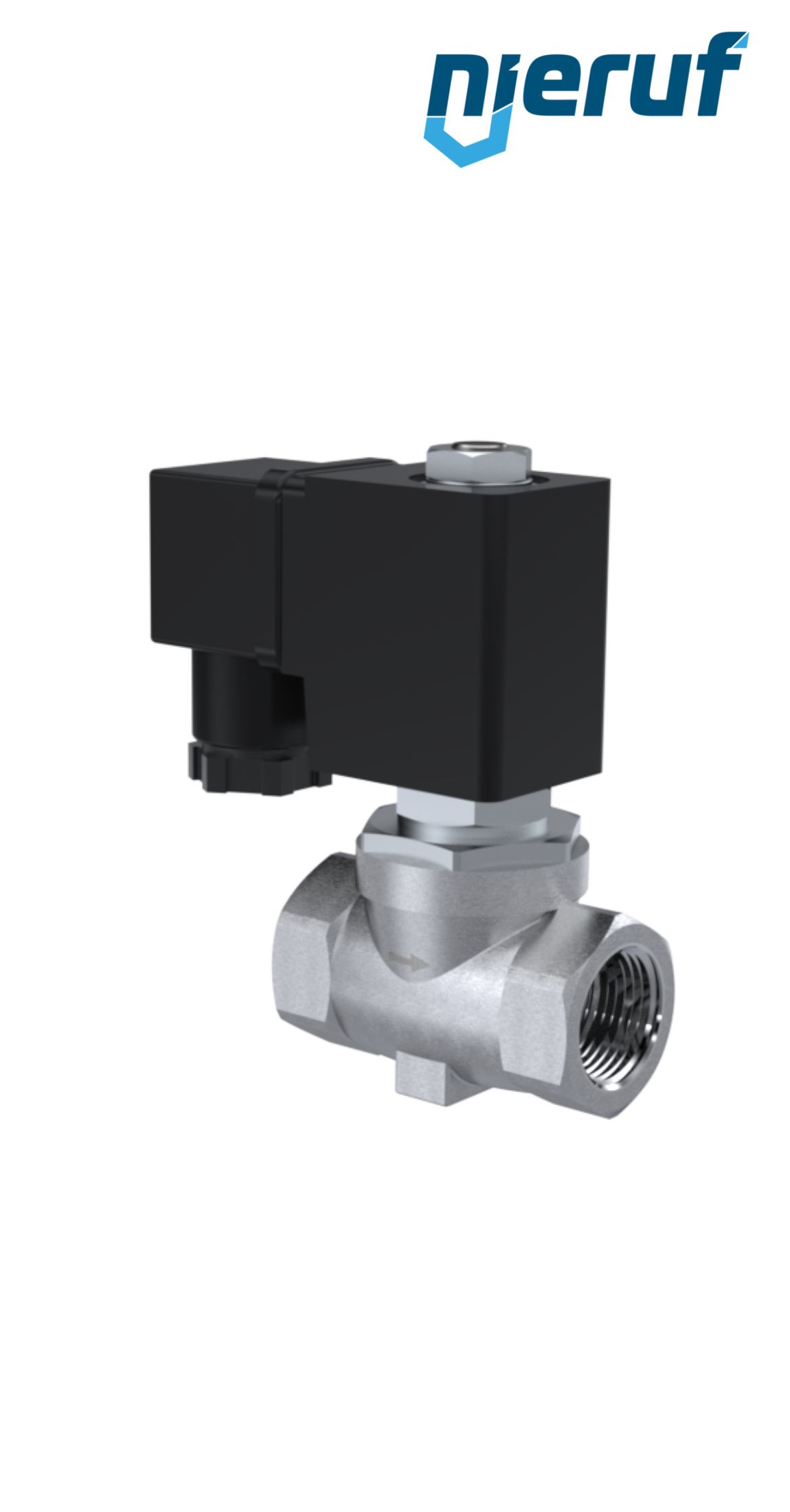

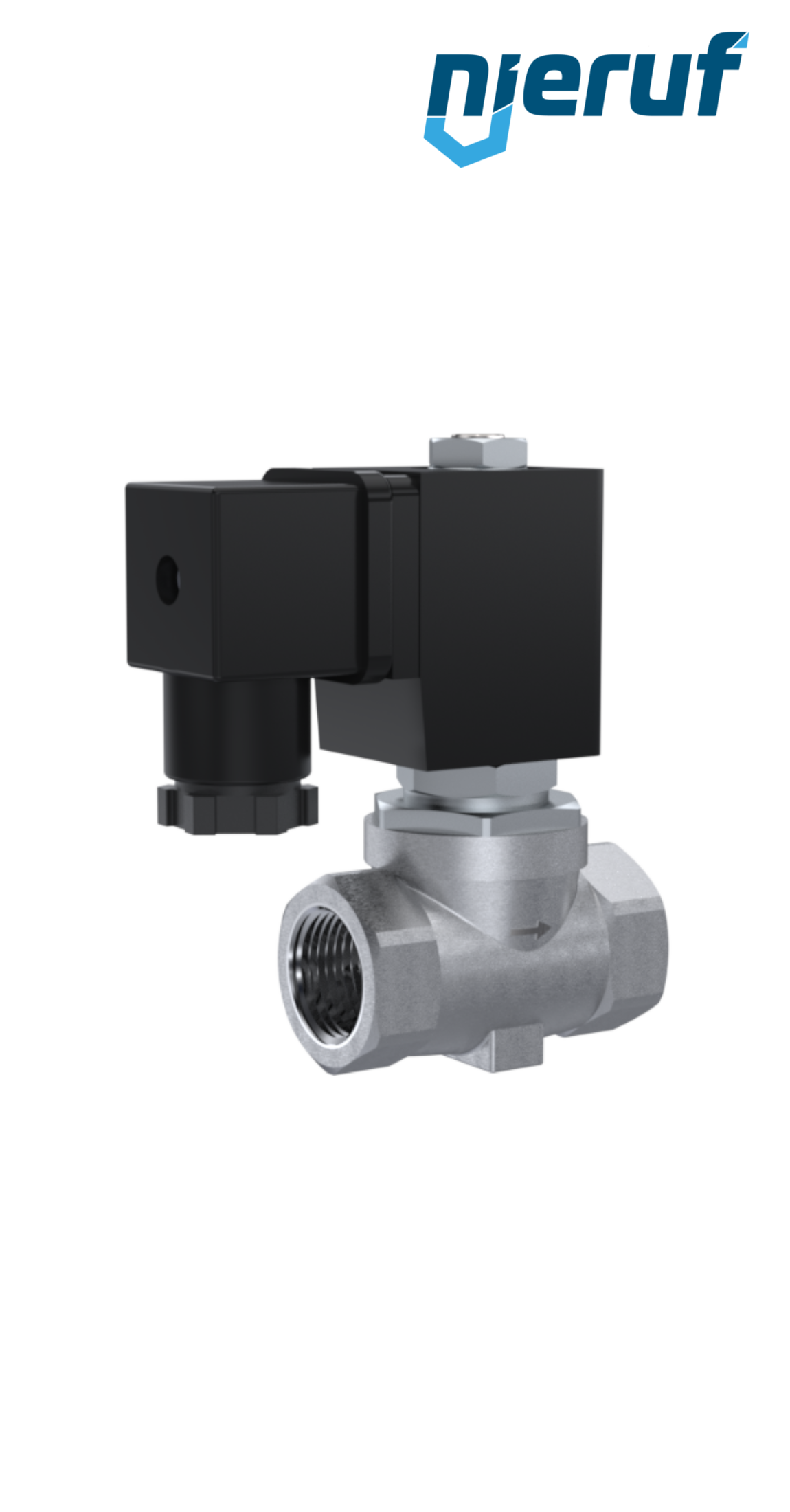

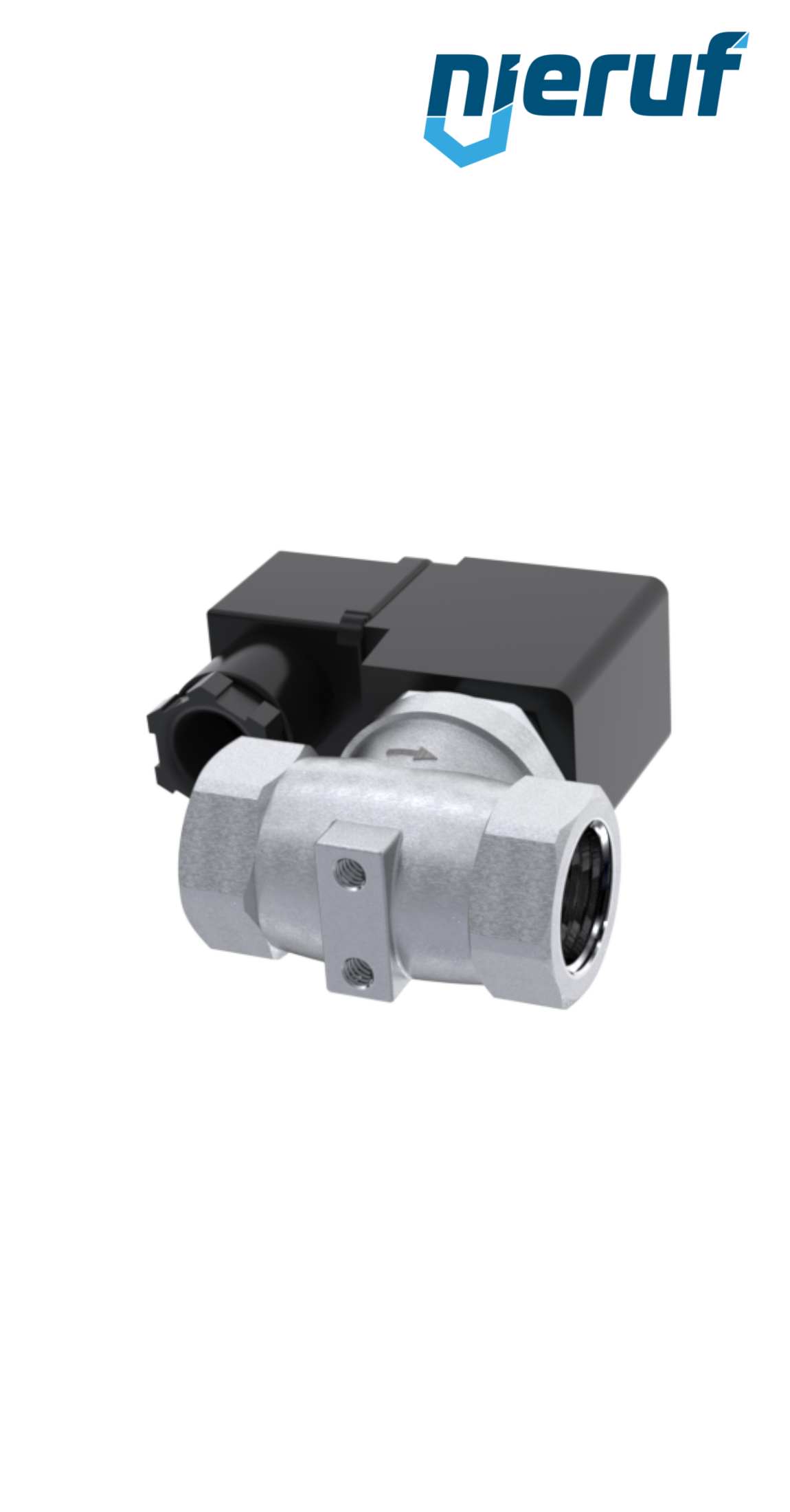

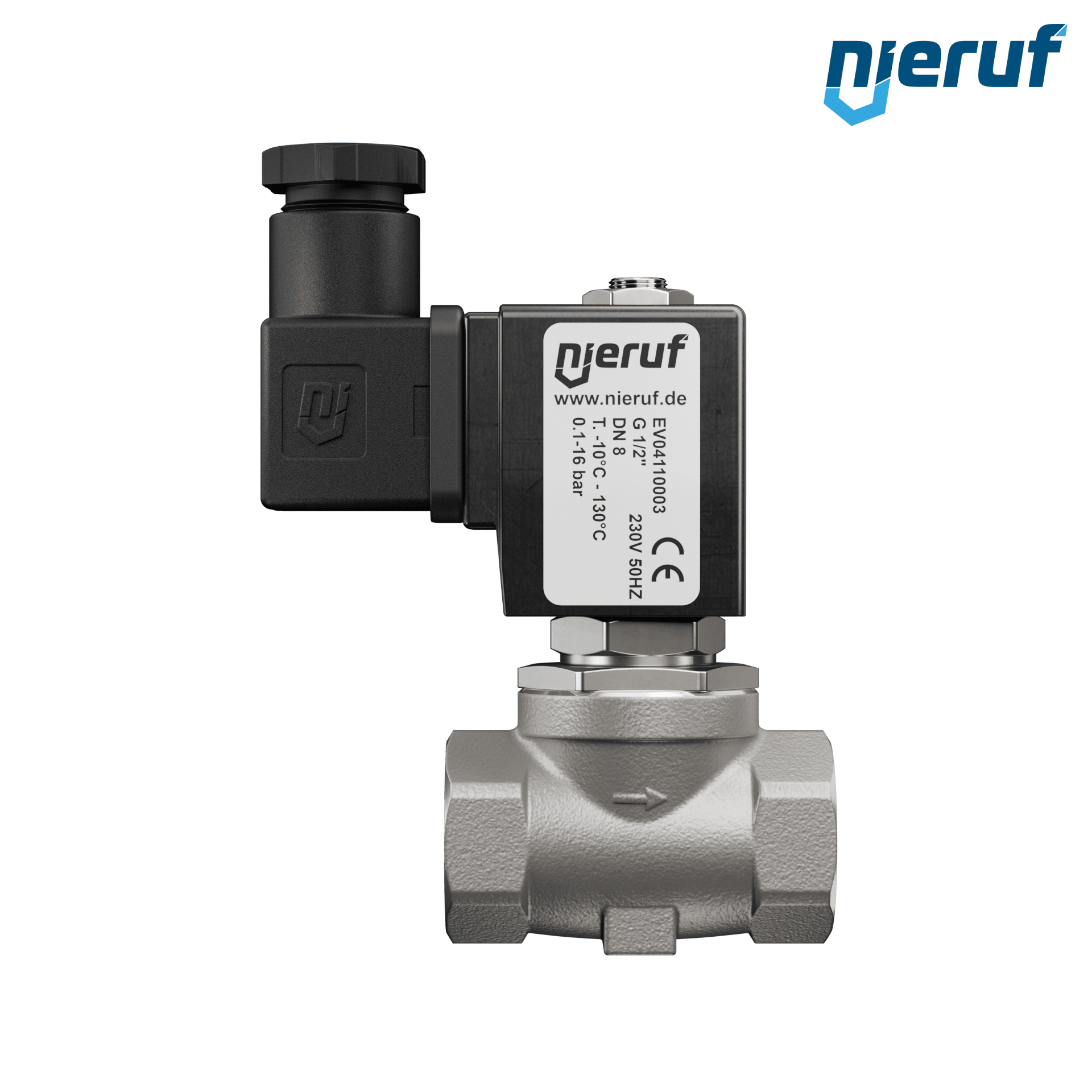

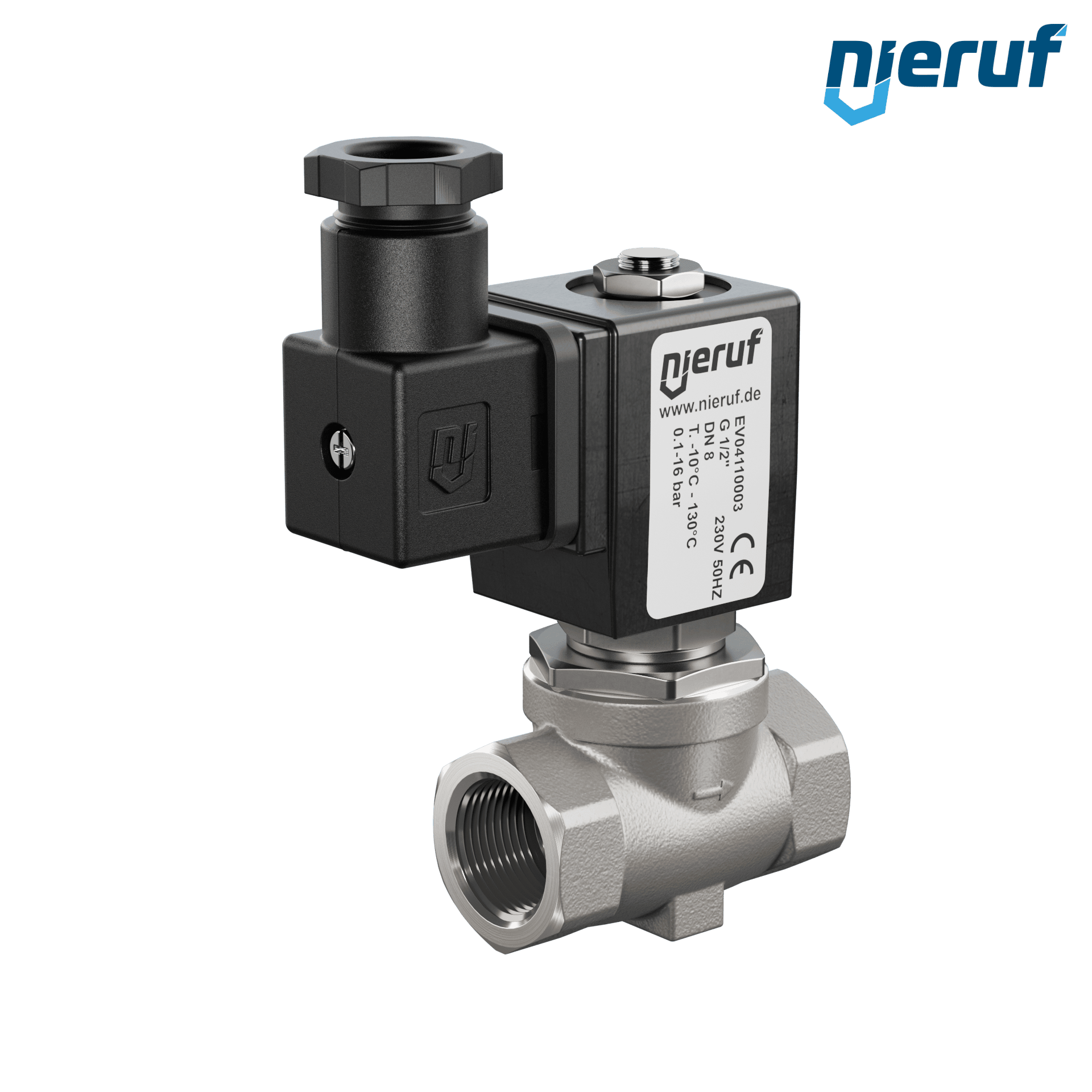

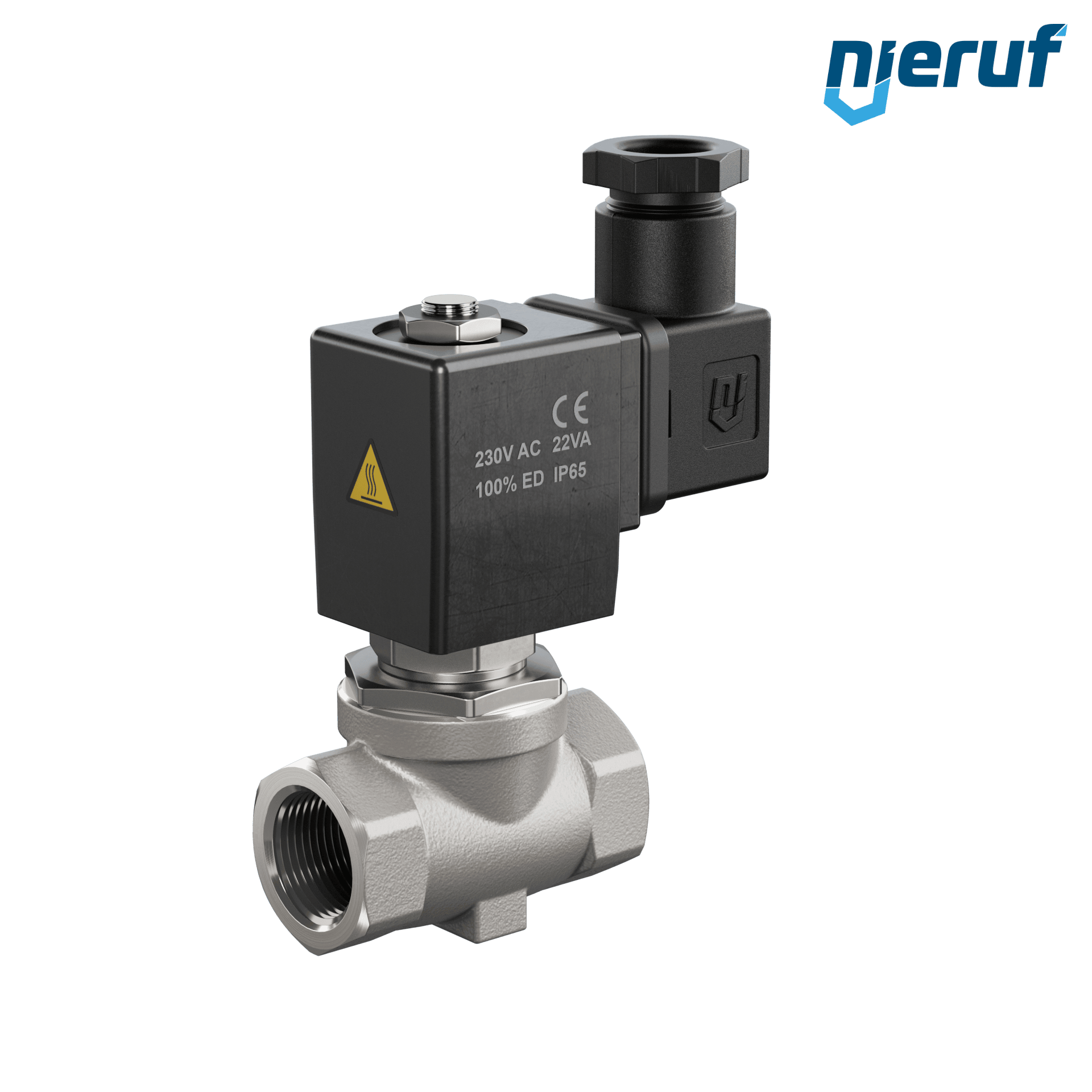

Solenoid valve G 1/2" Inch stainless steel EV04 EPDM 230V 50Hz
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Solenoid valve G 1/2" Inch DN 8.0 made of stainless steel 1.4408 seal EPDM servo controlled nominal voltage 230V 50Hz pressure 0.1 - 16 bar
| product: | Solenoid valve |
|---|---|
| type: | EV04 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN 8.0 |
| connection: | G 1/2" Inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 1.03 m³/h |
| function: | NC - normally closed |
| control: | servo controlled |
| material: | stainless steel 1.4408 |
| seal: | EPDM |
| voltage: | 230V 50Hz |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 22 VA |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +120°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0.1 - 16 bar |
| installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 1/2" Inch stainless steel EV04 EPDM 230V 50Hz
Article no.
: EV04110003
product:
Solenoid valve
type:
EV04
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN 8.0
connection:
G 1/2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
1.03 m³/h
function:
NC - normally closed
control:
servo controlled
material:
stainless steel 1.4408
seal:
EPDM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
22 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0.1 - 16 bar
installation position:
any position, solenoid preferably standing
