EV03110025

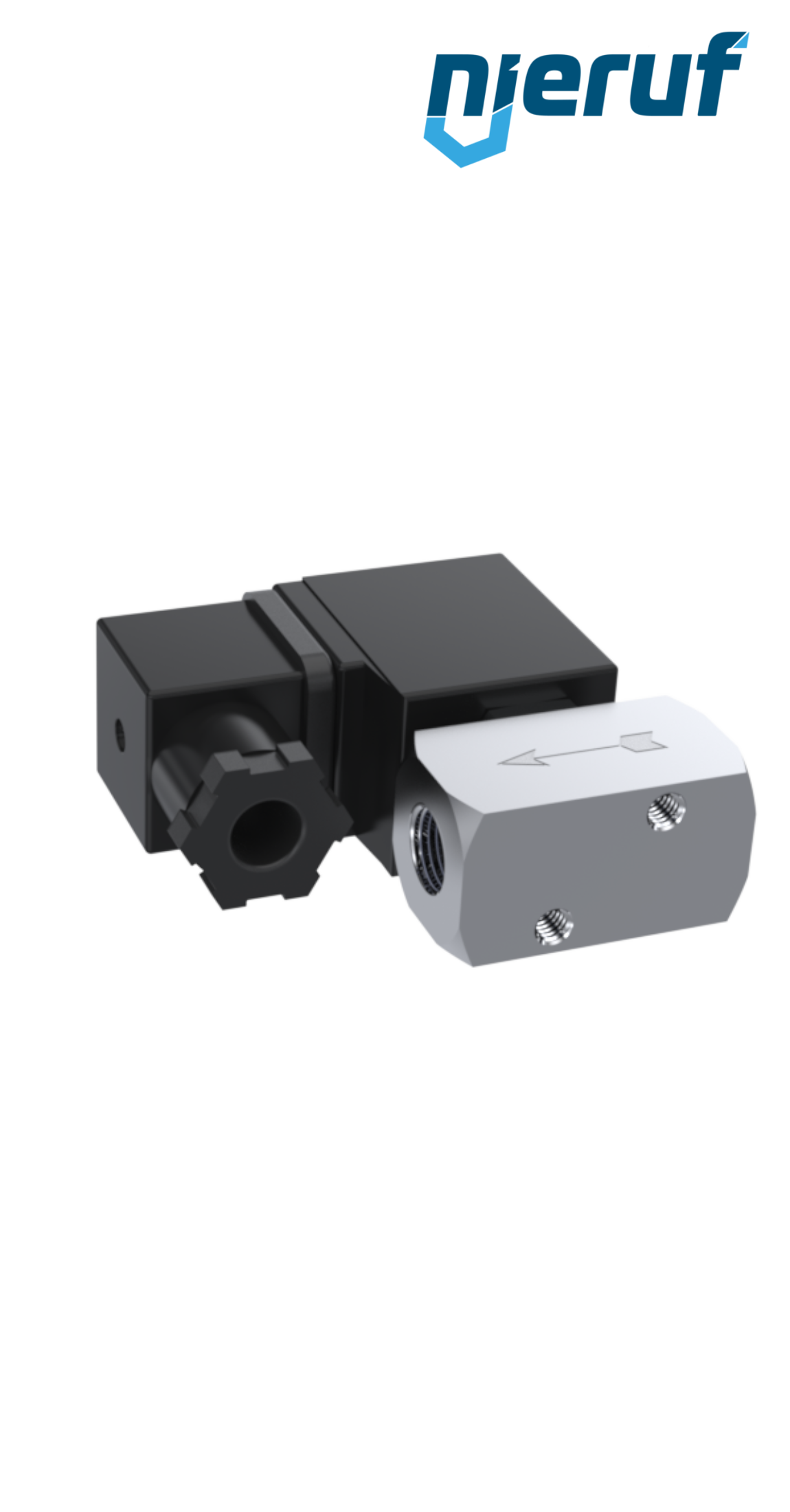

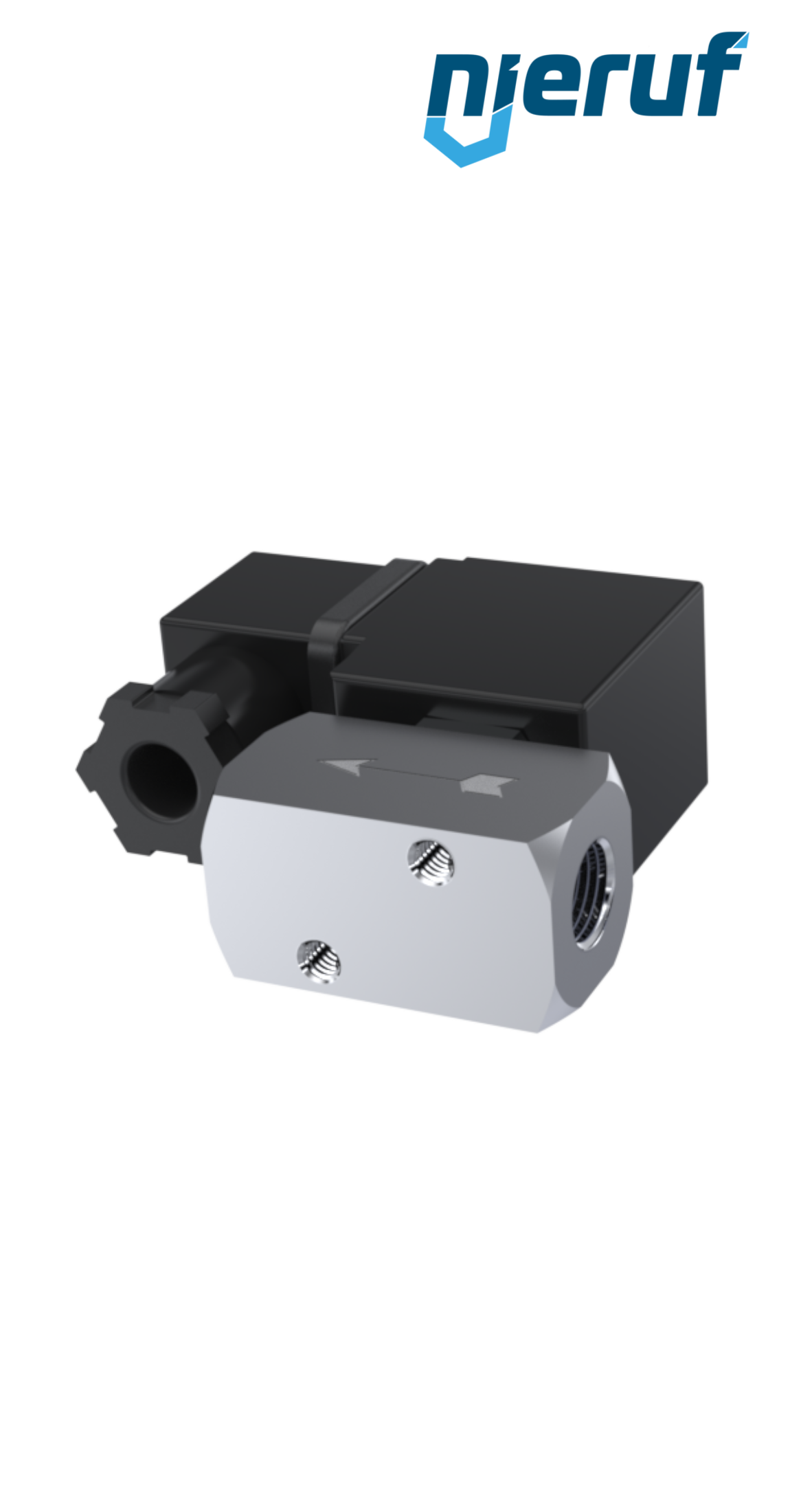

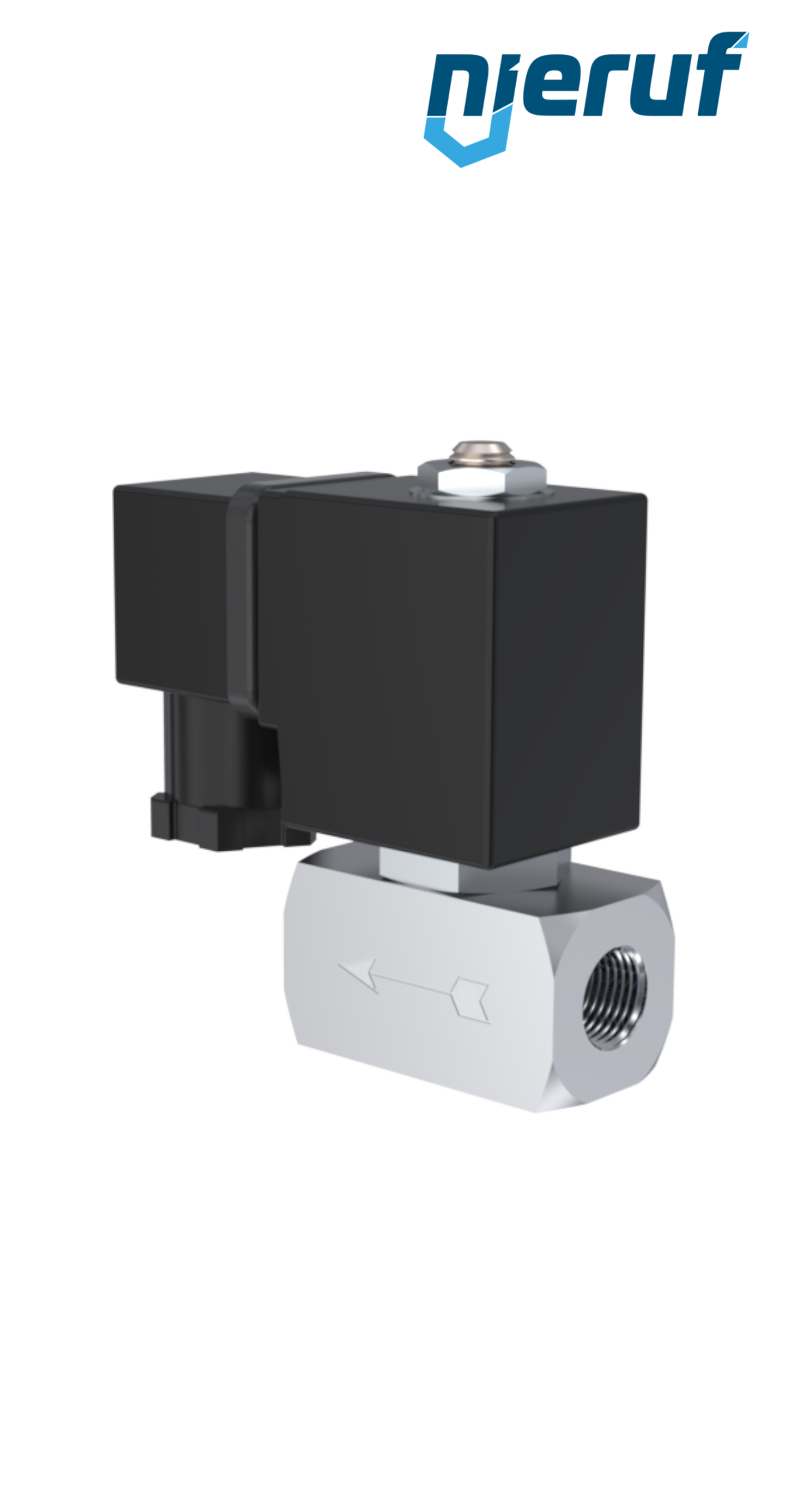

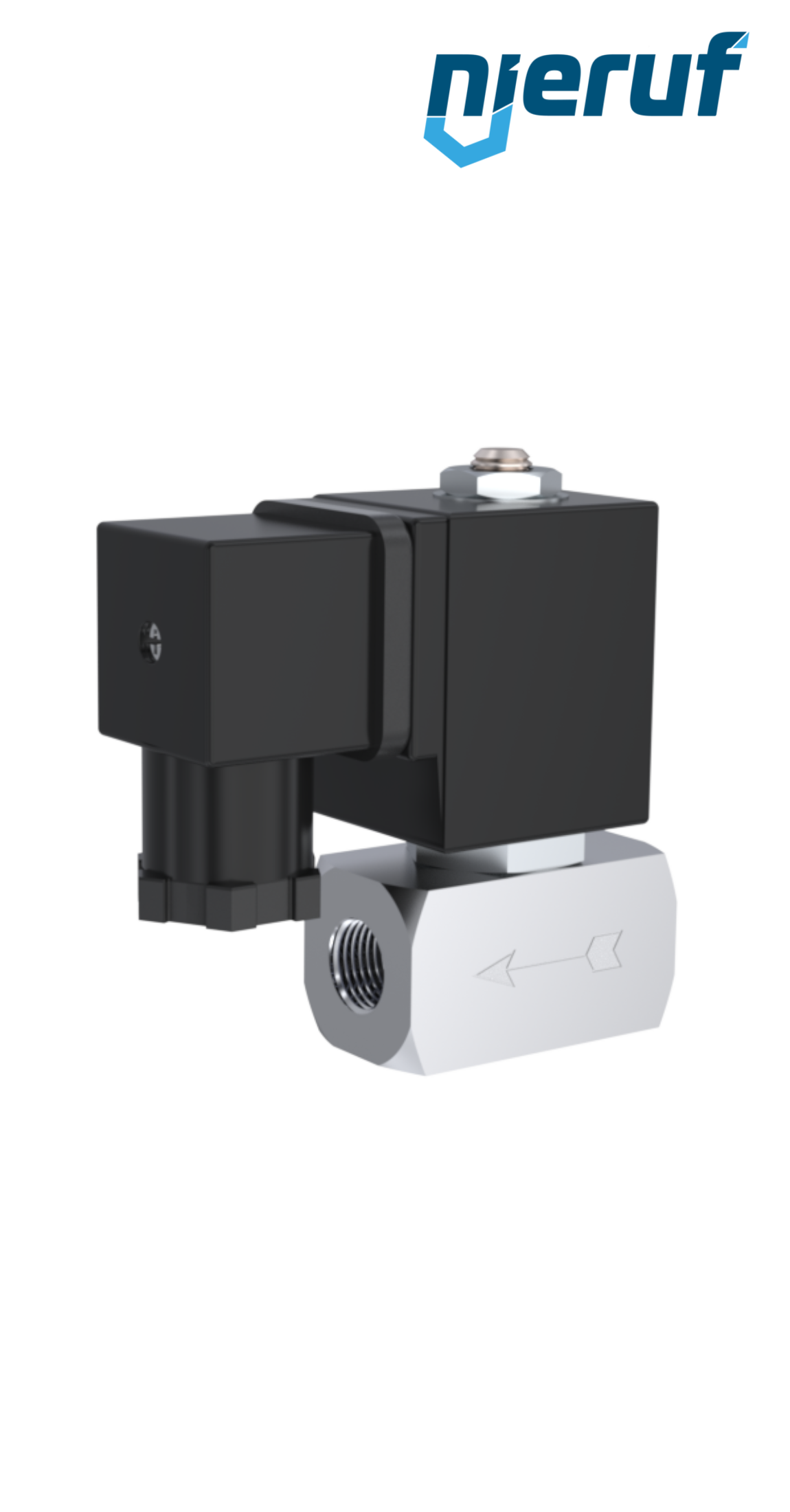

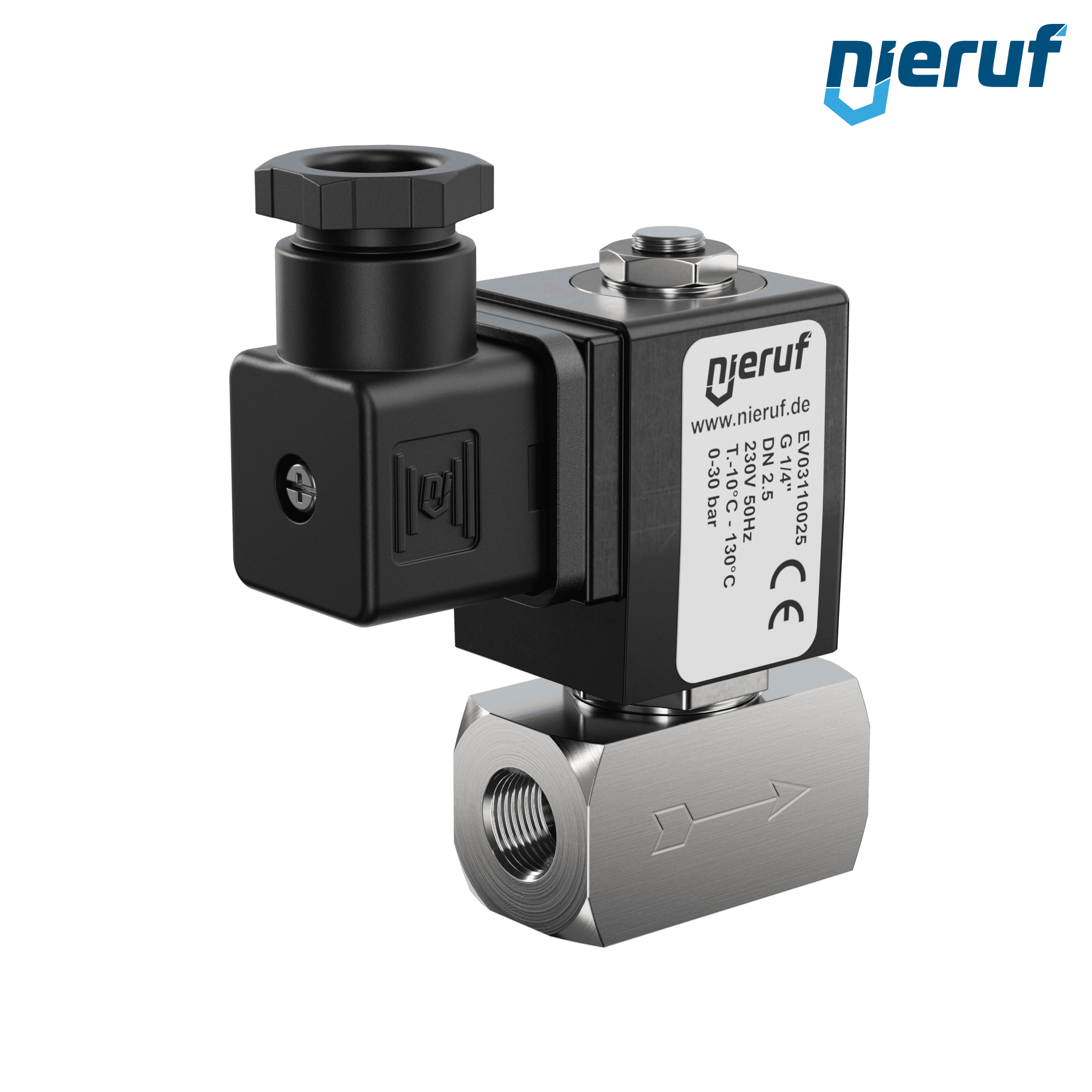

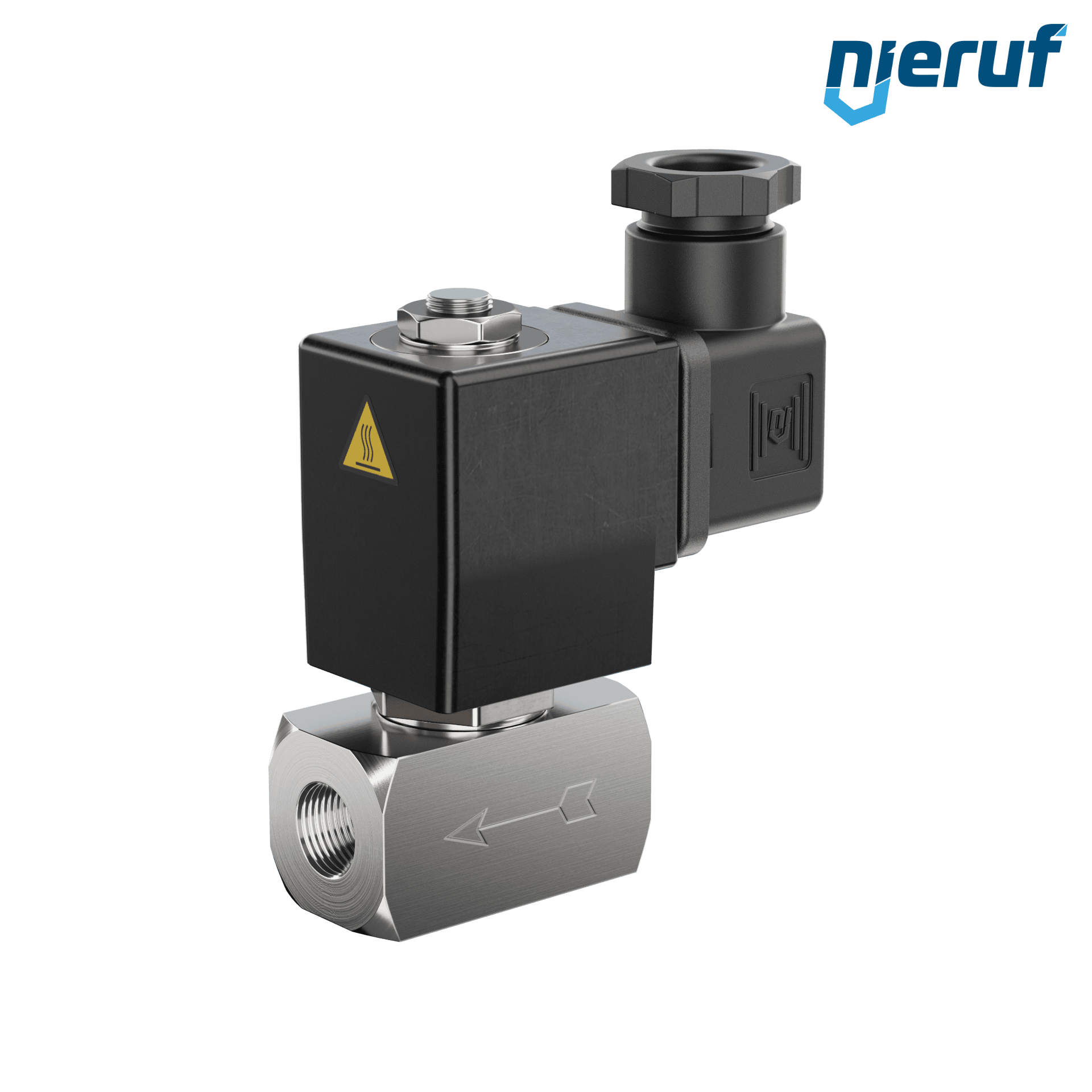

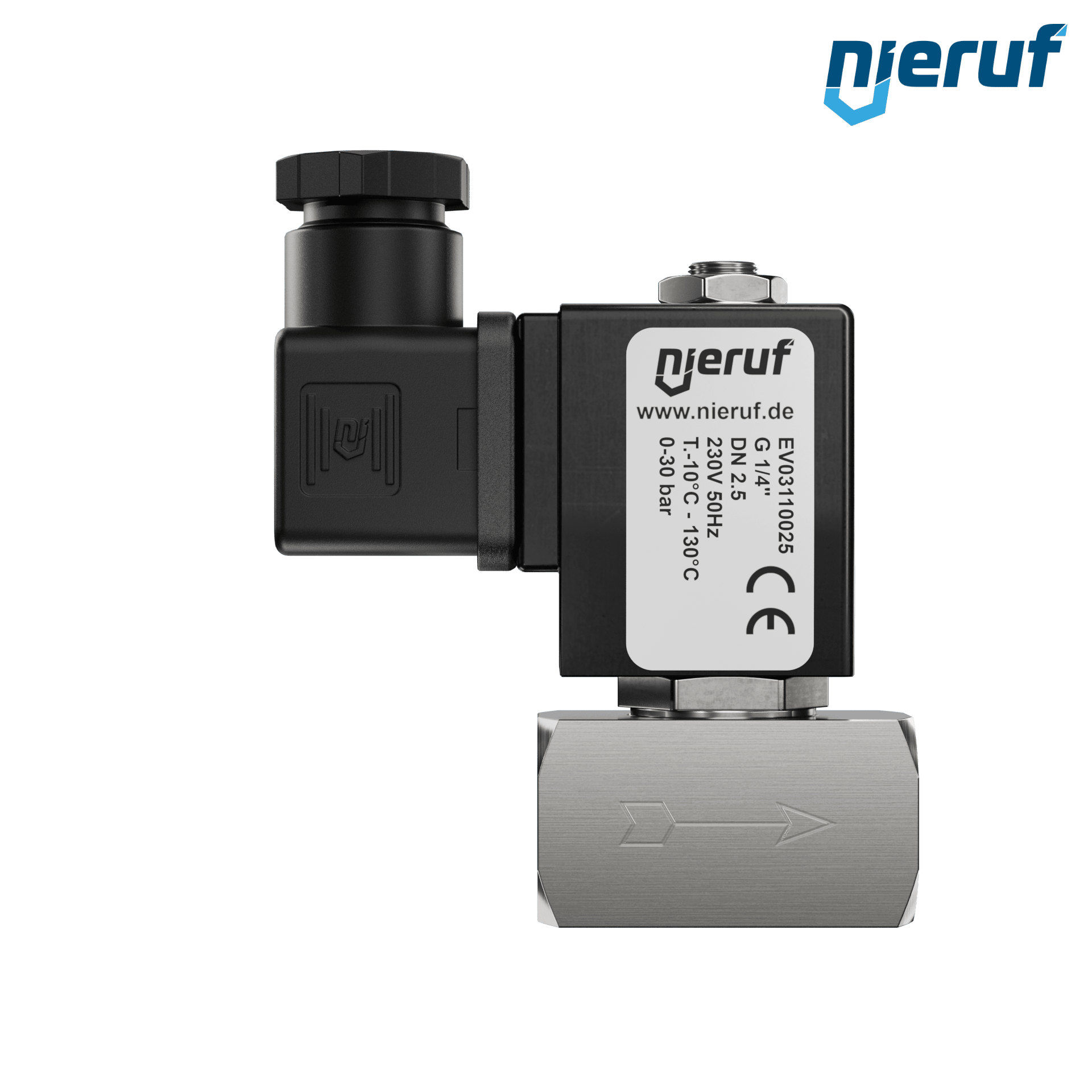

Solenoid valve DN 2.5 stainless steel EV03 EPDM 230V 50Hz
Delivery time: 3 - 5 working days
Equipment
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Ways Solenoid valve G 1/4" Inch DN 2.5 made of stainless steel 1.4305 seal EPDM direct acting nominal voltage 230V 50Hz pressure 0 - 30 bar
product: | Solenoid valve |
---|---|
type: | EV03 |
manufacturer: | NieRuf |
design: | seat valve |
diameter: | DN 2.5 |
connection: | G 1/4" Inch |
type of connection: | female thread |
Type of design: | 2/2 Ways |
flow rate: | 3.0 l/min |
function: | NC - normally closed |
control: | direct acting |
material: | stainless steel 1.4305 |
seal: | EPDM |
voltage: | 230V 50Hz |
voltage tolerance: | +/- 10% acc. VDE 0580 |
power consumption: | 15 VA |
duty: | 100% ED |
plug socket: | IP65 with plug socket mounted |
media: | liquid and gaseous media |
temperature media: | -10°C up to +120°C |
temperature ambiente: | max up to +50°C |
max. pressure: | 0 - 30 bar |
installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN 2.5 stainless steel EV03 EPDM 230V 50Hz
Article no.
: EV03110025
product:
Solenoid valve
type:
EV03
manufacturer:
NieRuf
design:
seat valve
diameter:
DN 2.5
connection:
G 1/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
3.0 l/min
function:
NC - normally closed
control:
direct acting
material:
stainless steel 1.4305
seal:
EPDM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
15 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0 - 30 bar
installation position:
any position, solenoid preferably standing
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
![Catalog](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/illustration/nieruf-katalog.webp?1724066721)
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
