EV07220001

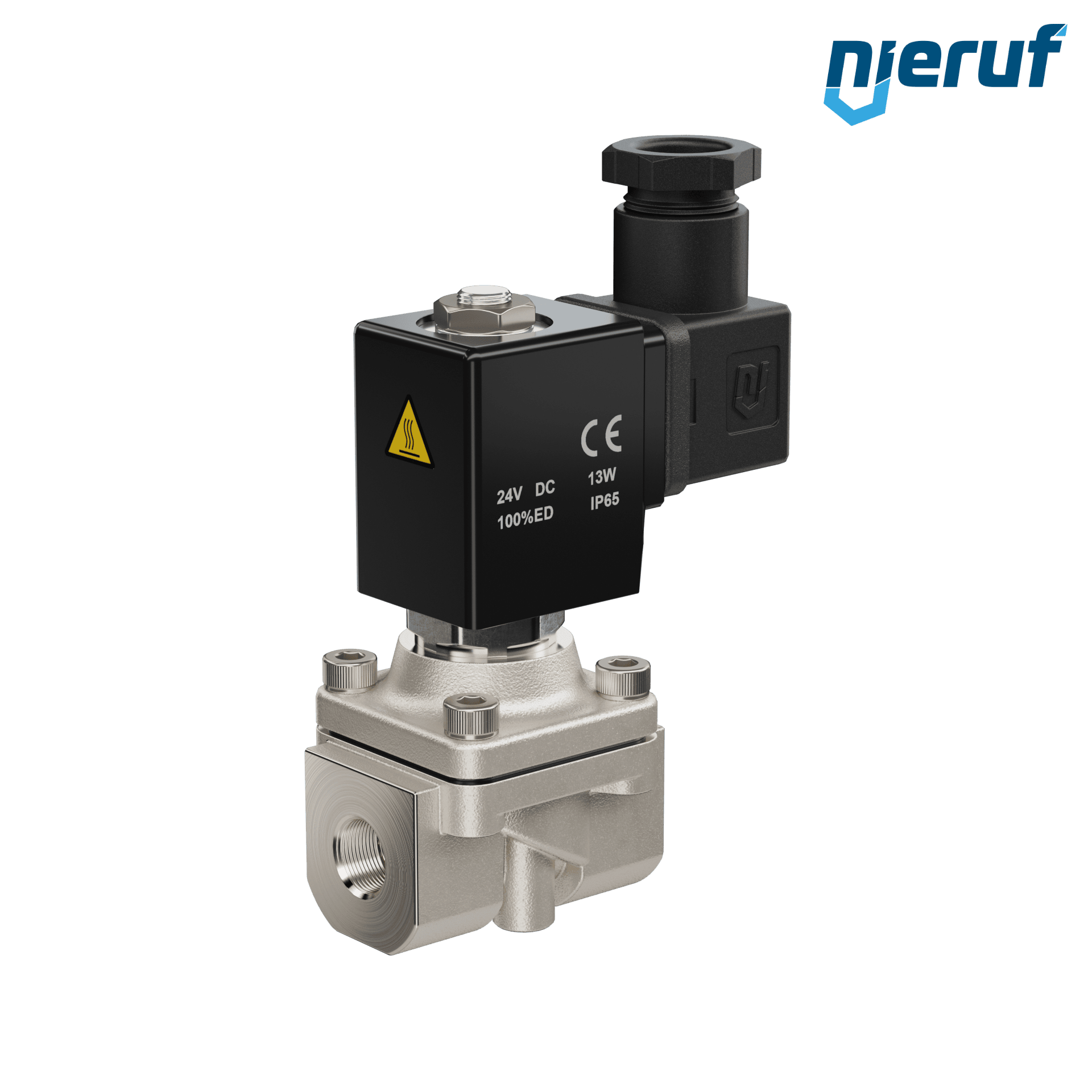

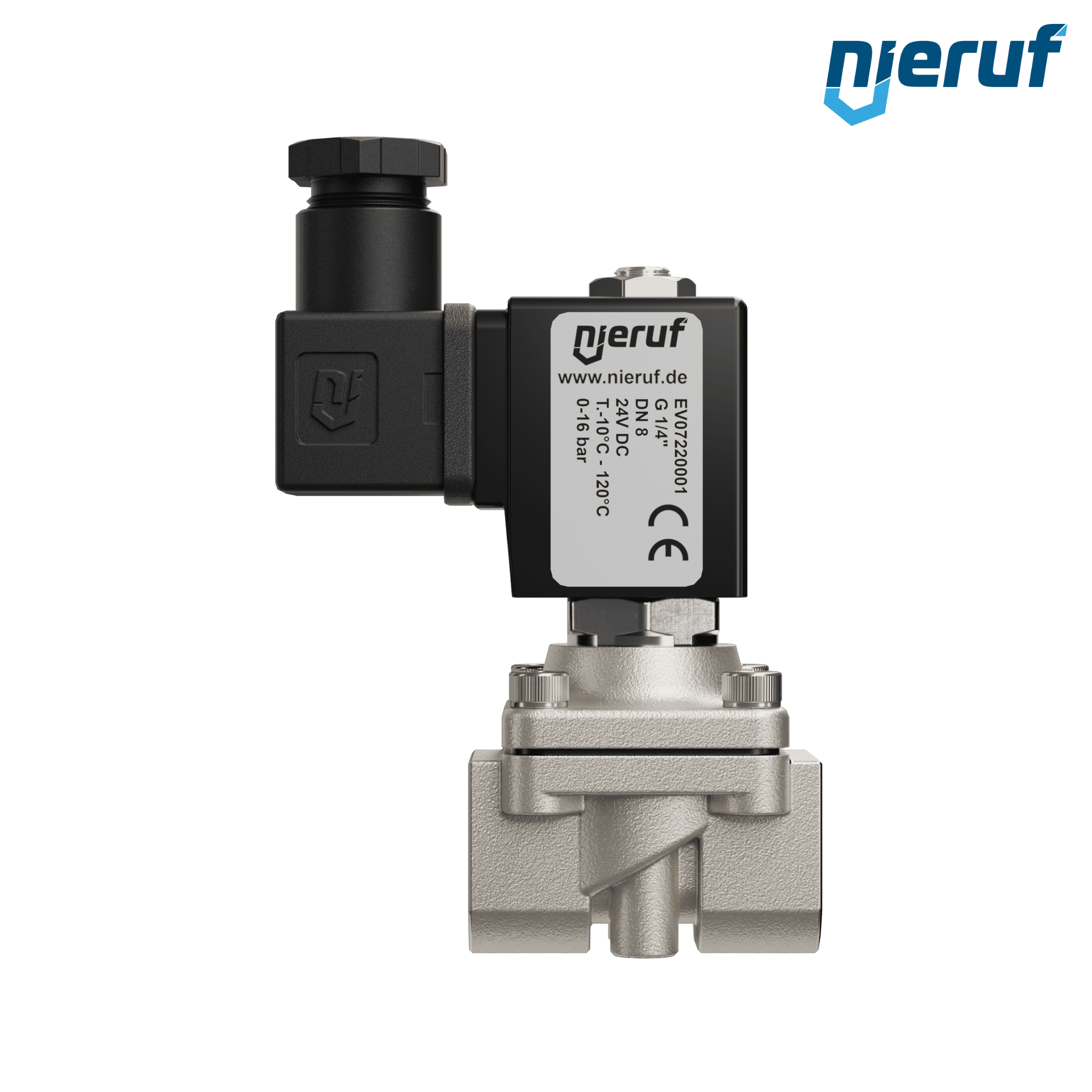

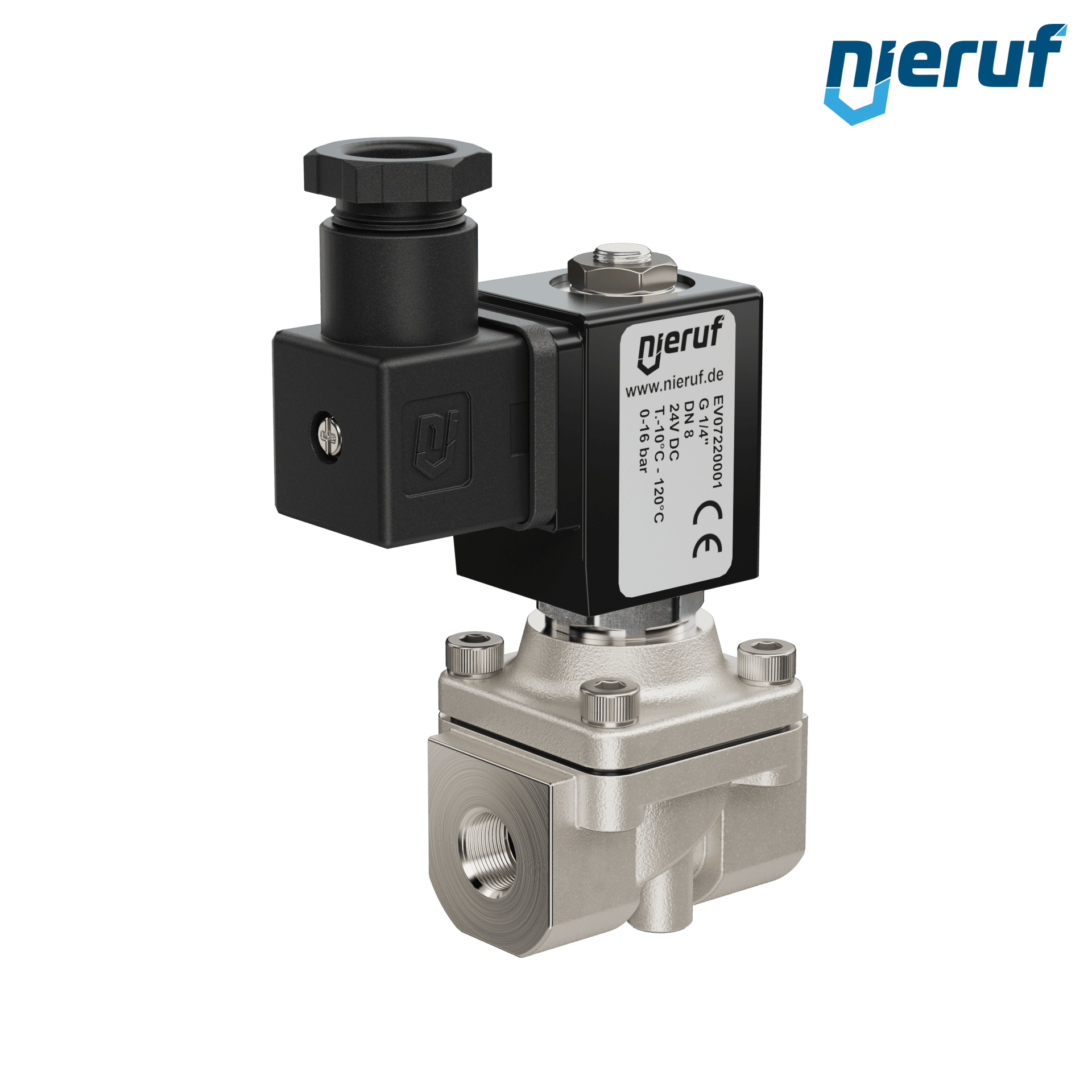

Solenoid valve G 1/4" Inch stainless steel EV07 FKM 24V DC
Delivery time: in stock
Express delivery*:
Shipping on: Friday, 22. November
Guaranteed delivery until Monday, 25. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Ways Solenoid valve G 1/4" Inch DN10 made of stainless steel 1.4308 seal FKM force pilot operated nominal voltage 24V DC pressure 0.0 - 16 bar
| product: | Solenoid valve |
|---|---|
| type: | EV07 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN10 |
| connection: | G 1/4" Inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 1.6 m³/h |
| function: | NC - normally closed |
| control: | force pilot operated |
| material: | stainless steel 1.4308 |
| seal: | FKM |
| voltage: | 24V DC |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 13 Watt |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +120°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0.0 - 16 bar |
| installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 1/4" Inch stainless steel EV07 FKM 24V DC
Article no.
: EV07220001
product:
Solenoid valve
type:
EV07
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN10
connection:
G 1/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
1.6 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
stainless steel 1.4308
seal:
FKM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
13 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 16 bar
installation position:
any position, solenoid preferably standing
