KV01120002

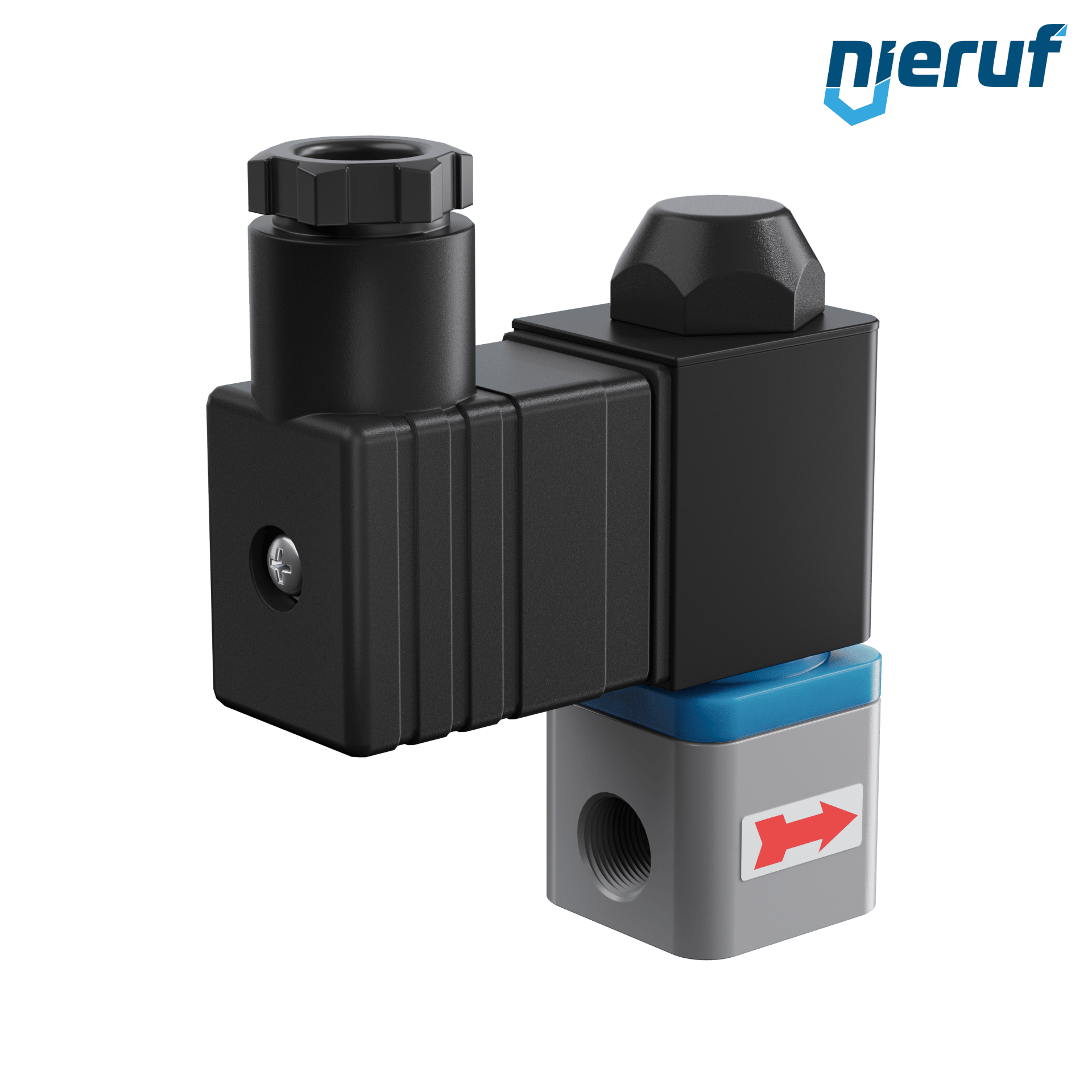

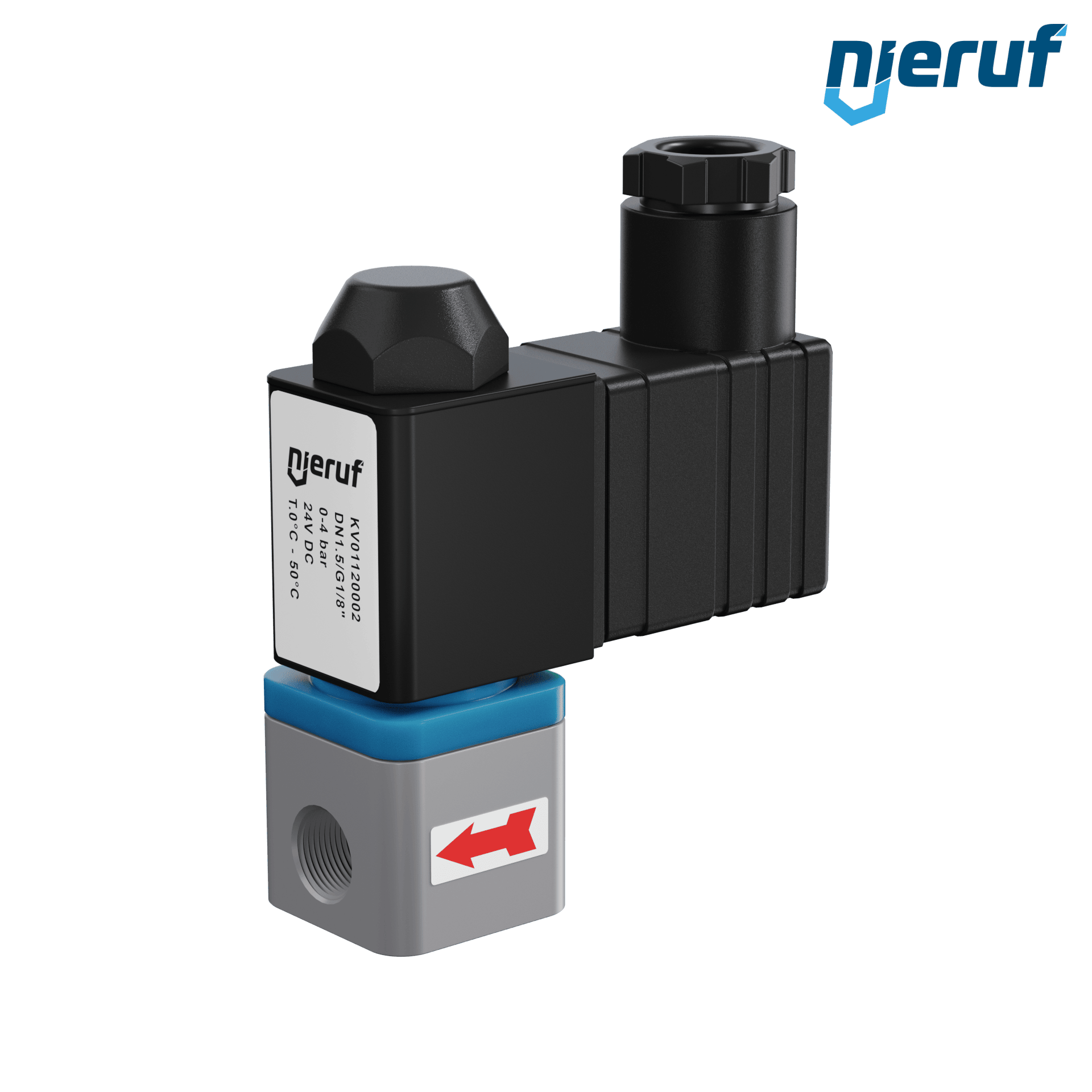

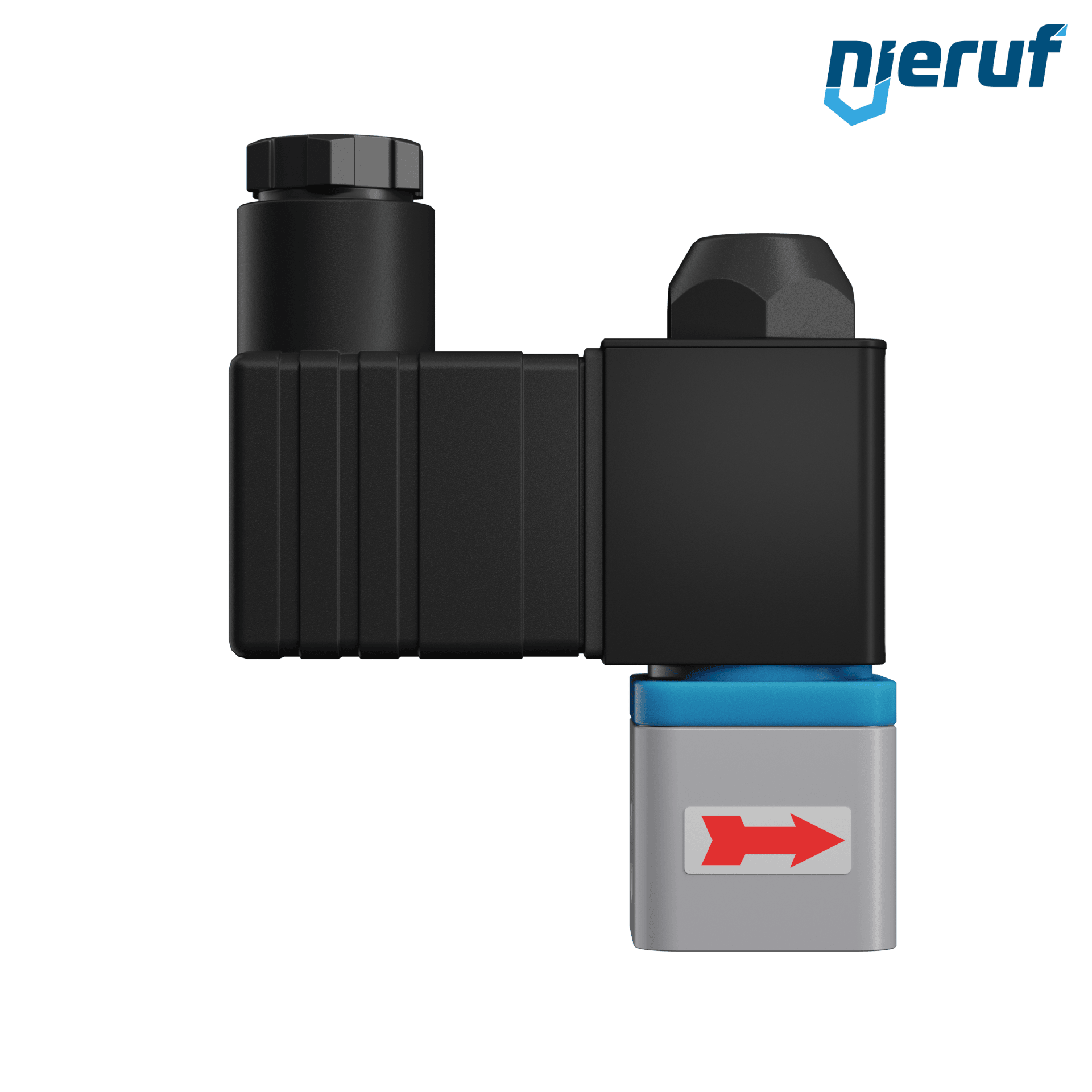

Solenoid valve DN1,5 PVC KV01 EPDM 24V DC
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Ways Solenoid valve G 1/8" inch DN1,5 made of PVC seal EPDM direct acting nominal voltage 24V DC pressure 0 - 4 bar
| product: | Solenoid valve |
|---|---|
| type: | KV01 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN1,5 |
| connection: | G 1/8" inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 1.2 l/min |
| function: | NC - normally closed |
| control: | direct acting |
| material: | PVC |
| seal: | EPDM |
| voltage: | 24V DC |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 4,8 Watt |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | check data sheet |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0 - 4 bar |
| installation position: | solenoid preferably above |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN1,5 PVC KV01 EPDM 24V DC
Article no.
: KV01120002
product:
Solenoid valve
type:
KV01
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN1,5
connection:
G 1/8" inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
1.2 l/min
function:
NC - normally closed
control:
direct acting
material:
PVC
seal:
EPDM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
4,8 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
check data sheet
temperature ambiente:
max up to +50°C
max. pressure:
0 - 4 bar
installation position:
solenoid preferably above
€1.67 VAT included.
