MV05210005

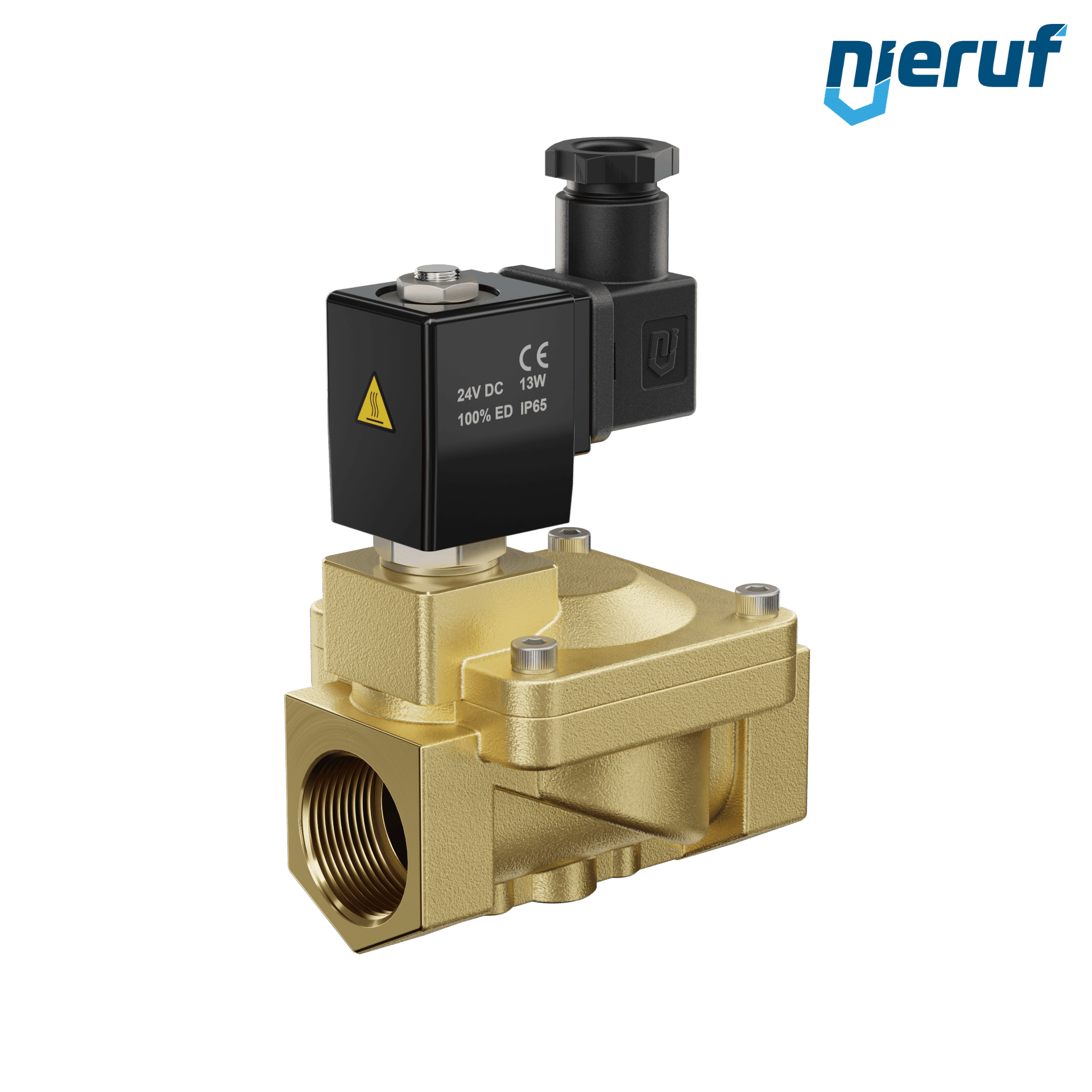

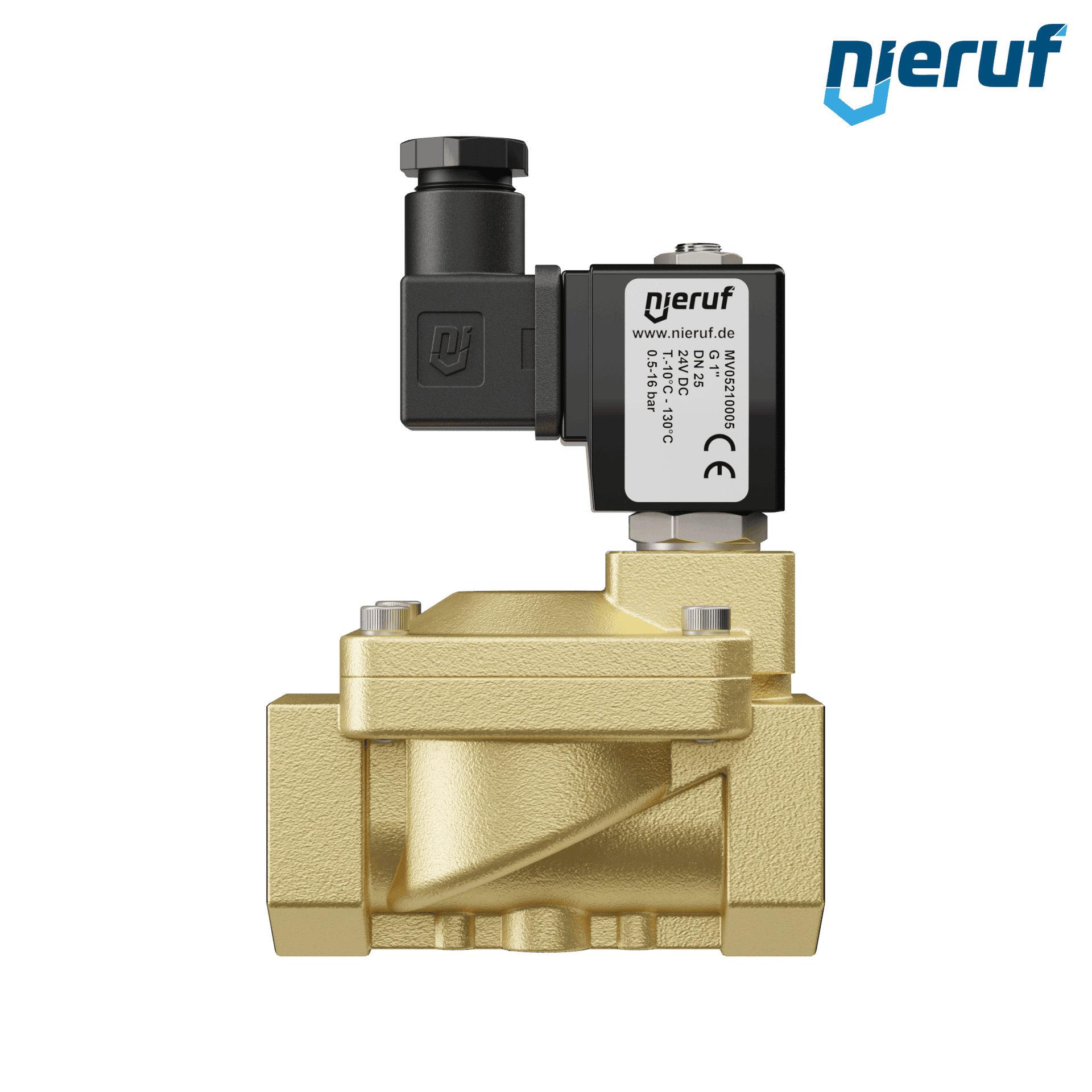

Solenoid valve G 1" Inch brass MV05 EPDM 24V DC
Delivery time: in stock
Express delivery*:
Shipping on: Friday, 22. November
Guaranteed delivery until Monday, 25. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Ways Solenoid valve G 1" Inch DN25 made of brass seal EPDM servo controlled nominal voltage 24V DC pressure 0.5 - 16 bar
| product: | Solenoid valve |
|---|---|
| type: | MV05 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN25 |
| connection: | G 1" Inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 10.3 m³/h |
| function: | NC - normally closed |
| control: | servo controlled |
| material: | brass |
| seal: | EPDM |
| voltage: | 24V DC |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 13 Watt |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +130°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0.5 - 16 bar |
| installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve G 1" Inch brass MV05 EPDM 24V DC
Article no.
: MV05210005
product:
Solenoid valve
type:
MV05
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN25
connection:
G 1" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
10.3 m³/h
function:
NC - normally closed
control:
servo controlled
material:
brass
seal:
EPDM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
13 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +130°C
temperature ambiente:
max up to +50°C
max. pressure:
0.5 - 16 bar
installation position:
any position, solenoid preferably standing
€4.64 VAT included.
€6.19 VAT included.
€6.66 VAT included.
€28.92 VAT included.
€11.78 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
