EV05210004

Solenoid valve G 3/4" Inch stainless steel EV05 EPDM 24V DC

€88.40*

€105.20 VAT included.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Monday, 23. December

Guaranteed delivery until Tuesday, 24. December, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

GF01300004

hexagon nipple 3/4" inch male stainless steel 316

€2.90*

€3.45 VAT included.


SZ01000004

strainer 3/4" inch stainless steel type SZ01

€16.40*

€19.52 VAT included.


ST01000004

hose nozzle 3/4" 19.0 mm stainless steel 1.4408 ST01

€3.60*

€4.28 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: EV05210004

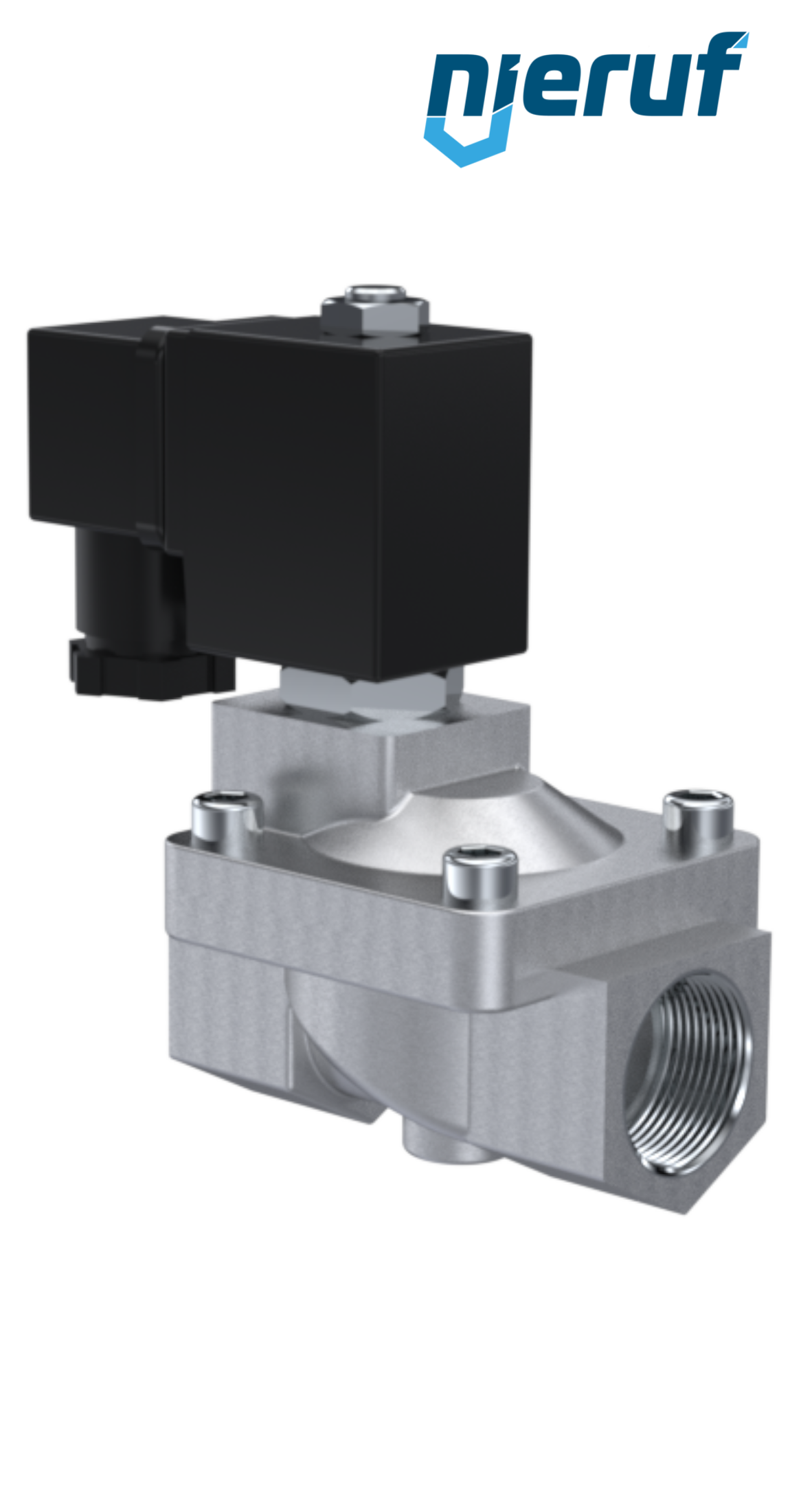

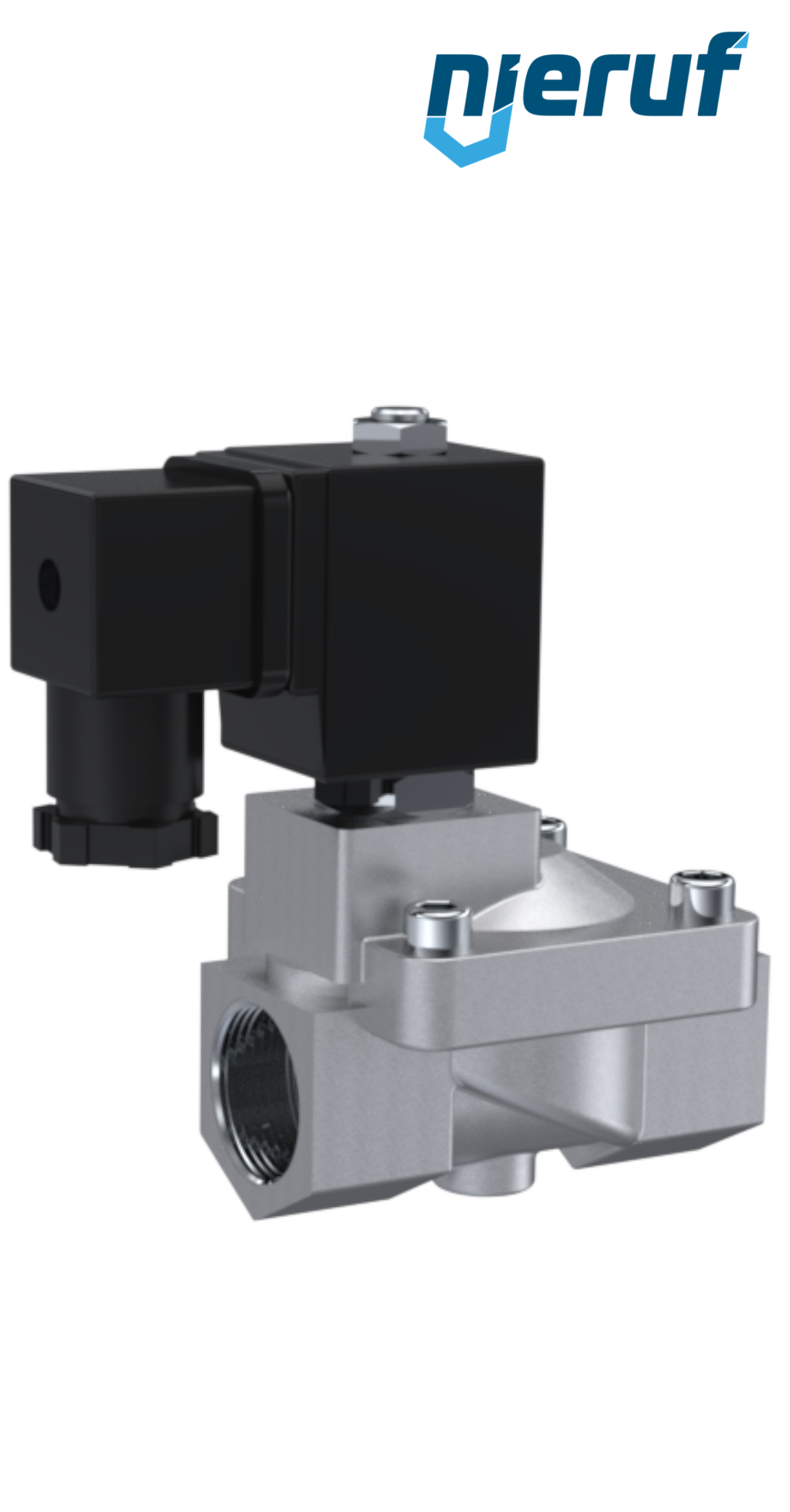

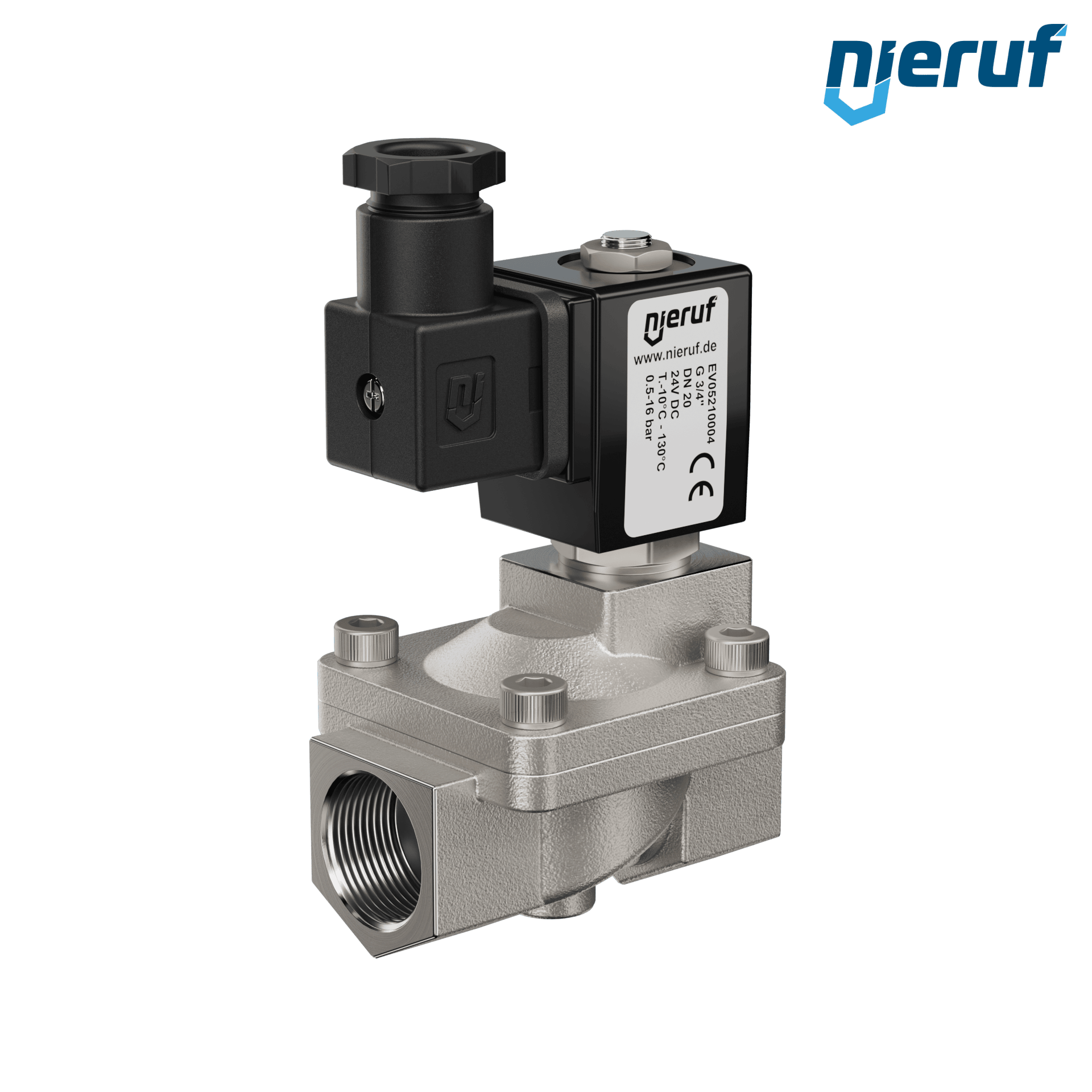

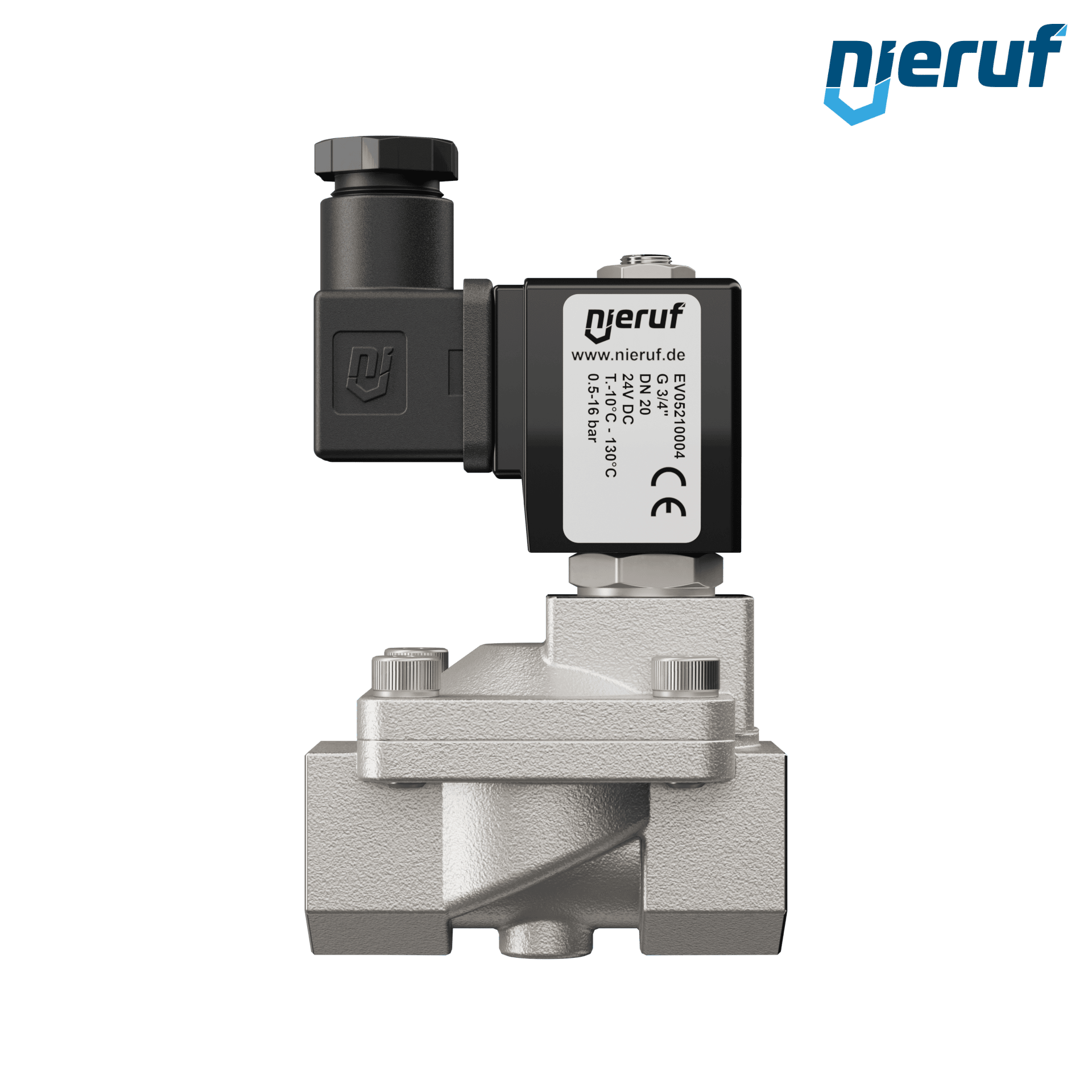

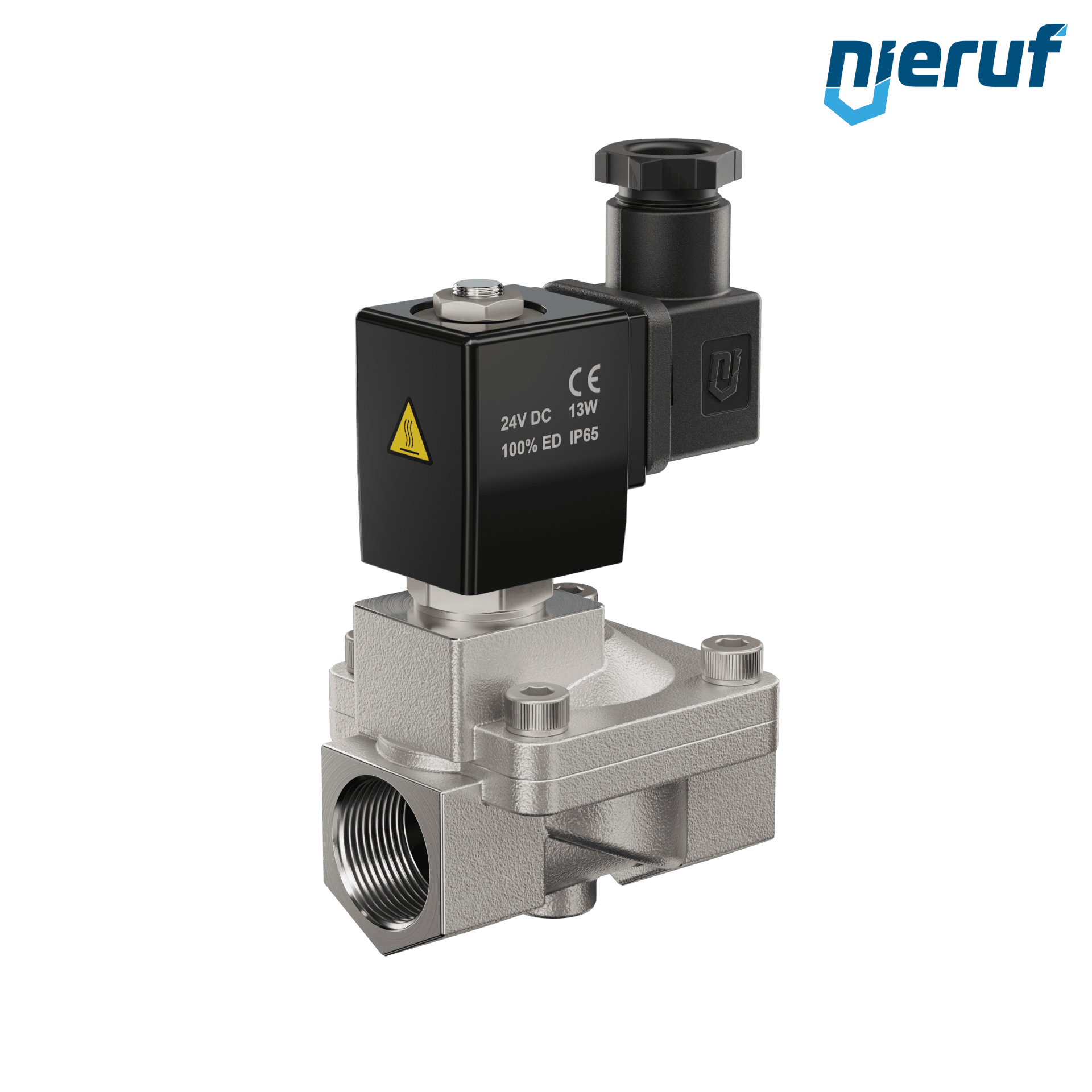

Solenoid valve G 3/4" Inch stainless steel EV05 EPDM 24V DC

2/2 Ways Solenoid valve G 3/4" Inch DN20 made of stainless steel 1.4408 seal EPDM servo controlled nominal voltage 24V DC pressure 0.5 - 16 bar

product: Solenoid valve
type: EV05
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN20
connection: G 3/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 6.5 m³/h
function: NC - normally closed
control: servo controlled
material: stainless steel 1.4408
seal: EPDM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 13 Watt
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -10°C up to +130°C
temperature ambiente: max up to +50°C
max. pressure: 0.5 - 16 bar
installation position: any position, solenoid preferably standing

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve G 3/4" Inch stainless steel EV05 EPDM 24V DC

Article no. : EV05210004
product: Solenoid valve
type: EV05
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN20
connection: G 3/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 6.5 m³/h
function: NC - normally closed
control: servo controlled
material: stainless steel 1.4408
seal: EPDM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 13 Watt
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -10°C up to +130°C
temperature ambiente: max up to +50°C
max. pressure: 0.5 - 16 bar
installation position: any position, solenoid preferably standing
