FV01210011

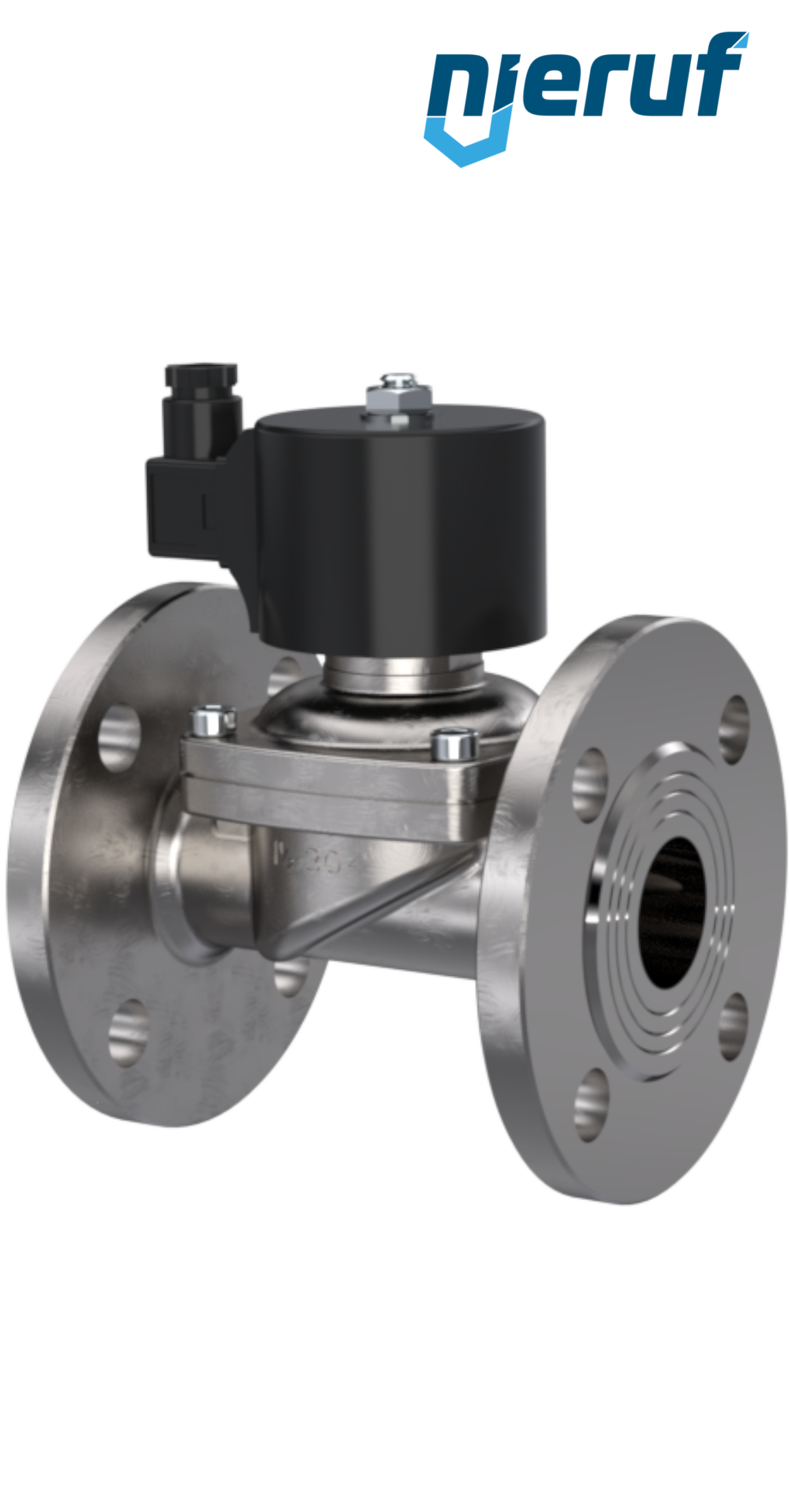

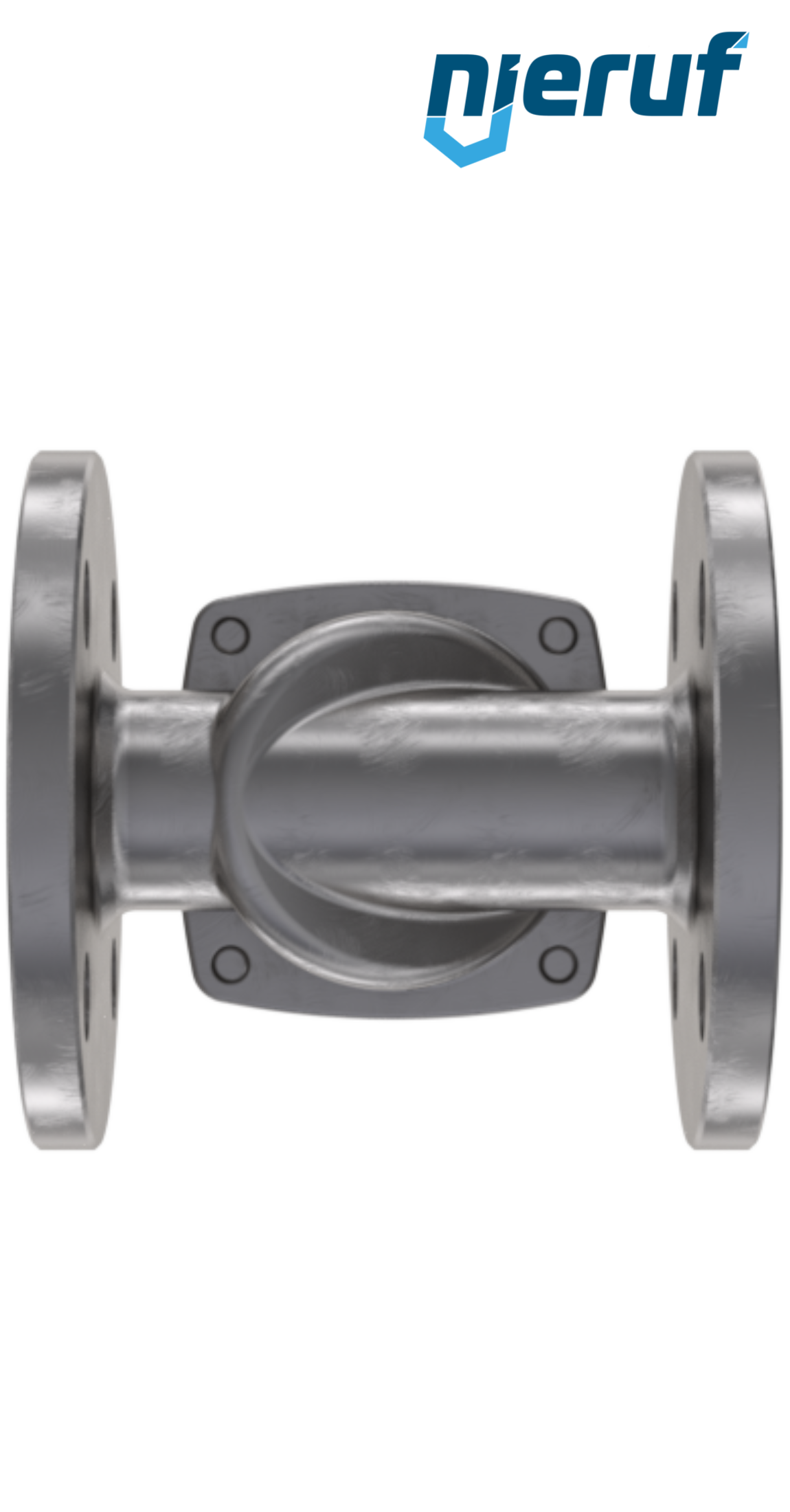

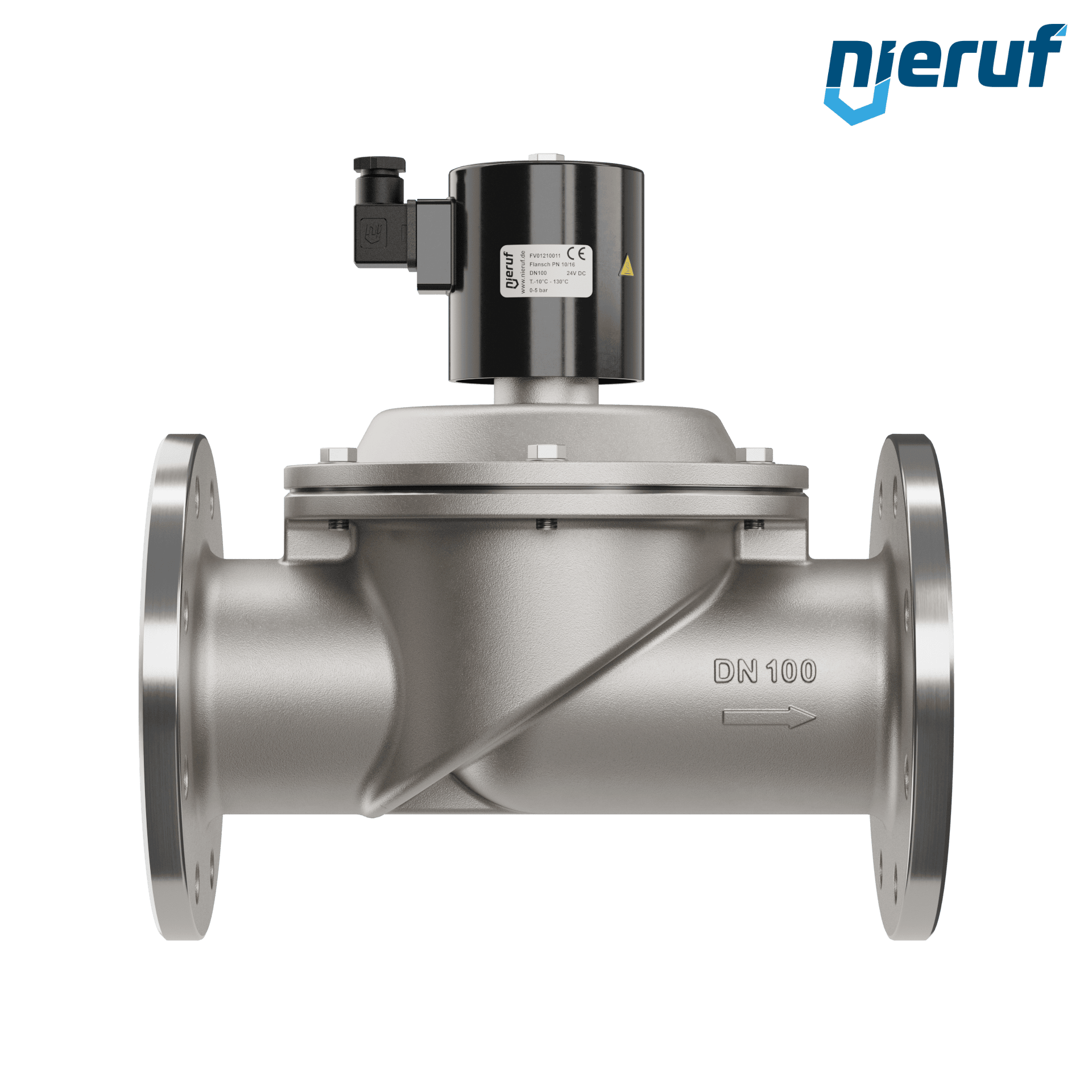

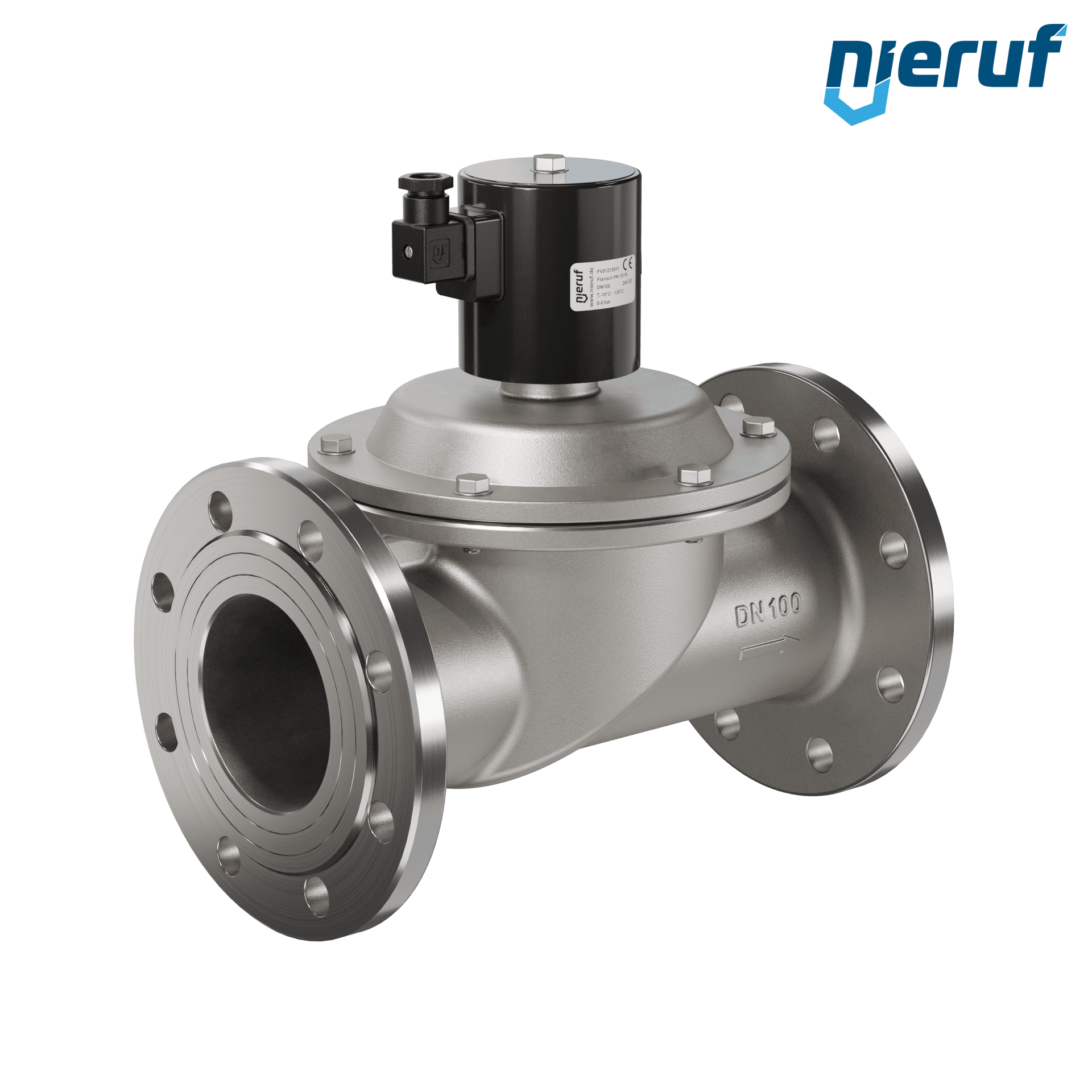

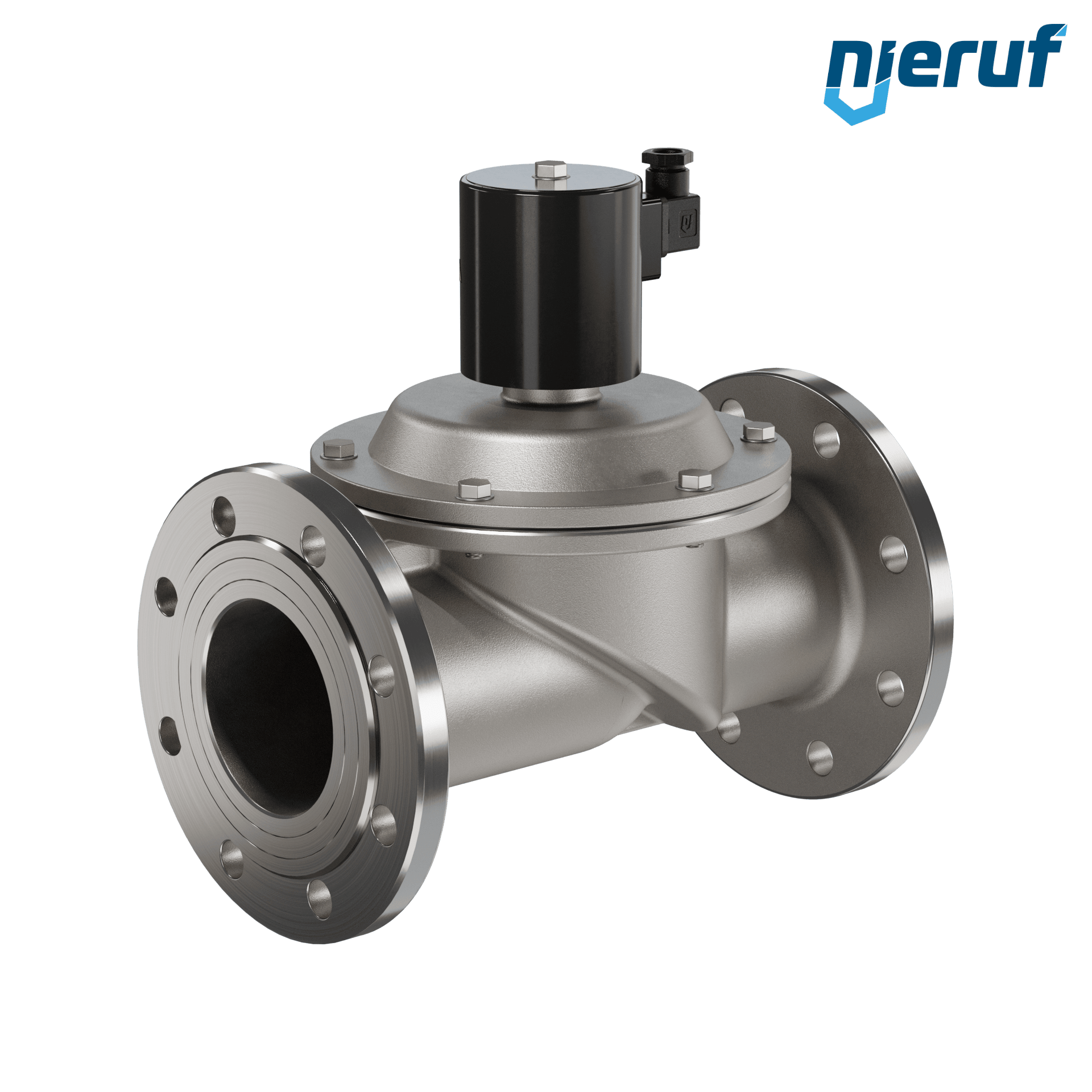

flange Solenoid valve DN100 stainless steel FV01 EPDM 24V DC
Delivery time: 1 - 2 weeks
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€19.99 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
2/2 Ways Solenoid valve flange DN100 made of stainless steel 1.4308 seal EPDM force pilot operated nominal voltage 24V DC pressure 0,0 - 5 bar
| product: | Solenoid valve |
|---|---|
| type: | FV01 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN100 |
| connection: | flange |
| type of connection: | flange |
| Type of design: | 2/2 Ways |
| flow rate: | 136.5 m³/h |
| function: | NC - normally closed |
| control: | force pilot operated |
| material: | stainless steel 1.4308 |
| seal: | EPDM |
| voltage: | 24V DC |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 64 Watt |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +130°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0,0 - 5 bar |
| installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange Solenoid valve DN100 stainless steel FV01 EPDM 24V DC
Article no.
: FV01210011
product:
Solenoid valve
type:
FV01
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN100
connection:
flange
type of connection:
flange
Type of design:
2/2 Ways
flow rate:
136.5 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
stainless steel 1.4308
seal:
EPDM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
64 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +130°C
temperature ambiente:
max up to +50°C
max. pressure:
0,0 - 5 bar
installation position:
any position, solenoid preferably standing
