EV06141003
Solenoid valve DN16 G 1/2" Inch NO - normally open 230V 50Hz
Delivery time: in stock
Express delivery*:
Shipping on: Friday, 22. November
Guaranteed delivery until Monday, 25. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

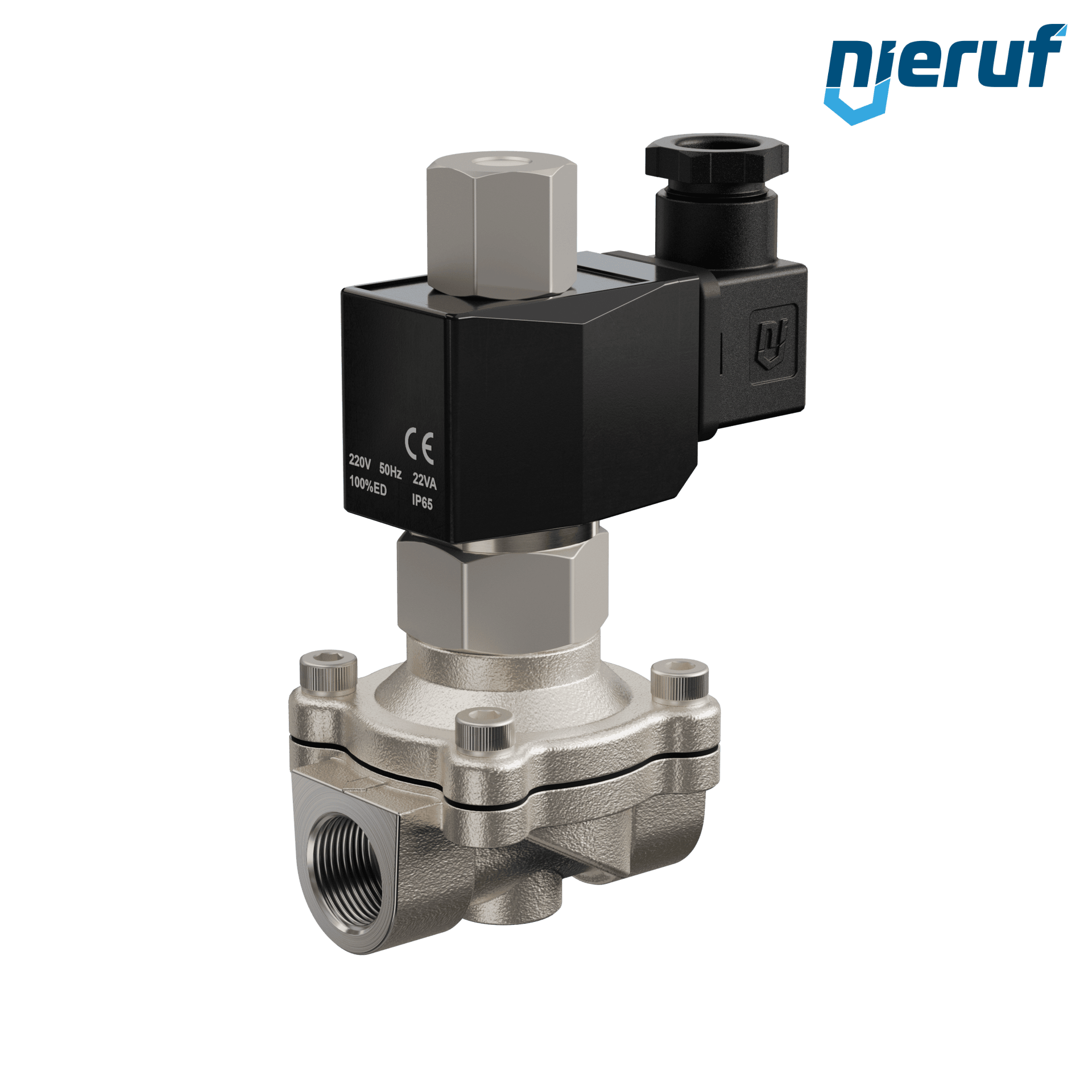

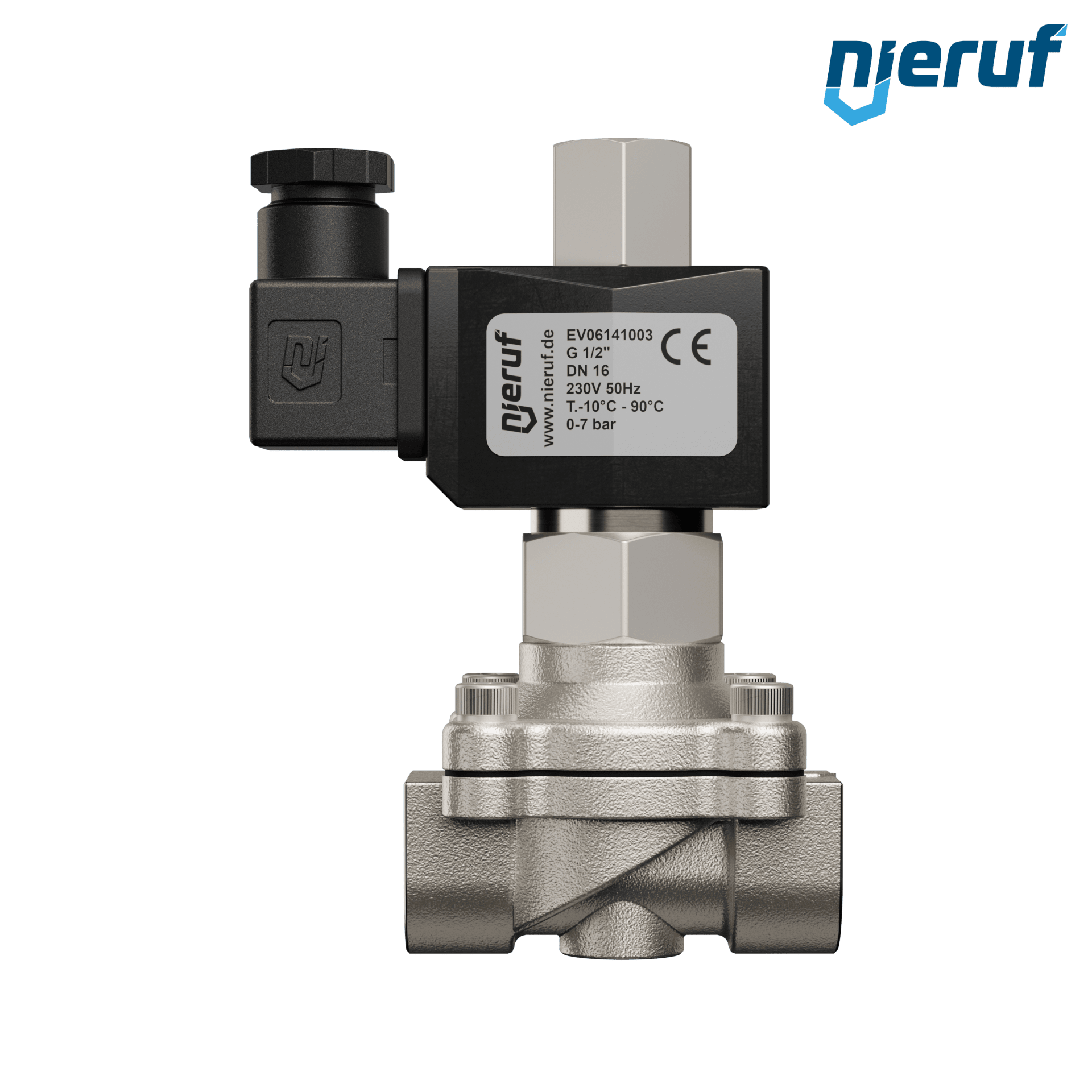

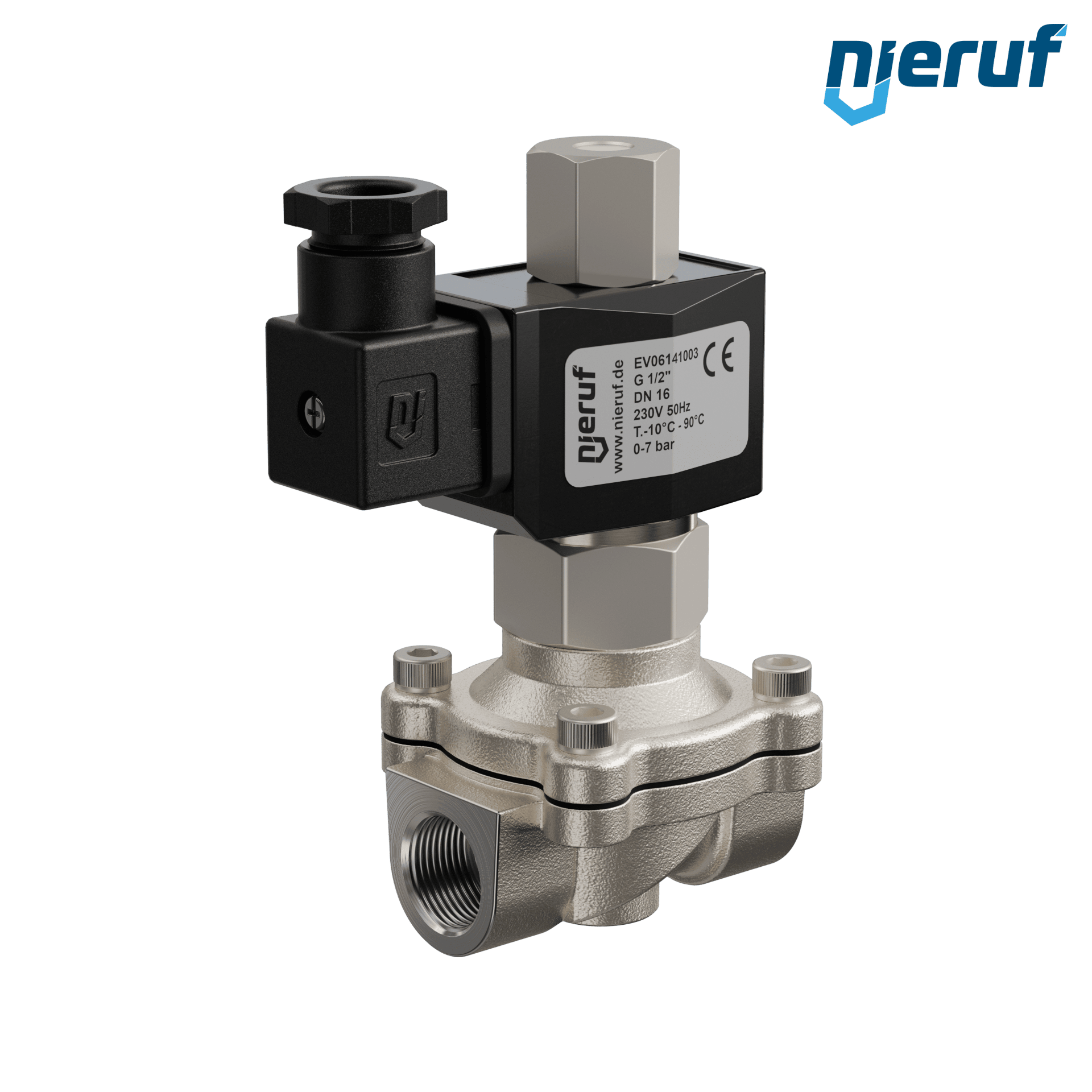

stainless steel Solenoid valve DN16 G 1/2" Inch Type EV06 NO - normally open force pilot operated NBR 230V 50Hz liquid and gaseous media
| product: | Solenoid valve |
|---|---|
| type: | EV06 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN16 |
| connection: | G 1/2" Inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 4.1 m³/h |
| function: | NO - normally open |
| control: | force pilot operated |
| material: | stainless steel 1.4308 |
| seal: | NBR |
| voltage: | 230V 50Hz |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 20 VA |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +90°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0,0 - 7 bar |
| installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN16 G 1/2" Inch NO - normally open 230V 50Hz
Article no.
: EV06141003
product:
Solenoid valve
type:
EV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN16
connection:
G 1/2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
4.1 m³/h
function:
NO - normally open
control:
force pilot operated
material:
stainless steel 1.4308
seal:
NBR
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +90°C
temperature ambiente:
max up to +50°C
max. pressure:
0,0 - 7 bar
installation position:
any position, solenoid preferably standing
